Quick Answer

Current situation of industry security risks

Whether safety measures for a press brake are adequate, depends not only on whether the machine is equipped with safety devices, but also on whether we can implement effective protective measures to address these risks, when faced with real-world operational hazards.

During the operation of a press brake, the primary risks stem from the following areas:

  • Hand injury risks during the downward movement of the ram and tooling;
  • Gap exposure during tool change and setup;
  • Accidental activation of foot switches;
  • Personnel entering the area while the backgauge is moving at high speed;
  • Accidental startup during maintenance and repair;
  • Operators entering hazardous areas around the machine.

These different risk scenarios require corresponding protective measures, such as safety light curtains, laser guard systems, interlocked side doors, rear guardrails, emergency stop buttons, foot pedal guards, two-hand controls, and safe speed control.

When purchasing a press brake, we must not only focus on tonnage, maximum bending length, press brake control systems, and the number of backgauge axes, but also pay attention to safety guarding configurations. A qualified press brake guarding system not only safeguards operator safety and reduces the risk of misoperation but also does not interfere with normal production processes.

30-Second Checklist: What safety guarding configuration does your press brake need?

Risk scenarios

Recommended safety measures

Suitable applications

Key considerations

Operator’s hand near the bending danger zone

Laser guard system

Small parts, complex parts, and close-proximity positioning bending

Laser guard systems are more suitable when operators must work in close proximity to the upper punch and lower die areas

Standard safety precautions in the front operating area

Safety light curtain

Standard CNC press brake operation

Requires proper configuration of safety distances and response logic

During tool change or setup of the first part

Interlocked side doors + setup mode

Tool change, adjustment of the first part, and trial bend with parameters

Prevents accidental startup during setup

Risk associated with the high-speed movement of the backgauge

Rear guardrail / Rear door interlock / Rear barrier

CNC press brakes with backgauge

Prevents personnel from entering the high-speed movement zone of the backgauge

Risk of accidental activation of the foot switch

Foot pedal guard

All press brake operating scenarios

A basic but essential safety configuration

Simple, repetitive bending operations

Two-hand control

Simple parts and single-operator fixed-station operation

Offers a high level of safety but lacks flexibility for complex bending operations

During maintenance or troubleshooting

lockout/tagout (LOTO) + maintenance mode

Equipment inspection, troubleshooting, and maintenance

Prevents accidental machine startup during maintenance and repair

If you are considering purchasing safety guarding for a press brake, RAYMAX can provide configuration recommendations for a suitable safety system based on your workpiece dimensions, bending process, and production requirements. For a broader overview of common protection options, see our guide to press brake safety devices and guidelines.

What is press brake guarding

Definition of Press Brake Guarding

Press brake guarding devices protect operators from being pinched or injured by the machine. The main types of devices include:

  • Physical Barriers: These include guards and fences installed around hazardous areas. They protect the operator’s hands or body; if the body accidentally comes into contact with a moving hazardous part, the physical barrier provides physical separation and helps prevent direct contact with moving hazardous parts.
  • Optical Detection Devices: One type is a light curtain, which uses infrared beams to detect intrusions into the operating area. Another type is a laser detection device; when it detects an object—such as a person—blocking the beam, it triggers an automatic shutdown to ensure worker safety.

Statistical Data on Safety Incidents

In press brake accidents, the most common risks include pinching in the die area, finger and hand injuries, accidental startup during tool change or setup, entry into the moving backgauge area, and operators bypassing safety devices. Rather than simply citing accident rates, it is more important to match each risk scenario with the corresponding protective measure.

The Role of Safety Devices in Improving Production Efficiency and Reducing the Risk of Accidents

  • Risk Reduction: Press brake safety devices can detect whether an operator’s hand is in the danger zone, and promptly stop the machine and sound an alarm, thereby reducing operational risks for the operator.
  • Improved Production Efficiency: Installing safety devices reduces the likelihood of accidents. Fewer accidents mean lower costs for maintenance and workers’ compensation, and higher equipment utilization rates.

By properly configuring laser guard systems, light curtains, and interlock systems, unexpected downtime caused by operator error or safety incidents can be minimized, resulting in more stable equipment operation and higher utilization rates.

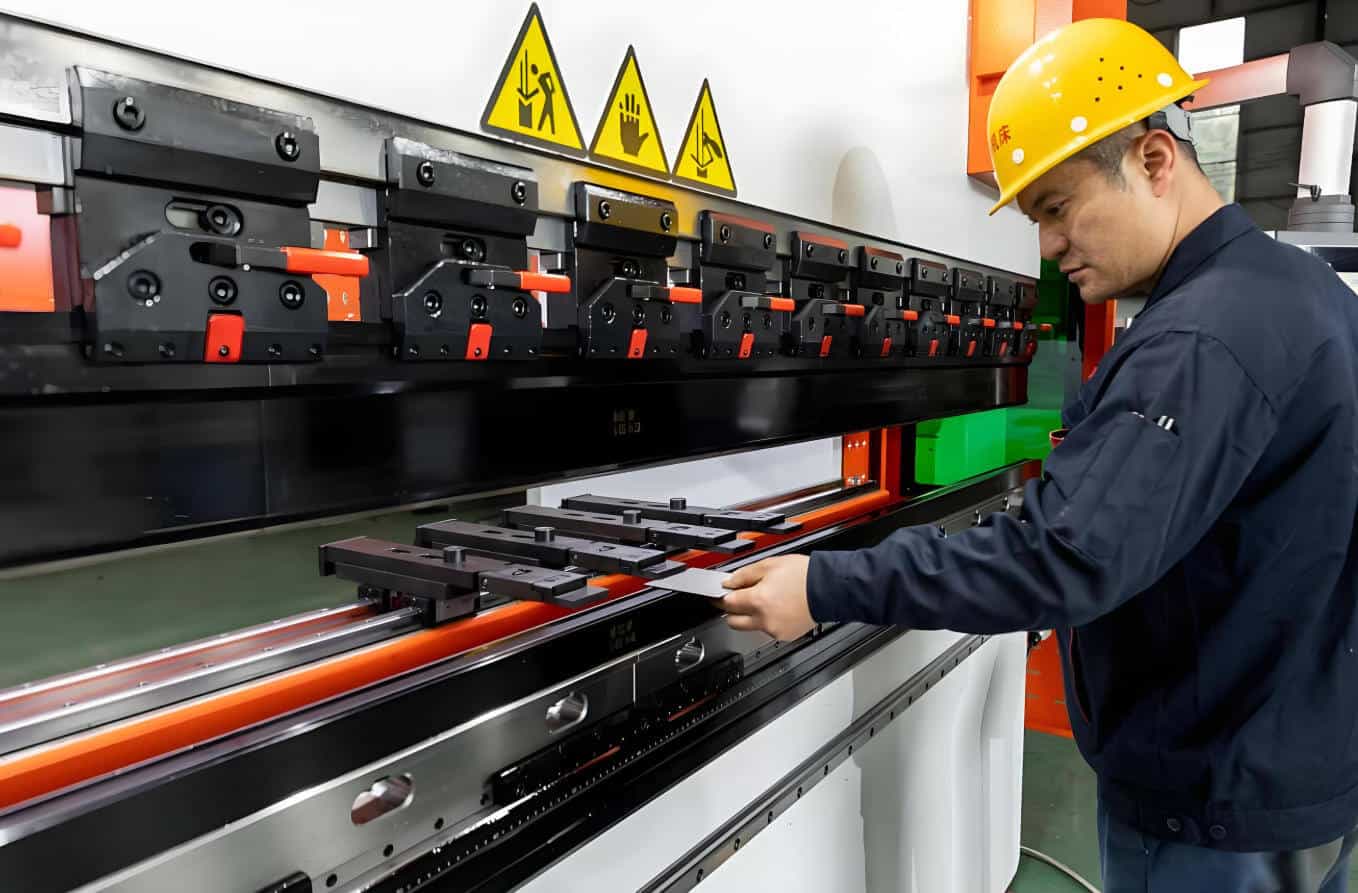

Operator is manually operating a press brake to test samples
Operator is manually operating a press brake to test samples

Safety Requirements for Press Brakes

Press Brake OSHA Requirements and Safety Guarding Configurations

When implementing safety guards for press brakes, it is crucial to adhere to relevant regulations and standards. This not only ensures corporate compliance, but also provides essential safety protection for employees.

Press brakes must comply with relevant laws and regulations when installing safety guards; using compliant protective equipment enhances customer confidence and ensures employee safety.

US OSHA Standards

OSHA 29 CFR 1910.212 outlines general machine guarding requirements, mandating the use of one or more protective measures to safeguard operators, and bystanders from injuries caused by the point of operation, pinch points, and moving parts. For press brake guarding, ANSI B11.3 is a key industry standard that should be referenced together with OSHA’s general machine-guarding requirements and the machine-specific risk assessment.

ANSI B11.3 and B11.19

ANSI B11.3 is the standard governing safety requirements for press brakes, focusing on risk assessment, operational controls, protective devices, and safety functions to mitigate operational risks in the tooling area, backgauge area, and during setup and maintenance.

Light curtains, laser guard systems, safe speed control, interlocked guarding, and two-hand controls can all reduce risks; however, the specific method to be used must be determined based on the equipment’s structure, workpiece size, operating methods, and stopping performance.

ANSI B11.19 outlines design standards for protective devices and safety functions, stipulating that protection must be non-bypassable and capable of automatically stopping the machine in the event of an anomaly.

Can Laser Protection Serve as a Safety Solution for Press Brakes?

A laser guard system can be used to reduce operational risks in the tooling area of press brakes, making it particularly suitable for scenarios involving small parts, short flange parts, close-proximity positioning bends, and complex workpieces. However, simply installing it does not guarantee compliance.

To determine whether a laser guard system is effective, the following key factors must be considered: whether it truly covers the hazardous area, whether it can reliably interface with the machine’s control system, whether the response and stopping times are sufficiently fast, whether it can be properly managed during maintenance and commissioning, and whether it undergoes regular functional verification.

In other words, compliance depends on the performance of the entire guarding system, not merely on the presence of a laser guard device.

Comparison of Common Protection Methods and Compliance Analysis

Fixed Barriers vs. Interlocked Barriers

  • Fixed Barriers: These prevent personnel from entering hazardous areas through physical isolation. Although they are simple in structure, low-cost, and maintenance-free, they lack flexibility during tooling changes, and are unsuitable for operations involving large or irregularly shaped workpieces.
  • Interlocked Barriers: These integrate the protective status into the machine’s control circuit via safety doors, guards, and electrical interlocks. The machine only allows the operator to perform hazardous operations when the safety door is closed and all safety conditions are met.

Two-Hand Control Systems and Sequential Mode

  • Two-hand Control Devices: Require the operator to press two control buttons simultaneously to start the machine, thereby keeping the operator’s hands away from the hazard zone.
  • Sequential Mode: Suitable for simple processes and single-operator tasks, it prevents the risk of “entering the hazard zone with one hand free” but is less efficient and is often used in conjunction with other protective measures.

Presence Sensors / Electro-Optical Safety Devices

  • Presence Sensors: Detect objects entering the hazard zone, and stop the machine promptly.
  • Safety Light Curtains: Form a beam array using transmitters, and receivers to detect personnel, or body parts entering the protected area. Their detection capability depends on beam spacing, detection resolution, installation distance, and safety circuit response time; they are suitable for front-area protection, and standard bending operations.
  • Laser Guard Systems: Typically positioned near the upper punch, these systems monitor hazardous areas close to the bend line and are better suited for small parts, short flanges, close-proximity positioning, and complex bending scenarios. However, laser guard systems have higher requirements for installation, alignment, commissioning, tooling changes, and periodic verification.

Press Brake Safety Protection Acceptance Checklist

Test items

What must be verified

Emergency stop button

Verify that the emergency stop button is located within easy reach of the operator, and determine whether additional emergency stop buttons are required in high-risk areas at the front, sides, or rear.

Safety interlock

Verify that side doors, rear doors, and guardrails are integrated into the machine’s control system, and ensure that the machine is prevented from performing hazardous operations when these guards are open.

Safety light curtain response

Verify that the machine can stop or enter a safe state within the designed response time if the light curtain is obstructed.

Laser guard alignment

Is the laser guard system properly aligned with the tooling’s hazard zones?

Foot switch protection

Does the foot switch have a protective cover to prevent accidental activation?

Rear protection

Are there guardrails, interlocked rear doors, or clear barriers in the backgauge area and the walkway behind the machine?

Setup mode

Does the machine maintain a safe speed or enter a restricted motion state during tool changes, first-piece setup, and parameter adjustments?

Maintenance mode

Are authorization, power-off, locking, or lockout-tagout procedures required during maintenance, servicing, or troubleshooting?

Operator training

Do operators understand the functions of safety devices, how to use emergency stops, and the requirement to never bypass safety devices?

Test log

Are safety inspection records, maintenance records, stop-time verification records, and training records properly maintained?

Types of Safety Guarding Systems for Press Brakes

Light Curtain Systems

Safety light curtains use transmitters and receivers to create a protective zone, thereby safeguarding the operator. Key components include transmitters, receivers, controllers, as well as enclosures and mounting brackets, which secure the light curtain in place, and ensure stable signal transmission.

Safety light curtains are easy to install and compatible with most press brakes. However, their performance can be affected by strong light, or smoky environments, and they may lack sufficient sensitivity, when detecting small objects. False alarms may occur when detecting irregularly shaped or complex workpieces.

Laser Guard System

Laser guard systems emit a laser beam to scan the area near the lower edge of the upper punch, to detect objects within the tooling area. Once the laser beam detects an object, the system immediately responds by triggering a shutdown.

The laser guard system primarily consists of a laser emitter, a receiver, and a controller. The advantages of laser guard systems include higher precision—allowing for the detection of small objects or intrusions near the tooling area—short response times, and suitability for environments with rapid movement. However, the disadvantages are higher costs, and the need for specialized installation and commissioning expertise.

Safe Speed Control

Safe speed control is primarily designed for hydraulic press brakes or servo-driven press brakes. When the machine’s speed exceeds the safe limit, the system forcibly limits the speed, automatically decelerating or stopping the machine while triggering an alarm. Safe speed control is particularly suitable for high-speed press brakes, but is generally not used alone; it is typically employed in conjunction with laser guarding measures.

Backgauge Area Protection and Perimeter Protection

Backgauge protection devices provide physical isolation, and generally include interlocks, chains, guardrails, protective screens, and warning tape. They prevent personnel from accidentally entering the backgauge, particularly the high-speed movement zone of the backgauge mechanism. Rear guardrails and fixed barriers have a simple structure, and are primarily used to isolate the moving area of the backgauge.

However, they also have clear limitations: they lack flexibility during tool changes, the handling of large components, or the operation of complex workpieces, and are typically used in conjunction with interlocks, warning signs, and operating procedures.

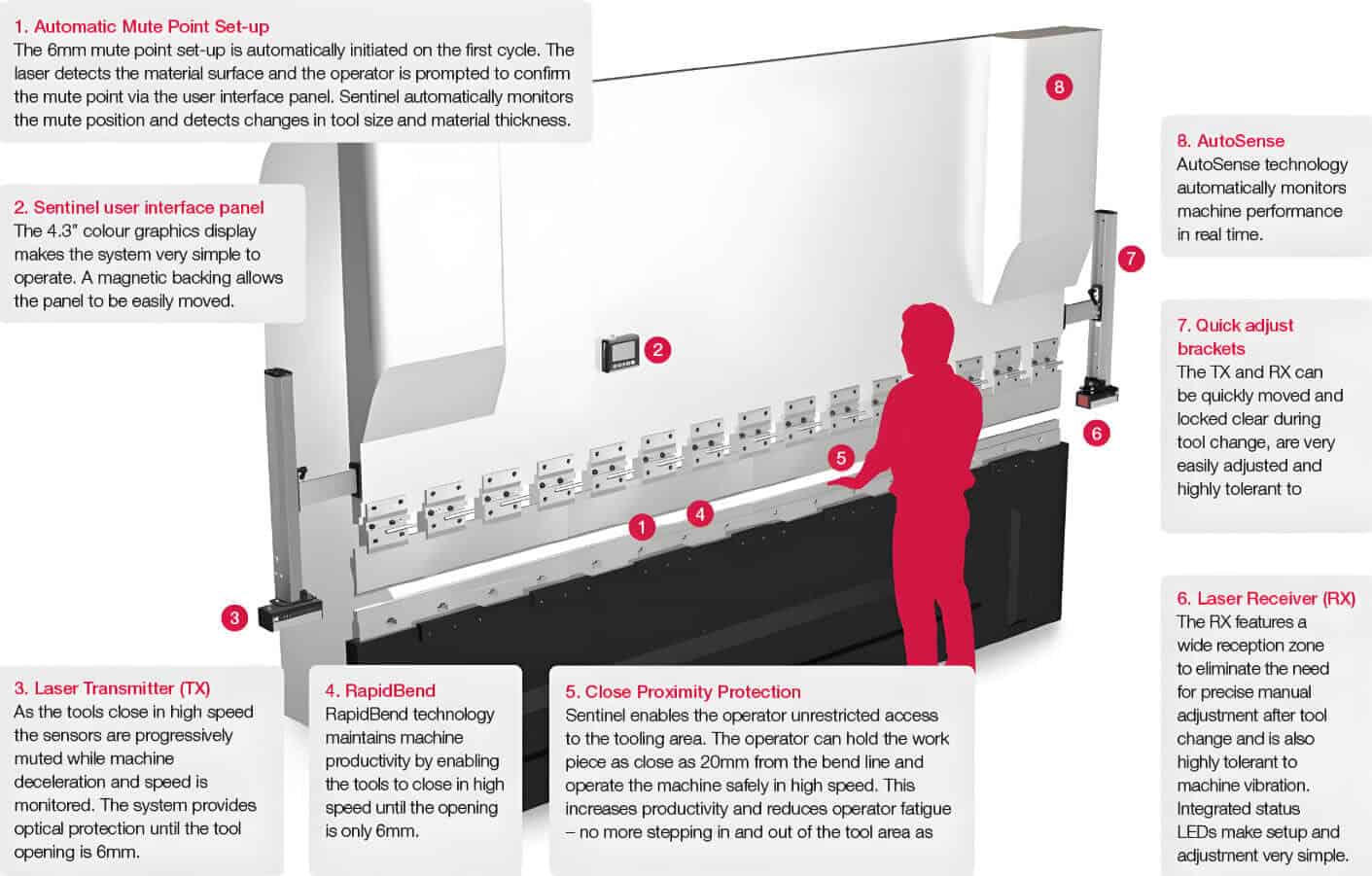

Illustration of press brake safety system
Press Brake Cascading Light Curtains

Press Brake Laser Guard System

What Is Laser Protection? How Does It Work?

Laser guard systems monitor the area near the tooling by emitting a laser beam; if an object, hand, or body part is detected, the system immediately reacts to shut down the machine.

Key Compliance and Acceptance Criteria for Laser Guard System

The core requirements of OSHA and ANSI are not that “laser guard systems must be used,” but rather that the hazardous areas of the press brake must be effectively controlled.

A laser guard system can serve as a solution to protect operators in areas near the tooling, but its compliance depends on whether the installation location is correct, the detection range is sufficient, the response is fast, the machine can stop promptly, the safety circuit is reliable, and there are records of regular verification.

Therefore, when procuring or accepting a laser guard system, we must not merely verify whether the equipment is equipped with such a system; we must also confirm that it can detect hazardous intrusions during actual bending operations, safely stop the machine, and integrate effectively with setup mode, maintenance modes, and safe speed control to form a comprehensive safety protection mechanism.

Press Brake Laser Guard vs Safety Light Curtain

Laser guard systems provide close-range protection near the tooling area and are more suitable than standard front-facing safety light curtains for small parts, short flange components, and close-proximity positioning bends.

However, they do not offer “zero safety distance.” Actual safety distances and protection effectiveness depend on system response time, machine stopping performance, correct installation, ram speed, safety circuit stability, and the on-site risk assessment.

Laser guard systems are better suited for small parts, short flange parts, close-range positioning bends, and complex bends; safety light curtains are better suited for conventional front-area operation protection. The two are not mutually exclusive; rather, each is suited for different risk scenarios. Selection should consider workpiece size, operator position, safety distance, stopping time, control capability, and production pace.

Installation, Verification, and Maintenance Requirements

Installation and Setup Specifications

  • Distance Calculation: To ensure operator safety, an appropriate safety distance must be maintained between the operator and the press brake to minimize safety risks.
  • Downtime Measurement (STM): STM verification must be performed at least once a year. This involves regularly recording stop times and conducting multiple tests under conditions, such as full machine load and maximum speed to record the longest measured stop time as the baseline for safety distance calculations, ensuring measurement accuracy.
  • Safety distances must not be set based on experience alone. The installation distance for light curtains or other sensing devices must be calculated based on the approach speed of the operator, the response time of the protective device, and the machine’s actual stopping time. The purpose of STM is to confirm that the machine can stop within the expected time after the safety device is triggered.
  • Periodic Verification: The safety devices of the press brake must undergo regular functional verification. Generally, a safety system audit should be conducted quarterly or semi-annually, including tests of light curtain or laser sensitivity, machine emergency stop interlock testing, and speed protection.
  • Documentation Requirements: Equipment inspection, maintenance, and operator training records must be kept. These records should be properly retained and updated quarterly; it is recommended to store them in the cloud to facilitate data traceability.

Press Brake Operator Safety Training and Policy Development

  • Provide operators with training on the use of safety systems and emergency procedures, to ensure they are fully familiar with operations. Daily safety performance also depends on correct machine operation, so operators should follow standard procedures on how to operate a CNC press brake correctly.
  • Clearly stipulate that safety devices must not be disabled, removed, or bypassed.
  • Post clear emergency stop, “No Entry,” and “Maintenance” warning signs around the equipment to prevent operators from entering hazardous areas or continuing to operate the equipment when safety devices are malfunctioning or deactivated.
  • Design an emergency stop procedure, conduct quarterly drills for safety and emergency response measures, and provide emergency contact numbers.
  • Train operators in emergency response and first aid, and keep a first-aid kit on-site. Buyers and workshop managers can also review typical press brake operator responsibilities to better define training, setup, inspection, and safety duties.

Maintenance and Inspection Procedures

  • Conduct daily equipment inspections, to ensure all components are in proper working order.
  • Regularly test safety functions and promptly replace failed components.
  • Adhere to lockout/tagout procedures to ensure long-term reliable system operation, and facilitate subsequent data traceability.

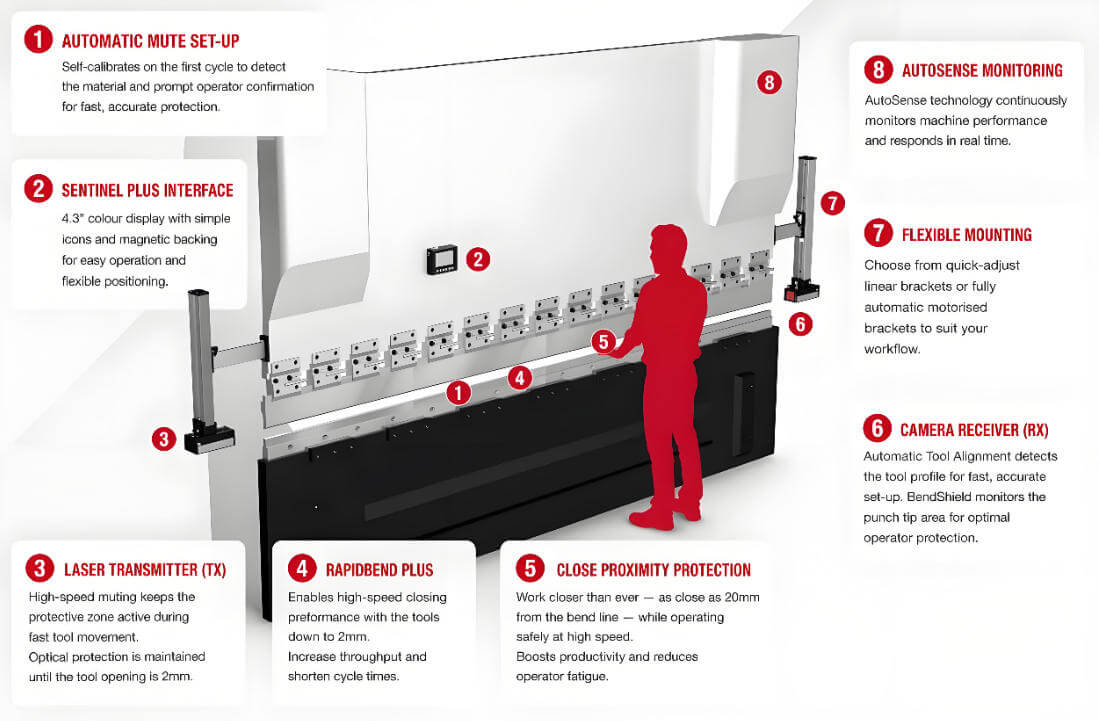

Lazer Safe's press brake guarding system
Lazer Safe’s press brake guarding system

How to Select the Right Press Brake Safety System?

When selecting a safety system for a press brake, do not simply opt for the most advanced configuration; instead, base your choice on the actual risks present in your specific operating conditions, to select the most suitable system.

  • For standard sheet metal bending, equipping the machine with safety light curtains, rear guardrails, foot pedal guards, and an emergency stop circuit can address most basic safety requirements;
  • If the majority of parts being processed are small, complex, or deep-flanged, or if operators need to work in close proximity to the tooling area, then laser guard systems would be more suitable;
  • If a 6-axis CNC press brake with a long-stroke backgauge is used, the high-speed movement of the backgauge poses significant risks, so priority should be given to configuring a safety system for the backgauge area.

When purchasing a CNC press brake, safety systems—including light curtains, laser guard systems, rear guards, foot pedal guards, emergency stop circuits, maintenance mode, and CNC control system logic—should be determined alongside tonnage, table length, the number of backgauge axes, and tooling clamping methods, rather than being retrofitted after the machine arrives at the factory.

Assessing Risk Scenarios

  • Equipment Types: Different types of press brakes have different requirements for safety guarding systems.
  • For basic mechanical or standard hydraulic press brakes, the focus should be on confirming whether fundamental safety systems—such as fixed guards, two-hand controls, foot pedal guards, emergency stop circuits, and operator zone isolation—are in place.
  • Electro-hydraulic servo press brakes and CNC press brakes feature higher levels of automation, with more complex ram control, backgauge movement, and program interlocks, requiring more comprehensive safety systems, such as safety light curtains, laser guard systems, rear area protection, interlock logic, and safe speed control.
  • Workpiece Dimensions: For routine workpieces with high repeatability and fixed operating steps, safety light curtains, fixed barriers, and rear zone isolation systems can be used. For small parts, short flanges, or workpieces that require positioning close to the tooling, close-range laser guard systems are more suitable.
  • Operator Movement Paths: If the operator needs to work close to the tooling while operating the machine, a close-range laser guard system is more appropriate.

Compliance with Regulatory Requirements and International Standards

Safety protection for press brakes should be configured in accordance with local regulations, industry standards, and on-site risk assessments. If the equipment is to be exported or sold to international customers, special attention should be paid to verifying OSHA machine guarding requirements, ANSI B11.3, ANSI B11.19, and the customer’s local safety regulations.

During acceptance testing, attention should not be limited to whether a specific safety guard is installed on the press brake. Instead, the following must be verified:

  • whether the safety system covers all hazardous areas;
  • whether it interfaces with the CNC control system;
  • whether the machine stops within the specified response time after the safety device is triggered;
  • whether the stopping time is measured;
  • whether specific safety control measures are in place for maintenance and setup modes;
  • whether test and training records are properly maintained.

Key Performance Parameters

  • When selecting safety devices for press brakes, we must prioritize the following: the responsiveness of the safety devices, the accuracy of the machine’s stopping time, whether a safety distance is maintained between the protected area and the hazard zone, the ability of the safety devices to accurately distinguish between people and obstacles, and the stability of the safety functions.
  • Safety light curtains, laser guard systems, and similar devices are equipped with sensors; therefore, during inspections, one must not only verify their installation but also test their actual functionality to ensure the machine stops hazardous operations within the specified stopping time after being triggered.
  • If the equipment may be retrofitted with multi-axis backgauge systems, automatic loading/unloading systems, or robotic units in the future, the safety system must be prepared for such expansions to ensure compatibility with these new features.

Summary of Advantages of Raymax’s Laser Safety System

RAYMAX can recommend suitable safety configurations, based on your press brake type, workpiece dimensions, backgauge setup, and operator movement paths. If you need a bending machine with suitable safety light curtains, laser guards, rear protection, foot pedal protection, and CNC safety logic, explore our CNC press brake solutions.

For standard CNC press brakes, a configuration typically including safety light curtains, rear guards, foot switch protection, and an emergency stop circuit is sufficient; however, for small parts, short flange components, and close-proximity positioning bends, upgrading to a laser guard system should be considered.

Summary of Safety Protection Methods and Selection Recommendations

Characteristics and applicable scenarios of different protection methods:

Fixed Barrier

Fixed barriers prevent operator contact with the machine tool through physical isolation, making them suitable for small equipment and simple tasks. They feature a simple structure and low maintenance costs, effectively preventing injuries, but they limit equipment flexibility—especially during tool changes—and are best suited for basic press brakes and simple bending tasks.

Light Curtain System

Safety light curtains use infrared sensors to create a safety zone. They are suitable for small- to medium-volume batch production and scenarios with high repeatability. They offer high-speed response and non-contact protection, but have low sensitivity to small objects, require complex installation, and are susceptible to interference.

Laser Detection

Laser guard systems use laser beams to monitor hazardous areas near the tooling. They are particularly suitable for small parts, short flanges, complex bends, and close-proximity positioning bends. They also offer flexibility in applications requiring frequent workpiece changes.

However, they have high requirements for installation, alignment, commissioning, and periodic calibration, necessitating strict adherence to specifications by qualified personnel. Under appropriate operating conditions, they ensure operator safety while maintaining high production efficiency.

Safe Speed Control

Safe speed control is generally suitable for press brakes with servo drive. It reduces risks by controlling the machine’s operating speed. Safe speed control can be used in conjunction with other systems, but it requires high compatibility, and specific configuration settings.

We recommend selecting a protection method, based on the type of press brake and your specific needs. Regardless of the protection method you choose, RayMaxTech will provide you with a professional press brake safety assessment, to help you select the appropriate configuration.

FAQ

A press brake safety guarding system is a set of safety configurations designed to reduce the risk of personal injury during bending operations. It typically includes safety light curtains, laser guard systems, interlocked safety doors, rear guards, emergency stop buttons, foot pedal guards, two-hand controls, safe speed control, and maintenance lockout procedures. The specific safety systems required for a machine must be evaluated based on the machine type, workpiece dimensions, and bending process.

It depends on the specific operating conditions. If the workshop primarily processes small, complex parts that require close-range positioning for bending, and the operator must be near the tooling area, a laser guard system is more suitable. Safety light curtains, on the other hand, create a wide protective zone in front of the machine and are suitable for standard sheet metal bending, particularly in scenarios where the operator does not need to operate near the tooling area.

Neither of these protection systems is inherently better than the other; the choice depends on workpiece size, operating position, and production volume requirements.

Yes. The rear of the press brake is typically the backgauge travel zone, posing a high risk of personnel accidentally entering the zone. This is especially true for CNC press brakes with long-stroke or multi-axis backgauge systems, where the backgauge moves at high speeds during bending. If the rear area lacks isolation, guardrails, rear door interlocks, or clear warning signs, serious safety hazards can easily arise. Therefore, when equipping a press brake with safety guarding systems, it is essential to prioritize protection for the backgauge area.

Some older press brakes can be retrofitted with safety light curtains, laser guard systems, rear guardrails, foot pedal guards, and emergency stop devices. However, before retrofitting, it is necessary to first assess the machine’s stop response time, CNC control system, electrical safety circuits, and mechanical condition. If the machine cannot stop quickly after the safety device is activated, retrofitting external safety devices may not effectively eliminate safety risks.

When purchasing a CNC press brake, the safety configurations that should be checked include: safety light curtains or laser guard systems, emergency stop button locations, foot pedal guards, rear guards, interlock logic, safe speed control, maintenance mode, and stop time measurement (STM). It is best to finalize these safety configurations during the equipment selection phase, rather than retrofitting them after the machine has been purchased.

If safety guards are improperly configured, they may affect bending efficiency; however, properly configured safety guards should not significantly disrupt normal bending operations. For example, a laser guard system can reduce unnecessary stops when operators work near the tooling area, making it more efficient than a safety light curtain for small, complex parts or close-proximity positioning during bending. We must select appropriate safety devices, based on the workpiece and operating methods, to ensure both operator safety and uninterrupted bending operations.

Emergency stop buttons, safety light curtains, laser guard systems, interlocking doors, foot pedal guards, rear guards, and safe speed control all require regular inspection, at least once every three months. Stopping time measurement tests should be verified, at least once a year under full-load, maximum-speed conditions. Records of each inspection, maintenance, and training should be retained for future verification and management.

When selecting a safety guarding system for a press brake, we must first assess operational risks, based on the specific operating scenario, and then choose the appropriate protection method, based on those risks.

For example, for routine sheet metal bending, you can opt for safety light curtains, rear guards, foot pedal guards, and an emergency stop system; for small, complex parts, or close-proximity positioning bends, a laser guard system and safe speed control are more suitable; for CNC press brakes with high-speed backgauge movement, special attention must be paid to inspecting the rear guarding devices and interlock logic.

In summary, safety configurations must be evaluated in conjunction with the type of workpiece, operating methods, production pace, and the CNC control system.

Related products

Related Blog

Post Your Review

Share Your Thoughts And Feelings With Others

One response to “Press Brake Guarding Systems & Requirements: OSHA & ANSI Safety Guide”

  1. Sam Veum Avatar
    Sam Veum

    I have been browsing online more than three hours today yet I never found any interesting article like yours It is pretty worth enough for me In my view if all website owners and bloggers made good content as you did the internet will be a lot more useful than ever before
