press brake control retrofit solutions

Raymax has the most powerful press brake controllers on the market, providing customized press brake controller retrofit and upgrade services for each press brake!

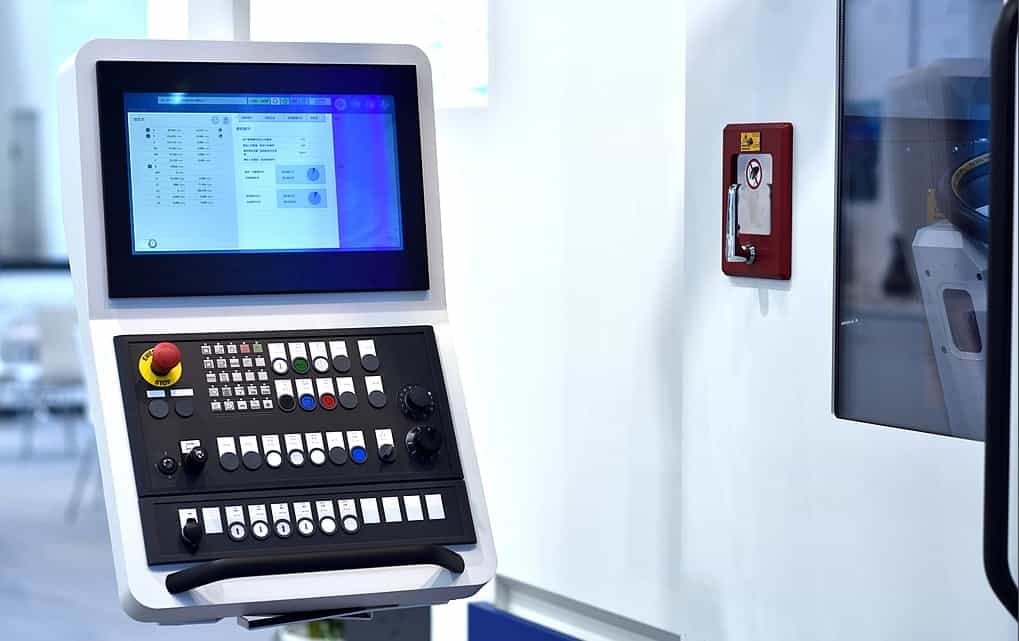

press brake cNC controller

The press brake CNC controller controls the operation of the machine tool through a series of programming, which is the core technology of bending processing. At present, the press brake controller is mainly divided into NC and CNC. The NC system program is fixed and cannot be modified; The CNC system has the function of modifying and editing programs, which is an upgraded version of the NC system.

Its advantages include:

  • Multiple programming methods and allow users to modify and edit programs;
  • More friendly user interface, reduce the difficulty of operation;
  • Storage and call function of large capacity complex bending steps;
  • Advanced automation functions: automatic tool change, automatic compensation, etc.
  • Stronger scalability, such as CAD/CAM systems, MES systems, etc.
  • Improved troubleshooting capabilities for reduced downtime.
press brake cnc control system

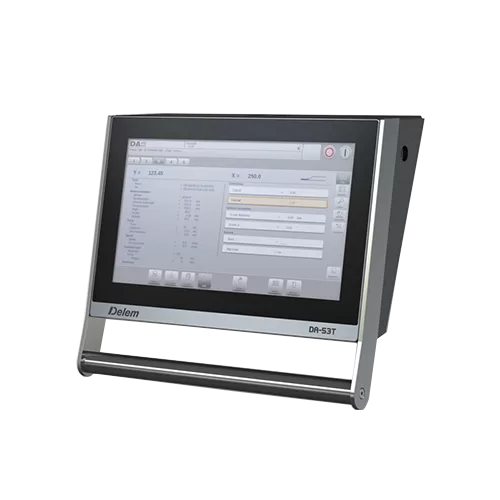

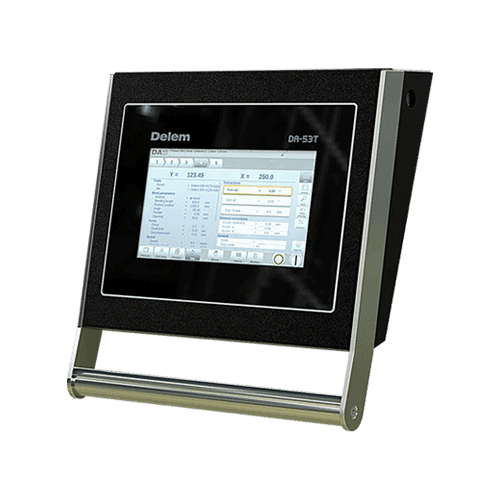

DELEM DA53T Touch Color CNC System

  • Hot-key” touch navigation
  • 10.1 high resolution colour TFT
  • Up to 4 axes (Y1,Y2 + 2 aux. axes)
  • Crowning control
  • Tool / material / product library
  • Servo and frequency inverter control
  • Advanced Y-axis control algorithms for closed-loop as well as open-loop valves
  • TandemLink (option)
  • USB memory stick interfacing
  • Profile-T offline software

Download Flyer
DELEM-DA53Tx

DELEM DA-53Tx Touch Color CNC System

  • Numerical touch screen programming
  • 15″ high resolution color TFT
  • Up to 4 axes (Y1,Y2 + 2 aux. axes)
  • Crowning control
  • Servo and frequency inverter control
  • CNC Crowning control
  • Advanced Y-axis control algorithms for closed-loop as well as open-loop valves.
  • USB, peripheral interfacing
  • Profile-T offline software
  • Tool / material / product library

Download Flyer

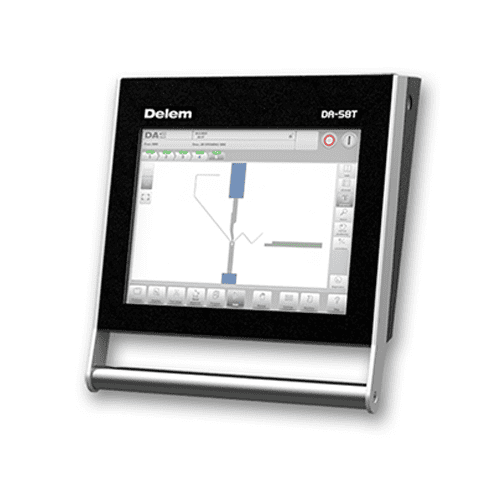

DELEM-DA58T

DELEM DA58Tx Color 2D graphical CNC System

  • 2D graphical touch screen programming
  • 18,5″ high resolution color TFT
  • Up to 4 axes (Y1,Y2 + 2 aux. axes)
  • Bend sequence calculation
  • Crowning control
  • Servo and frequency inverter control
  • Advanced Y-axis control algorithms for closed-loop as well as open-loop valves
  • USB, peripheral interfacing
  • Profile-T offline software
  • CNC Crowning control

Download Flyer

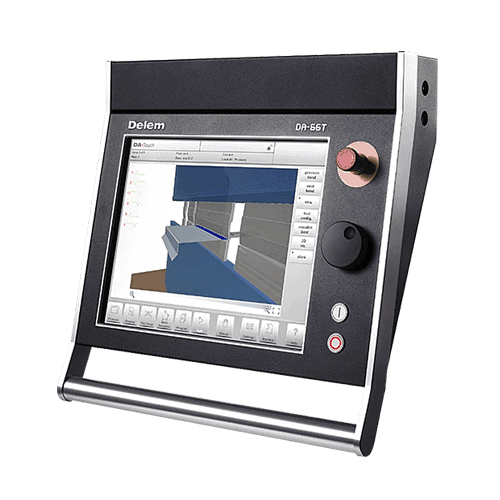

ELEM-DA66T

DELEM DA66T Touch 2D Graphical Control

  • 2D graphical touch screen programming mode
  • 17″ high resolution colour TFT
  • 3D visualisation in simulation and production
  • Full Windows application suite
  • Delem Modusys compatibility (module scalability and adaptivity)
  • USB, peripheral interfacing
  • User specific application support within the control’s multitasking environment
  • Sensor bending & correction interface Profile-TL offline software
  • Profile-T2D offline software

Download Flyer

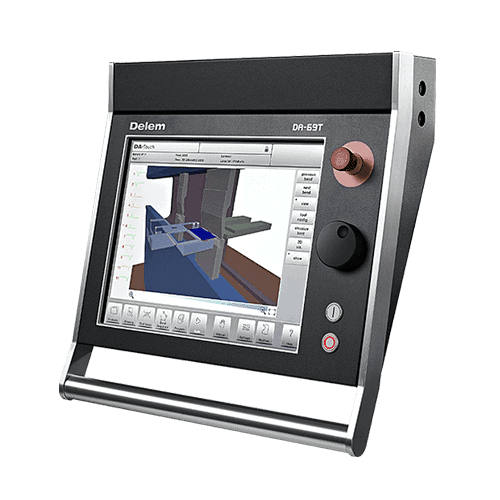

DELEM-DA69T

DELEM DA69T Touch 3D Graphical Control

  • 3D and 2D graphical touch screen programming mode
  • 3D visualisation in simulation and production
  • 17″ high resolution colour TFT
  • Full Windows application suite
  • Delem Modusys compatibility (module scalability and adaptivity)
  • USB, peripheral interfacing
  • User specific application support within the control’s multitasking environment
  • Sensor bending & correction interface
  • Profile-T3D offline software

Download Flyer

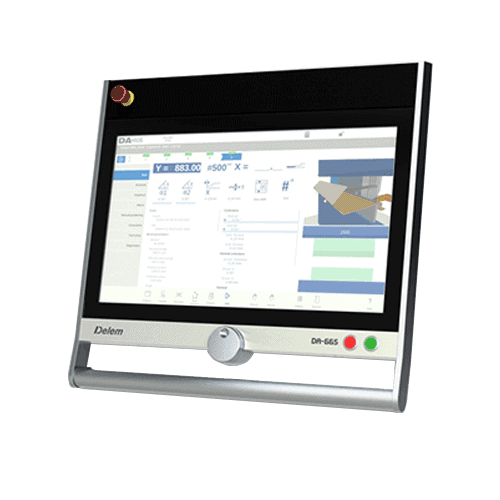

DELEM-DA66s

DA-66S DA-60S series 2D modular press brake control

  • 2D graphical touch screen programming mode
  • 3D machine representation, in simulation and production
  • 24″ high resolution color TFT
  • Delem Modusys compatibility (module scalability and adaptivity)
  • USB, peripheral interfacing
  • User specific application support within the control’s multitasking environment
  • Sensor bending & correction interface
  • Profile-S2D offline software

Download Flyer

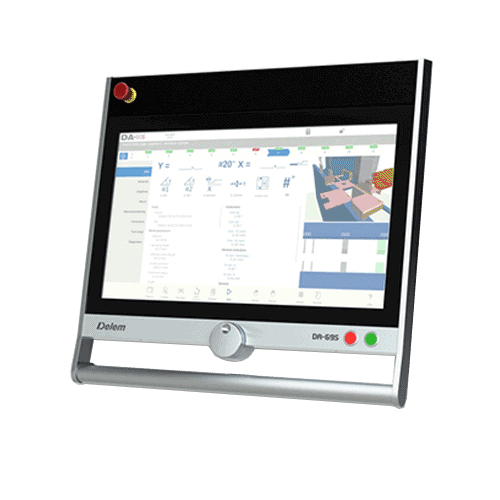

DELEM-DA69S

DA-69S DA-60S series 3D modular press brake control

  • 3D and 2D graphical touch screen programming mode
  • 3D visualization, including 3D machine representation, in simulation and production
  • 24″ high resolution color TFT
  • Delem Modusys compatibility (module scalability and adaptivity)
  • USB, peripheral interfacing
  • User specific application support within the control’s multitasking environment
  • Sensor bending & correction interface
  • Profile-S3D offline software

Download Flyer

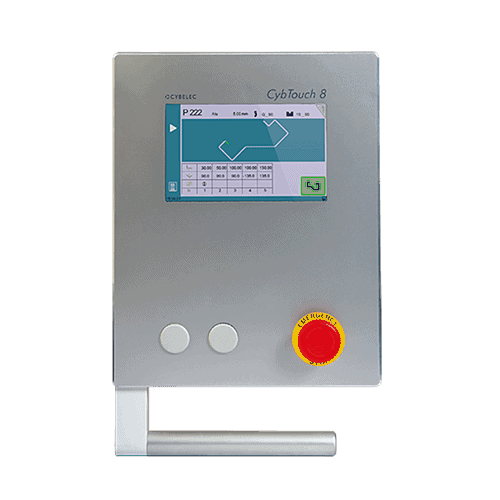

CYBELEC-CybTouch-8

CYBELEC CybTouch 8 PS 2D graphic CNC System

  • 7” color graphic CRT screen
  • 2D graphic profile creation with manual sequencing
  • Up to 4 axes (Y1,Y2 + 2-axes)
  • Bend allowance calculation.
  • Pressure – crowning calculation
  • CNC Crowning control
  • Angle and back gauge correction
  • Delivered with PC1200 offline software

Download Flyer

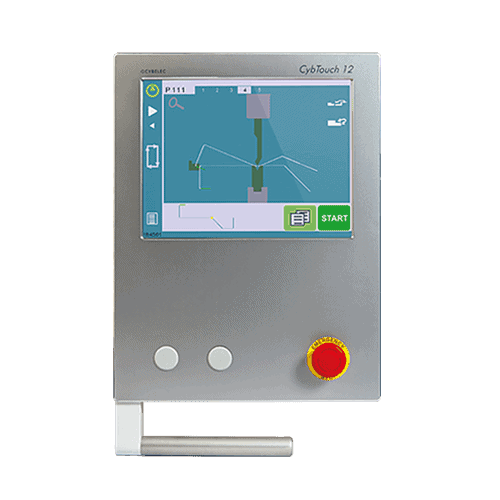

CYBELEC-CybTouch-12

CYBELEC CybTouch 12 PS 2D graphic CNC System

  • 12” color graphic with fully touch screen
  • Touch 2D graphic part creation with manual sequencing
  • Up to 4 axes (Y1,Y2 , X, R-axes)
  • Option for automatic bending sequence calculation
  • Pressure – crowning calculation.
  • Modulable tools for each part or bend
  • Angle and back gauge correction
  • Delivered with PC-ModEva offline software

Download Flyer

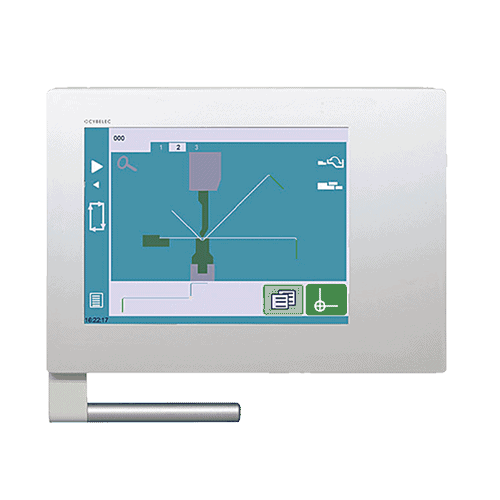

CYBELEC-CybTouch-15

CYBELEC CybTouch 15 PS 2D graphic CNC System

  • 15” color graphic with fully touch screen
  • Touch 2D graphical profile drawing and precise 2D program creation
  • Up to 6 axes (Y1,Y2 , X, R ,Z1 , Z2-axes)
  • Automatic bending sequence calculation
  • Tandem management
  • Modulable tools for each part or bend
  • Angle and back gauge correction
  • VisiTouch 2D or VisiTouch MX offline software

Download Flyer
ESA-S630

ESA S630 2D Graphical CNC System

  • Resistive type 10 ”Touch color screen
  • Touch 2D graphic part creation with manual sequence
  • Stander to 4 axis(Y1, Y2, X, R)
  • Automatic bending force, crowning calculation
  • Modulable tools for each part or bend
  • Direct angle correction, also for the crowning
  • Free off-line PC simulation software
  • Tandem machine management (option)
  • Proportional and pressure valve Amplify integrated
  • Modbus TCP interface for SCADA or MES (option)
ESA-S640

ESA S640 2D Graphical CNC System

  • 15 inch LCD touch screen (Resistive)
  • Touch 2D graphic part creation with automatic sequence
  • Stander to 4 axis, can up to 6 axis max
  • Automatic bending force, crowning calculation
  • Modulable tools for each part or bend
  • Direct angle correction, also for the crowning
  • Proportional and pressure valve Amplify integrated
  • Free off-line PC simulation software
  • Tandem machine management(option, can up to 4 machines)
  • Modbus TCP interface for SCADA or MES (option)
ESA-860

ESA 860 3D Graphical CNC System

  • 18.5″ designed for multi touch screen
  • Support multi touch application
  • No frame, simple but powerful
  • Support finger-tip work piece design
  • Support import of tools shapes (.dxf ifles)
  • Support management of tool library
  • Support tool and die holders’ management
  • Support datam angle measurement system
  • Support ESA 3D Bend software
  • Equip standard industry 4.0 Modbus TCP interface
ESA-S875

ESA S875 3D Graphical CNC System

  • 21.5” designed for multi touch screen
  • Support multi touch application
  • No frame, simple but powerful
  • Support finger-tip work piece design
  • Support import of tools shapes (. dxf files)
  • Support management of tool library
  • Support tool and die holders’ management
  • Support Datam angle measurement system
  • Support ESA 3D Bend software
  • Equip standard industry 4.0 Modbus TCP interface

Fuction and Performance
Difference Table

DA53T

DA58Tx

DA66T

DA69T

DELEM-DA53T
DA58T
DELEM-DA66T
DELEM-DA69T

Automatic Back Guage

4+1

4+1

6+1

6+1

Maxmum Axis

Programs Library

Angle Caculation

Moulds Libraray

Pressure Caculation

Automatic Crowning Caculation

Automatic Back Guage Speed Setting

Automatic Bending Speed Setting

Automatic Return Stroke Setting

Automatic System Protection

2D Programming

3D Simulation

3D Visualisation

Offline Software

Accuracy

Bending

±0.15-0.25°

±0.15-0.25°

±0.15-0.25°

Back gauge

+0.02-0.05mm

+0.02-0.05mm

+0.02-0.05mm

+0.02-0.05mm

Speed

+0.02-0.05mm

200mm/S

200mm/S

200mm/S

Back gauge

200mm/S

200mm/S

200mm/S

200mm/S

ESTUN NC Control System

— Specially configured for standard press brakes —

Fuction and Performance
Difference Table

ESTUN E21

ESTUN E310P

TP10S

ESTUN CT8

ESTUN E21
ESTUN E310
TP10S controller
ESTUN-CT8

Control Axes

2 (X, Y)

Multi-axis (X, Y, R)

Multi-axis (X\Y\R\XF)

Multi-axis (X, Y1, Y2, R, Z)

Programming

Basic

Advanced (G/M code)

Advanced

Complex (2D/3D)

Display

LED/LCD

Color Touchscreen

Hd LCD display

Large Color Touchscreen

Automatic Adjustments

Manual Back Gauge

Auto Back Gauge & Crowning

Auto Back Gauge & Crowning

Full Auto (Crowning, Tooling)

Connectivity

None

USB, Ethernet

USB, Ethernet

USB, Ethernet, Wireless

Applications

Basic Bending

Medium/Complex Bending

High-Precision Bending

Advanced Manufacturing
