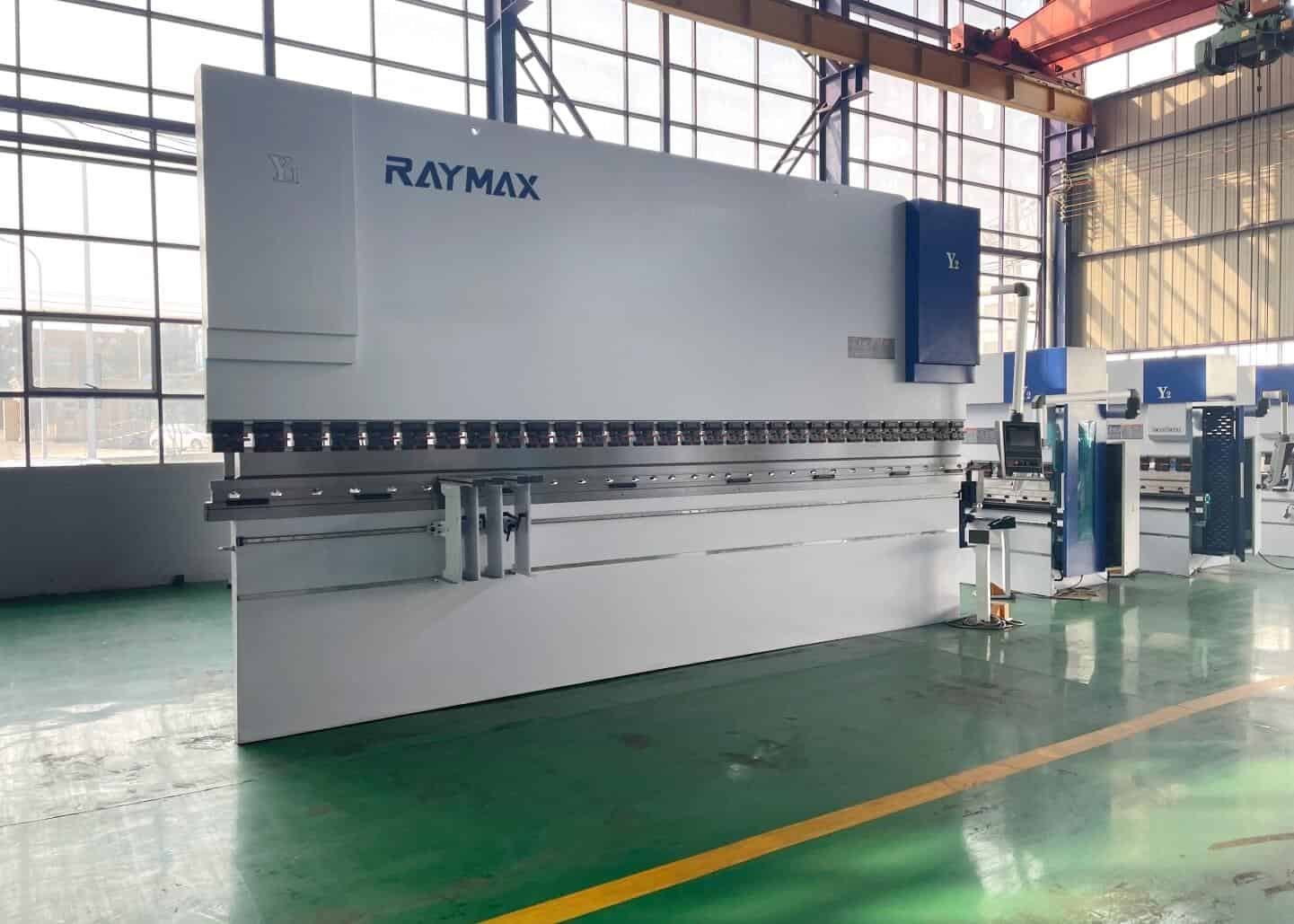

220 250 ton x 13 ft 6 axis big steel plate CNC hydraulic press brake machine for sale

Original price was: $58,000.00.Current price is: $45,000.00.

Model:RX-H Series 250ton*4000mm

Control Axis:6 Axis

Category:CNC Press Brake

Brand Name:RAYMAX

Bending Pressure:250 ton

Workbench length:13.12 ft/157.48 in

Controller:CNC DELEM DA66T Controller

Key informations:220 ton press brake,250 ton press brake,13 press brake,6 axis press brake,big press brake,steel plate press brake,CNC hydraulic press brake machine

Technology

Type:250ton*4000mm
Nominal pressure:2500KN
Workbench length:4000mm(13.12ft/157.48 in)
Workbench width:1000mm(3.28ft/39.37 in)
Poles distance:3330mm(10.92ft/131.10 in)
Throat depth:450mm(1.48ft/17.71 in)
Main motor:18.5kw
Dimensions L*W*H:4800*1900*2850mm

Configurations

220 250 ton x 13 ft 6 axis big steel plate CNC hydraulic press brake machine for sale

Main Feature

250 ton x 13 ft six-axis press brake with a rear control system with left and right movement positioning function, which is suitable for sheet metal processing with special requirements on bending accuracy or shape! Rated power 250 tons, equipped with advanced ECNC DELEM DA66T Controller, German BOSCH-REXROTH hydraulic valve, Taiwan Hiwin linear quide and ball screw, segmented upper and lower tools, top CE safety standards.

  • High-strength steel body, perfect and sturdy.
  • Dual hydraulic cylinder, precision positioning <0.004″.
  • Wide frame posture, easily adapt to the requirements of deep bending and long molds.

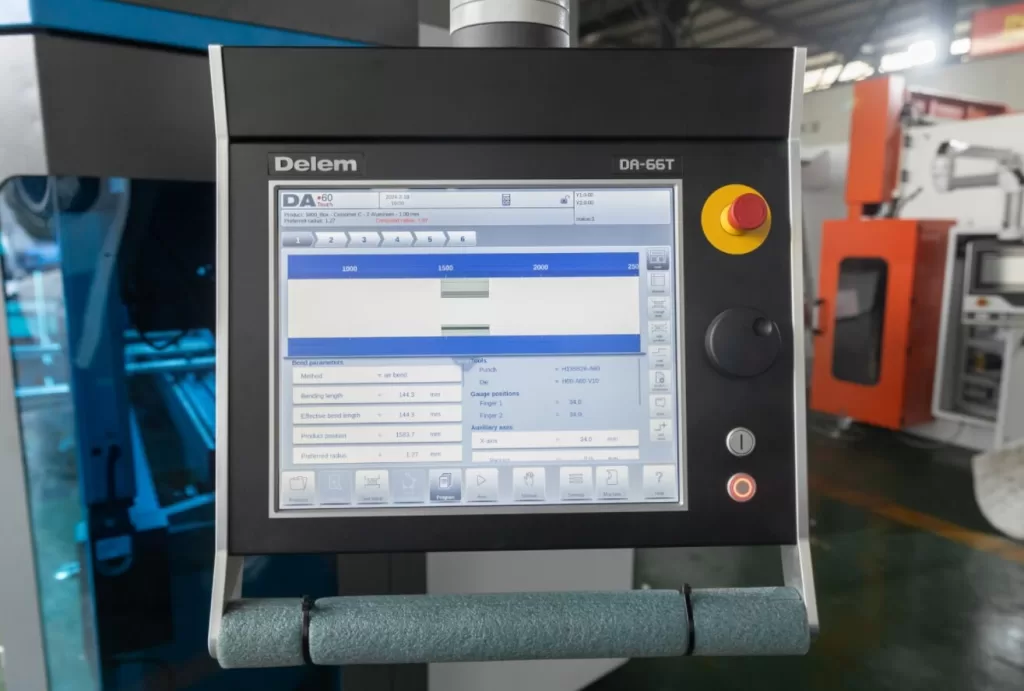

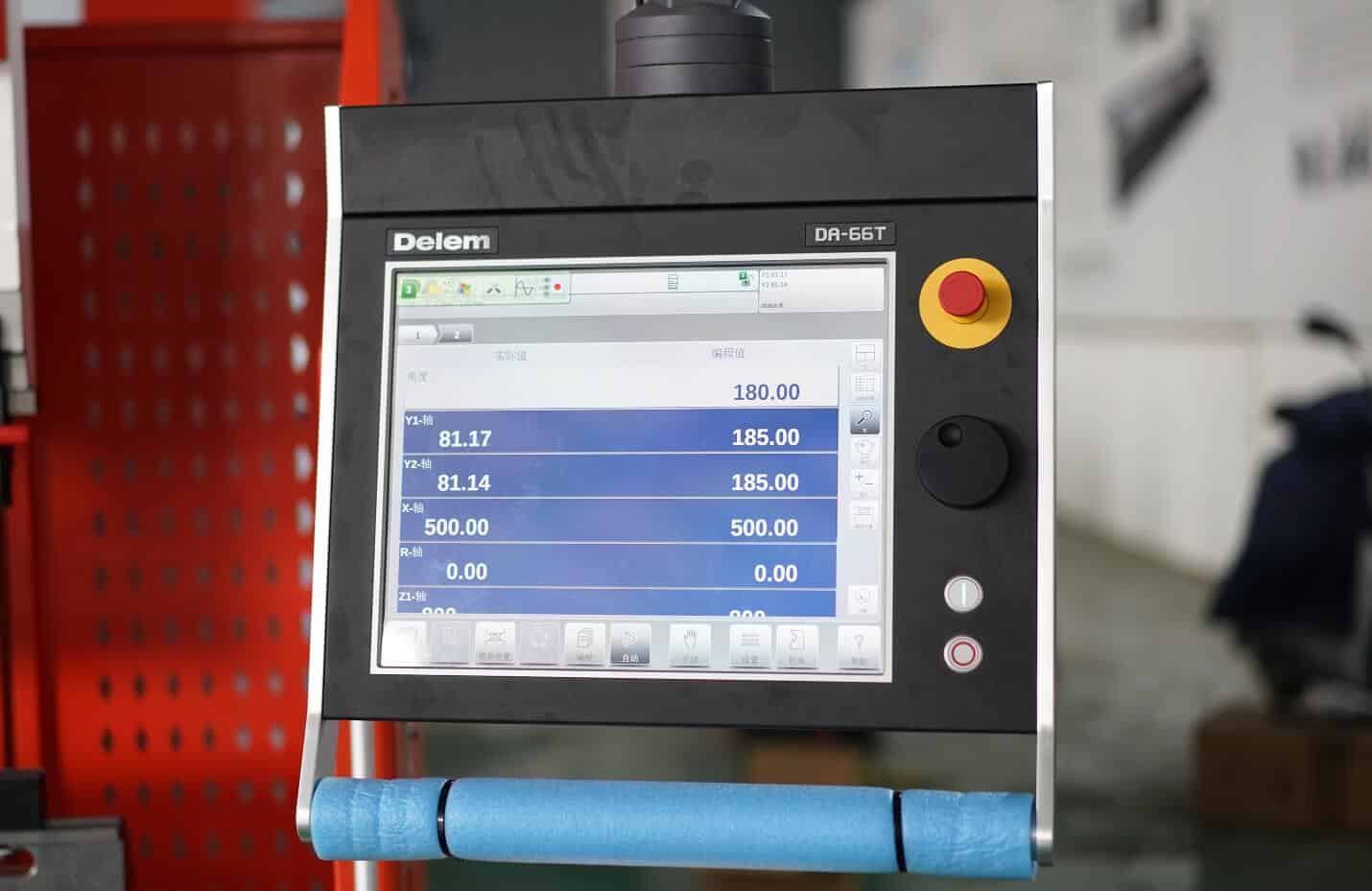

DELEM DA66T Controller

DELEM DA66T Touch Color CNC System

  • 2D graphical touch screen programming mode
  • 17″ high resolution colour TFT
  • 3D visualisation in simulation and production
  • Full Windows application suite
  • Delem Modusys compatibility (module scalability and adaptivity)
  • USB, peripheral interfacing
  • User specific application support within the control’s multitasking environment
  • Sensor bending & correction interface Profile-TL offline software
  • Profile-T2D offline software

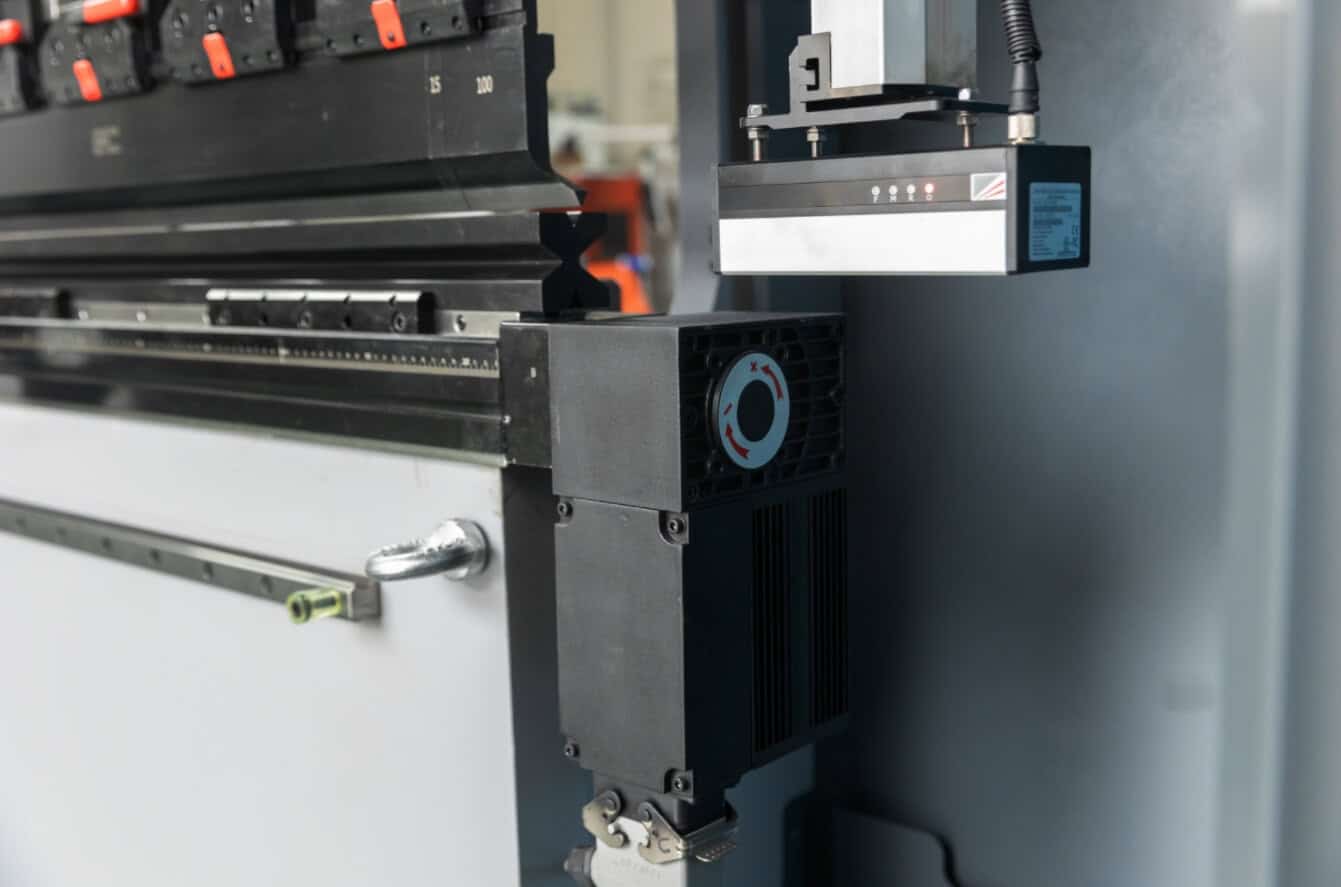

Deflection Compensation Workbench

Deflection Compensation Workbench

  • 100% Constant Bending Angle
  • 60mm & 90mm European-style Molds
  • Electric Crown with Controller
  • Base can be clamped as well as single dies with 13 mm tang
  • Precise positioning and alignment of the crowning table
  • User-Friendly & Quick Operation
Italian GIVI grating ruler

Italian GIVI Grating Ruler

Imported Italian GIVI high-precision grating ruler sensor, installed on the linear guide rail, can move smoothly and adjust up and down, 2-side feedback accuracy up to 0.02.

  • High-precision positioning with flexible operation.
  • Adjustable design to accommodate different sizes and shapes of workpieces.

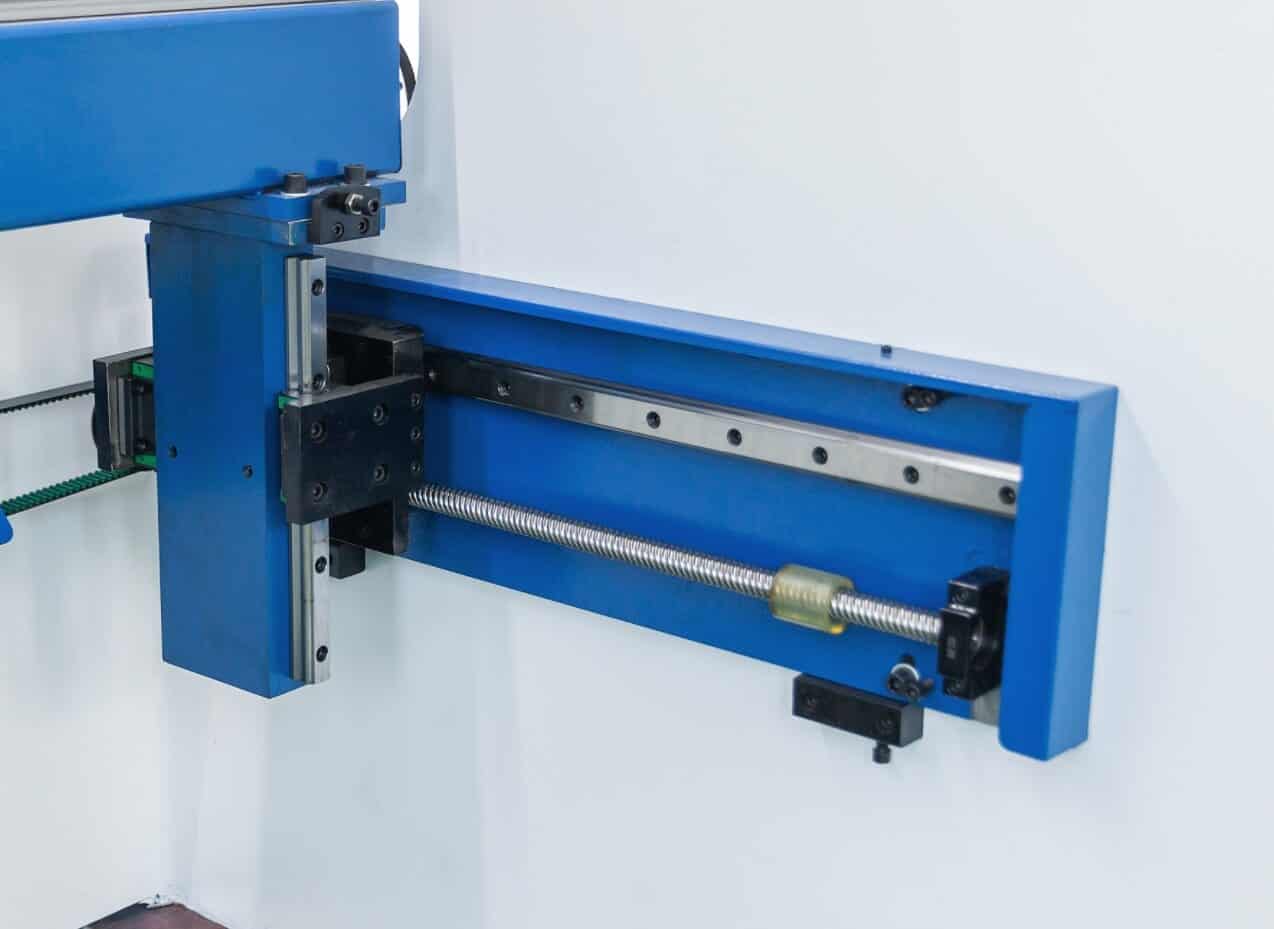

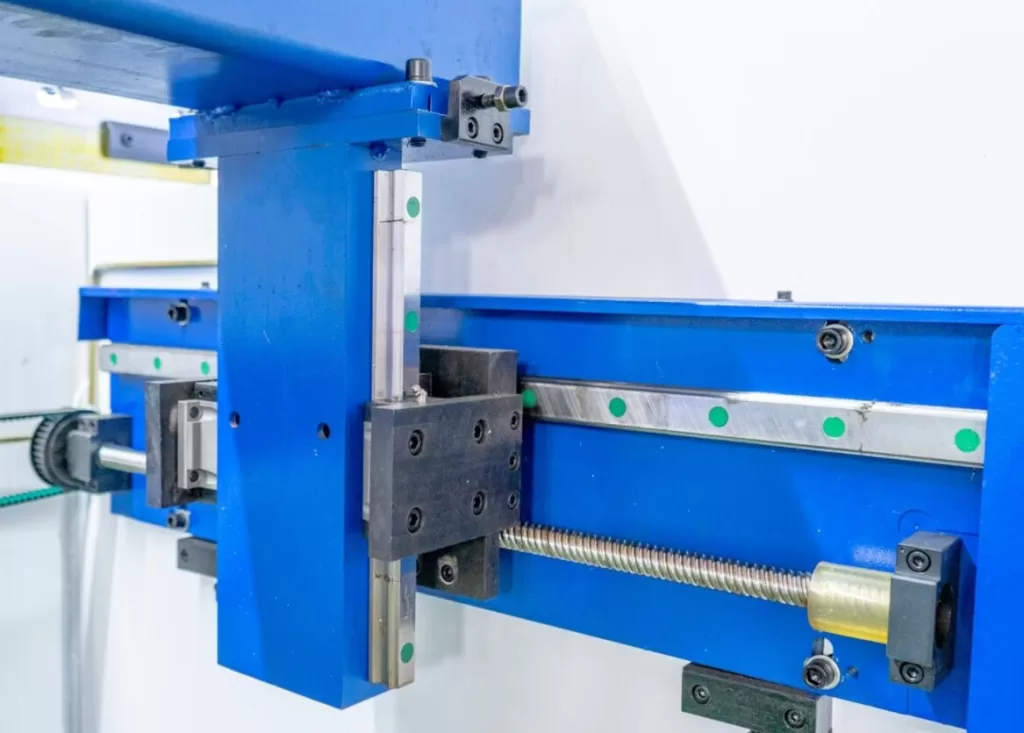

X-axis Guide Rail and Lead Screw

X-axis Guide Rail and Lead Screw

Independently designed high-precision back stop assembly, equipped with HlWIN high-precision ball screw, high precision, fast speed, good stability.

  • positioning accuracy of 0.01mm.
  • Axis X speed 500 mm/s
  • Supports forward and backward movement of the X-axis and manual left and right movement of the Z-axis to adapt to a variety of different punches and workpiece needs.
  • Fingers with double stop and micrometric adjustment.
4V Concentric Die

4V Die

The 4V mold is multifunctional,featuring four different V-shaped grooves that allow selection of the appropriate opening width based on bending thickness. The mold can also be used in conjunction with semicircular notches to meet various bending needs.

  • Strong multifunctionality,with one mold satisfying multiple bending requirements.
  • Reduces mold change frequency and improves production efficiency.
Fast Clamp

Fast Clamp

After heat treatment and blackening treatment, this fixture is convenient to disassemble and clamp the upper mold in small size.

  • Simple operation with reliable clamping.
  • Adapts to various mold types.
  • Enhances assembly line operation efficiency.
  • Reduces downtime and improves production continuity.
Finger Block

Finger Block

Multiple finger blocks,with point contact between each other, move smoothly on the linear guide rail, and can be adjusted up and down, which is convenient, efficient and easy to control.
During bending work, finger blocks frequently change positions as needed to
achieve bending of plates of different lengths and avoid the problem of insufficient straightness of the plate.

front plate support

Front Plate Support

The front plate support has a movable design, movable front support, moves along a linear guide, can be docked at any position, and has rotation and height adjustment to assist your bending work (to accommodate different sizes and shapes of the work piece).

Main Motor Siemens Germany brand

German Siemens Main Motor

Adopt German brand Siemens motor, which can effectively save 40% energy, improve the overall working efficiency of the slider by about 20%, and reduce the oil temperature to 20°c. In addition, we provide customized solutions for machine power and voltage to meet local specific voltage requirements.

  • It can be applied to various harsh working environments.
  • Educe energy consumption and extend the service life of equipment.

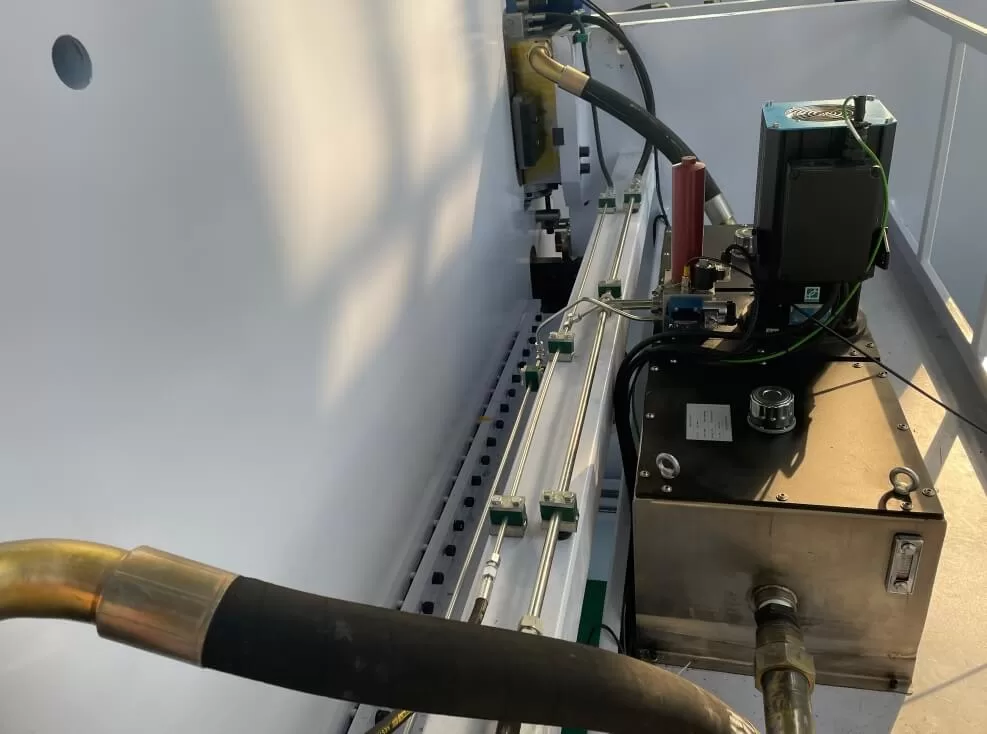

Germany Bosch Rexroth Hydraulic System

Germany Bosch Rexroth Hydraulic System

Using German Rexroth hydraulic system can reduce hydraulic oil leakage problems, hydraulic pressure can be adjusted according to actual needs to meet different bending force requirements

  • Energy-efficient and operates smoothly.
  • Durable hydraulic components suitable for long-term high-load work.
  • Provides stable pressure output. ensuring bending accuracy.

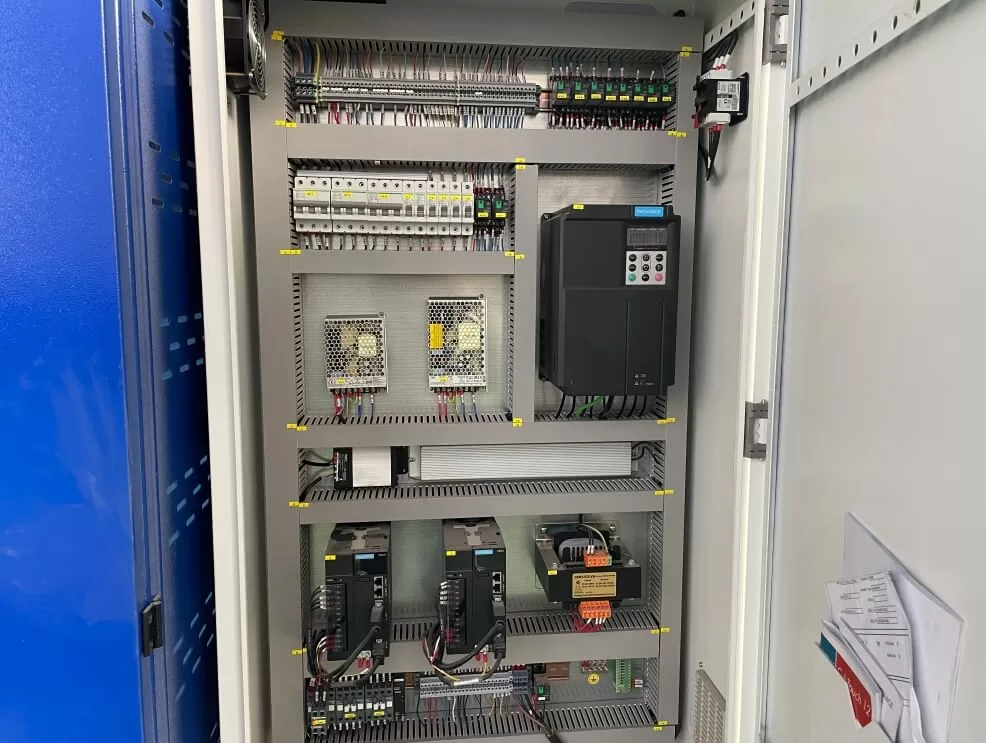

Schneider Electric

Schneider Electric

High-quality electrical components, rated at 24 V DC – 250 V AC and an average power of 5.1 KW at 50°C, can work in any harsh environment and perform well even under unstable power supply. And customers can easily get replacement parts anywhere in the world.

Italian PlZZATO Brand Foot Switches

Italian PlZZATO Brand Foot Switches

Using the ltalian PlZZATO brand foot switch to start and stop the press brake. Operators can quickly stop the machine when needed, reducing the risk of work accidents and greatly improving operational safety.

  • Ergonomic design, easy and comfortable operation, reducing fatigue caused by long-term operation.
  • With high-level protection configuration, it effectively resists the intrusion of dust and liquids and is suitable for various harsh working environments.
LazerSafe laser protection system

LazerSafe laser protection system

Equipped with LazerSafe laser protection system, it protects your press operator from all angles, reliably, safely and effectively!

  • High-precision laser scanning, covering all critical areas, forms an intelligent safety barrier around the bending die head.
  • Ensures in real time that any object must enter the safe range to reach the die tip.
  • When an obstacle (such as the operator’s finger) is detected entering the protection zone, the system immediately sends a signal and stops the slide to avoid any accidents.

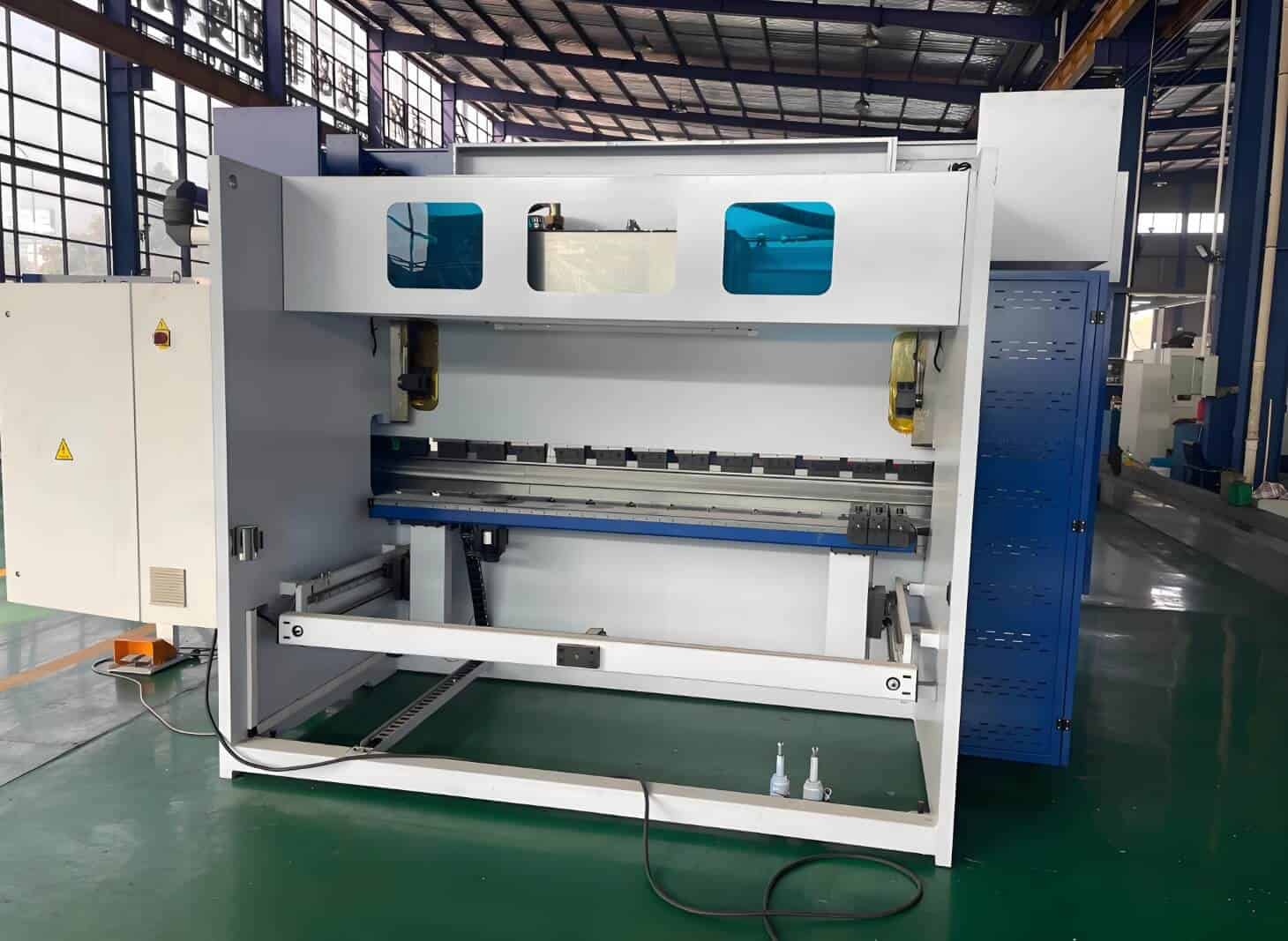

Back Of The Fuselage

Back Of The Fuselage

Simple structure design, smooth lines and easy operation help you bend metal sheets efficiently!

200-300 Ton

12/13 foot
