Small Electric Servo CNC Press Brake 4-6-8 Axis

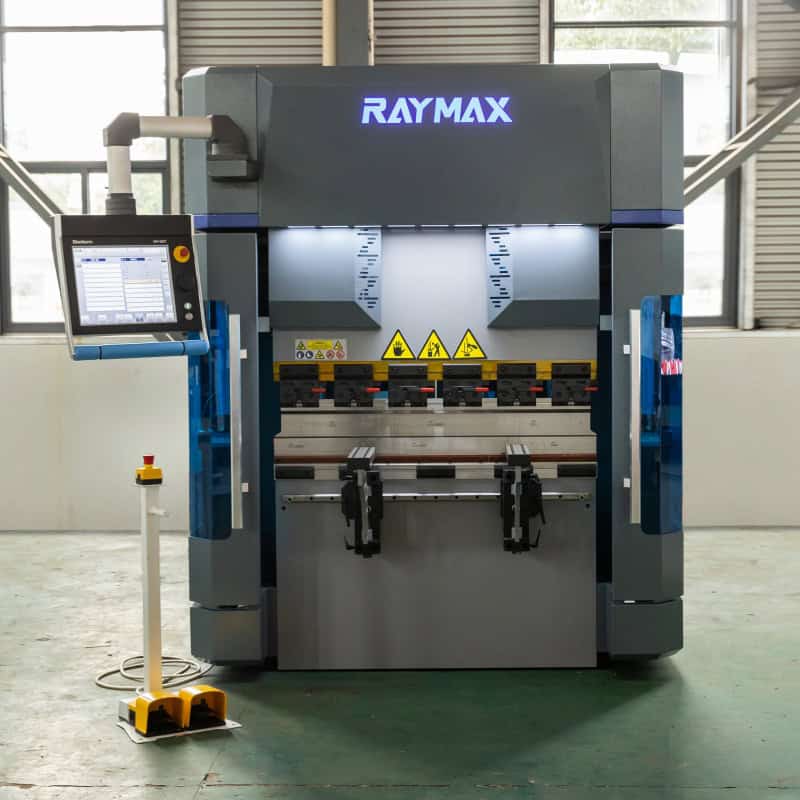

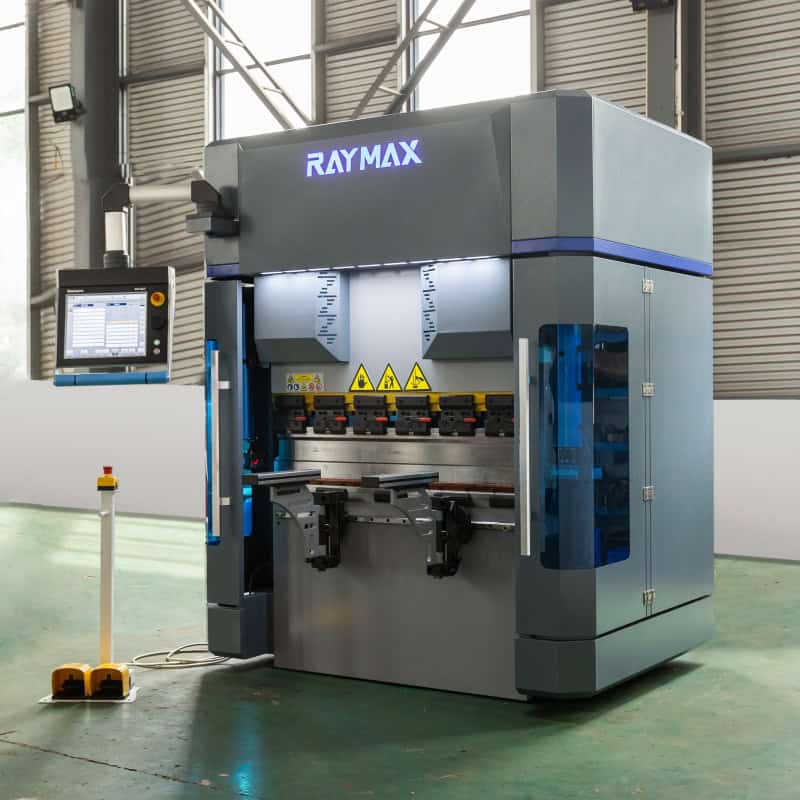

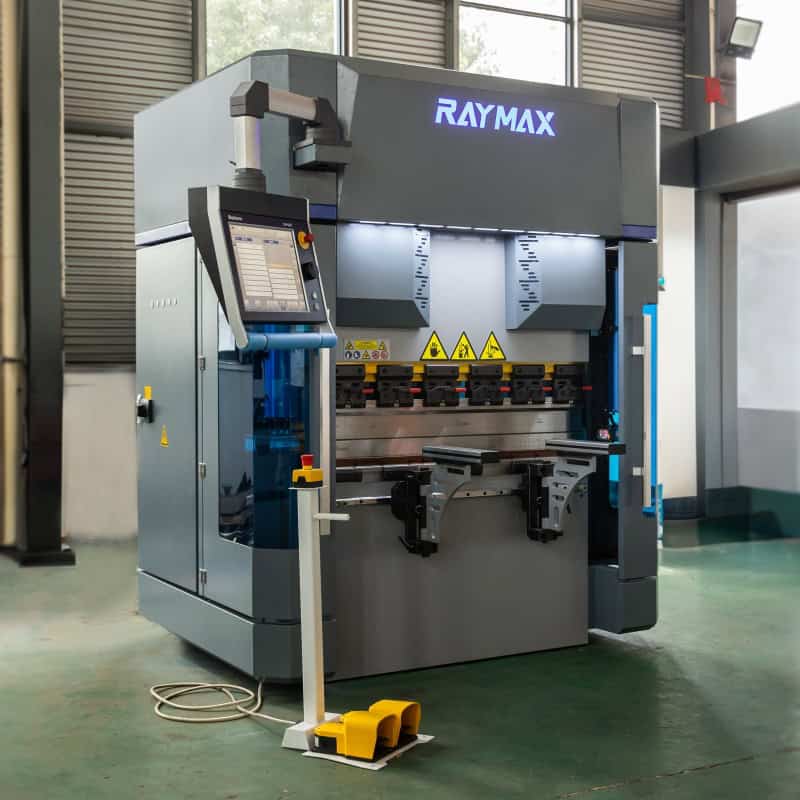

RX-E CNC Electric Servo Press Brake Machine 3-4-6-8 Axis

category press brake

Subvert tradition and choose a new bending solution – RAYMAX CNC synchro electric press brake!

Main Motor Siemens Germany brand
INOVANCE Servo Motor for Main Motor (Optional)
Pump First USA brand
Hydraulic Valve BOSCH-REXROTH Germany brand
Foot Pedal Pizzato Italy brand
Grating Ruler GIVI Italy Brand
Electrical Schneider France brand
Ball Screw& Linear guide Hiwin Taiwan brand
Fast Clamping
Light Curtain KELI brand (Optional)

Description
Technical Data
Overall structure
Standard Equipment
Upgrade Solutions
Packaging & Transportation

Description

With innovative electric drive technology, RAYMAX CNC synchro electric press brake is driven by efficient servo motor to achieve energy saving and pollution-free, provide more precise control, bring faster bending speed and higher machining accuracy.
Say goodbye to the trouble of frequent replacement of hydraulic oil in traditional CNC synchro electric press brake, although the purchase price of CNC synchro electric press brake is slightly higher than that of ordinary electro-hydraulic machines, its improved processing efficiency and saved electric oil costs will significantly reduce the comprehensive cost. In the long run, RAYMAX CNC synchro electric press brake is the best choice for mass, high strength and high precision production!

Features

High rigidity design: Full electric servo precision folding bed design, high rigidity and stability of the fuselage to ensure excellent performance!
High-precision machining: high-speed back gauge and precision double servo motor spindle drive, each bending error is only 0.01 mm, to achieve high-speed high-precision stable machining!
Energy saving pioneer: The press brake consumes electricity only during the pressing process, and the energy efficiency is up to 90%!
Thermal effect worry-free: no oil temperature change, completely eliminate the interference of thermal effect on processing accuracy!
Flexible application: Support rapid production of small samples and high speed and high precision processing in large quantities to meet diverse needs!
Efficiency: Support multi-stage continuous combination bending processing, without complex hydraulic debugging, can quickly get started, help efficient production!
Environmental safety: no risk of hydraulic oil leakage, no pollution of the working environment, in line with the requirements of modern society for environmental protection.
Easy maintenance: no need to replace the oil and oil pressure valve regularly, reduce the downtime caused by equipment failure, low maintenance requirements!

More information about RAYMAX

Download Catalogue

Parameters

Type		30T1250	40T1600	60T2000	70T2500
Nominal pressure(kn)		300	400	600	700
Workbench length(mm)		1250	1600	2000	2500
Poles distance (mm)		1010	1360	1800	2100
Max Opening Height(mm)		465	560	560	560
Throat depth(mm)		300	300	350	350
Slider speed(mm/s)	Rapid speed	200	200	200	200
	Return speed	180	180	180	180
	Return speed	0-30	0-30	0-30	0-30
X-axis stroke(mm)		450	450	500	500
R-axis stroke(mm)		150	150	150	150
Weight(T)		3.8	4.5	5.5	6.5
*Dimensions LWH(mm)*		200016002490	220016002590	270017002690	300017002690
Motor (kw)		2*12	2*12	2*24.1	2*24.1

Rigid Frame Construction

Fully welded and machined construction
The overall rigidity of the mechanical frame is improved, the stress is evenly distributed, and the robust structure reduces the risk of failure of the machine and enhances the stability and durability of the machine.
High-strength steel manufacturing
Each pressure brake is designed with a high-strength steel structure, ensuring that our pressure brake can withstand the high loads of the hydraulic system without deformation over the years.
ANSYS finite element analysis
Utilizes ANSYS finite element analysis to evaluate the main components of the frame, ensuring the overall precision of the machine.

Wide Frame Stance

Open Design
The wide frame of the RAYMAX punching machine easily adapts to the requirements of deep bending and long molds.
Deeper throat depth
Capable of handling larger workpieces.
Larger daylight opening
Increases operational flexibility and ease of clamping.
Longer stroke length
Supports deeper bending for various tasks.
External RAM direction
Maximizes the spacing between side frames to accommodate deep part flanges.

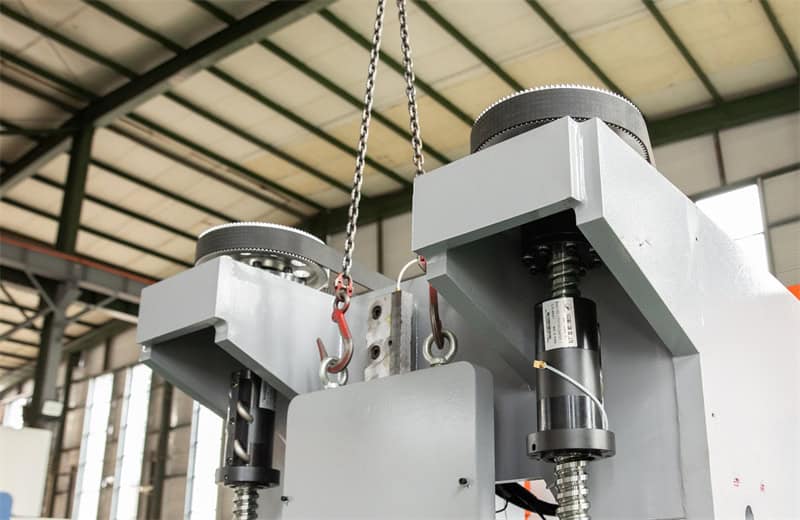

TSUBAKI HOOVER Lead Screw

Raymax CNC synchro electric press brake adopts Japan’s original TSUBAKI HOOVER ball screw to perfectly transform the rotating motion of the motor into linear motion, and drive the slider to achieve high-precision positioning and repetitive motion. Its superior design brings the advantages of low wear, low energy consumption, strong load bearing and high precision, fully guarantees the bending pressure is consistent, and provides you with the ultimate bending experience!

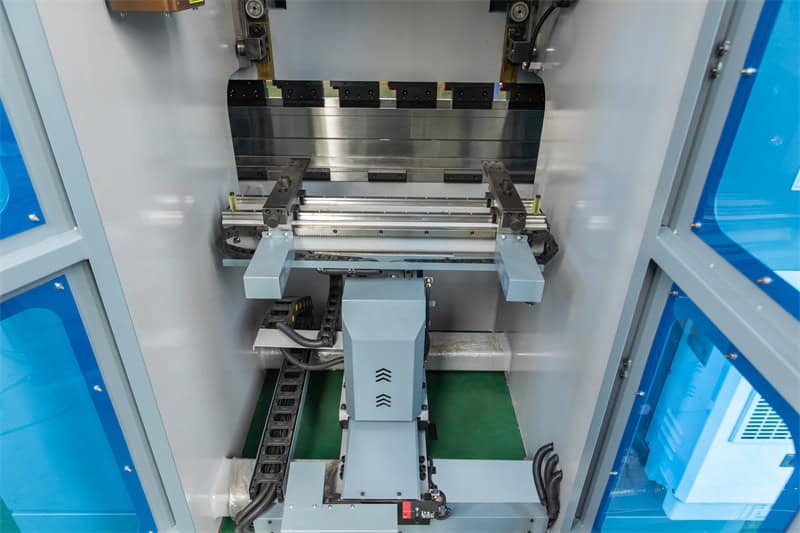

High Precision Backgauge

Independently designed high-precision back stop assembly, equipped with HIWIN high-precision ball screw, support the adjustment of the finger and manual lifting function, can adapt to a variety of different punches and workpiece needs, high precision, fast speed, good stability, positioning accuracy of 0.02

High-precision positioning ensures bending consistency.
Supports multi-axis adjustments(X,R,Z axes)to accommodate complex workpiece processing.
Highly flexible,suitable for diverse varieties and small batch production.

Germany Bosch Rexroth Hydraulic System

Using German REXROTH hydraulic system, independent proportional valve control, proportional valve synchronous operation stable. Reduce hydraulic oil leakage problems, hydraulic pressure can be adjusted according to actual needs to meet different bending force requirements.

Energy-efficient and operates smoothly.
Durable hydraulic components suitable for long-term high-load work.
Provides stable pressure output,ensuring bending accuracy.
Low maintenance costs.

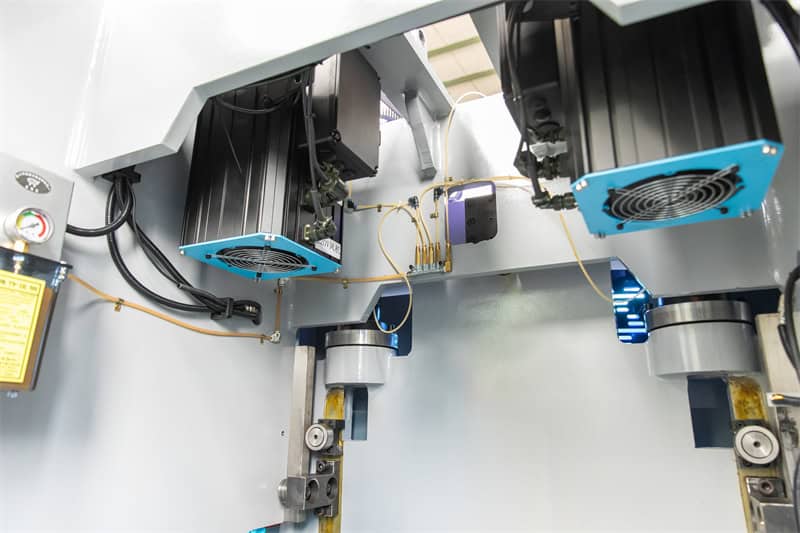

Inovance Servo Motor

Raymax synchro electric press brake with the new Inovance servo motor, can effectively save 40% power, more energy saving and noise reduction. In addition, we offer customized solutions for machine power and voltage to meet specific local voltage requirements.

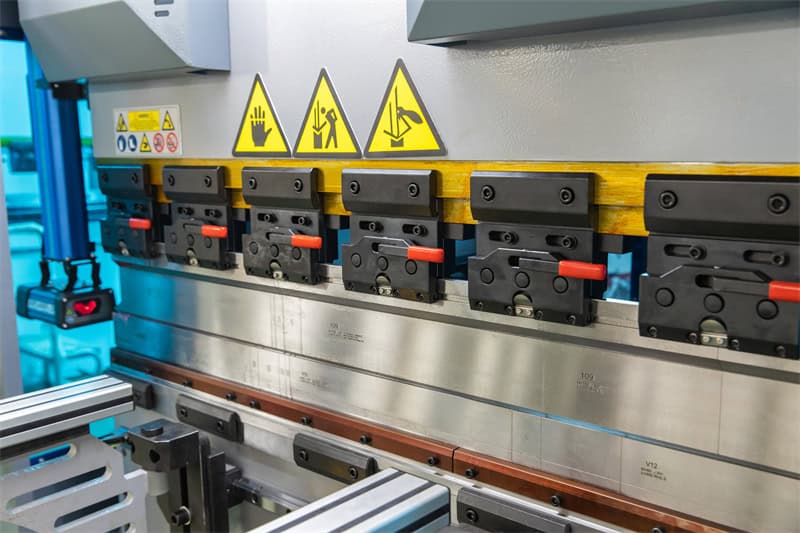

Fast Clamp

After heat treatment and blackening treatment, this fixture is convenient to disassemble and clamp the upper mold in small size, greatly improving the efficiency of the assembly line and reducing the production downtime.

Simple operation with reliable clamping.
Adapts to various mold types.
Enhances assembly line operation efficiency.
Reduces downtime and improves production continuity.

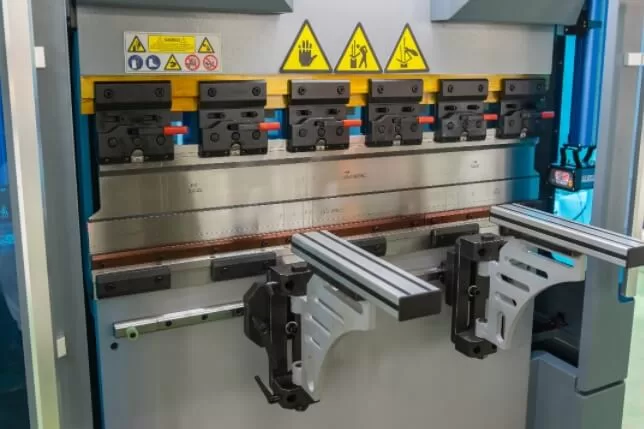

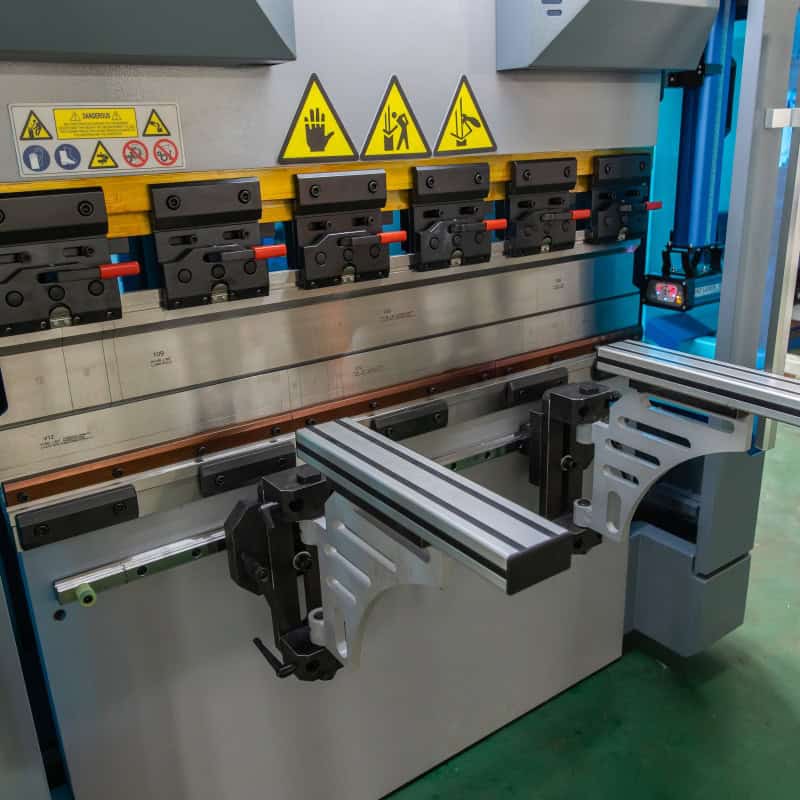

Front Plate Support

The front plate support has a movable design, movable front support, moves along a linear guide, can be docked at any position, and has rotation and height adjustment to assist your bending work (to accommodate different sizes and shapes of the workpiece).

Highly flexible,adapting to different sizes and shapes of workpieces.
Improves bending accuracy and reduces workpiece deformation.
Reduces operator labor intensity.

4V Concentric Die

The four V-slots of 4V concentric dies are of different sizes, and different V-slots are also suitable for the bending requirements of plates with different thicknesses, so that customers can choose the appropriate V-slots according to their needs.
The V-slots of the upper and lower molds are designed as concentric structure, which can ensure that the workpieces can be better aligned during the bending process, thus avoiding the workpieces from shifting, and reducing the problems of uneven bending or inaccurate angles caused by errors.

Crowning

It adjusts the height or angle of the table by means of a motor, controlled by a CNC controller, to compensate for deformations due to different thicknesses and strengths of the material, or the machine’s own weight.

Provides multi-point compensation,ensuring consistent bending angles.
Simple operation,adaptable to workpieces of varying thicknesses.
Enhances bending accuracy and reduces scrap rates.

Grating Ruler

Imported GIVI high-precision grating ruler sensor, installed on the linear guide rail, can move smoothly and adjust up and down, 2-side feedback accuracy up to 0.02

High-precision positioning with flexible operation.
Adjustable design to accommodate different sizes and shapes of workpieces.

Foot Switch

Raymax uses Italian PIZZATO brand foot switches for starting and stopping the press brake. Operators can quickly stop the machine when needed, reducing the risk of work accidents and greatly improving operational safety.

PIZZATO brand foot switches have ergonomic design, simple and comfortable operation, and reduce fatigue caused by long-term operation.
PIZZATO brand foot switches have high-level protection configuration, effectively resisting the intrusion of dust and liquids, and are suitable for various harsh working environments.

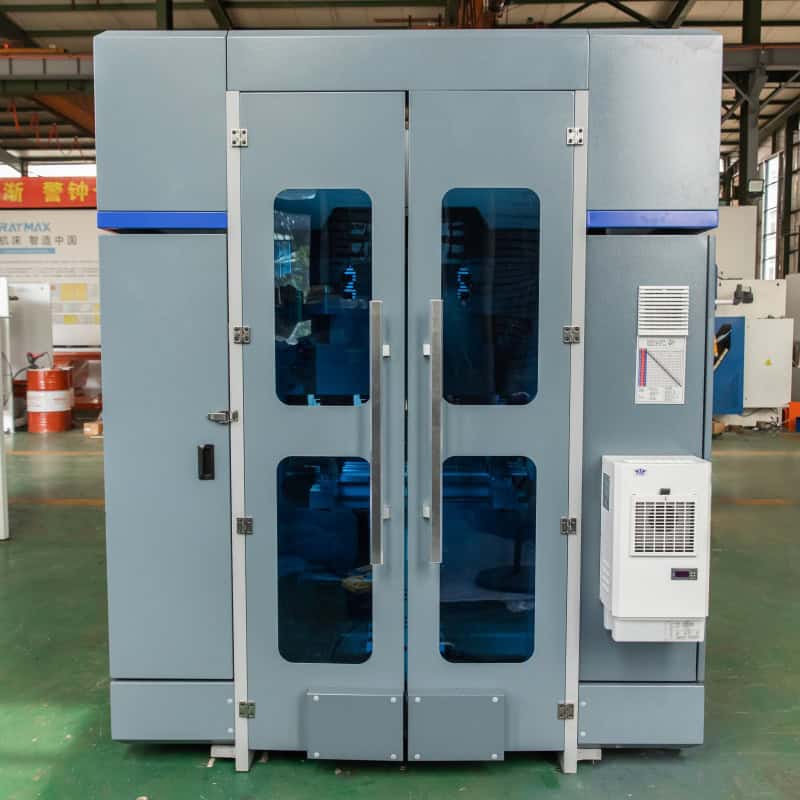

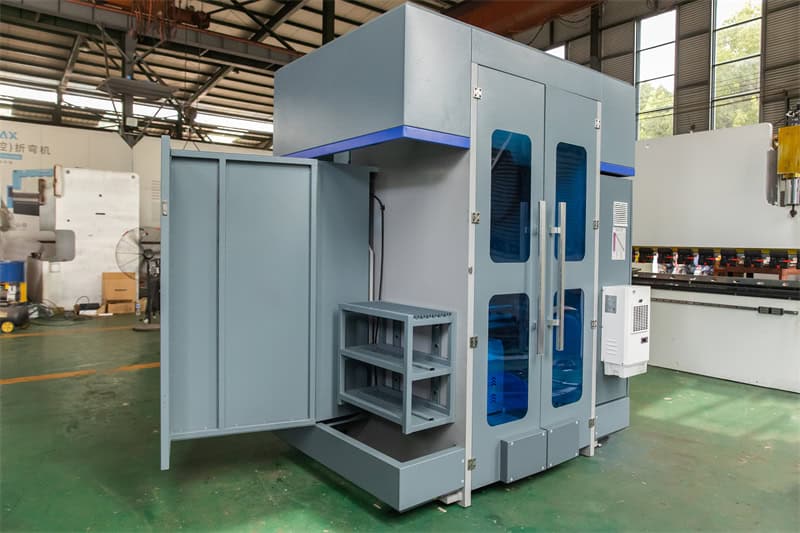

Enclosed Cabinet

The closed design improves the safety of the machine operation, effectively reduces the leakage of noise and dust, and improves the working environment. The tool box on the side can also be used to store various tools.

Crowning System

CNC crowning: guaranteeing a perfect bend angle every time!

By preloading the machine, CNC crowning counteracts any possible deflection and tool wear under machine load, ensuring a constant bend angle throughout the entire length of the machine, guaranteeing smooth operation of the contact surface under load.
With the CNC clamping system, pre-programmed with advanced machine characteristics and deflection data, manual crowning allows quick and easy development of simple sub-tables or charts for each application.

Experience unprecedented precision, reliability and efficiency! Boost your machining capabilities today!

1. Deflection Compensation Workbench

2. RAYMAX PPO Family CNC Crowning

3. Wila Tool Holders And Crowning System

Backgauge System

RAYMAX: The Ultimate Solution for All Your Bending Needs!

We proudly offer 2, 4 and 6 axis support brackets designed to meet all your bending requirements. Let us assist you in configuring the perfect solution for your press brake!

1. BGA-2 BackGauge（X,R）

Equipped with ball screws and linear guides on X and R axis
Lightning-fast x-axis speed: 500 mm/sec!
Manual Z1, Z2 axis features HIWIN linear guides for smooth operation.
Excellent mechanical accuracy: ±0.03 mm!
Precise control: our fingers come with double stops and micrometer adjustments

2. BGA-4 BackGauge（X,R,Z1,Z2）

Equipped with ball screws and linear guides on X and R axis
Precision belts and YYC racks on Z1-Z2 axis
Precise positioning: finger double stops and micrometer adjustments
Excellent mechanical accuracy: ±0.03 mm!
Z1-Z2 axis speed: 1000mm/s
X axis speed: 500mm/s

3. BGA-6 BackGauge（X1, X2, R1, R2, Z1, Z2）

Ultimate precision across 6 axes (X1, X2, R1, R2, Z1, Z2) takes your press brake capabilities to the next level!

Precise movement: ball screws and linear guides on X and R axes ensure smooth
Precise linear guides and YYC racks on Z1 – Z2 axes
Precise linear guides and YYC racks on Z1 – Z2 axes
Precise positioning: finger double stops and micrometer adjustments
Lightning speeds:
R1-R2 axis: 500mm/s
X1-X2 axis: 600mm/s (upgradeable to 1000mm/s!)
Z1-Z2 axis: 1100mm/s
Excellent mechanical accuracy:
±0.03mm!
The BGA-6 back gauge is your preferred solution for high-precision bending. Experience the power of innovation with RAYMAX!

Tooling Clamping System

Discover the ultimate clamping solution for your press brake needs!
At RAYMAX, we bring you cutting-edge clamping systems designed to maximize efficiency, precision and safety. Whether you are looking for a manual, pneumatic or hydraulic model, we have the best tools for you to revolutionize your press braking operation.

1. Rolleri Clamping System

New clamps for Amada, Boschert, Bystronic-Beyeler Euro-B, ROL200 punches! Compatible with top brands: Durmazlar, Ermaksan, Gasparini, Haco, Promecam and more; the new patented Rolleri clamping system clamps your top tool vertically manually, pneumatically or hydraulically, providing incredible efficiency gains with simple operation and low price!

Why Choose Rolleri?

Fast vertical tool change: available on all Rolleri R1 punches
Quick to use: no modification of the Rolleri R1 punch is required
Safe and fast: safe and fast tool change without the risk of tool dropping.
Cost-effective: significantly reduces time and related costs.
Versatile choice: Available in manual, pneumatic and hydraulic models.

2. Wilson Pneumatic Clamping

Fast Air Clamping Systems Built for Speed!
Designed for users who frequently change press brakes, Wilson Pneumatic Clamping Systems are your fast, efficient and reliable solution for jobs.

Why Choose Wilson?

Fast Tool Change: Vertical tool change for all Euro-style punch presses.
High Safety: Fast Air Clamping with no risk of tool drops.
Time Saving: Reduce setup time, lower costs and increase productivity.
Flexible Choice: Available in manual, pneumatic and hydraulic models.

3. Wila Hydraulic Clamping System

Market Leader in Precision and Flexibility!
Wila “New Standard” tool systems are market leaders in precision, quality and flexibility, making them the perfect partner for RAYMAX hydraulic press brakes.

Why Choose Wila?

Durability: >10 years of service life.
Safety: WILA-style tool fast clamping
Ease of Use: Simple push button loading, fast operation.
Time Saving: Reduce tool change time by up to 80%.
High Precision: Achieve perfect bend angles and flange edges every time.

Upgrade your press brake with a RAYMAX clamping system today!
Experience faster setup, safer operation and unmatched efficiency. Choose Rolleri, Wilson or Wila for the ultimate clamping solution!

Bending Follower Supports

Bending Follower Supports: the perfect solution for heavy parts or large thin sheets!
RAYMAX hydraulic machine brakes are equipped with an advanced sheet support follower system, focused on bending long, thin or heavy sheets with high bending accuracy and ease of use. This innovative system features a pair of CNC-controlled sheet supports located on the bending line, controlled by the CNC, ensuring a constant and consistent bend throughout the bending process.

As shown: A very large, heavy, thin sheet can bend in reverse during the bending operation due to the torque generated by the overhang. Our sheet lifters provide the necessary support throughout the bending cycle, preventing damage and ensuring a perfect job result.

Why Choose Our Bending Follower Supports?

Automated operation: Seamless bending is achieved with CNC interpolation axes (AP1-AP2).
Ideal for heavy parts: Suitable for heavy parts or large thin sheets
Flexible bending angles: Achieve bends up to 70° closure
High load capacity: Load capacity of each support is 180 kg
Flexible size: Brush and support shaft sizes range from 350×900 to 1200 mm.

Servo Motor

Upgrade your bending operation with hybrid servo motors, designed for high-performance applications, providing excellent results while reducing costs and environmental impact.

Why Choose Hybrid Servo Motors?

1. Hybrid Servo Motor

Energy saving: 30% energy saving with cutting-edge technology, high efficiency.
Environmentally friendly operation: No pollution, environmentally sustainable.
Low fuel consumption: Low fuel consumption
Low cost: Low maintenance and use costs
Excellent sealing

2. Hybrid Plus Servo Motors

Energy saving: 30% energy saving with cutting-edge technology.
Power saving: 60% electricity saving compared to traditional drives.
Efficient: Up to 30%, higher efficiency (shortened cycle time).
Accurate: Micron-level accuracy, positioning up to 5um
Quiet: Reduced noise, quieter machine operation
Low fuel consumption: Minimal hydraulic oil consumption, only 30% of traditional hydraulic oil
Simple: Easier to build, easier to maintain, fewer machine failures.

Upgrade your bending operation today!

Choose our bending follower brackets and hybrid servo motors for a future of precision, efficiency and sustainability. Experience the difference brought by RAYMAX!

Safety System

Raymax is now fully upgraded with LazerSafe laser protection system to protect your press operators from all angles!
The LazerSafe system uses high-precision laser scanning to cover all critical areas and synchronizes with the movement of the slider and tool, creating an intelligent safety barrier around the bending tool head.
When the slider is moving at high speed, the LazerSafe system ensures in real time that any object must enter the safe range before touching the tool tip. Whenever an obstacle (such as the operator’s finger) is detected to enter the protected area, the system will immediately signal and stop the slide operation to avoid any accidents. Reliable, safe and effective.

Raymax puts safety at the forefront of your operation!

CNC Control System

— If you need to upgrade your CNC system, you can follow the link below for more information. —

DELEM DA58Tx

DELEM DA66T

DELEM DA69T

DELEM DA66s

DELEM DA69s

CYBELEC Cyb Touch 8

CYBELEC Cyb Touch 12

CYBELEC Cyb Touch 15

ESA S630

ESA S640

ESA 860

ESA S875

Pack 1
Pack 2
Deliver goods1
Deliver goods2
Deliver goods3
Deliver goods4

Whichever you choose, we can meet your production needs!

Choose hydraulic brake or electric brake? Everything depends on your production needs and environmental requirements!

Hydraulic press brake with its excellent performance, easily cope with large tonnage and high load tasks, is the ideal choice for heavy industry;
The electric brake is known for energy saving and environmental protection and high-precision production, injecting green power into modern production.
