Press Brake Software: Basics, Implementation, Examples & Selection Guide

1. Introduction

Press brake machines are the core equipment in the field of metal processing, not only used in everyday fields such as furniture, but also in high-end fields such as automobiles and aviation.

Regardless of the size of the enterprise, press brake machines are essential production equipment. The press brake software has become the “intelligent brain” of the press brake. It plays a significant role in ensuring precision in metal forming and improving manufacturing quality.

In addition, thanks to press brake software, the production efficiency of enterprises has been significantly improved and production costs have been significantly reduced. This article aims to help readers fully understand the functions and advantages of press brake software, explore how it can improve the efficiency, precision, safety, and flexible manufacturing capabilities of metal processing, and help you choose the software that best meets your needs.

2. What is press brake software?

2.1 Definition of press brake software

Press brake software is a tool that first generates accurate and detailed bending data and then uses the data for sheet metal bending, aiming to provide a solution for sheet metal bending that combines accuracy and high quality. Press brake software can not only accurately control the entire bending process and obtain better processing results, but also improve production efficiency and achieve more efficient production.

2.2 Development history

2.2.1 Manual programming stage

In the era when electronic technology was not popular, the process parameters of press brakes completely depended on the manual input of the operator, which tested the operator’s experience and practical operation. Process parameters need to be entered manually, and high errors and low efficiency are inevitable.

2.2.2 CNC control technology stage

Since the 80s of the 20th century, CNC technology has gradually replaced traditional control, and press brakes equipped with CNC control systems can use code for programmatic bending. Since entering the 21st century, brake press technology has become more sophisticated. The CNC control system combines CAD and CAM systems, which can automatically analyze parameters and operate automatically, greatly improving bending accuracy and production efficiency.

2.3 The role and advantages of software in press brake operation

2.3.1 Roles

2.3.2 Advantages:

2.4 The difference between traditional operation and software-assisted operation

In traditional press brake operation, program input, including modification and subsequent optimization, is done manually by the operator, which is not only time-consuming and labor-intensive, but also particularly prone to errors.

The software assistance first of all significantly improves the efficiency and accuracy of programming, so that the product has better quality and accuracy, and can also provide real-time monitoring feedback during the processing process, which is convenient for operators to deal with problems in time and increases the flexibility of the processing process.

3. The main functions and features of press brake software

3.1 Automatic generation and optimization of bending programs

Automatic calculation of bending sequence: In view of the material, material thickness, and material angle, the press brake software first uses advanced algorithms to analyze the bending path frame by frame, and then integrates and compares all the bending paths, and finally obtains the best bending order. This technology that automatically calculates the bending sequence reduces human error and guarantees maximum efficiency in bending operations.

Adaptive bending technology: During the processing process, some material thickness, angle and elastic changes can be well captured by sensors, and the press brake software learns the changes of these parameters through algorithms, and then intelligently adjusts the bending parameters to adapt to various emergencies during production and ensure the consistency of the final product.

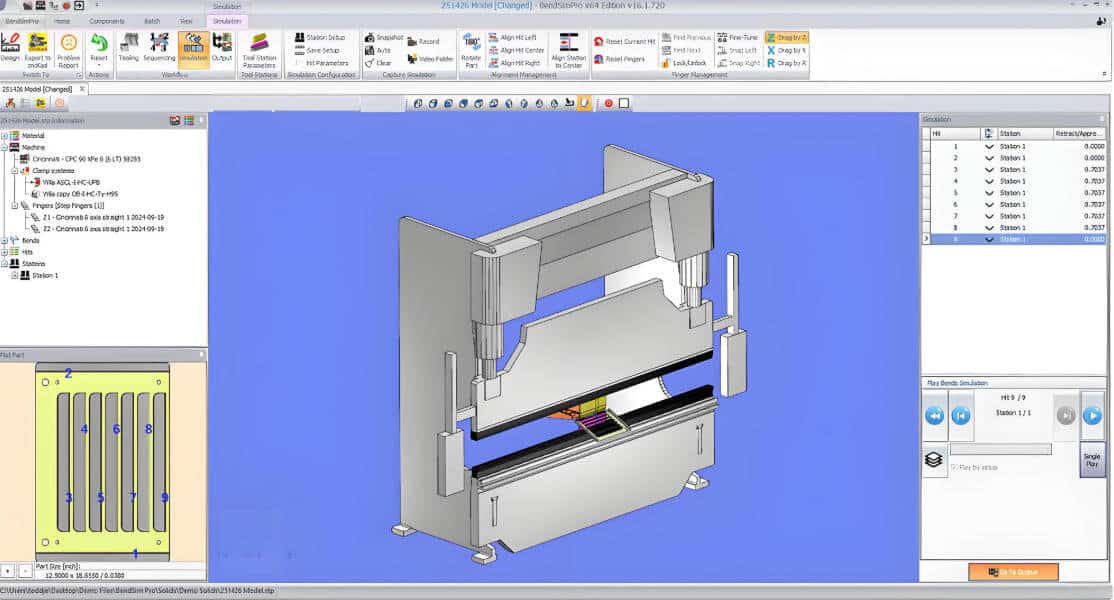

3.2 Bending process simulation and visual simulation

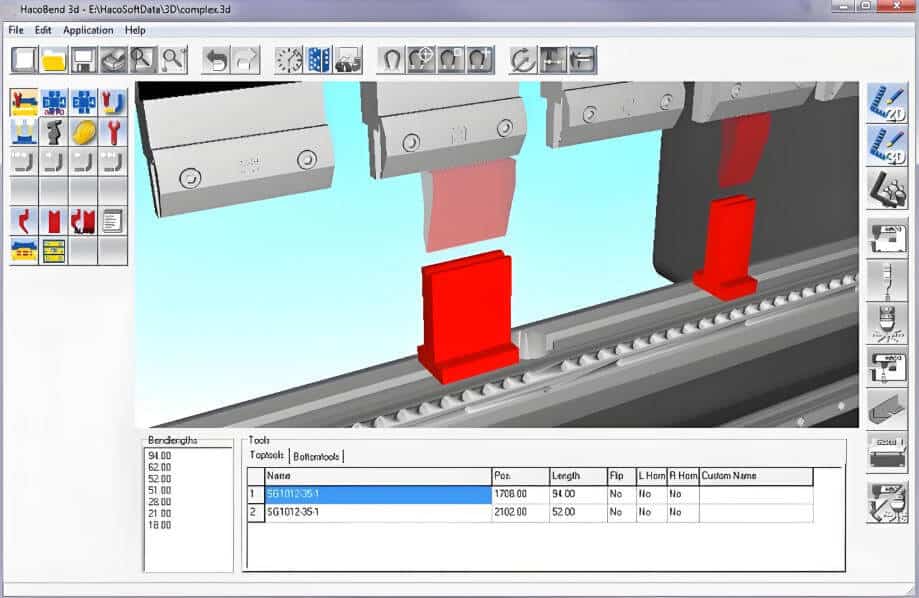

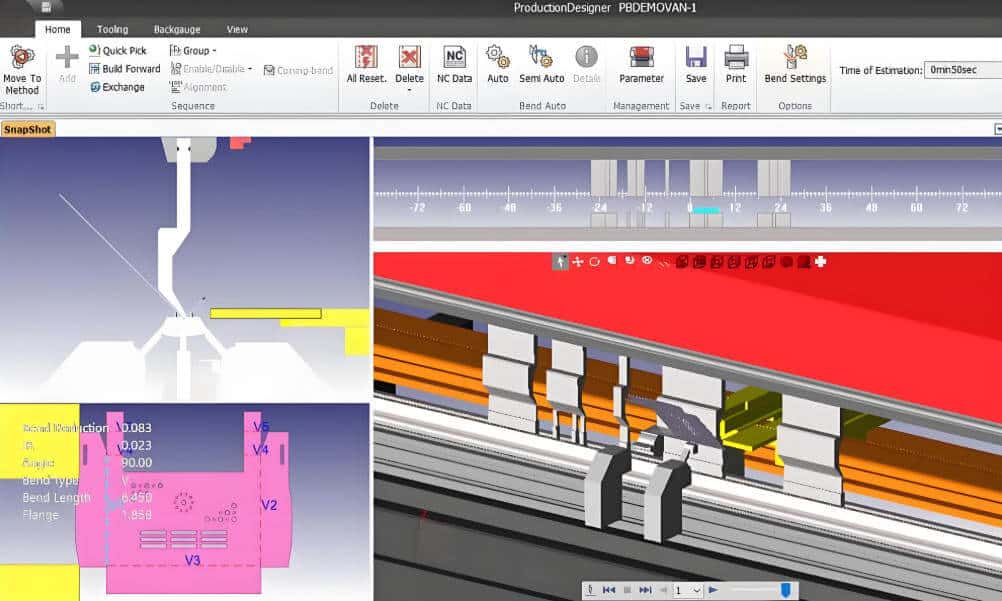

3D visual collision detection and manufacturability analysis: The software can display the workpiece in a virtual 3D form, with which the operator can identify potential collision risks and technical problems before production, thereby reducing high trial and error costs. The software also helps designers understand whether a design is actually feasible and can avoid errors encountered during actual machining in advance.

Finite Element Analysis (FEA) Predicts Bending Results: Finite element analysis technology refers to simulating the strain, stress, and deformation of metals during the bending process. Finite element analysis technology provides the operator with the opportunity to identify possible defects during bending in advance, so that the operator can make corresponding process adjustments to avoid the finished product not conforming to the preset.

3.3 Multi-axis linkage control and synchronous management

When the press brake type is a press brake with multiple operating axes, the press brake software can act as a “conductor”.

Specifically, the software first analyzes and compares the best linkage operation scheme, and then sets the action and speed of each axis, and allows the multiple press brake axes to coordinate operation together by simultaneously controlling Y, Z, X, R and other axes, so that the multiple axes can operate together to achieve precise linkage, which greatly improves production efficiency.

3.4 Tool library management and tool selection assistance

Tool library management: The software centralizes and stores detailed information such as the size, shape and wear of different press brake tools, and the operator can quickly find it in the software after confirming what type of tool is used for processing. The management of the tool library reduces the search time for various types of tools and improves efficiency.

Automatic or manual tool recommendation: After entering the information of the workpiece to be processed, the software will automatically recommend the best solution for the tool for the operator according to the specific requirements, combined with the material, material thickness and bending geometry, waiting for the operator to finalize. This technology saves setup time and indirectly improves accuracy.

3.5 Fault detection and safety warning

Laser scanner or sensor for monitoring: The role of the laser scanner is to monitor the presence of obstacles in the area around the press brake in real time and alert the operator to the corresponding safety hazards. The sensor mainly detects the parameters and risk coefficients of the equipment in the processing process in real time to ensure the personal safety of press brake operator.

Collision detection during operation: It is normal for potential collisions between workpieces and machines during bending. Once the software detects the occurrence of a collision or a trend of collision, it will immediately stop the operation of the machine to avoid damage to the equipment and ensure the safety of the operator.

3.6 Data statistics and production reports

Historical Data Analysis: The software can automatically record data for each bending operation, including production efficiency and abnormal conditions. And integrate data to generate production reports regularly. The production report helps companies find long-term operational options and provides opportunities for improvement for operators.

Process feedback loop: The press brake software integrates a feedback mechanism, automatically feeds back the production data, and automatically generates an analysis report based on the collected data, and then uses the obtained report to guide subsequent production and process. This forms a cycle of feedback and optimization.

3.7 Offline programming

Reduced machine downtime: The offline programming function allows operators to use idle time to remotely program and test bending programs without stopping the normal production of the machine. This not only avoids programming to reduce production time, but also indirectly increases throughput.

Seamless CAD/CAM integration: Modern press brake software After having a CAD/CAM system, users can directly import drawings into the software, and the software will automatically generate a bending program. This is convenient and fast, in addition to eliminating the advantage of manual data entry errors.

3.8 User-friendly interface

Intuitive control for the operator: the buttons of the press brake software are graphically designed, and they are also equipped with detailed process flows and even personalized shortcut keys. This makes parameter input, program adjustment and other operations more intuitive and convenient, greatly lowers the training threshold for operators, and improves work efficiency.

Multilingual support: Press brakes are widely used in the global manufacturing industry, and considering the language barrier of international users, press brake software usually supports multiple languages, making it easy for operators in different regions and countries to get started, increasing the user experience for international users.

4. How to get started quickly and optimize the use of press brake software

4.1 Detailed process flow

4.2 Example of FEA application in press brake software

4.3 Recommendation of training and learning resources

In order for the operator to run smoothly, the press brake operator first needs to familiarize himself with the official manual and documentation in advance and familiarize himself with the most basic operating procedures.

If the manual is not detailed enough, operators can learn some online training courses on many suppliers’ platforms to gain a basic understanding of the practical scenarios in the field. In addition, operators can actively participate in seminars and web summits to learn from other professionals and obtain the latest industry trends and scientific research results.

4.4 Common problems and solutions

4.4.1 How to import multiple CAD files?

As long as the selected file format is compatible, you can use the batch import function to import uniformly.

4.4.2 What should I do if the software is slow to respond?

Check if there are problems with your computer’s performance and if the hardware hasn’t been updated for a long time. On this basis, optimize the system settings and repair them in time if necessary.

4.4.3 How to solve the problem of insensitive collision detection?

Check the laser scanner or sensor for poor contact, and if all of these are good, adjust the sensitivity parameters of the software.

5. How to improve the accuracy of press brake software?

5.1 Ensure accurate material parameter input

The thickness, material, and elastic modulus of the press brake material are all factors affecting the bending accuracy, and high-quality material testing instruments can be used for data collection to ensure that the input data is accurate.

5.2 Adopt advanced bending calculation models and algorithms

Enterprises can use physical simulation methods such as FEA to improve calculation accuracy. In addition, a learning algorithm combined with historical data can be used to allow the software to continuously optimize the bending accuracy in the feedback.

5.3 Precise calibration and matching of machine tools and software

Equipped with sensors on the machine tool to transmit the data of the actual machine tool in real time to ensure that it matches the set parameters on the software and ensures processing accuracy and consistency.

5.4 Enable the automatic compensation function of the software

The software can use specific processing information to activate the compensation function in terms of rebound and other aspects.

If the funds are sufficient, a dynamic compensation and intelligent optimization system can be introduced, combined with historical production data and real-time feedback, to automatically update and compensate for all abnormal parts.

5.5 Maintain and manage high-precision tool data

Establish a tool library testing system to regularly record tool size, wear and other parameters, and maintain regularly.

5.6 Strengthen operator training and standardized operation

Educate operators on standardized awareness, establish standardized operation procedures, and assess each operator according to this standard.

6. Application scenarios and advantages of press brake software

6.1 Improve efficiency

Since the use of automated programming, the press brake software has reduced the time by several hours compared to traditional press brakes. And the software is very simple and intuitive, which greatly improves efficiency.

6.2 Enhanced accuracy

Through algorithm analysis and mathematical model simulation technology, the software can accurately calculate the optimal bending sequence and bending parameters of the plate to ensure that each part meets the design standards. It is precisely because of this that material waste due to bending errors can be significantly avoided in series production in a single step.

6.3 Reduce manual programming error rate

In addition to advanced programming algorithms, the software also has a feedback mechanism that can monitor and feedback real-time machining conditions, allowing operators to make timely adjustments.

6.4 Shorten production preparation time

To shorten the preparation time before production, offline programming functions must be used. Offline programming allows operators to plan the next stage of production in advance, reducing the occurrence of production intermittent problems.

6.5 High production flexibility

The press brake software can freely switch between mass production and personalized production, flexibly responding to the different needs of customers.

6.6 Multilingual support

The press brake software is equipped with a multilingual system, which can allow international press brake operators to choose their own words, effectively solve the problems of production errors caused by language barriers, and greatly increase the international demand for press brake software.

7.Key factors in choosing the right press brake software

7.1 Assess business needs

7.2 Compatibility

The software should be compatible with existing press brakes to avoid problems caused by mismatches. In addition to being compatible with press brakes, it is also necessary to maintain compatibility with CAD systems to prevent problems such as format conversion and data mismatch.

7.3 User-friendliness

The software should be intuitive and easy to understand in the user interface to make it easier for employees to get started faster. And press brake software is not only used in China, but should also provide multilingual support to help operators in different countries and regions.

7.4 Functional integrity and customization capabilities

Software stability and security: When choosing software, ensure that it can be formally tested and can run stably to avoid corporate losses caused by software instability.

3D simulation and collision detection function: Good collision detection and manufacturability analysis are important indicators of whether the virtual model can provide people with areas where actual production is lacking.

Automatic bending sequence generation: A software that automatically calculates and generates bending sequences is extremely important to save time in manually designing sequences.

Tool selection and management capabilities: The software should be able to help manage different tools, save the cost of manual management, and provide operators with suitable tool options when needed.

Material database and bending parameters: If there is a rich material library in the software, it can be configured with one click during processing to improve work efficiency.

Cloud and remote monitoring: Remote monitoring devices in software can give business managers a general understanding of production progress and specifications, which is conducive to the cooperation between business executives and other companies.

7.5 Supplier technical support

A good press brake supplier will have good after-sales service, including providing answers to questions and software updates for enterprises to ensure that the software is always in good condition.

7.6 Budget considerations

The software cost of press brake includes initial costs, subsequent annual expenses and maintenance costs, and enterprises need to make reasonable choices according to their budgets. If the buyer is a subscription subscriber, the main fee is a recurring service fee, and there may be other additional fees for perpetual licenses.

8. Introduction to the mainstream press brake software brands in the current market (2025)

8.1 Amada

Brings together a lot of highly automated press brake software, which has real-time monitoring and feedback functions to ensure that the machining process can be carried out smoothly with high precision. Amada is user-friendly, supports multiple Chinese languages, and has an international reputation. When users have problems, Amada can also provide comprehensive services and solutions to help users better carry out production activities.

8.2 Delem

Delem is the world’s leading provider of CNC control and software equipment, with powerful programming functions such as Diamond, which not only has powerful programming capabilities and program optimization functions, but is also user-friendly and easy to use.

8.3 LVD

LVD is a global manufacturer that has focused on the design and manufacture of press brakes for many years. Its software is equipped with a comprehensive CAD/CAM system that supports automatic generation and optimization of bending programs. Significantly high flexibility to help companies handle industry needs.

8.4 Bystronic

Bystronic is a global provider for small and medium-sized businesses,Its software not only provides a simple and easy-to-use operation interface, but also has a complete CAD/CAM software package, which has a good user experience and is simple and clear to operate. The biggest advantage is the emphasis on visual simulation, which helps users arrange and optimize the production process before production.

8.5 Trumpf

Trumpf’s press brake software has a strong reputation in the market. The brand truBend is the world’s most advanced press brake control software, and the rapid generation of bending programs is one of its major advantages. Strong data management capabilities also make Trumpf suitable for complex production environments.

9. Summary

The press brake software greatly improves the accuracy of the bending process, not only increasing the production speed, but also providing a relatively safe working environment.

For an enterprise transforming to intelligent manufacturing, the addition of press brake software can not only bring higher return on investment, but also become a powerful boost for enterprises to have core competitiveness in the future.
