Quick Answer

A pneumatic press brake is a light-duty bending machine, powered by compressed air. It is suitable for applications involving thin sheets, small parts, simple brackets, cover plates, and panel components, where high bending force, precision, and production efficiency are not required. Its advantages include a relatively simple structure, lower initial cost, minimal maintenance requirements, and the absence of a hydraulic oil system.

However, pneumatic press brakes are not low-cost alternatives to hydraulic or CNC press brakes. Their core limitations are clear: they have limited bending force, rely heavily on a stable air supply, and are unsuitable for thick sheets, long workpieces, high-precision batch production, complex parts requiring multiple bends, and applications requiring high angle consistency.

  • If you primarily process thin sheets and simple parts, with modest production efficiency requirements, a pneumatic press brake can be considered as an entry-level, or auxiliary machine.
  • However, if you need to consistently process medium-to-thick sheets, stainless steel, long workpieces, deep-flanged parts, box-shaped parts, or complex sheet metal components over the long term, you should directly evaluate CNC hydraulic press brakes, servo-hydraulic press brakes, 3- or 4-axis CNC press brakes, or 6-axis CNC press brakes.

If you are evaluating a pneumatic press brake, first confirm your material type, sheet thickness, maximum bending length, angle tolerance, production cycle time, and workpiece complexity. RAYMAX can assess your specific operating conditions, to determine whether a pneumatic press brake is suitable for your needs, or if you should upgrade to a hydraulic or CNC press brake.

Is a pneumatic press brake right for you? 30-second decision guide

Application characteristics

Suitable for pneumatic press brakes

Recommended options

Reasons for the decision

Light-gauge sheet metal, small parts, low tonnage requirements

Suitable

Pneumatic press brake

Lower bending force requirements, resulting in lower costs

Simple brackets, cover plates, small panels

Suitable

Pneumatic press brake or basic CNC press brake

Simple workpiece structure

Low budget, low to medium production efficiency

May be considered

Pneumatic press brake

Low initial costs

Desire to reduce hydraulic fluid contamination and hydraulic system maintenance

May be considered

Pneumatic press brake or electric press brake

Pneumatic systems do not use hydraulic oil

Medium- to heavy-gauge sheet metal, stainless steel, high-strength materials

Not recommended

CNC hydraulic press brake

Higher material strength and tonnage requirements

Long workpieces, wide sheet metal parts

Not recommended

CNC press brake with crowning

Need to ensure angle consistency at both ends and the center of long workpieces

High-precision batch production

Not recommended

CNC hydraulic/servo-hydraulic press brake

Requires more stable ram penetration depth control, compensation, and backgauge positioning

Deep-flanged parts, box-shaped parts

Not recommended

3-4-axis or 6-axis CNC press brake

Requires more flexible positioning and program management

Frequent changeovers, high-mix orders

Depends on complexity

3-4-axis CNC press brake

Limited efficiency of pneumatic equipment

Automated production lines

Not recommended

CNC press brake + automation interface

Requires a more stable control system and interlocking capabilities

What is a pneumatic press brake? Scope of Application and Key Limitations

Definition of Pneumatic Press Brake machine

A pneumatic press brake is a press brake that utilizes an air-driven system. It generates power through compressed air to drive a punch, that bends and forms metal materials.

Pneumatic press brakes do not use hydraulic oil systems, resulting in a relatively cleaner operating environment; however, they still rely on a stable, dry, and clean supply of compressed air.

Basic Construction of a Pneumatic Press Brake

  • Air compressor: The air compressor supplies compressed air to the pneumatic system and serves, as the power source for the pneumatic press brake. Air compressors are typically classified as piston-type, or screw-type, and the choice depends on specific requirements.
  • Cylinder: The cylinder is responsible for converting the power, generated by compressed air into mechanical energy. High air pressure causes them to operate. The size of the cylinders often determines the machine’s bending capacity; double-acting cylinders are currently the most common on the market.
  • Worktable: The worktable is used to position and secure metal sheets. Its surface is hard and durable, supporting all tools during the bending process.
  • Punch and Tooling: The punch applies pressure to the metal material, pushing it into the tooling. The tooling is responsible for forming the metal into the desired shape.
  • Air Tank: It stabilizes fluctuations in the machine’s air pressure, ensuring a steady air supply.
  • Control panel: It is used to set the machine’s pressure, bending stroke, speed, and operating mode; specific functions depend on the actual model and configuration of the equipment.

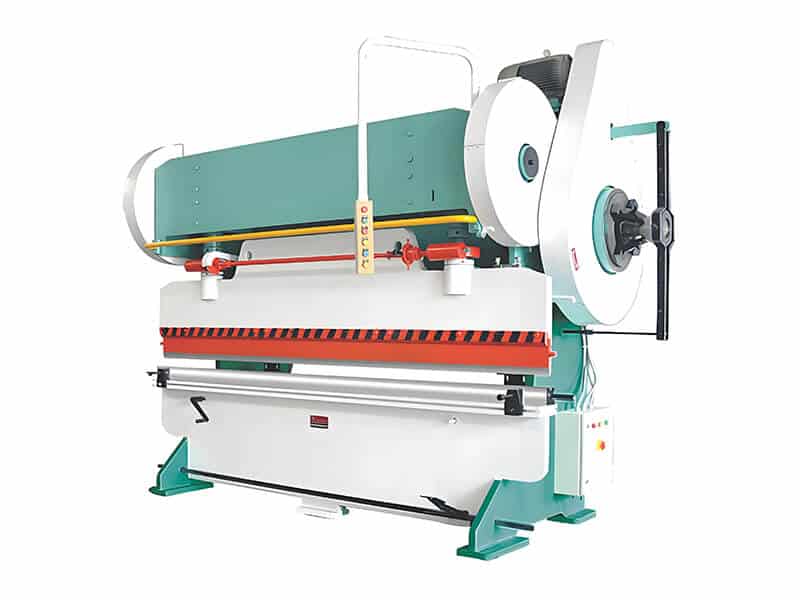

pneumatic press brake1
pneumatic press brake

Working Principle of Pneumatic Press Brakes

basic working principle of pneumatic press brake machine

The working principle of a pneumatic press brake, involves using compressed air to generate the pressure required to bend metal. The punch uses this pressure to push the metal material into the tooling, bending it into shape.

User Guide for Pneumatic Press Brakes

Assuming this is your first time operating a pneumatic press brake, here is the workflow:

  • 1. First, connect the air compressor to the machine, and confirm that the air pressure is stable, and the air lines are unobstructed.
  • 2. Start the machine; air begins to be compressed, and fed into the cylinder.
  • 3. At this point, the air pressure will continue to rise, forcing the cylinder to initiate piston movement.
  • 4. The kinetic energy generated by the piston movement is transferred to the ram, causing the ram or punch to begin descending.
  • 5. As the punch descends, it presses the metal material into the tooling, performing the bending operation.
  • 6. Once the bend is complete, the air pressure is released, and the ram or punch returns to its original position.
  • 7. After the operation is complete, inspect the product quality. If dimensions or angles do not meet requirements, parameters should first be adjusted according to the first-piece verification process; production should only resume after verification of compliance.

Differences in Operating Principles Compared to Traditional Mechanical/Hydraulic Systems

Traditional mechanical systems use mechanical levers, or inertia to generate kinetic energy, while hydraulic systems rely on hydraulic fluid for drive. In contrast, pneumatic press brakes utilize compressed air, to provide kinetic energy. If you want to understand how hydraulic systems generate higher and more stable bending force for thicker sheets and long workpieces, you can read our guide to the hydraulic press brake working principle.

So, compared to these systems, what are the specific advantages and limitations of pneumatic press brakes?

We will discuss this in detail in Chapter 4 below.

Advantages, Limitations, and Unsuitable Applications of Pneumatic Press Brakes

advantages

  • Faster Speed: Compared to hydraulic press brakes, pneumatic press brakes have a relatively faster cycle time in light-load, short stroke applications.
  • Lower Cost: The purchase cost of pneumatic press brakes is lower, which is the most practical and top priority consideration during procurement.
  • More Compact Size: Pneumatic press brakes are relatively lightweight, feature a simple design, and have a small footprint.
  • Relatively Controllable Operating Noise: The structure of pneumatic press brakes is relatively simple; under light-load conditions, the noise generated during operation is usually easier to control. However, the overall noise level of the system is also influenced by other factors, such as the air compressor, exhaust methods, pneumatic circuit design, and workshop environment.
  • Operating Costs Are Easier to Control Under Light-load Conditions: Pneumatic press brakes are suitable for light-load applications, with infrequent processing. However, compressed air is not inherently energy-efficient; actual energy consumption is also affected by factors, such as air compressor efficiency, air pressure requirements, pipeline leaks, and frequency of use.
  • Suitable For Flexible Switching, Between Multiple Types of Lightweight, Thin parts: Pneumatic press brakes have a simple structure, making them suitable for quick switching, between lightweight, thin parts, small batches, and simple components; however, they are not suitable for complex, programmed bending operations.
  • Reduced Maintenance Related to Hydraulic Oil: Pneumatic press brakes do not require a hydraulic oil system, so issues such as hydraulic oil leaks, oil changes, and hydraulic system maintenance do not arise. Their operating environment is cleaner, but this does not mean the entire machine is completely environmentally friendly, as other forms of energy consumption may still exist.

limitations

  • First, pneumatic press brakes are not suitable for processing thick, heavy, or wide metal materials.
  • Second, springback in pneumatic press brakes requires adjustment through actual operation and tooling design, so angle stability is typically inferior to that of CNC hydraulic or electric press brakes.
  • Third, air purity also affects the stability of pneumatic bending; variables such as moisture content must be addressed in advance.

When is a pneumatic press brake not recommended?

In the following types of operating conditions, it is not recommended to use a pneumatic press brake as the primary production equipment:

Not recommended for

Reasons

More suitable options

Thick plates or high-strength materials

Limited bending force

CNC hydraulic press brakes

Bending long workpieces

Requires consistent angle control along the entire length

CNC press brakes with crowning

Batch processing of stainless steel

Stainless steel exhibits more significant springback, requiring higher tonnage and greater compensation

CNC hydraulic/servo-hydraulic press brakes

High-precision angle requirements

High demands on control of air pressure fluctuations, mechanical rigidity, and precision

CNC press brakes

Complex parts requiring multiple bends

Requires program management, backgauge positioning, and bending sequence management

3-4 axis CNC press brakes

Deep-flanged parts and box-shaped parts

Prone to collisions and positioning difficulties

6-axis CNC press brakes

Stable production across multiple shifts

High demands on equipment consistency, maintenance, and program reusability

CNC hydraulic press brakes

Future integration with automation

Insufficient equipment expandability

CNC press brakes with automation interface

Simply put, pneumatic press brakes are suitable for light-duty applications, where bending accuracy requirements are not high, and costs are low; however, if you require more stable machining accuracy, batch consistency, long-term production capacity, or need to process complex parts, then a pneumatic press brake is not the best choice.

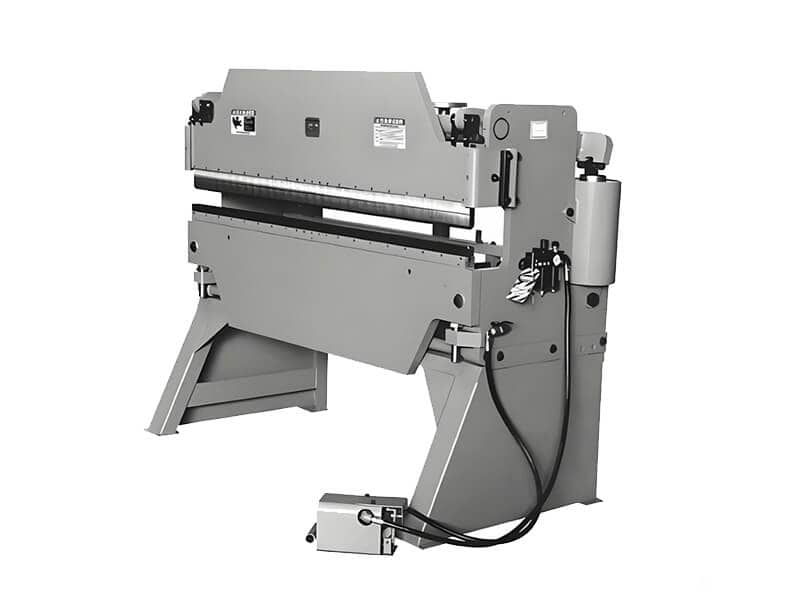

pneumatic press brake2
pneumatic press brake

Pneumatic vs Hydraulic vs Electric Press Brakes: Key Differences

Performance Parameters and Application Differences

Tonnage Range:

Hydraulic press brakes are suitable for a wide range of tonnages; electric press brakes are primarily used for small to medium tonnages, and are suitable for processing thin sheets, or materials of medium thickness; pneumatic press brakes are mainly used for bending lightweight, thin sheets and have the narrowest tonnage range.

However, when selecting a specific type of press brake, factors such as rated bending force, bending length, and material strength must be considered in addition to tonnage.

Accuracy:

Pneumatic press brakes are suitable for processing workpieces with low accuracy requirements and light loads, while hydraulic and electric press brakes are better suited for high-precision batch production. However, actual bending accuracy is not determined solely by the drive method, but is also influenced by factors such as material, tooling, and process.

Maintenance costs:

  • Pneumatic press brakes require no hydraulic system, making maintenance relatively simple, and costs lower. However, the air supply must be dry, clean, and maintain stable pressure.
  • Hydraulic press brakes require maintenance of hydraulic oil, valve assemblies, seals, and the hydraulic system, resulting in more long-term maintenance tasks.
  • Electric press brakes eliminate the need for hydraulic oil maintenance, but require attention to the servo system, electrical system, and long-term repair costs.

Energy consumption:

  • The energy consumption of pneumatic press brakes depends on the efficiency of the air compressor, air pressure requirements, pipeline leaks, and frequency of use; it cannot be simply concluded that they are always more energy-efficient.
  • Hydraulic press brakes are suitable for heavy-duty and high-tonnage applications, but over the long term, the comprehensive costs of energy consumption, hydraulic oil maintenance, and seal maintenance must be calculated.
  • Electric press brakes consume electricity on an as-needed basis, resulting in moderate energy consumption.

Suitable Sheet Thickness/Materials:

Pneumatic press brakes are suitable for thin sheets, while hydraulic press brakes can process sheets ranging from thin to thick. Electric press brakes are better suited for medium-to-small tonnage applications, scenarios requiring high positioning accuracy, and production environments prioritizing energy efficiency and cleanliness.

Comparison of Typical Application Scenarios

  • For medium-to-small tonnage applications, scenarios requiring high positioning accuracy, and production environments prioritizing energy efficiency and cleanliness, it is recommended to prioritize the evaluation of electric press brakes.
  • For medium-to-thick sheets, long workpieces, stainless steel, and heavy-duty production scenarios, we recommend prioritizing CNC hydraulic press brakes.
  • For complex parts, multi-bend parts, deep-flanged parts, box-shaped parts, and scenarios with frequent changeovers, we recommend prioritizing 3-4-axis or 6-axis CNC press brakes.

Comparison Table of Advantages and Disadvantages

Model

Pneumatic press brake

Hydraulic press brake

Electric press brake

Cost

Low

High

Medium to high

Control capability

Basic controls

Mature CNC control

Fast servo response

Bending force

Small

Large

Medium

Energy consumption features

Depends on compressor efficiency and line leakage

Higher cost under heavy-duty operation

More cost-effective for small to medium tonnage

Suitable materials

Lightweight, thin, small parts

Medium-to-thick plates and long workpieces

Precision parts for small to medium tonnage

Recommended Applications and Suggestions

  • If your project has a limited budget, and primarily involves processing thin sheets and small, simple parts, you may want to consider a pneumatic press brake.
  • If you need to process medium-to-thick sheets, long workpieces, stainless steel, or high-precision batch parts, you should prioritize evaluating CNC hydraulic press brakes; for applications requiring medium-to-small tonnage, high repeatability, and clean production environments, you may want to evaluate electric press brakes.

If your main decision is no longer whether to buy a pneumatic machine, but whether an electric or hydraulic model is more suitable for your production, you can also read our detailed electric vs hydraulic press brake comparison for a clearer selection framework.

If a pneumatic press brake is insufficient, which type of press brake should you upgrade to?

If a pneumatic press brake can no longer meet your current and future processing needs, you should evaluate CNC press brake solutions in advance, taking into account future order types, material ranges, production volume growth, and automation requirements when making your selection.

Current requirements

Limitations of pneumatic press brakes

Recommended upgrade options

Reasons for suitability

Need to process thicker sheet metal

Insufficient bending force

CNC hydraulic press brake

Wider tonnage range

Need more consistent angular accuracy

Significant air pressure fluctuations and unstable control accuracy

CNC press brake

More stable control systems, compensation, and program management

Standard sheet metal parts, small to medium batches of multiple varieties

Low efficiency in manual adjustment and repeatable positioning

3- or 4-axis CNC press brake

Balances cost, backgauge positioning, and changeover efficiency

Asymmetrical parts, deep-flanged parts, box-shaped parts

Insufficient positioning freedom

6-axis CNC press brake

Greater flexibility in backgauge adjustment

Angle inconsistency in long workpieces

Lack of crowning

CNC press brake with crowning

Improved angle consistency between the center and both ends

Future plans for automated production

Limited expandability

CNC press brake + Automation interface

Better suited for robots, follow-up material support, and offline programming

If you are planning to upgrade to a CNC press brake, we recommend first confirming your material type, sheet thickness range, maximum bending length, workpiece complexity, and production capacity. RAYMAX can provide configuration recommendations based on your specific operating conditions.

Ready To Upgrade Your Metal Fabrication Line? ​

Email Us For A Free Consultation.​

Typical applications of pneumatic press brakes

Industry coverage

  • Home Appliance Industry: Can produce thin metal bent parts requiring high-efficiency bending, such as microwave oven bases, washing machine housings, and refrigerator cabinets.
  • Automotive Manufacturing: Can produce thin-sheet parts such as small automotive brackets, interior support components, and lightweight mounting parts.
  • Hardware Manufacturing: Can produce replaceable parts for lighting fixtures, small appliances, and similar products.

Typical Process Examples

  • Thin-sheet Bending: The process requires bending 0.8–1.2 mm metal sheets to 90°. If the workpiece has high surface finish requirements, indentations on the surface can be minimized, by cleaning the tooling surface, selecting an appropriate V-die opening, using material protection film, and controlling pressure. A key feature of this application is the pneumatic press brake’s ability to perform tool changes quickly, enabling the production line to switch between multiple models.
  • Simple Multi-Bend: This process requires multiple bends, utilizing a backgauge system for repetitive back-and-forth operations. Its key feature is facilitating the alternating production of small batches of diverse product varieties.
  • Rapid Forming: This process requires the rapid bending and forming of metal within a short timeframe. Its key feature is facilitating the production of multiple production runs of products with different specifications.

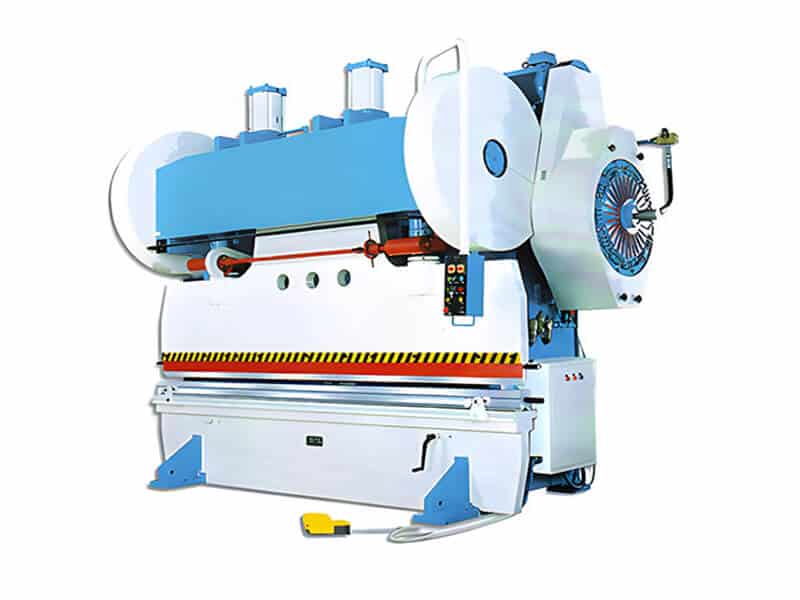

pneumatic press brake3
pneumatic press brake3

Maintenance and Care Guide for Pneumatic Press Brakes

Key Points for Daily Maintenance

  • Air Supply Treatment: Ensure the purity of the compressed air. Regularly inspect the condition of the filter elements and replace them immediately if worn.
  • Lubrication: Lubricate the critical moving parts of the pneumatic press brake, such as the ram and guide rails, according to the manual to prevent jamming and rusting of components.
  • Cleaning: Clean the worktable and tooling promptly after bending operations, to avoid affecting subsequent bending.
  • Regular Inspections: Before daily operation, verify that the equipment is functioning properly. Conduct annual inspections and functional tests in accordance with the equipment manual to ensure safety and stability.

Common Faults and Troubleshooting Recommendations

  • Unstable Bending Angle: This is typically caused by fluctuations in air pressure, tooling wear, or backgauge positioning errors. It is recommended to check whether the air pressure of the pneumatic press brake is stable, inspect the bending tools for wear, and perform backgauge calibration.
  • Cylinder Leaks: Check whether the cylinder seals are intact, whether the solenoid valve is blocked, and investigate potential air leak points.
  • Slow Operation: Verify that the compressor’s supply capacity matches the air tank’s consumption rate and check for blockages in the air lines. Optimize pipe diameters promptly; if necessary, increase the air tank’s capacity.

Professional Recommendations for Improving Equipment Lifespan and Performance

  • Supply a stable, high-quality air source: Install air dryers and refrigerated dryers to ensure air purity, thereby extending the service life of the pneumatic press brake.
  • Conduct regular inspections and maintain maintenance logs: Regularly lubricate the equipment, inspect the air lines and moving parts, and document maintenance activities for future reference.
  • Stock spare parts: Increase the inventory of wear-prone parts to facilitate timely replacement.
  • Improve the work environment: Keep the equipment clean and in a dedicated space to ensure stable operation.

Purchasing and Selection Guide for Pneumatic Press Brakes

Key Considerations Before Purchasing

  • Bending tonnage: It is best to select based on the tonnage required for the hardest material to avoid operating at the limit. Pneumatic press brakes should not be operated continuously near their rated bending force. When selecting a model, calculate the required bending force based on the most difficult-to-process material, maximum sheet thickness, and longest bending length, and include a safety margin.
  • Type and thickness of metal materials to be bent: This determines the bending force required by the pneumatic press brake.
  • Bending accuracy: High precision often requires operation via the press brake’s CNC system.
  • Site Selection: Determine whether the location meets the environmental requirements for the equipment.

Key Selection Criteria: How to Choose the Right Pneumatic Press Brake Model Based on Your Company’s Actual Needs

  • It is best to evaluate machine capabilities against the most stringent production requirements.
  • Consider the equipment with the best cost-performance ratio from the perspective of your company’s budget.

Do Not Select a Model Based Solely on the Name “Pneumatic Press Brake”

When purchasing a pneumatic press brake, do not focus solely on the equipment name, price, or brand; instead, prioritize verifying these key parameters and configurations: rated bending force, maximum bending length, air supply pressure, cylinder specifications, frame rigidity, tooling compatibility, backgauge configuration, and safety protection methods.

For a broader machine selection checklist covering tonnage, bending length, control system, tooling, safety, acceptance requirements, and supplier comparison, you can refer to our complete press brake buyers guide before making a final purchase decision.

If a pneumatic press brake no longer meets your processing requirements, we recommend directly evaluating CNC hydraulic press brakes, electric press brakes, or 3-4 axis/6-axis CNC press brakes.

Conclusion

Pneumatic press brakes are well-suited for simple parts, lightweight thin sheets, and low-to-medium production volumes. Their advantages include a simple structure, no need for a hydraulic oil system, and lower initial costs; however, their bending force is limited, and they rely heavily on the stability of the air supply. For complex parts and workpieces requiring high angle consistency, their bending capabilities are limited.

When making a purchase decision, one should not focus solely on price but first clarify the material, sheet thickness, maximum bending length, bending accuracy, production pace, and future order types. If there is currently a significant demand for thick sheets, stainless steel, long workpieces, deep-flanged parts, box-shaped parts, or high-precision batch production, one should directly evaluate configurations for CNC hydraulic press brakes, electric press brakes, or multi-axis CNC press brakes.

Ready To Upgrade Your Metal Fabrication Line? ​

Email Us For A Free Consultation.​

FAQ

A pneumatic press brake is a light-duty bending machine, that uses compressed air as its power source. It converts air pressure into mechanical force, via a cylinder to drive the ram and bend the sheet metal.

It is suitable for bending thin sheets, small parts, simple brackets, or production scenarios with low tonnage requirements. However, it is not suitable for bending thick sheets, high-precision parts, complex parts, or for prolonged continuous heavy-duty operations.

Pneumatic press brakes are better suited for lightweight, thin sheets and low-tonnage applications, such as thin carbon steel sheets, aluminum sheets, galvanized sheets, and some simple structural components. As for the maximum sheet thickness that can be bent, one should not rely solely on the equipment name, but must evaluate based on material strength, bend length, V-die opening, target angle, and the machine’s rated bending force.

For thick plates, stainless steel, and high-strength steel, it is generally recommended to prioritize hydraulic or CNC press brakes.

They cannot fully replace them. Pneumatic press brakes can handle some simple bending tasks in production scenarios involving thin sheets, simple parts, low tonnage, and low to medium production efficiency. However, when dealing with thick sheets, long workpieces, high-precision batch parts, and complex sheet metal components, hydraulic press brakes are still required. The two types of equipment are suited for different scenarios, so the decision should not be based solely on price.

Generally, no. Thick plate processing demands higher bending force, frame rigidity, ram penetration depth control, and tooling system requirements, whereas pneumatic press brakes have limited bending force and are typically not the first choice for processing thick plates.

However, a comprehensive assessment must be made based on material strength, bend length, V-die opening, and the machine’s rated bending force. CNC hydraulic press brakes are generally the preferred choice for thick plates and high-strength materials.

Pneumatic press brakes are suitable for bending thin sheets, small parts, and simple brackets, making them ideal for scenarios with limited budgets, and low production efficiency requirements. They feature a simple structure and lower initial costs, and maintenance is straightforward since they lack a hydraulic system.

However, pneumatic press brakes are generally not suitable as primary equipment for thick plates, long workpieces, high-precision batch production, complex multi-bend operations, deep-flanged parts, box-shaped parts, or heavy-duty production across multiple shifts.

When determining suitability, factors such as material type, plate thickness, bend length, precision requirements, production efficiency, and future order types should all be considered together.

A stable air supply is critical when using pneumatic press brakes. During procurement and operation, we must verify the following: the air compressor’s supply capacity, air receiver tank capacity, operating pressure, air line diameter, moisture separator, air dryer, and air pressure stability. Moisture, oil contamination, pressure fluctuations, and line leaks in the air supply can all affect cylinder operation, bending efficiency, and angle consistency. The root cause of many malfunctions actually lies in air supply management.

Pneumatic press brakes are driven by compressed air and are suitable for light-duty, simple bending applications; electric press brakes are driven by servo motors, offering better control precision and repeatability, making them more suitable for small and medium-sized sheet metal fabrication companies, with requirements for energy efficiency, precision, and clean production.

While pneumatic press brakes have lower initial costs, electric equipment offers more stable precision over the long term, more controllable energy consumption, and programmable control, resulting in more significant overall advantages.

You should consider upgrading to a CNC press brake when processing thick sheets, stainless steel, long workpieces, complex multi-bend operations, deep-flanged parts, box-shaped parts, or when there are frequent changeovers or higher requirements for batch consistency. Pneumatic press brakes are generally suitable for light-duty applications; however, for long-term stable production, processing complex parts, and expanding future production capacity, a CNC press brake is the more reliable choice.

Related product

Related Blog

Post Your Review

Share Your Thoughts And Feelings With Others
