A powerful tool for achieving profit improvement

Bending Offline Software

Office press brake functionality

DA-Offline software maximizes the efficiency and output of press brakes.

Profile-T software supports offline programming and simulation of bending processes, allowing production preparation, manufacturability analysis, tooling verification, operator training, adding production notes and many other functions to be completed in an offline environment.

Profile-T software provides the same 2D/3D advanced programming functions as DA-Touch control software, allowing users to complete the entire process from programming, program generation to program transmission to the control system in a clear and intuitive interface.

Its graphical programming function realizes the true display of the target product proportions, and realistic visualization tools can provide detailed feedback on production feasibility, mechanical collisions, required tools and tool adapters, etc.

Integrated solutions

The DA-Offline series is an integrated solution between offline preparation and press brakes for optimal bending efficiency.

Integrated solutions

Achieve offline preparation, match machine functions, and improve production efficiency.

Resemblance

Understand the control to keep offline solutions consistent, easy to accept, and comfortable.

Compatibility

Ensure that different versions are compatible with each other, unify software control, and avoid functional conflicts.

Networking

Online office is combined with office and machine to improve availability and avoid mismatch. Single source and product. .

Features

Full scale offline programming
Graphical product programming and bending sequence generation
Feasibility study and production preparation
2D/3D automatic bend sequence calculation
Collision detection
Sharing products with the press brake CNC via windows network
Machine setup preparation, including printing function
Production time calculation
Import DXF tool and product
Import 3D CAD product

Get A Quote

Technical data

Versions	2D or 3D programming version
Visualisation	3D machine representation
Programming aid	X1-X2 angle programming
Finger visualisation	3D finger view
User interface	DA-Touch familiar user interface
CAD import	DXF import functionality (Profile-T2D upwards)
	3D CAD import functionality (Profile-T3D)

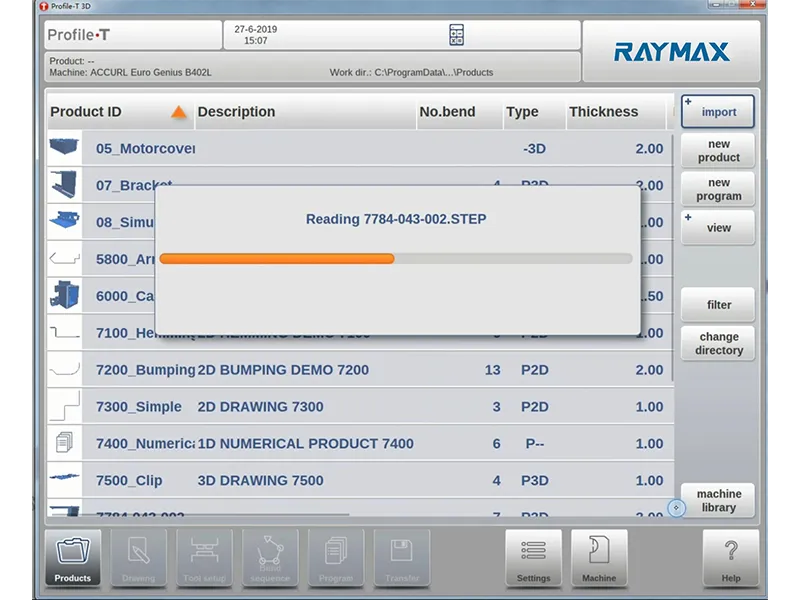

Import and unfold 3D parts in IGES, STEP, SAT, and X_T (Parasolid) formats.

Profile T3D

Profile T3D is a programming and simulation application designed for CNC-equipped press brakes to improve productivity, reduce downtime and reduce material waste.

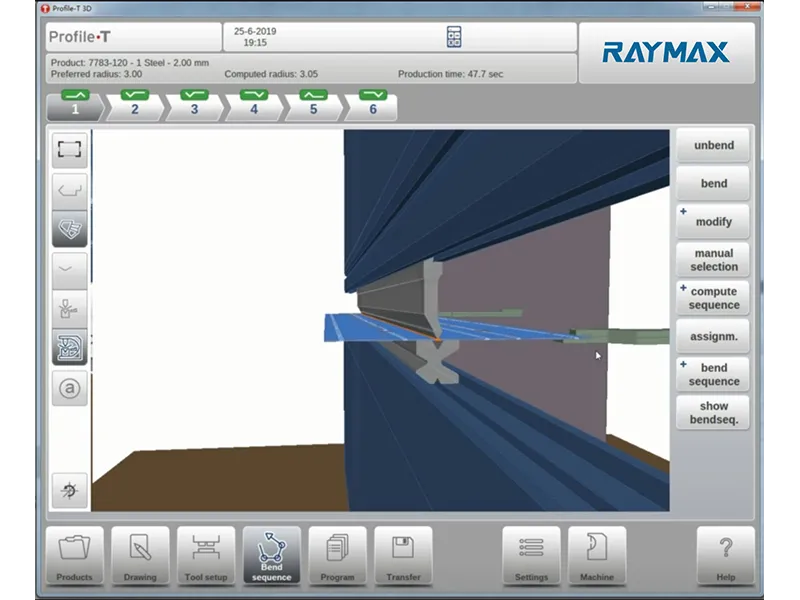

The software allows users to graphically program and accurately simulate the real proportions of the intended product, achieving a realistic visual preview. The system provides detailed feedback on feasibility, collisions, tools and tool adapters required for production. It also supports graphical display of special operations, such as hem bending, ensuring that users can fully preview the entire process of the bending operation.
