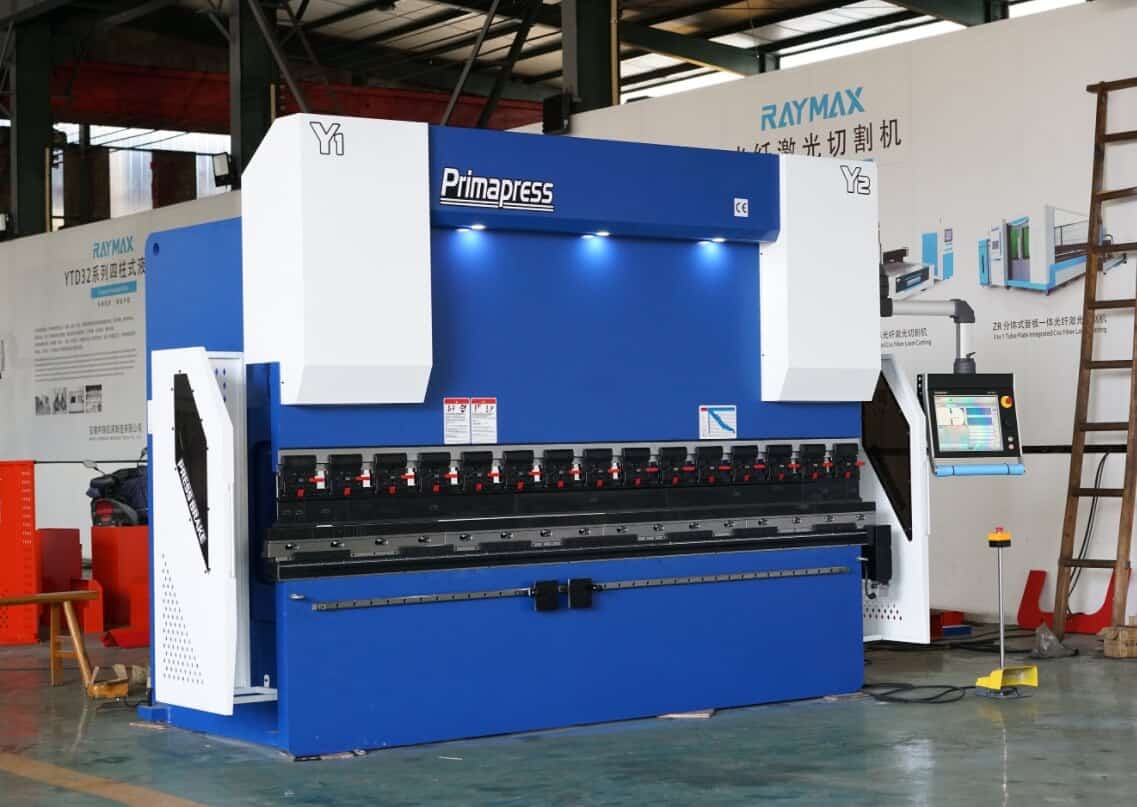

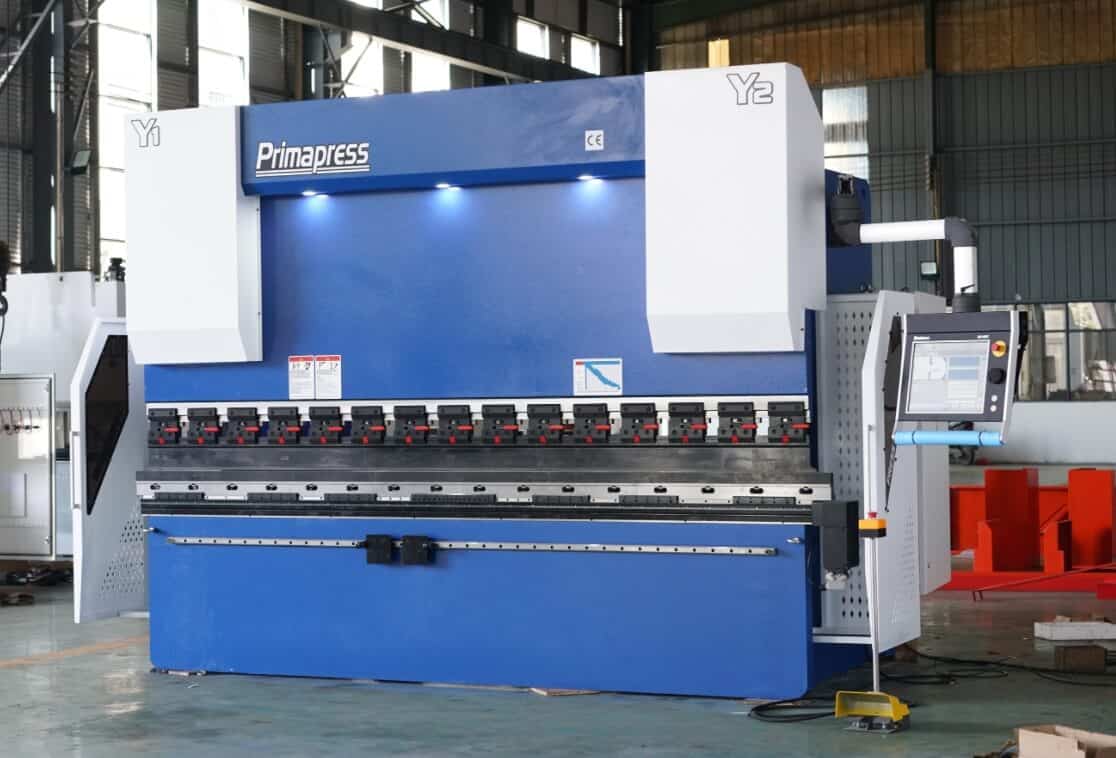

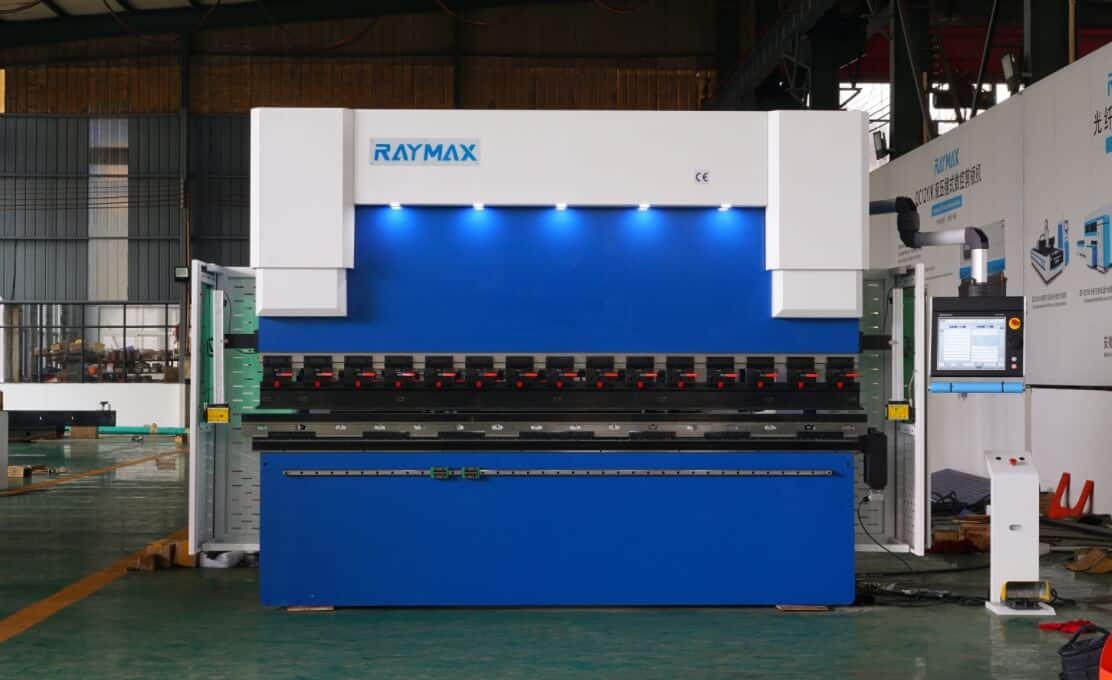

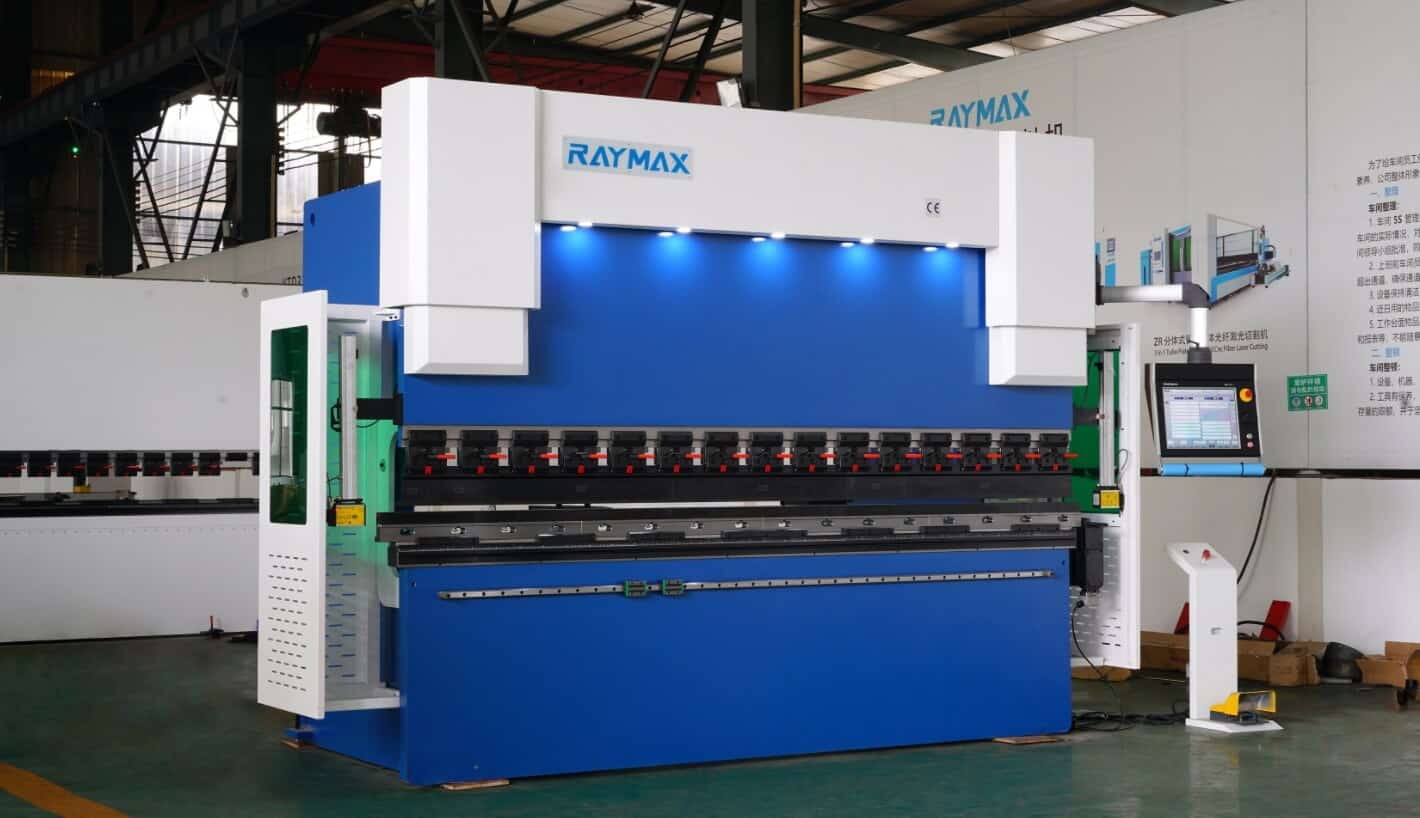

RAYMAX 150 300 ton x 10 ft 6 Axis H frame Heavy Duty Servo Electric Press Brake For Sale

Name: RAYMAX 150 300 ton x 10 ft 6 Axis H frame Heavy Duty Servo Electric Press Brake For Sale - Raymax
Price: 44600.00 USD
Availability: InStock

Original price was: $65,000.00.Current price is: $44,600.00.

Model: RX-H Series 300ton*3200mm

Control Axis: 6 Axis

Category: CNC Press Brake

Brand Name: RAYMAX

Bending Pressure: 300 ton

Workbench length: 10.50 ft / 125.98 in

Controller: CNC DELEM DA66T Controller

Key informations: 150 ton hydraulic press brake, 300 ton press brake for sale, 10 ft hydraulic press brake, 6 axis CNC press brake, h frame press brake, heavy duty press brake, servo electric press brake

Description
Reviews(0)

Technology

Type:	300ton*3200mm
Nominal pressure:	3000KN
Workbench length:	3200mm(10.50ft/125.98 in)
Workbench width:	1330mm(4.36ft/52.36 in)
Poles distance:	2720mm(8.92ft/107.09 in)
Throat depth:	500mm(1.64ft/19.69 in)
Main motor:	22kw
Dimensions LWH:	400022003500mm

Configurations

RAYMAX 150 300 ton x 10 ft 6 Axis H frame Heavy Duty Servo Electric Press Brake For Sale

Main Feature

The six-axis press brake with a rear control system with left and right movement positioning function is added, which is suitable for sheet metal processing with special requirements on bending accuracy or shape!Rated power 300 tons, equipped with advanced ECNC DELEM DA66T Controller, German BOSCH-REXROTH hydraulic valve, Taiwan Hiwin linear quide and ball screw, segmented upper and lower tools with quick clamps, etc., top CE safety standards, now as low as 50% off, only more than 8500 US dollars can be taken home!

High-strength steel body, perfect and sturdy.
Dual hydraulic cylinder, precision positioning <0.004″.
Wide frame posture, easily adapt to the requirements of deep bending and long molds.

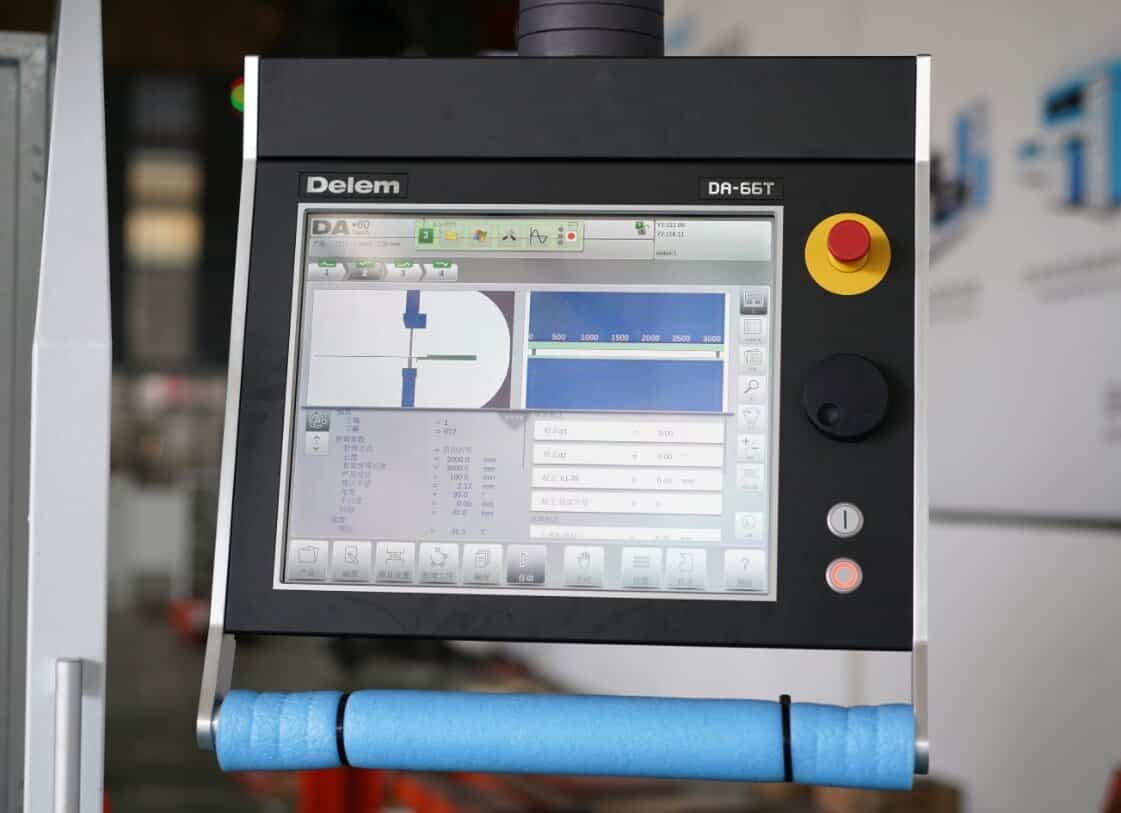

DELEM DA66T Touch 2D Graphical Control

2D graphical touch screen programming mode
17″ high resolution colour TFT
3D visualisation in simulation and production
Full Windows application suite
Delem Modusys compatibility (module scalability and adaptivity)
USB, peripheral interfacing
User specific application support within the control’s multitasking environment
Sensor bending & correction interface Profile-TL offline software
Profile-T2D offline software

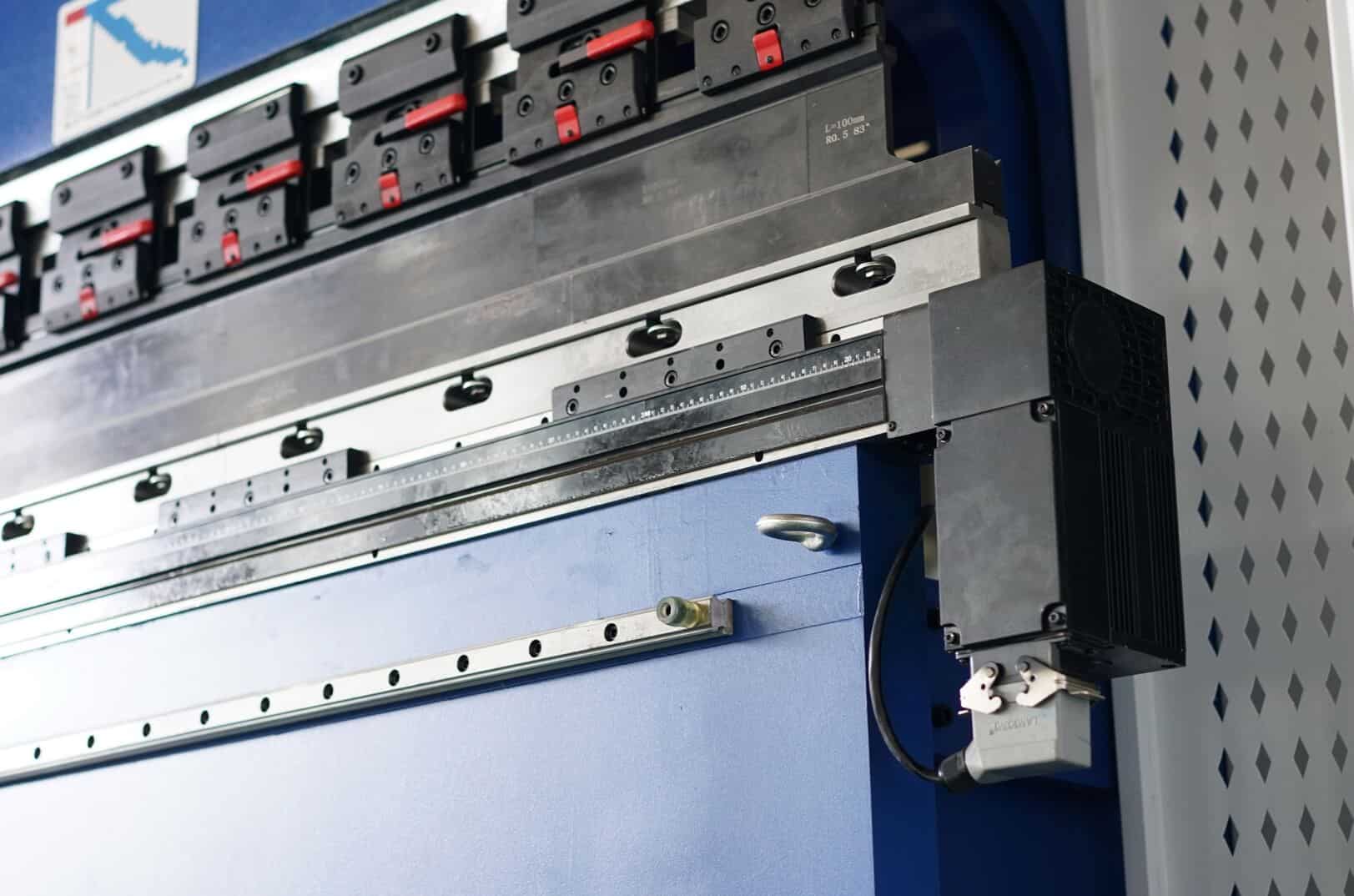

Deflection Compensation Workbench

100% Constant Bending Angle
60mm & 90mm European-style Molds
Electric Crown with Controller
Base can be clamped as well as single dies with 13 mm tang
Precise positioning and alignment of the crowning table
User-Friendly & Quick Operation

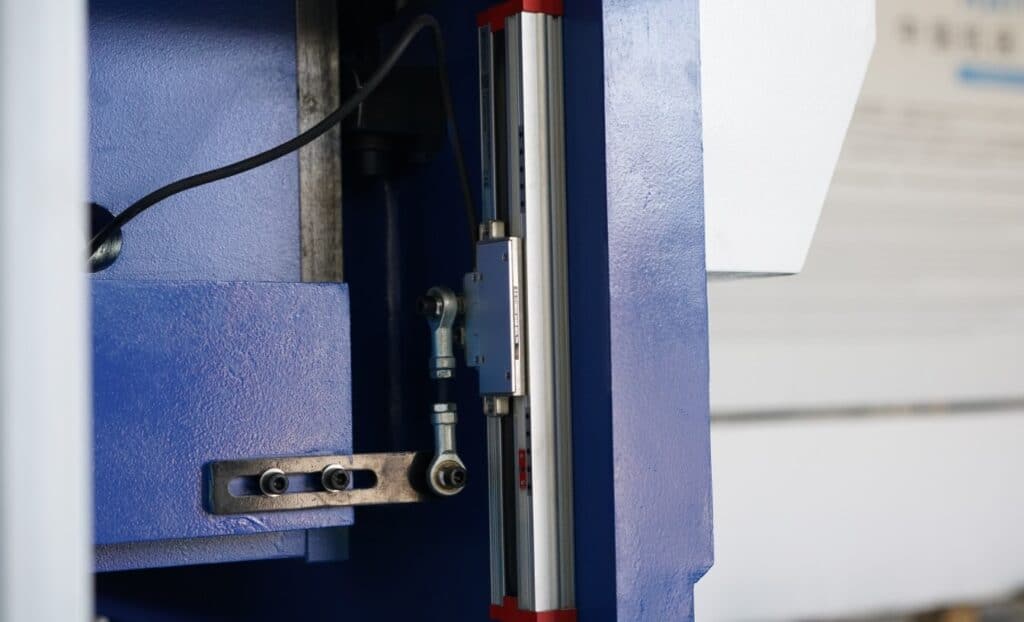

Italian GIVI Grating Ruler

Imported Italian GIVI high-precision grating ruler sensor, installed on the linear guide rail, can move smoothly and adjust up and down, 2-side feedback accuracy up to 0.02.

High-precision positioning with flexible operation.
Adjustable design to accommodate different sizes and shapes of workpieces.

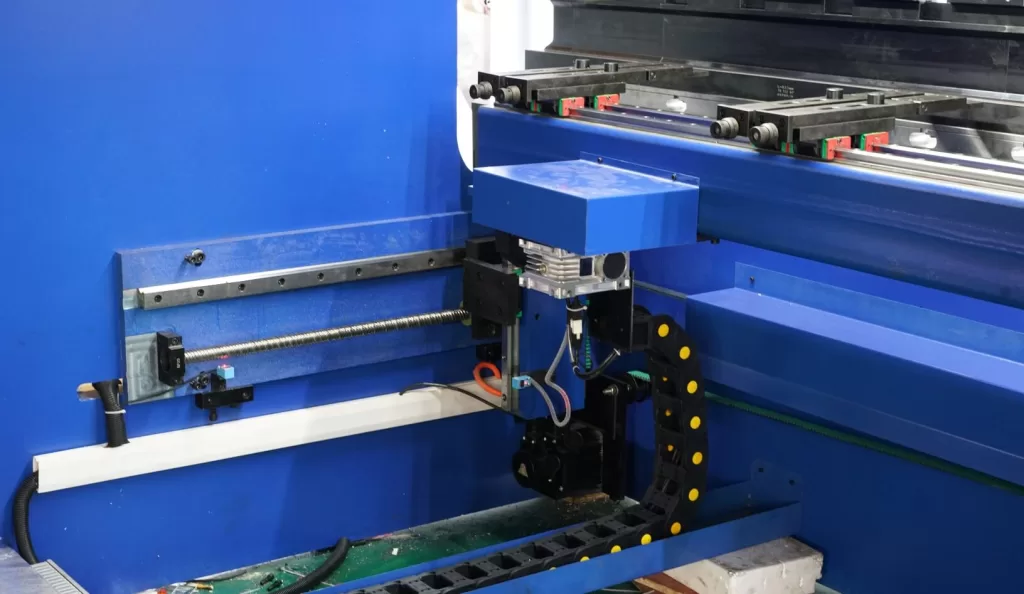

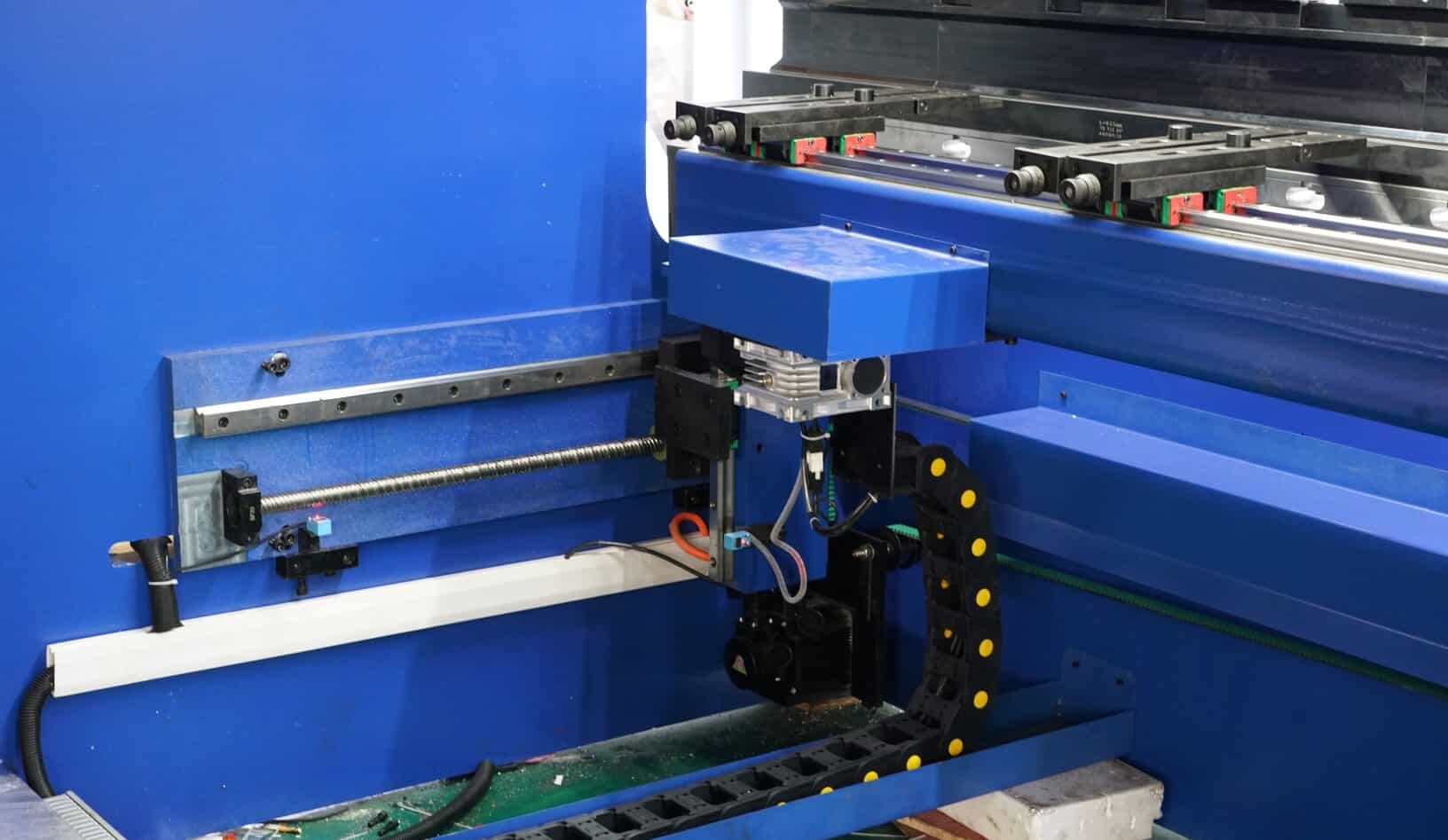

Back Gauge

Independently designed high-precision back stop assembly, equipped with HlWIN high-precision ball screw, high precision, fast speed, good stability.

positioning accuracy of 0.01mm.
Axis X speed 500 mm/s
Supports forward and backward movement of the X-axis and manual left and right movement of the Z-axis to adapt to a variety of different punches and workpiece needs.
Fingers with double stop and micrometric adjustment.

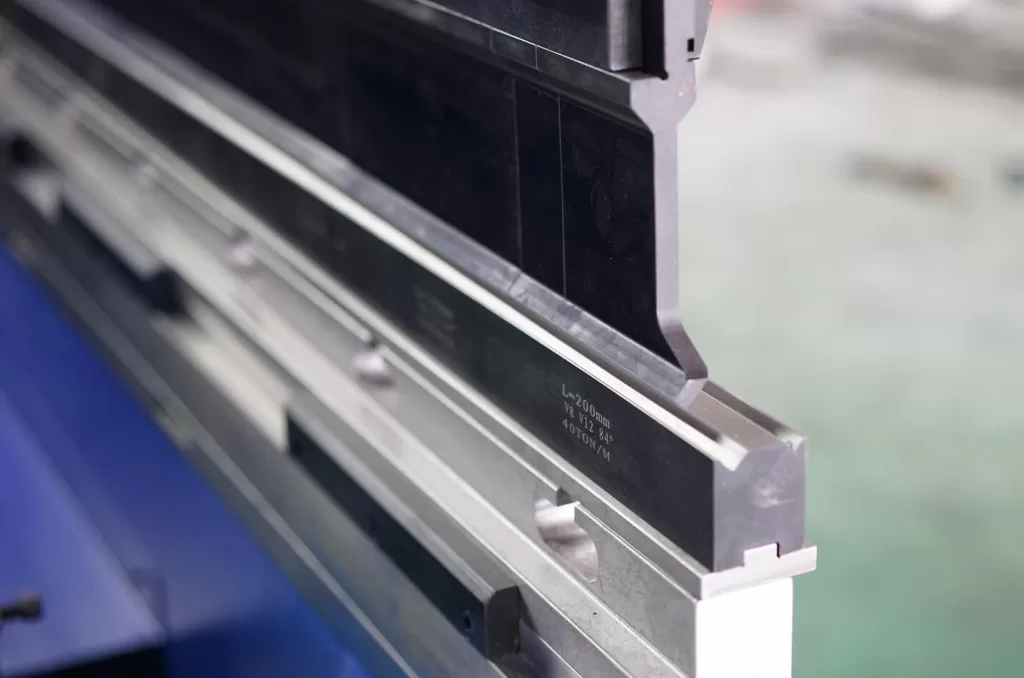

4V Die

The 4V mold is multifunctional,featuring four different V-shaped grooves that allow selection of the appropriate opening width based on bending thickness. The mold can also be used in conjunction with semicircular notches to meet various bending needs.

Strong multifunctionality,with one mold satisfying multiple bending requirements.
Reduces mold change frequency and improves production efficiency.

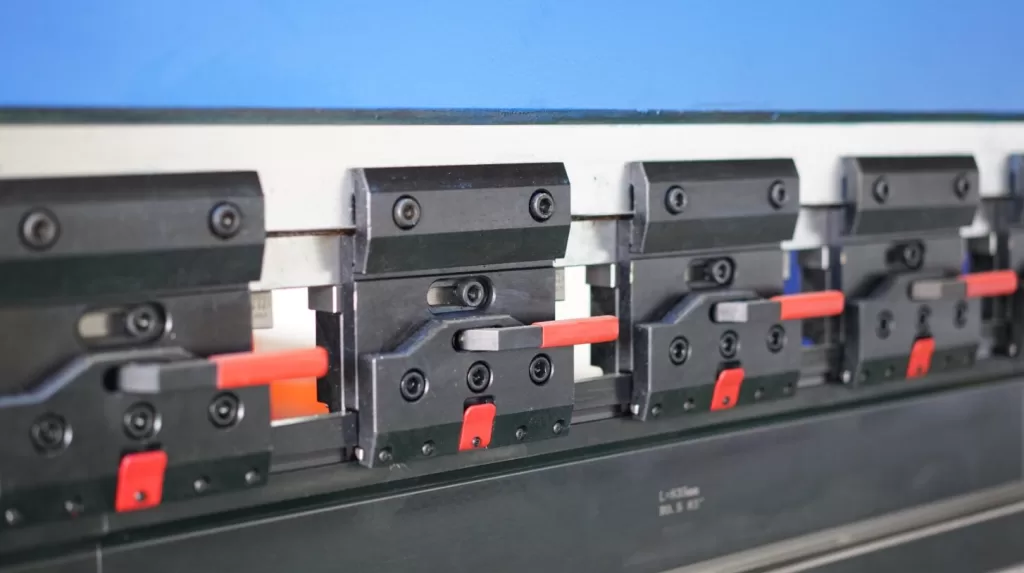

Fast Clamp

After heat treatment and blackening treatment, this fixture is convenient to disassemble and clamp the upper mold in small size.

Simple operation with reliable clamping.
Adapts to various mold types.
Enhances assembly line operation efficiency.
Reduces downtime and improves production continuity.

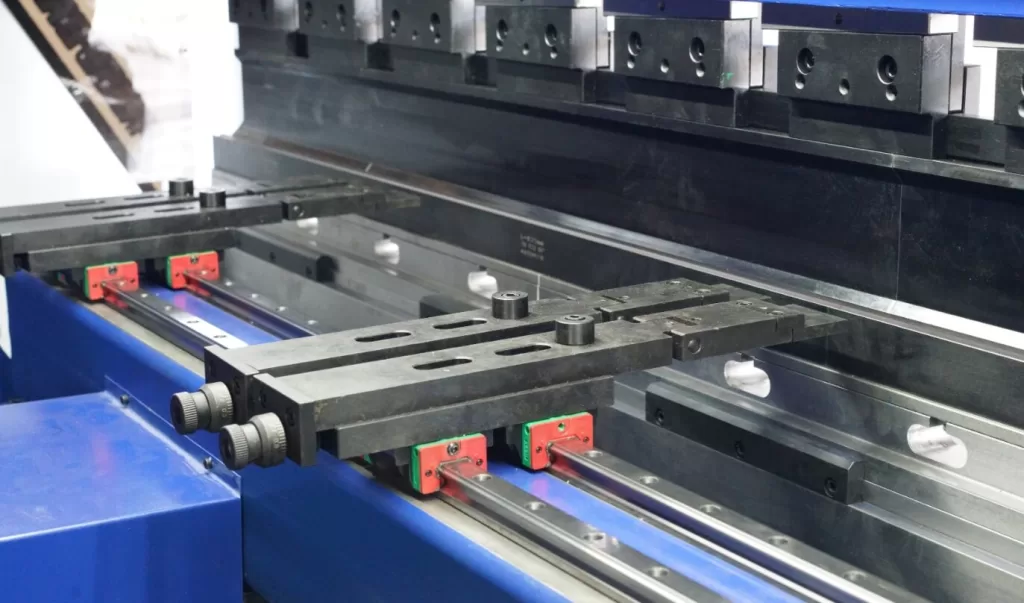

Finger Block

Multiple finger blocks,with point contact between each other, move smoothly on the linear guide rail, and can be adjusted up and down, which is convenient, efficient and easy to control.
During bending work, finger blocks frequently change positions as needed to
achieve bending of plates of different lengths and avoid the problem of insufficient straightness of the plate.

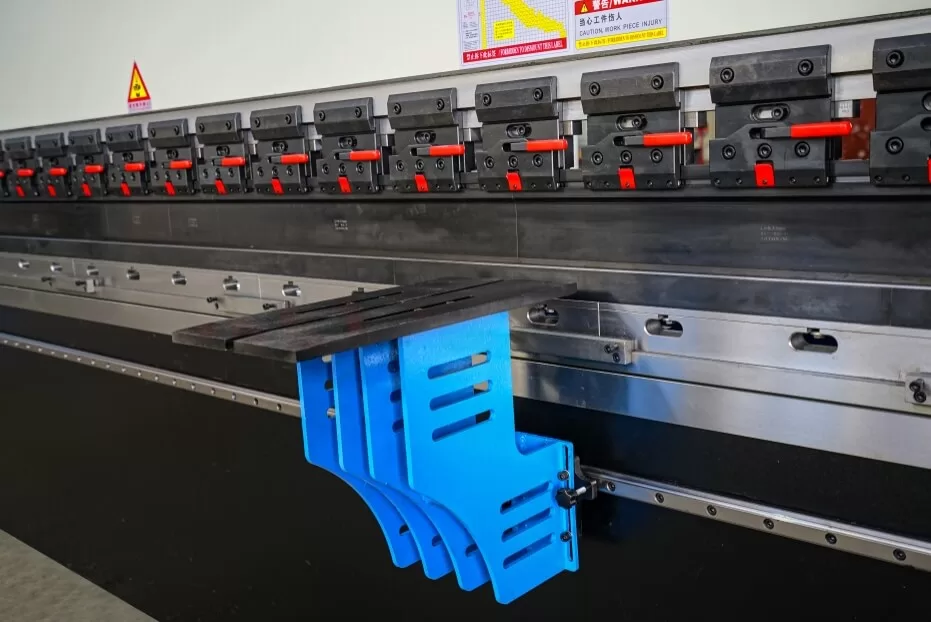

Front Plate Support

The front plate support has a movable design, movable front support, moves along a linear guide, can be docked at any position, and has rotation and height adjustment to assist your bending work (to accommodate different sizes and shapes of the work piece).

German Siemens Main Motor

Adopt German brand Siemens motor, which can effectively save 40% energy, improve the overall working efficiency of the slider by about 20%, and reduce the oil temperature to 20°c. In addition, we provide customized solutions for machine power and voltage to meet local specific voltage requirements.

It can be applied to various harsh working environments.
Educe energy consumption and extend the service life of equipment.

Germany Bosch Rexroth Hydraulic System

Using German Rexroth hydraulic system can reduce hydraulic oil leakage problems, hydraulic pressure can be adjusted according to actual needs to meet different bending force requirements

Energy-efficient and operates smoothly.
Durable hydraulic components suitable for long-term high-load work.
Provides stable pressure output. ensuring bending accuracy.

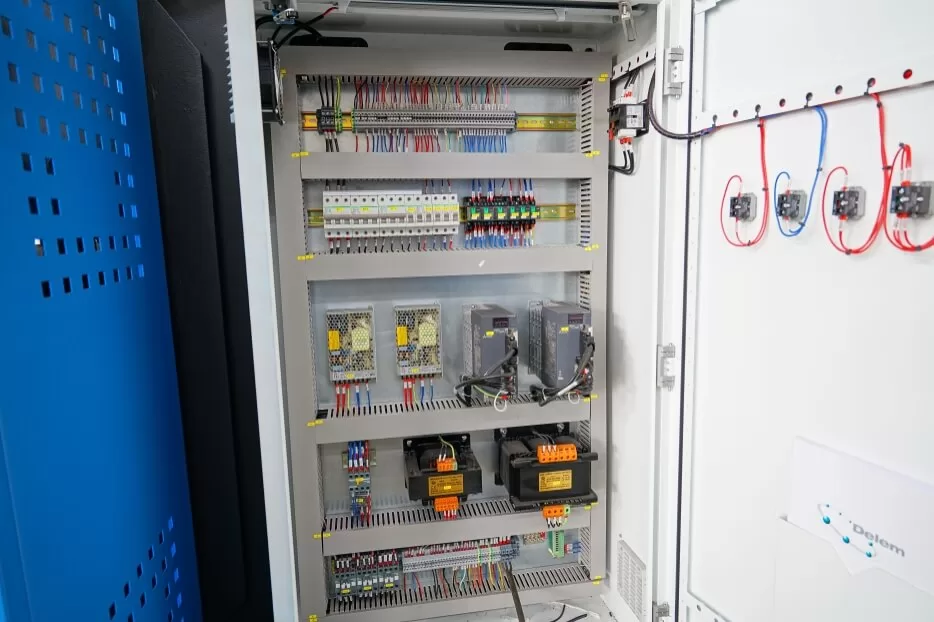

Schneider Electric

High-quality electrical components, rated at 24 V DC – 250 V AC and an average power of 5.1 KW at 50°C, can work in any harsh environment and perform well even under unstable power supply. And customers can easily get replacement parts anywhere in the world.

Worm Gear Reducer

Used for the press brake’s speed reduction and torque increase, precise motion control, and self-locking to prevent slipping, our press brake achieves higher safety, efficiency, and precision when bending sheets.

The gear has a low friction coefficient and high efficiency.
The speed fluctuation is the smallest, the noise is low and the vibration is small.
Compared with its high load capacity, it is lightweight and compact.

Italian PlZZATO Brand Foot Switches

Using the ltalian PlZZATO brand foot switch to start and stop the press brake. Operators can quickly stop the machine when needed, reducing the risk of work accidents and greatly improving operational safety.

Ergonomic design, easy and comfortable operation, reducing fatigue caused by long-term operation.
With high-level protection configuration, it effectively resists the intrusion of dust and liquids and is suitable for various harsh working environments.
