Press Brake for Stainless Steel: Tonnage, V-Die Selection, Springback & Surface Protection

ByFrancis Pan
Francis Pan

Francis Pan

Francis Pan is the Foreign Trade Manager of RAYMAX, with over 10 years of experience in sheet metal fabrication equipment and CNC machinery. He has worked closely with manufacturers worldwide on press brakes, fiber laser cutting machines, fiber laser welding machines, and practical production-oriented metal processing solutions.

Top Guidelines

Table Of Contents

Stay in the the loop

Subscribe To Our Newsletter

Quick answers

  • Tonnage: The bending force required for stainless steel bending far exceeds that of mild steel. Therefore, when bending stainless steel, we cannot simply apply the bending parameters used for mild steel. Industry experience generally recommends multiplying the estimated tonnage for mild steel by approximately 1.5 as the starting point for calculating 304 stainless steel.
  • V-Die: Stainless steel has higher surface finish requirements and a greater risk of cracking during bending. Therefore, when selecting V-die dimensions, we cannot simply apply the 6T–8T specifications used for mild steel. The V-die opening for stainless steel typically needs to be larger; a reliable starting point is 8T–12T.
  • Springback: Austenitic stainless steels, such as 304 and 316, exhibit significant springback. During bending, the springback angle is considerably greater than that of mild steel, typically requiring an angle compensation of 2°–5° or more.
  • Surface: Stainless steel surfaces—such as mirror-polished, brushed, or coated finishes—have very high requirements. These must be considered in conjunction with measures such as non-marking protection solutions, selecting appropriate V-die, choosing suitable process parameters, and standardizing handling and support methods.
  • Equipment Selection: The key to successful stainless steel bending is system matching, not just a single tonnage parameter. Frame rigidity, crowning, and tooling selection are all closely related to the final product quality.

Note: The discussion in this article regarding V-die openings, required bending force, and springback compensation primarily applies to air bending processes. If bottoming or coining is used, the required tonnage, die matching, and springback characteristics will differ significantly.

30-Second Lookup Table

Material

Tonnage Factor vs. Mild Steel

V-Die ratio start

Springback tendency

Surface risk

304

≈1.5 times

≥8T

High

Medium

316

≈1.5-1.6 times

≥8T

High

Medium

201

≈1.4-1.5 times

≥8T

Relatively high

Medium

Mirror-finish stainless steel

≈1.5 times

≥10T-12T

High

Extremely high

Brushed stainless steel

≈1.5 times

≥10T

High

High

Film-coated stainless steel

≈1.5 times

≥10T

High

High

If we primarily manufacture stainless steel parts, then in addition to considering the machine’s tonnage, the tooling setup, crowning, back gauge accuracy, and surface protection are equally important.

Brushed,mirror-finish, and-coated-stainless -steel
Brushed,mirror-finish, and-coated-stainless -steel

Why is stainless steel more “demanding” to bend than ordinary steel?

Key challenges

The difficulty of bending stainless steel stems primarily from its physical properties.

  • First, it has a very high yield strength, meaning that bending force is required to cause deformation during bending;
  • Second, it exhibits high elasticity, resulting in more pronounced springback after bending;
  • Furthermore, stainless steel has significant work-hardening properties; it hardens rapidly under stress, making secondary corrections extremely difficult;
  • Finally, stainless steel is often used for high-end exterior components, which demand extremely high surface quality.

On-site issues: Why does 2mm stainless steel fail?

Common causes may include the following:

  • Applying empirical parameters for mild steel directly, resulting in an underestimation of the required tonnage;
  • Selecting a V-die that is too small, causing a sharp increase in bending force and resulting in deep indentations on the sheet surface;
  • Failing to account for deflection during the bending of long workpieces, leading to inconsistent angles at the center and both ends.

The Real Challenge of Stainless Steel Bending: Not Whether It Can Be Bent, but Whether It Can Be Bent Consistently

When it comes to bending stainless steel, the real challenge isn’t whether the first piece can be bent, but whether it’s possible to consistently produce parts with the correct angles and dimensions during mass production while maintaining a high level of surface quality.

Which industries rely most heavily on stainless steel bending?

Industries that demand high precision and excellent surface quality, such as elevator decorative panels, high-end kitchenware and food processing equipment, medical device housings, architectural trim, and high-end enclosures and cabinets.

5 key input parameters before bending

Material grades

The different material grades—such as 304, 316, and 201—should not be treated as interchangeable.

Although they are all stainless steels, their strength and work-hardening characteristics vary. For example, 304 is the most widely used grade, while 316 typically provides superior corrosion resistance; meanwhile, the mechanical properties and formability of 201 stainless steel may vary depending on the supplier, batch, and condition.

Therefore, for applications with stringent requirements, we must establish parameters based on the material certificate and test results for the specific batch.

304, 316, 201 stainless steel
304, 316, 201 stainless steel

Sheet thickness

Changes in sheet thickness result in changes to a range of parameters. Thin, medium, and thick sheets each have different requirements regarding the required tonnage for bending, V-die width, inside radius, and minimum bend length.

Bending length

When bending workpieces of different lengths, factors such as the total tonnage, load per unit length, table deflection, angle consistency, and support requirements are all affected. The longer the workpiece, the greater the potential difference in angles between the center and the ends during the bending process. In such cases, the machine must be equipped with a robust crowning system.

Surface finish

2B, BA, brushed, mirror-polished, and coated stainless steel all have different surface quality requirements.

The higher the surface grade, the more necessary it is to use non-marking tooling or interlayer film solutions. For mirror-polished stainless steel with extremely high surface requirements, the focus of the bending process must be on ensuring the surface remains scratch-free.

Part requirements

Before bending, we must clearly define the part requirements. These include angle tolerances, flange dimensions, inside radius, surface finish requirements, and batch consistency requirements. These specifications directly determine the processes and machine configurations required.

Engineering guide to estimating stainless steel bending tonnage

What is press brake tonnage?

The bending force required when the punch presses the metal sheet into the lower die to produce plastic deformation.

How should the standard formula be interpreted?

A common formula for estimating tonnage is:

Tonnage Estimation Formula
  • F = required bending force (kN)
  • C = empirical constant related to material strength
  • T = sheet thickness (mm)
  • L = bending length (m)
  • V = V-die opening width (mm)

The primary purpose of providing this formula is not to require manual calculations, but to help us understand the relationships between the various parameters:

  • The required tonnage is proportional to the square of the sheet thickness and to the bending length:
  • The sheet thickness has a significant impact on tonnage, and this relationship is quadratic;
  • The longer the bending length, the greater the tonnage required;
  • The higher the material strength, the larger the empirical constant C, and the greater the bending force
  • Meanwhile, the V-die opening width is inversely proportional to the tonnage:
  • The smaller the V-die opening, the higher the tonnage required

It is important to note that this type of formula is primarily suitable for preliminary estimates in air bending processes. If bottoming or coining processes are used, the tonnage required by the press brake will be significantly higher; therefore, the same set of empirical values cannot be directly applied.

Why is stainless steel typically estimated using a higher coefficient?

Because the yield strength and work hardening characteristics of stainless steel (especially common austenitic stainless steel) are generally significantly higher than those of mild steel, the bending force required is often greater under the same plate thickness, length, and V-die conditions.

If we define the formula as follows:

  • Unit of F: kN
  • Unit of L: m
  • Units of T and V: mm
  • Assumption: Air bending

Then, the standard calculation method for ordinary mild steel in the engineering industry is:

Mild steel (low-carbon steel): C ≈ 650

For 304 stainless steel, many sites will initially use approximately 1.4–1.5 times the result for ordinary mild steel as a preliminary estimate. According to publicly available data, the strength of mild steel is approximately 60,000 PSI, while that of 304 stainless steel is approximately 84,000 PSI. Based on this ratio, the coefficient for 304 stainless steel is approximately 1.4; if a company’s internal processes are more conservative, a multiplier of 1.5 is often used as the starting point for estimation. (RAYMAXTECH also recommends using a coefficient of 1.5.)

Therefore, within this formula system, it can be understood as follows:

  • Ordinary mild steel: C ≈ 650
  • 304 stainless steel: C ≈ 910–975

Where:

  • 910 corresponds to a material coefficient of approximately 1.4
  • 975 corresponds to an empirical starting point of approximately 1.5

Note: This is merely an empirical starting point for preliminary estimation and cannot be directly applied in actual production. The final tonnage must be calculated based on material condition, V-die dimensions, target inside radius (R), bending length, equipment rigidity, and test bending results.

Six variables affecting bending tonnage

The bending tonnage for stainless steel is influenced by six variables: material grade and strength, sheet thickness, bend length, V-die opening dimensions, bending process, and target inside radius.

Recommended Tonnage Comparison Table for Mild Steel and Stainless Steel Bending (Based on Standard V = 8T and Air Bending)

To facilitate a quicker initial assessment, the table below compares the reference tonnage values for standard mild steel and 304 stainless steel based on the air bending process and the condition that the V-die opening equals 8T. However, this should only be used as a preliminary estimate and cannot be treated as a fixed value for final production.

plate thickness

Mild Steel Reference Tonnage (tons/m)

304 Stainless Steel Reference Tonnage (tons/m)

Notes

1mm

≈8

≈12

Thin sheets exhibit significant springback; pay close attention to angle compensation.

2mm

≈17

≈25

The bending force required for 304 stainless steel is significantly higher than that for ordinary steel.

3mm

≈25

≈37

We recommend paying close attention to equipment rigidity and V-die compatibility.

5mm

≈42

≈62

For thick sheet projects, focus on inside radii, V-die, and the risk of cracking.

Practical example

Example 1:

Suppose we are bending a 1-meter-long, 2-mm-thick piece of 304 stainless steel, assuming air bending, with C ≈ 975 for 304 stainless steel and a common V-die range of 8T–12T, the theoretical bending force is approximately 16.6–24.9 tons.

Under these conditions, although this estimate suggests that such workpieces do not require a very high tonnage, we typically do not base our selection solely on the estimated value when actually selecting equipment. Factors such as equipment margin, tooling compatibility, batch consistency, and room for subsequent process adjustments must also be considered.

Common selection approaches include:

  • If you primarily engage in small-batch production with low precision requirements: consider a 40-ton press brake;
  • If you are engaged in routine production and prioritize stability and versatility: consider a 50–63-ton press brake;

Example 2:

However, if you need to bend a 2.5-meter-long, 2mm-thick 304 stainless steel workpiece under the same conditions, the theoretical bending force would increase to approximately 41.5–62.2 tons.

In this case, although the theoretical force is still not particularly excessive, due to the significant increase in workpiece length, equipment selection cannot be based solely on bending force; factors such as effective working length, frame rigidity, crowning capability, back gauge accuracy, and support capacity for long workpieces must also be considered.

Therefore, the most common approach for such applications is typically:

  • If you prioritize basic usability: consider an 80-ton class press brake with a working length of 3,000–3,200 mm;
  • If you require more stable mass production: consider a 100-ton press brake;
  • If your workpieces have high surface finish requirements, involve large batch sizes, or require a larger safety margin: further consider a 125-ton press brake.

Summary: the above two examples illustrate that even for 2mm-thick 304 stainless steel, different bending lengths result in significantly different equipment selection strategies.

  • For short workpieces: our focus in bending lies in maintaining a certain margin of tonnage capacity and enhancing operational flexibility;
  • For long workpieces: the final bending result is often determined not only by whether the tonnage margin is sufficient, but also by the machine’s rigidity, compensation system, and overall stability.

Common procurement misconceptions

  • Focusing only on the machine’s total tonnage and ignoring the bending length: We should not focus solely on total tonnage; instead, we must consider the load capacity per meter based on the length of the workpiece being bent.
  • Focusing only on “maximum bending thickness” and ignoring long-term batch production stability: The fact that a machine can produce a single qualified part under maximum load does not necessarily mean its long-term batch production capability will remain stable.
  • Focusing only on the first piece and ignoring consistency in subsequent parts: A qualified first piece does not guarantee that subsequent batch production will be qualified. The consistency of subsequent parts produced by the machine is affected by oil temperature and the response capability of the compensation system.
  • Ignoring the impact of V-die variations on tonnage requirements: To bend short edges or achieve smaller inside radius, some choose V-die with extremely narrow V-openings. However, this causes the machine’s tonnage requirements to rise sharply, potentially leading to equipment damage.

How should I choose a V-die and an upper punch?

The fundamental principles of V-die selection

The V-die is by no means chosen arbitrarily; its width determines the required tonnage, the size of the formed fillet radius, the degree of springback, and the depth of the indentation left by the tooling on the sheet surface. The width of the V-die should be selected within the permissible range.

Generally speaking:

  • The wider the V-die, the smaller the required bending force, and the lower the tonnage requirement. Conversely, the narrower the V-die, the higher the tonnage requirement;
  • The wider the V-die, the larger the inside radius of the formed part typically is. The narrower the V-die, the smaller the inside radius typically is;
  • The wider the V-die, the more difficult it is to control springback. The narrower the V-die, the easier it is to control springback;
  • The wider the V-die, the lower the risk of the tooling leaving indentations on the sheet surface. The narrower the V-die, the more likely the tooling is to leave indentations on the sheet surface.

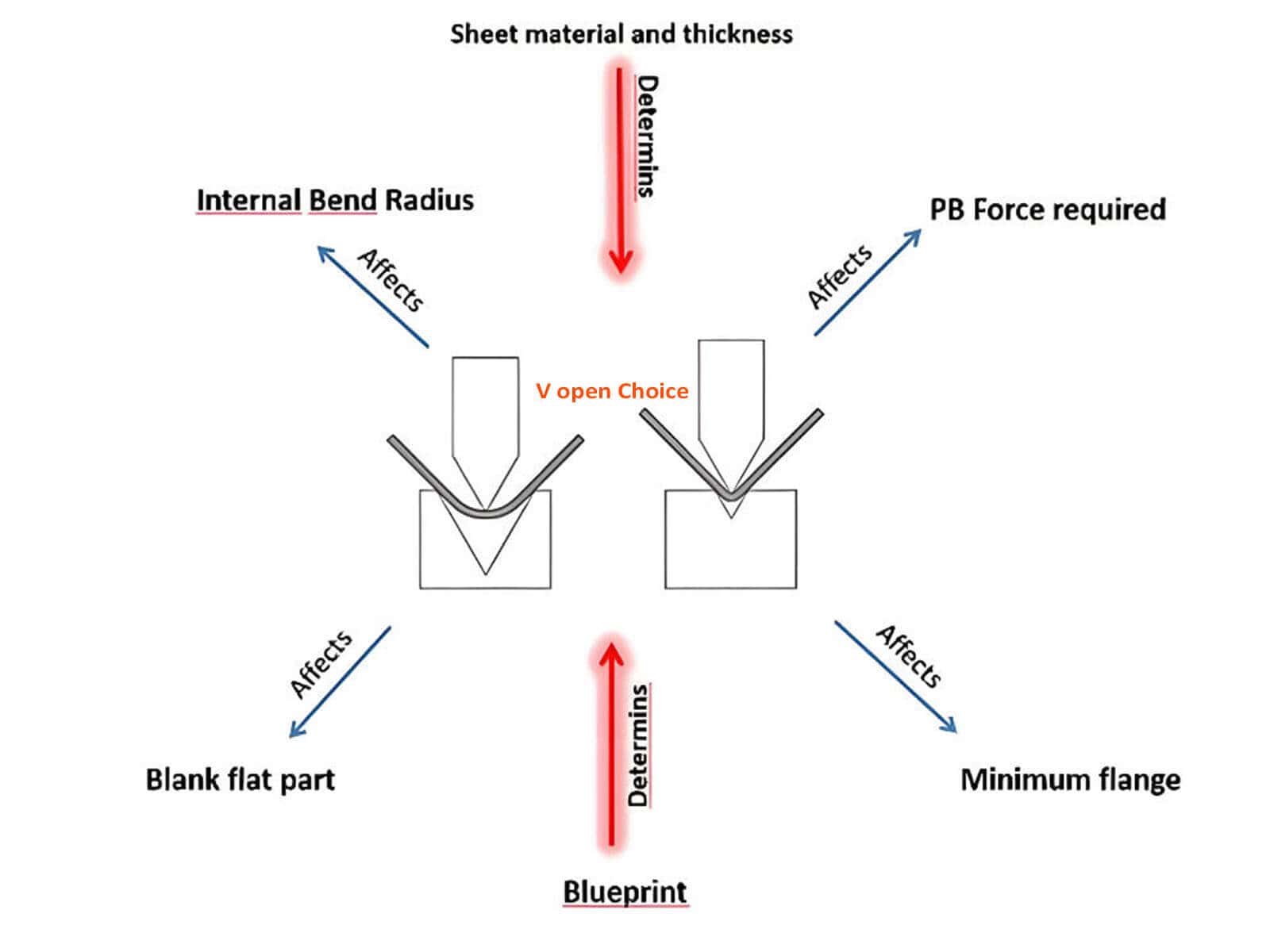

What does V-Die Opening Affects
What does V-Die Opening Affects

Engineering rationale for the 8T–10T starting point

In air bending applications, the industry generally recommends using a V-die opening width of 8T–10T as a starting point for stainless steel. The purpose is to reduce tooling load and minimize surface indentations on the stainless steel.

  • Common starting point for thin sheets (≤3 mm): 8T
  • For medium-to-thick sheets or when higher surface quality is required: 10T–12T

For thick sheets, situations with a high risk of cracking, or when high aesthetic standards are required, small V-die should not be used indiscriminately.

What happens if the V-die is too small?

If the V-die is too small, the tonnage required by the equipment increases rapidly, and the load on the tooling also increases. This can result in deeper indentations on the material surface and, in severe cases, cause cracks on the outer surface of the material due to excessive stretching.

What happens if the V-die is too large?

If the V-die is too large, material springback becomes difficult to control, making it hard to maintain the desired bend angle. It also causes the inside radius to increase. When bending workpieces with short flanges, the flange edge may slip directly into the V-die, preventing the bend from being formed.

Stainless steel V-die quick reference chart

Plate Thickness

≤2mm

3-4mm

≥5mm

Recommended V-die starting point

8T

8T-10T

10T-12T

Recommended for high surface finish requirements

10T+ protective film

10T-12T

≥12T

Recommended when there is a high risk of cracking

10T+ stretch-resistant

12T+ with enlarged R-corner transitions

12T-14T

Remarks

Requires balancing V-die and short-edge requirements

Pay close attention to the springback angle

The risk of cracking is extremely high; the V-die must be enlarged.

Why shouldn’t the upper punch tip radius be too small?

When the upper punch tip radius is too small, the contact area between the upper punch and the material is very small, resulting in high pressure. During the downward stroke, it will pierce directly into the material like a knife blade, causing severe tensile stress on the outer surface of the material and leading to cracking. This is particularly critical for high-strength stainless steel. Therefore, we should select an appropriate upper punch tip radius based on the sheet thickness, material properties, and required inside radius.

What else should be considered for molds used on high-surface-finish parts?

It is also necessary to inspect the surface finish of the mold, checking whether the contact edges have been polished and whether there are any burrs. The mold design should also facilitate the use of mark-free protection solutions, such as mark-free film and polyurethane pads.

Controlling springback: taming stainless steel’s “memory”

The nature of springback

Springback refers to the elastic recovery of metal sheets after the removal of pressure, caused by the release of internal stresses within the material, resulting in a slight opening of the angle.

Why does springback occur more pronouncedly in stainless steel?

Because stainless steel (especially austenitic stainless steel) has a very high yield strength, its elastic recovery is more pronounced. For 304 and 316 stainless steel, the empirical range of springback is estimated to be between 2° and 5°. However, this is not a fixed value and is also influenced by the manufacturing process.

Key factors affecting springback

Material hardness, sheet thickness, rolling direction, bending angle, V-die width, and bending method can all influence material springback.

How to interpret common empirical springback ranges in the field?

Although we often use 2° to 5° as the common empirical range for 304 and 316 stainless steel, this cannot be treated as a fixed value; the actual springback angle varies with changes in material condition, sheet thickness, tooling, angle, and process.

For example, if we switch to a batch of material with slightly higher hardness or use a V-die with a slightly wider opening, the springback angle may immediately change from 3° to 5°.

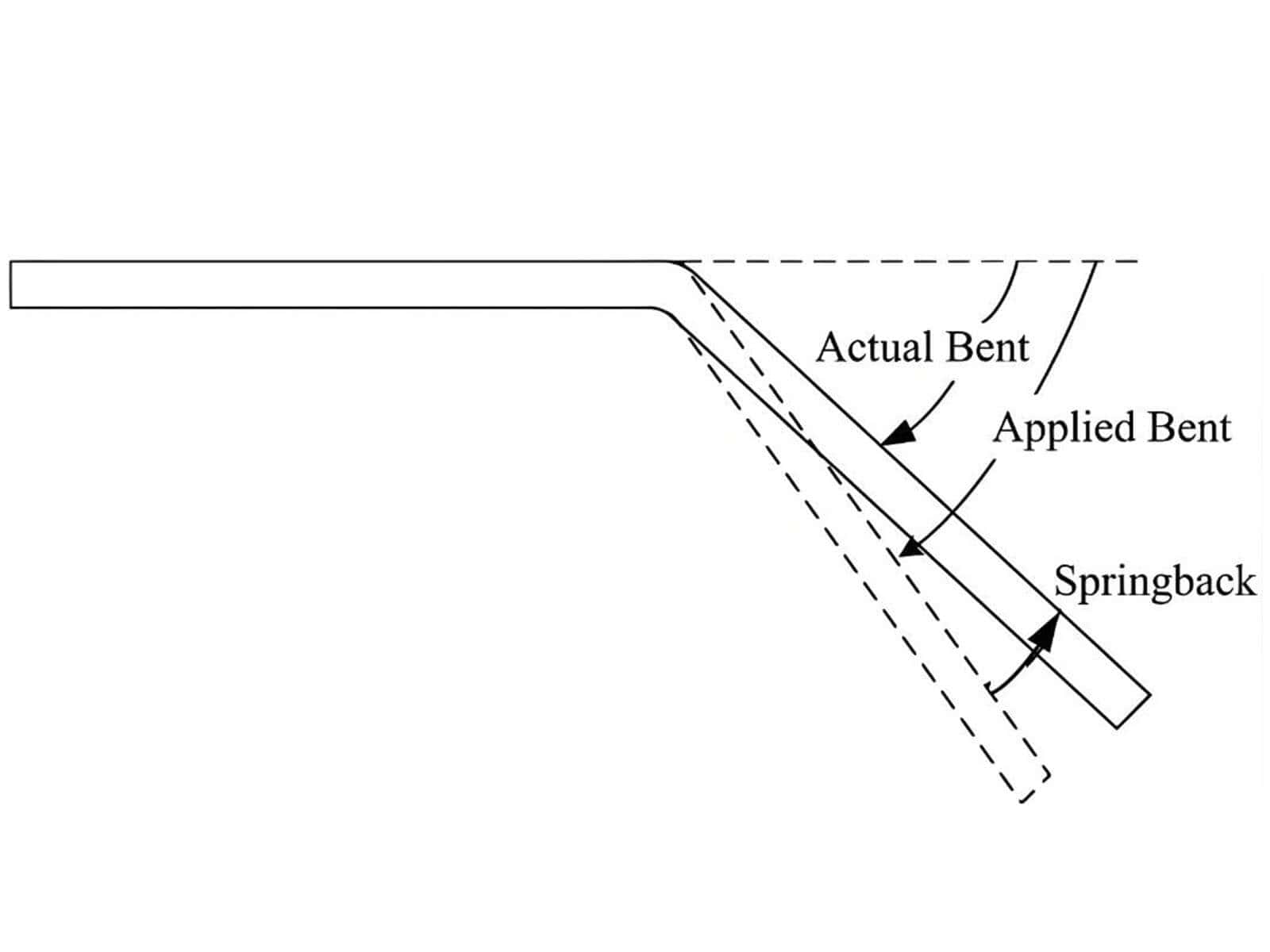

Springback
Springback

Four methods of springback control

Overbending:

This is the most commonly used method. Since material springback causes the actual angle to be slightly larger than the intended angle, we intentionally bend to a slightly smaller inside angle than the target angle. For example, if our target inside angle is 90°, and the material is expected to spring back by 2°, we can set the bending program to 88°. This way, after the pressure is released, the final angle after springback will be exactly 90°.

When using overbending, do not blindly overcompensate; establish the compensation value based on trial bends.

A Brief Dwell at Bottom Dead Center:

When the upper punch reaches its deepest point (the lower dead center), pause briefly—for example, for a fraction of a second. This allows internal stresses in the material to flow and redistribute fully, which can improve angle consistency under certain conditions. However, this method should not be overemphasized, as the final result is still influenced by the material and process.

CNC compensation and material database:

Modern CNC press brake systems and their built-in material databases are particularly important for mass production. By entering the material grade and thickness into the system, it automatically calculates compensation values and performs springback compensation. For processing long workpieces, crowning must also be considered in conjunction with this.

Optimizing the V-die:

Within permissible limits, selecting a V-die with a smaller opening width can help reduce springback. However, the selection range must be carefully controlled; if the V-die is too small, the required tonnage will increase, potentially raising the risk of cracking or indentations.

On-site issue: Why does the angle become inaccurate when switching to a new batch of material?

Possible causes include: Differences in heat treatment between material batches, which may result in variations in hardness. Alternatively, there may be slight deviations in sheet thickness. It could also be due to mold wear, causing the angle to be inaccurate.

How can you prevent dents, scratches, and scuff marks on stainless steel surfaces?

Why are surface defects in stainless steel more critical than angular defects?

Because stainless steel is often used for high-end exterior components, its surface quality requirements are extremely stringent. During the bending process, even if the angles and dimensions of the stainless steel meet specifications, any scratches or indentations on the surface may be irreparable, resulting in the part being scrapped.

List of common surface defects

Common surface issues in stainless steel bending include: indentations, scratches, drag marks, bright spots, die adhesion, damage to the brushed finish, and damage to the protective film.

  • Indentations: Two deep marks left on the stainless steel surface by the edges of the V-die opening.
  • Scratches: Marks caused by burrs on the tooling or by the sheet sliding during the process.
  • Drag marks: Scratches caused by friction between long workpieces and the die or table surface during loading, unloading, or flipping.
  • Bright spots: A change in surface luster caused by excessive local pressure due to an overly sharp punch tip or excessive localized contact pressure.
  • Die sticking: Scratches on the sheet surface caused by debris adhering to the tooling.
  • Brushed finish disruption: Scratches that disrupt the original direction of the brushed finish.
  • Protective film damage: Damage to the protective film caused by excessive pressure.

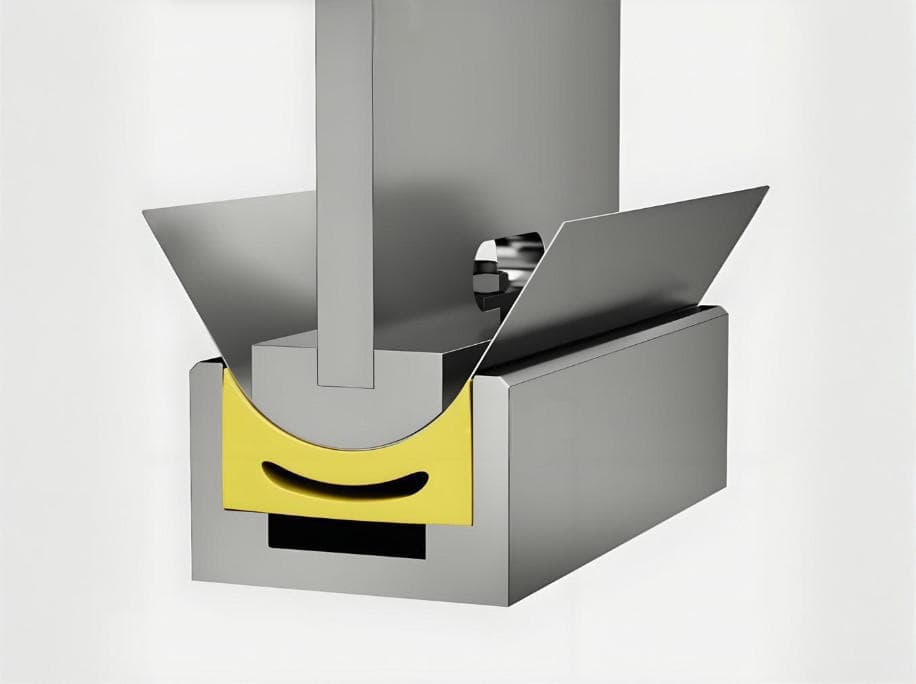

Common protection methods

  • Retaining the factory protective film: This is the most basic protective measure. The sheet surface is covered with a protective film when it leaves the factory; we can leave this film in place during bending to provide basic protection. However, the protective film is prone to tearing under high pressure.
  • Using polyurethane non-marking protective film: This is the most common protection method. A layer of polyurethane protective film is placed in the V-die of the lower die, allowing the sheet metal to come into direct contact with the film, which effectively prevents indentations.
  • Using roller-type lower dies: This is the most advanced protection method, often used for parts with high aesthetic requirements. Rotating rollers are installed on both sides of the tooling. During bending, rolling contact replaces sliding contact, effectively reducing friction.

Why is “adding just one layer of film” not always sufficient?

This is because surface damage to the sheet may not only occur during the process of pressing the sheet into the lower die, but may also result from other causes, such as: burrs on the tooling edges, scratches caused by the sheet sliding on the worktable, and drag marks caused by friction between long workpieces and the tooling or worktable during loading, unloading, or flipping.

Surface protection solutions
Surface protection solutions

304 vs. 316: Should they be treated differently during bending?

Why do buyers always ask about 304 and 316 separately?

When bending stainless steel, we must consider multiple factors, including cost, strength, corrosion resistance, springback, surface risks, and whether higher-spec machinery is required.

Since 316 is significantly more expensive than 304 and offers superior corrosion resistance, buyers worry that it might make forming extremely difficult, make springback harder to control, increase the risk of cracking, and necessitate the purchase of a more powerful press brake.

How should 304 and 316 be understood from a bending perspective?

Both 304 and 316 are common austenitic stainless steels and may exhibit noticeable springback. However, in actual operation, factors such as grade, hardness, sheet thickness, and batch can also influence the actual process performance.Because 316 stainless steel is often more expensive, its bending projects are usually handled more cautiously, and decisions should not be based on experience alone.

Under what circumstances is a test bend verification required?

Test bend verification is mandatory when working with parts that have small inside radius, long workpieces, extremely narrow flanges, high-volume continuous production, parts with high aesthetic requirements, or complex parts requiring multiple bends.

What kind of press brake is truly suitable for stainless steel?

Selection criteria

A press brake that is truly suitable for stainless steel must not only be capable of bending, but also capable of producing high-quality parts in large quantities over the long term with consistent reliability.

Eight key technical considerations for equipment selection:

  • Frame rigidity: Stainless steel bending requires high tonnage, so frame rigidity is critical under high-load conditions.
  • Tonnage and length matching: Do not focus solely on total tonnage; instead, consider the load capacity per meter based on the length of the workpiece being bent.
  • CNC system & database: Simplifies springback compensation calculations; facilitates program reuse and improves bending accuracy.
  • Crowning system: Ensures consistency in the left, center, and right angles of long workpieces.
  • Back gauge accuracy: Ensures consistency in flange dimensions; provides more precise positioning when processing complex parts.
  • Clamping system: Improves tooling changeover speed and tooling repeatability.
  • Sheet follower: The sheet follower prevents sagging and scratches on long sheets and reduces operator fatigue.
  • Compatibility with non-marking solutions: The machine’s lower die holder must be compatible with and capable of mounting various non-marking tooling or protective devices.

For stainless steel projects, what questions should customers ask manufacturers when making an inquiry?

  • What are the machine’s maximum processing thickness and length?
  • Do you have proven customer case studies for processing high-finish stainless steel parts?
  • What type of crowning system do you use, and what is its accuracy?
  • Is the machine compatible with non-marking tooling or other surface protection devices?
  • Can you provide recommendations for tooling and trial bending?
  • Can you evaluate the appropriate tonnage and recommend suitable configurations based on part drawings?

Common issues and troubleshooting tips for stainless steel bending

The tonnage seems sufficient, but the bend angle is still unstable.

  • Possible causes: Inappropriate V-die dimensions, incorrect springback compensation settings, insufficient crowning, or insufficient machine rigidity.
  • Priority troubleshooting: Check whether the V-die dimensions are too large or too small, verify the settings for springback and crowning, and assess the machine’s condition.
  • Recommendation: First, confirm the appropriate range of process parameters, then adjust the tooling and compensation settings.

First part is accurate, but subsequent parts begin to deviate

  • Possible causes: Changes in hydraulic oil temperature causing inaccuracies in the ram’s repeat positioning accuracy; mold wear; variations in material hardness; inconsistent compensation.
  • Priority troubleshooting: Check oil temperature, mold condition, variations in material from the same batch, and program consistency.
  • Recommendation: Establish a random inspection mechanism for subsequent parts; do not rely solely on inspecting the first part.

Visible indentations on the surface

  • Possible causes: V-die dimensions are too small, rough mold surface, lack of or insufficient surface protection measures.
  • Priority troubleshooting: Check whether the V-die dimensions are too small, inspect the condition of the mold surface, and implement a mark-free solution.
  • Recommendations: Select V-die with appropriately larger opening dimensions and choose molds with smooth, flat contact surfaces.

Inconsistent angles in the middle of long panels

  • Possible causes: Uneven load distribution, insufficient crowning, or inadequate support for long workpieces.
  • Priority troubleshooting: Verify that the load per unit length and crowning settings are correct, and check for issues with the workpiece support method.
  • Recommendations: When bending long workpieces, crowning and support must be considered together.

The machine becomes inaccurate after switching to a new batch of material

  • Possible causes: Hardness fluctuations due to batch-to-batch variations, changes in sheet thickness tolerances, or changes in surface friction conditions.
  • Priority troubleshooting: Verify the actual thickness, hardness, and surface condition of the material.
  • Recommendation: For high-precision bending operations, perform a test bend when switching batches.

Narrow edges are prone to deformation

  • Possible causes: The V-die does not provide sufficient support; the positioning of the back gauge is improper; or stress is concentrated on a small area of the workpiece.
  • Priority troubleshooting: Verify tooling compatibility; check the accuracy of the back gauge positioning; inspect the part’s structure to determine if a specialized lower die is required.
  • Recommendation: When bending narrow edges, always perform a test bend first.

Mirror-finished parts are frequently scratched

  • Possible causes: Dragging during loading and unloading; friction between the workpiece and the table surface when flipping; burrs on the mold; inadequate protective measures.
  • Priority troubleshooting: Verify the support method, ensure the flipping path is correct, check if the mold edges are smooth, and confirm that protective measures are in place.
  • Recommendations: Mirror-finished parts should be managed holistically by standardizing processes, molds, support methods, and handling procedures.

Small-radius bends always crack

  • Possible causes: Material is too hard, V-die opening is too small, or the upper punch is too sharp.
  • Priority troubleshooting: Verify the material grade, hardness condition, whether the upper punch radius is too small, and whether the V-die dimensions are too small.
  • Recommendation: When bending small radii, perform a test bend first to verify the process.

Protective film damage after bending film-coated sheet metal

  • Possible causes: Excessive local pressure, improper friction path, or incompatible film coating.
  • Priority troubleshooting: Verify whether the contact area between the tooling and the panel is too small, whether the dragging path is inappropriate, and the performance of the film coating.
  • Recommendation: When bending film-coated sheet metal, both forming quality and film integrity should be verified at the same time.

Low batch yield for stainless steel parts

  • Possible causes: Poor repeatability, process parameters set close to critical limits, and non-standard operating procedures.
  • Priority areas for investigation: Repeatability of the back gauge, program consistency, and operating procedures.
  • Recommendations: Batch consistency should be used as the evaluation criterion for the press brake, rather than focusing solely on whether individual parts meet specifications.

What information should you prepare before making an inquiry?

Minimum of 7 pieces of information

To obtain the most suitable press brake and configuration, please provide the following 7 pieces of information when submitting an inquiry:

Material grade, thickness range, maximum bending length, estimated daily/annual production volume, surface finish requirements, typical part drawings, and tolerance requirements for critical angles and dimensions.

Why is this information necessary?

The more detailed the information provided, the more suitable the configuration the manufacturer can recommend.

  • Without the material grade and thickness range, the recommended tonnage may be too high or too low;
  • Without the maximum bending length, the wrong machine or compensation system may be selected;
  • Without surface finish requirements, the recommended tooling may fail to meet your mark-free requirements;
  • Without drawings and tolerance requirements, the tooling, back gauge, and programs may struggle to meet precision requirements.

How does a professional manufacturer respond?

A truly professional manufacturer, upon reviewing the information provided by the customer, will typically discuss the workpiece and process first, and only then recommend suitable press brake models and configurations. They will provide recommendations tailored to the customer’s requirements, including tonnage suggestions, test bending recommendations, tooling selection advice, compensation strategies, and surface protection strategies.

Conclusion

The challenges of bending stainless steel lie in four key areas: higher forming force requirements, difficult-to-control springback, strict tolerance requirements, and extremely high aesthetic standards.

To master stainless steel bending with ease, we need to: select the appropriate tonnage, choose the correct tooling, set precise springback and crowning, implement surface protection measures, and select highly rigid equipment.

If you are still struggling with high defect rates in stainless steel bending, or if you are looking for a high-rigidity press brake capable of handling stainless steel bending, please feel free to send us your part drawings and specifications. Raymax will provide you with a free tonnage assessment, tooling recommendations, and machine configuration proposals.

Ready To Upgrade Your Metal Fabrication Line? ​

Email Us For A Free Consultation.​

Frequently Asked Questions (FAQs)

Yes. However, you must first verify that the machine’s tonnage, bending length capacity, tooling configuration, and surface protection requirements are suitable for bending stainless steel. Many standard machines can only handle thinner stainless steel parts or those with less demanding specifications.

Because stainless steel typically has a higher yield strength than ordinary mild steel, greater elasticity, and more pronounced springback. Therefore, when bending stainless steel and mild steel of the same thickness and length, stainless steel often requires a higher bending force.

If the V-die is too small, the required tonnage of the equipment will increase rapidly, and the load on the tooling will also increase. This may lead to deeper indentations on the material surface or an increased risk of cracking on the outer edges. In severe cases, it can accelerate tooling wear and place additional strain on the equipment.

We typically consider 2° to 5° as the common empirical range for springback in 304 stainless steel, but this cannot be treated as a fixed value. The actual springback angle varies depending on the material condition, sheet thickness, V-die opening, inside radius, and process parameters.

Yes. After cold working, 304 stainless steel may exhibit slight localized magnetism. This is a common phenomenon and does not necessarily indicate a material defect.

The key is to control the contact between the tooling and the sheet surface, minimize friction during workpiece flipping and against the table surface, and reduce friction during handling. Typically, measures such as protective film, non-marking tooling, and support solutions should be combined.

Not necessarily. Both are austenitic stainless steels with generally similar mechanical properties, but their performance may vary across different projects, so a blanket statement cannot be made. For high-precision bending, it is recommended to conduct test bends and calibrate parameters based on the actual material condition.

At a minimum, provide the material grade, sheet thickness, maximum length, part drawings, surface finish requirements, angle tolerances, and estimated production volume. The more complete the information provided, the more accurately the manufacturer can recommend suitable machine models and tooling solutions.

Related products

Related Blog

Post Your Review

Share Your Thoughts And Feelings With Others
