Name: 400 ton x 13 ft 6 axis h frame hydraulic sheet metal press brake machine for sale - Raymax
Price: 6500.00 USD
Availability: InStock

technology

Type:	400ton*4000mm
Nominal pressure:	4000KN
Workbench length:	4000mm(13.12 ft / 157.48 in)
Workbench width:	1000mm(3.28 ft / 39.37 in)
Poles distance:	3330mm(10.93 ft / 131.10 in)
Throat depth:	450mm(1.48 ft / 17.72 in)
Main motor:	30kw
Dimensions LWH:	480019002850mm

Configurations

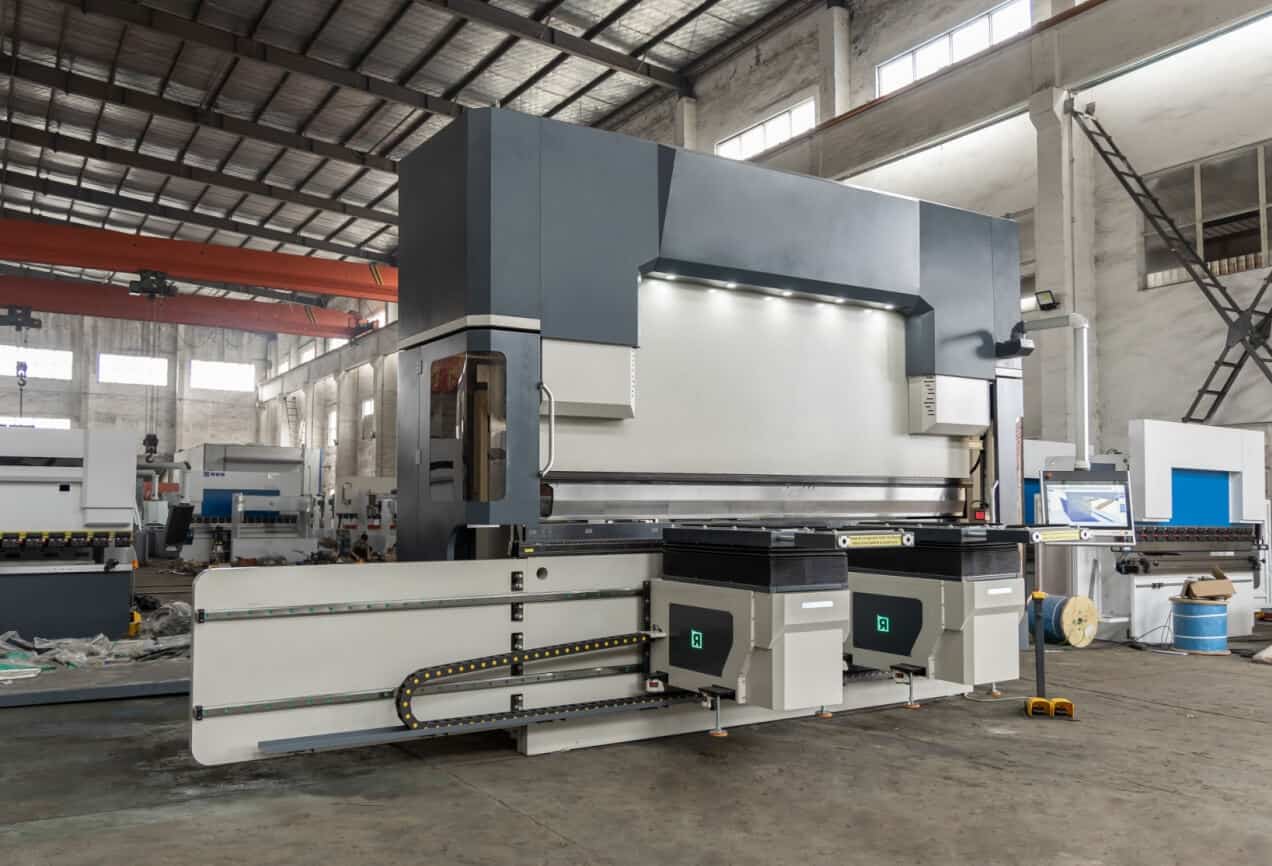

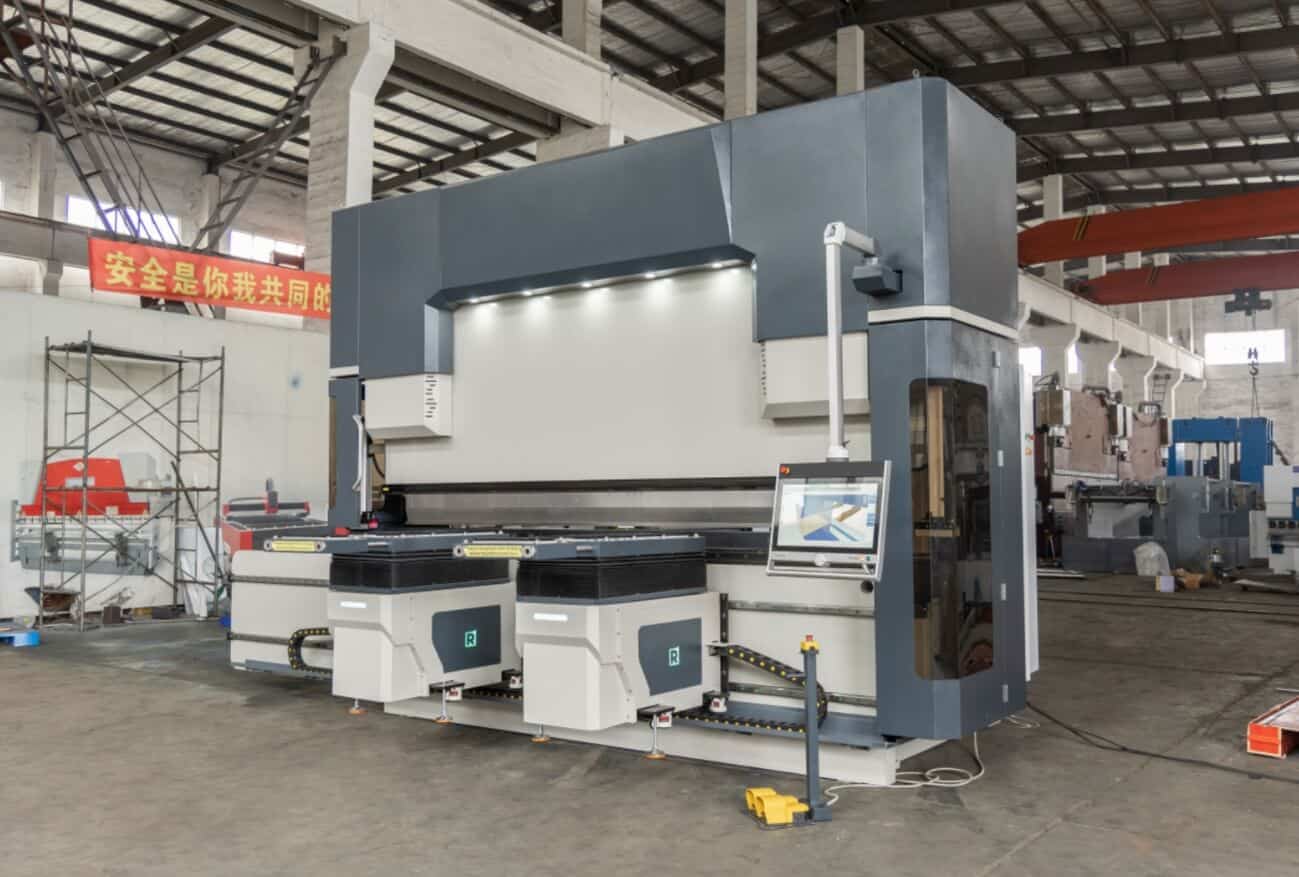

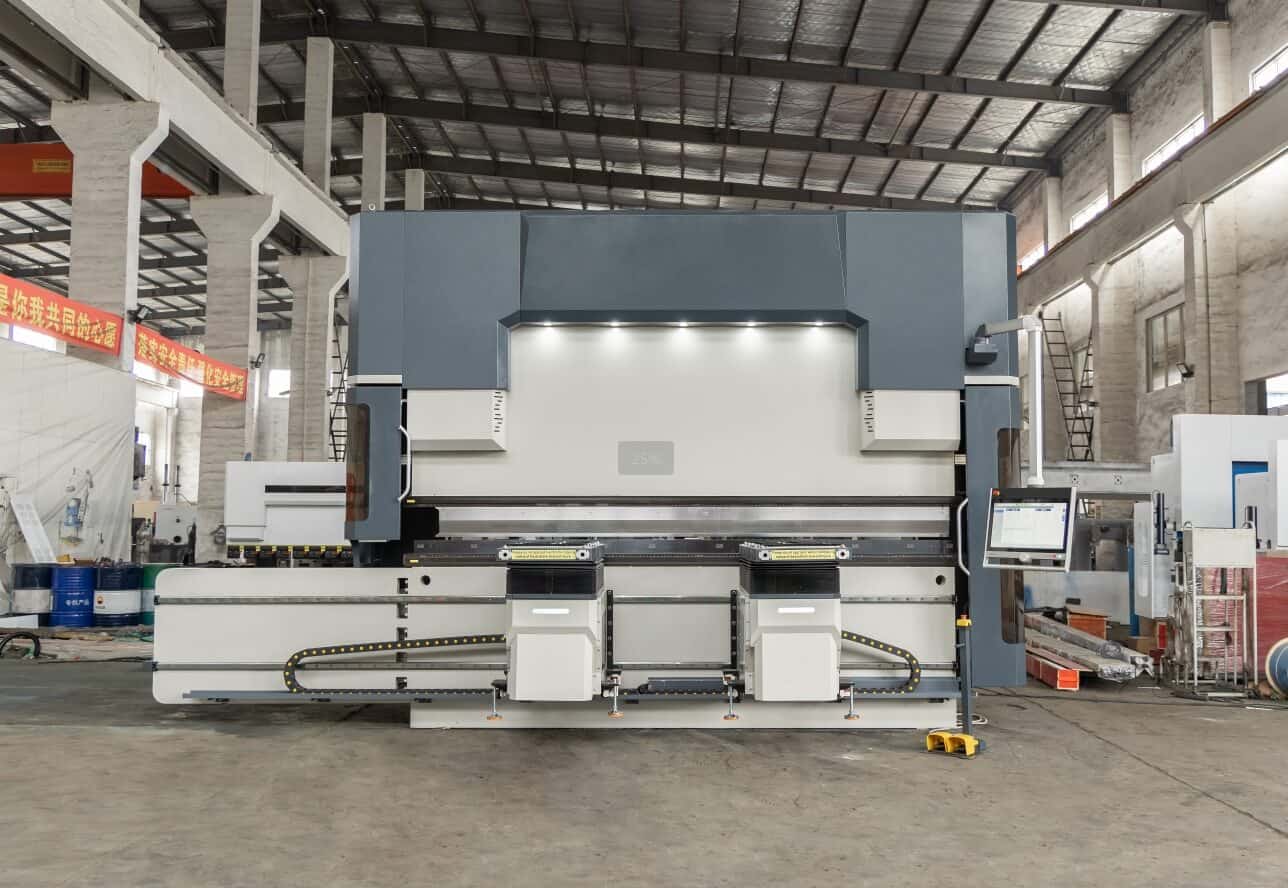

400 ton x 13 ft 6 axis h frame hydraulic sheet metal press brake machine for sale

Main Feature

Economical efficient series 400 ton x 13 ft 6 axis press brake, which is suitable for more complex bending operations! Rated power 400 ton, equipped with advanced CNC DELEM DA69S Controller, German BOSCH-REXROTH hydraulic valve, Taiwan Hiwin linear quide and ball screw, segmented upper and lower tools, top CE safety standards.

Sync & Independent Dual Operation.
Highly rigid frame body, perfect and sturdy.
Dual hydraulic cylinder, precision positioning <0.004″.

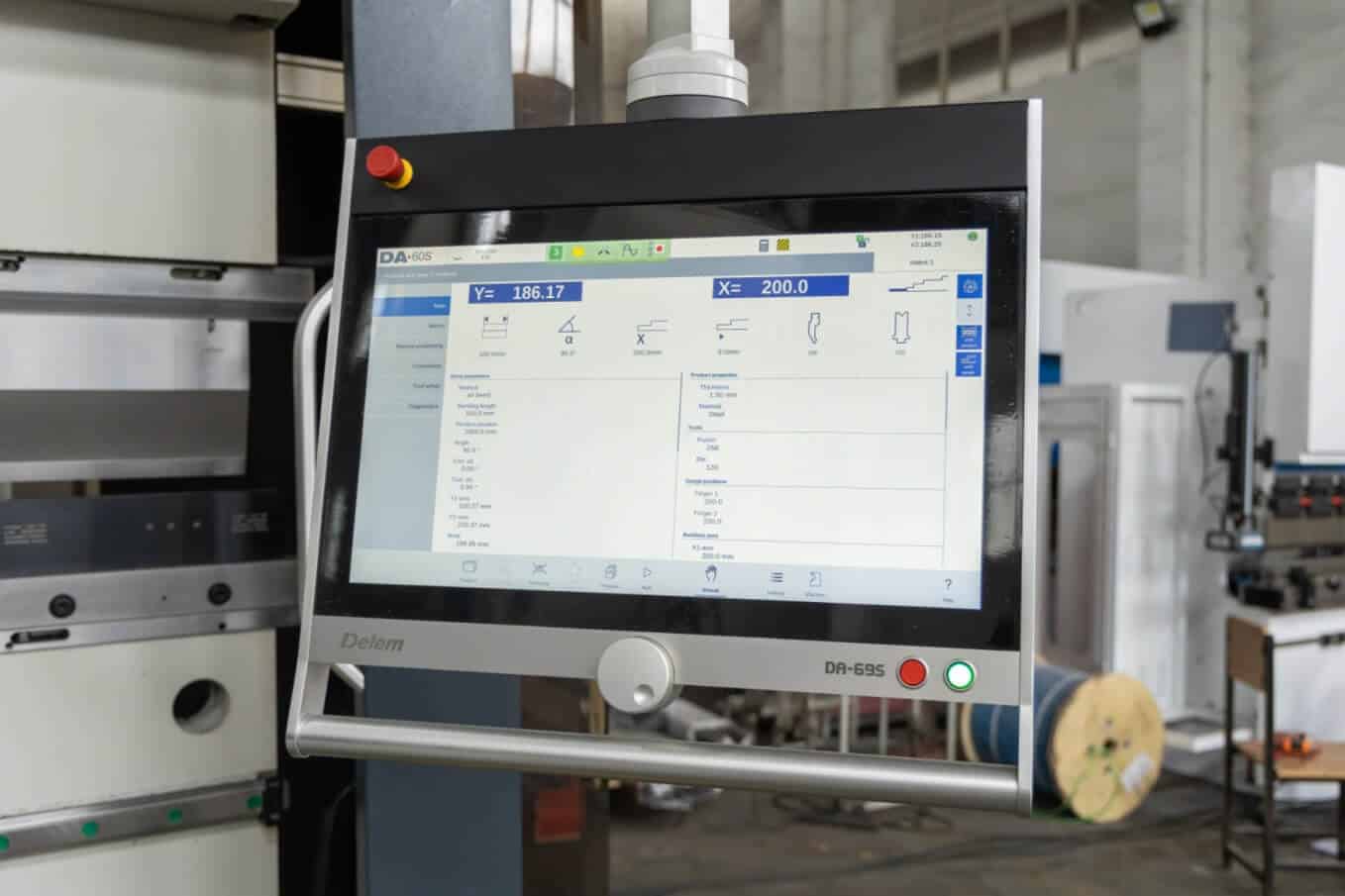

DA-69S 3D modular press brake control

3D and 2D graphical touch screen programming mode
3D visualization, including 3D machine representation, in simulation and production
24″ high resolution color TFT
Delem Modusys compatibility (module scalability and adaptivity)
USB, peripheral interfacing
User specific application support within the control’s multitasking environment
Sensor bending & correction interface
Profile-S3D offline software

Electric Crowning System

100% Constant Bending Angle
60mm & 90mm European-style Molds
Electric Crown with Controller
Base can be clamped as well as single dies with 13 mm tang
Precise positioning and alignment of the crowning table
User-Friendly & Quick Operation

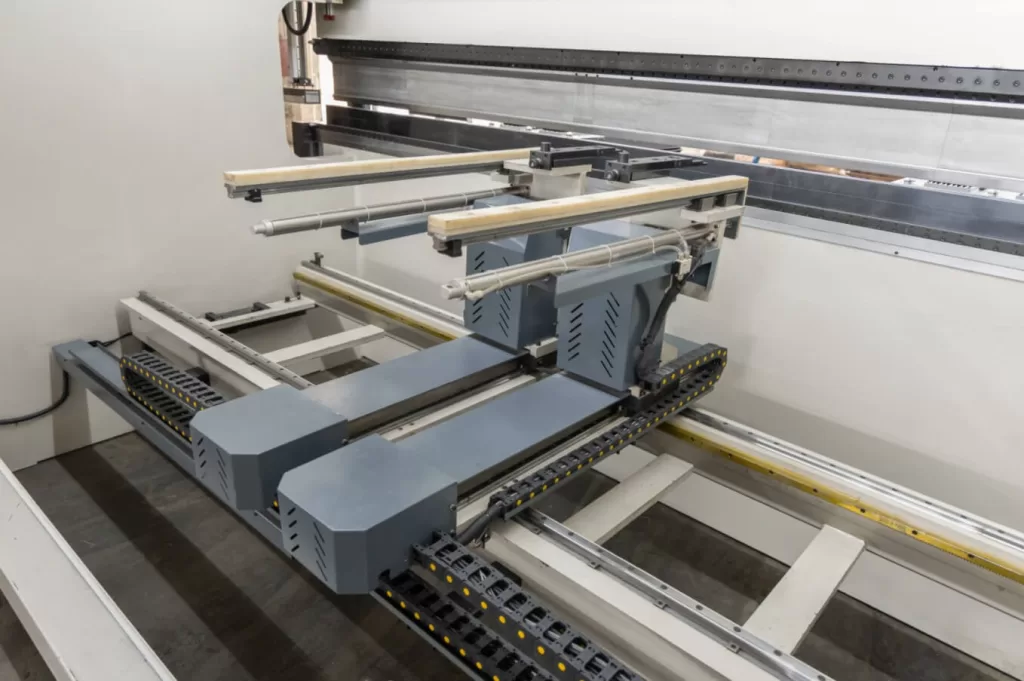

Back Gauge

Independently designed high-precision back stop assembly, equipped with HlWIN high-precision ball screw, high precision, fast speed, good stability.

positioning accuracy of 0.01mm.
Axis X speed 500 mm/s
Supports forward and backward movement of the X-axis and manual left and right movement of the Z-axis to adapt to a variety of different punches and workpiece needs.
Fingers with double stop and micrometric adjustment.

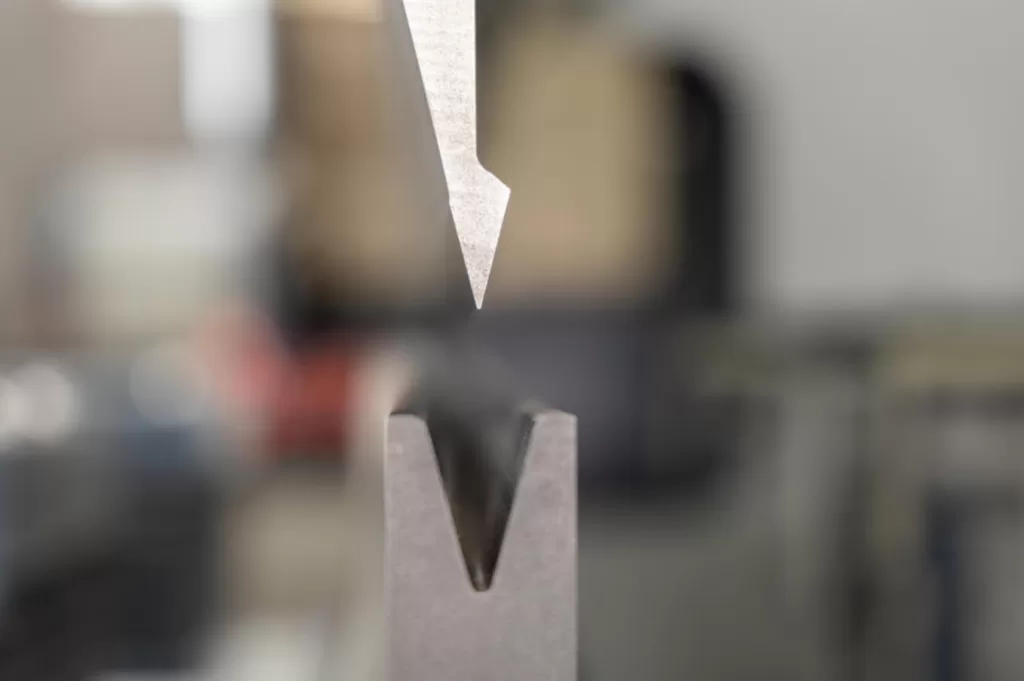

4V Concentric Die

The 4V mold is multifunctional,featuring four different V-shaped grooves that allow selection of the appropriate opening width based on bending thickness. The mold can also be used in conjunction with semicircular notches to meet various bending needs.

Strong multifunctionality,with one mold satisfying multiple bending requirements.
Reduces mold change frequency and improves production efficiency.

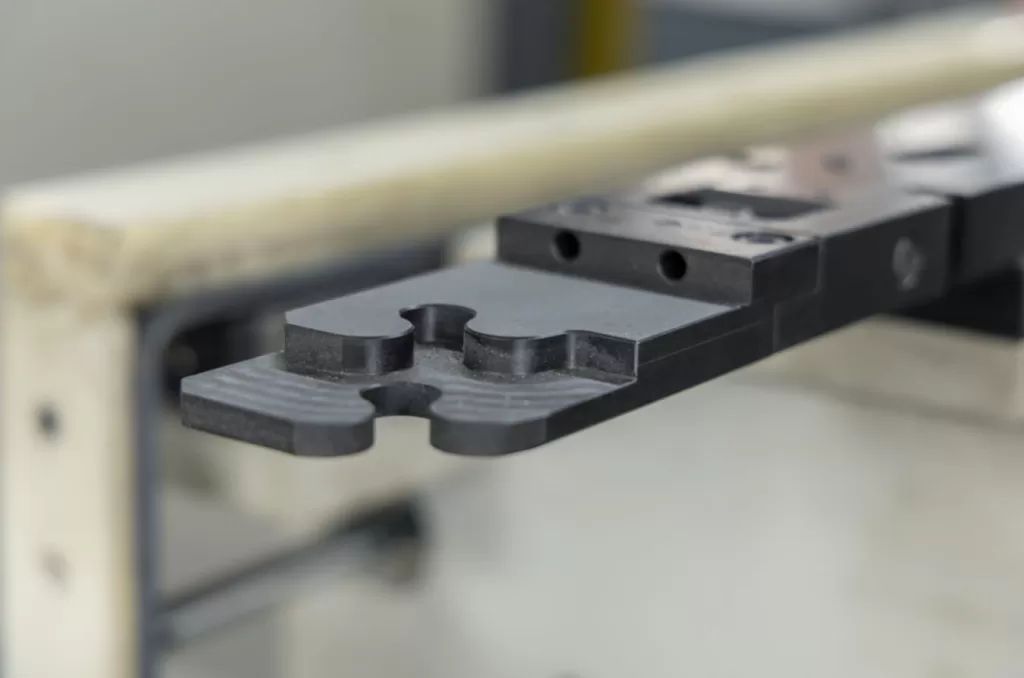

Finger Block

Multiple finger blocks,with point contact between each other, move smoothly on the linear guide rail, and can be adjusted up and down, which is convenient, efficient and easy to control.
During bending work, finger blocks frequently change positions as needed to
achieve bending of plates of different lengths and avoid the problem of insufficient straightness of the plate.

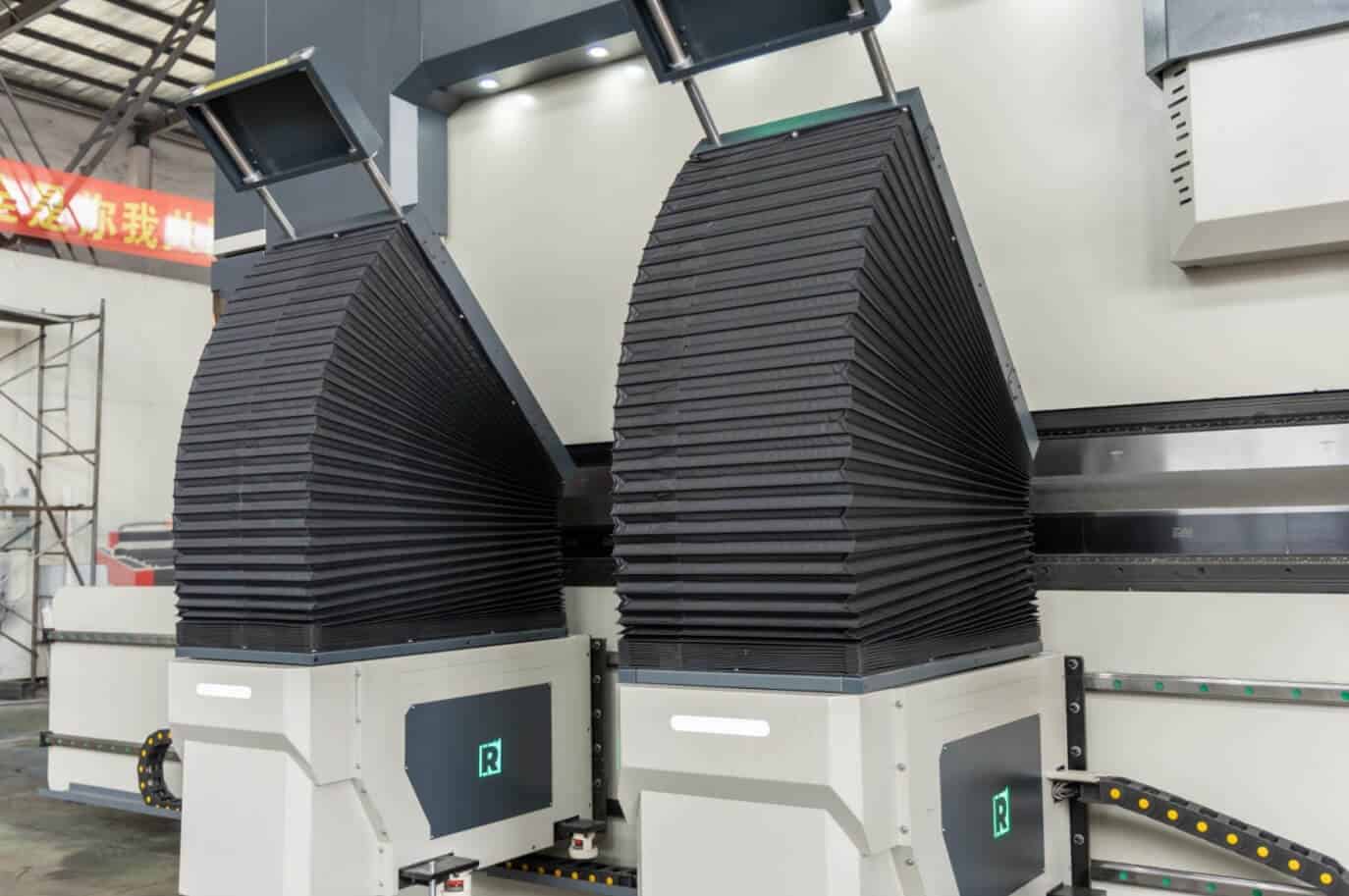

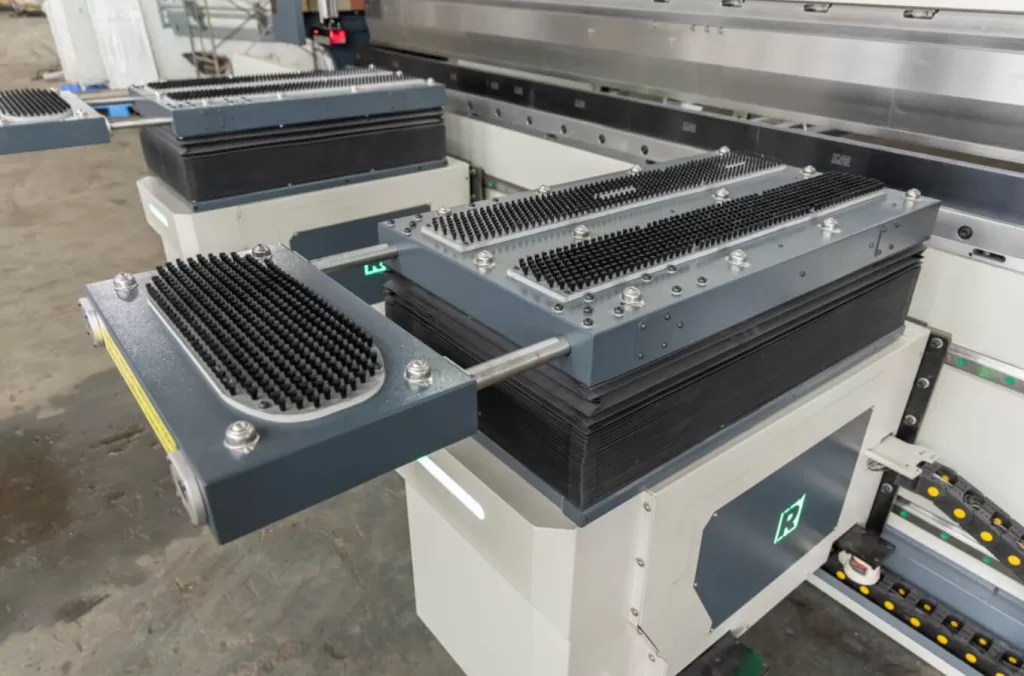

Driven Front Support

Equipped with an advanced sheet bending follower supports system, focused on bending long, thin or heavy sheets with high bending accuracy and ease of use.

Automated operation: Seamless bending is achieved with CNC interpolation axes (AP1-AP2).
Ideal for heavy parts: Suitable for heavy parts or large thin sheets
Flexible bending angles: Achieve bends up to 70° closure
High load capacity: Load capacity of each support is 180 kg
Flexible size: Brush and support shaft sizes range from 350×900 to 1200 mm

Bending Follower Supports

A very large, heavy, thin sheet may bend backwards from overhang torque during bending. Our sheet lifters provide the necessary support throughout the bending cycle, preventing damage and ensuring a perfect job result.

CNC Precision: AP1 – AP2 CNC-controlled interpolated axes
Fully Adjustable: Adjustable according to the size of the workpiece
Tight Bends: Bend sheet metal as tightly as 70°
Flexible R-Axis: Adjustable -30/+170 mm with support for dies up to 160 mm opening
Expandable Support: Brush/support shaft sizes (350×900 mm) extends to 1200mm.
Smart Safety Controls: Active or inactive modes that can be controlled directly on the sheet follower to avoid any safety risks.

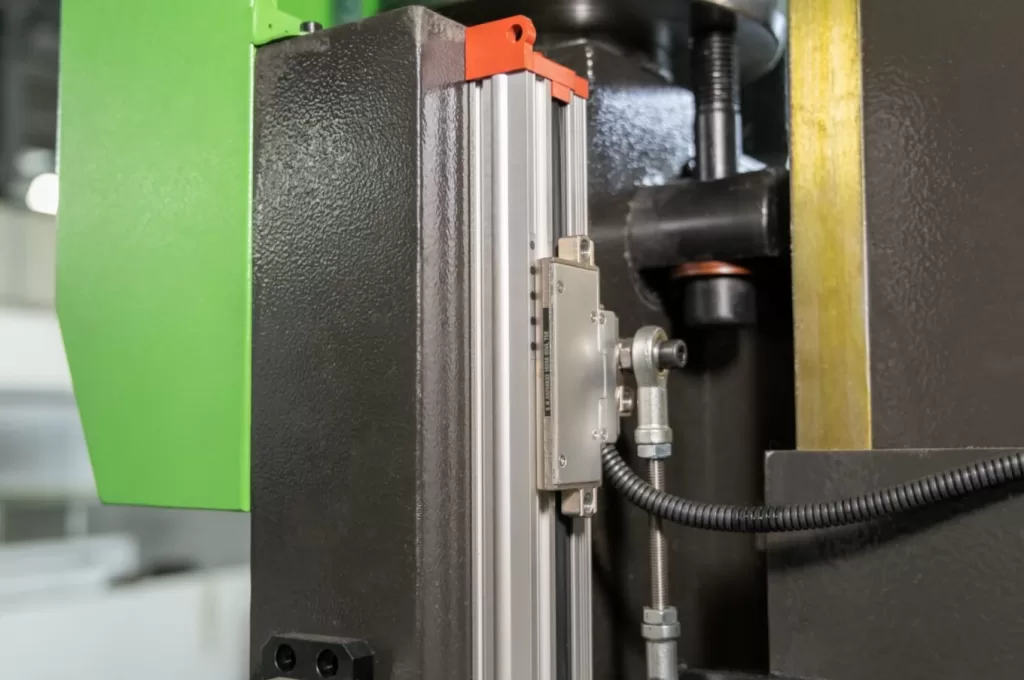

Italian GIVI Grating Ruler

Imported Italian GIVI high-precision grating ruler sensor, installed on the linear guide rail, can move smoothly and adjust up and down, 2-side feedback accuracy up to 0.02.

High-precision positioning with flexible operation.
Adjustable design to accommodate different sizes and shapes of workpieces.

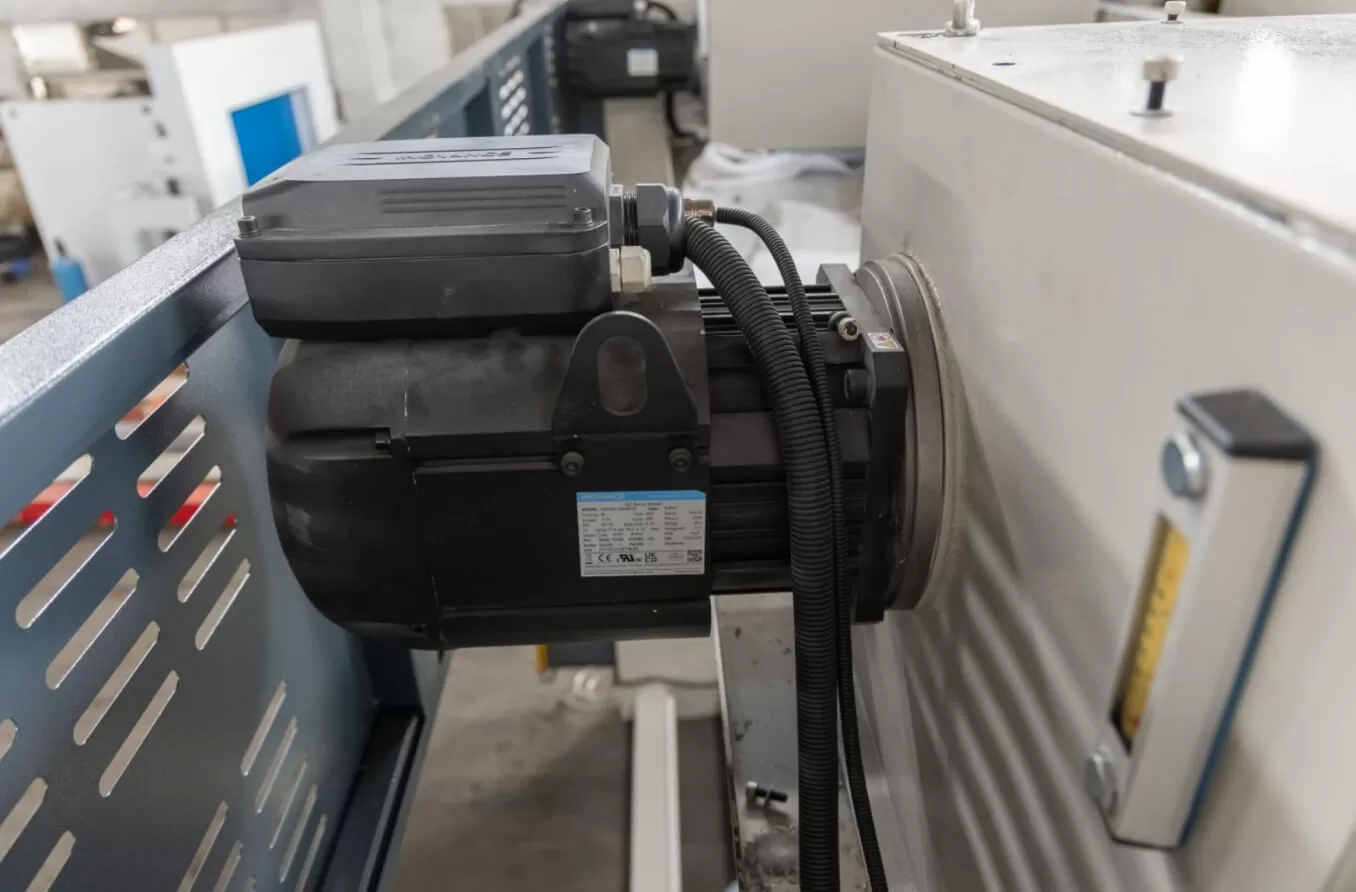

INOVANCE Servo Motor

New Inovance servo motor, can effectively save 40% power, more energy saving and noise reduction. In addition, we offer customized solutions for machine power and voltage to meet specific local voltage requirements.

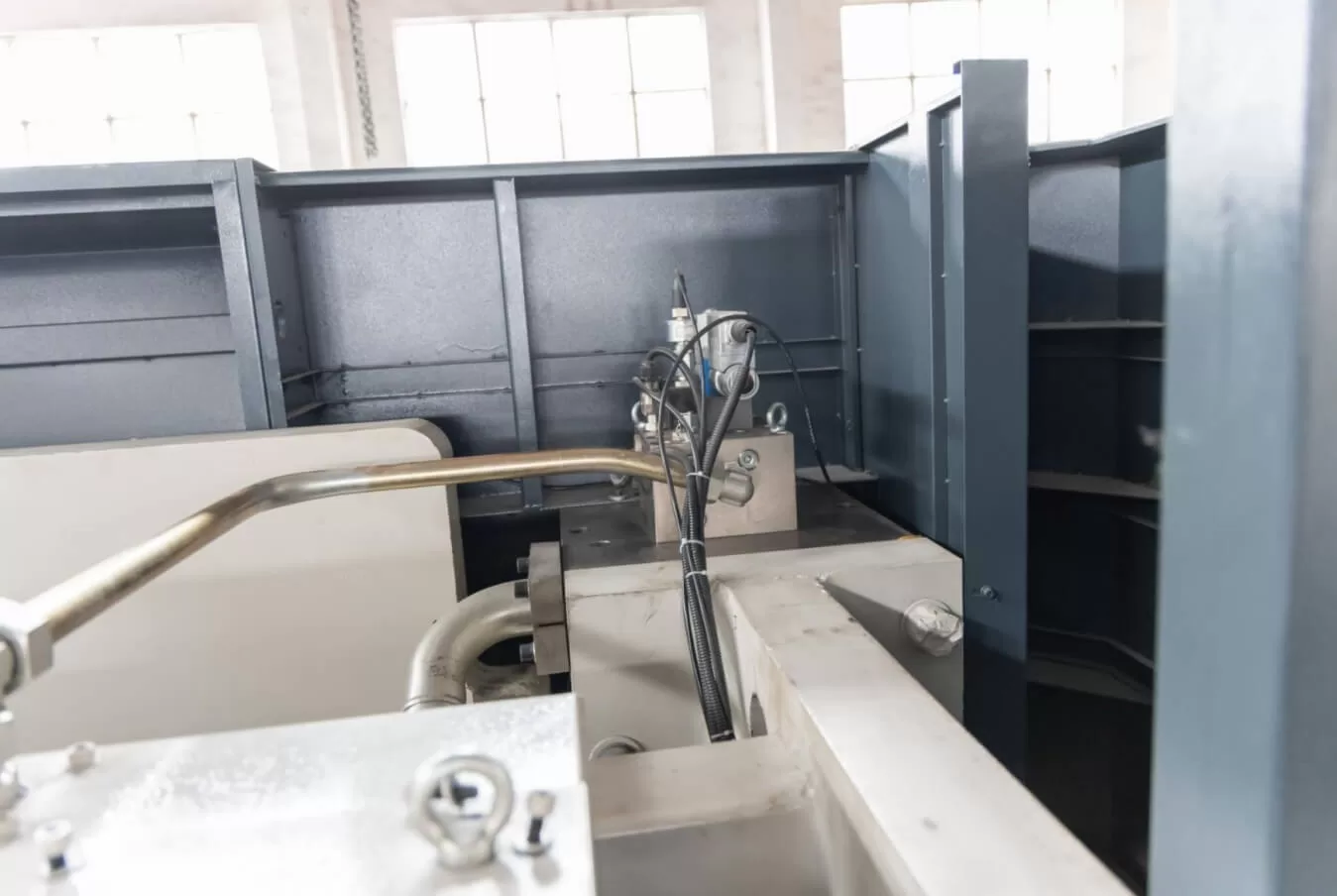

Germany Bosch Rexroth Hydraulic System

Using German Rexroth hydraulic system can reduce hydraulic oil leakage problems, hydraulic pressure can be adjusted according to actual needs to meet different bending force requirements

Energy-efficient and operates smoothly.
Durable hydraulic components suitable for long-term high-load work.
Provides stable pressure output. ensuring bending accuracy.

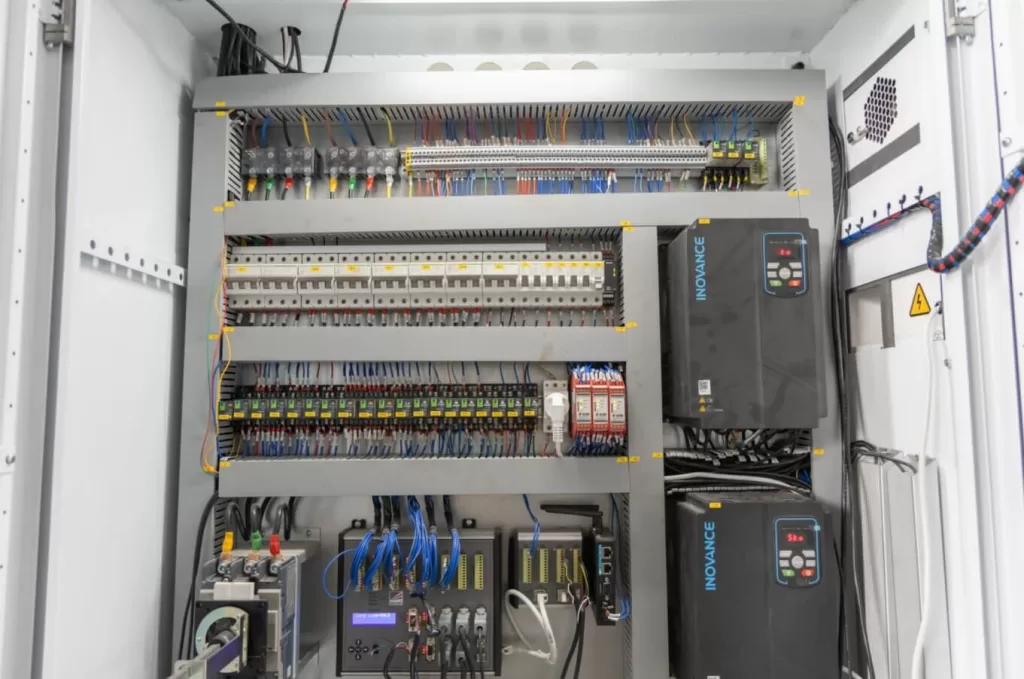

Schneider Electric

High-quality electrical components, rated at 24 V DC – 250 V AC and an average power of 5.1 KW at 50°C, can work in any harsh environment and perform well even under unstable power supply. And customers can easily get replacement parts anywhere in the world.

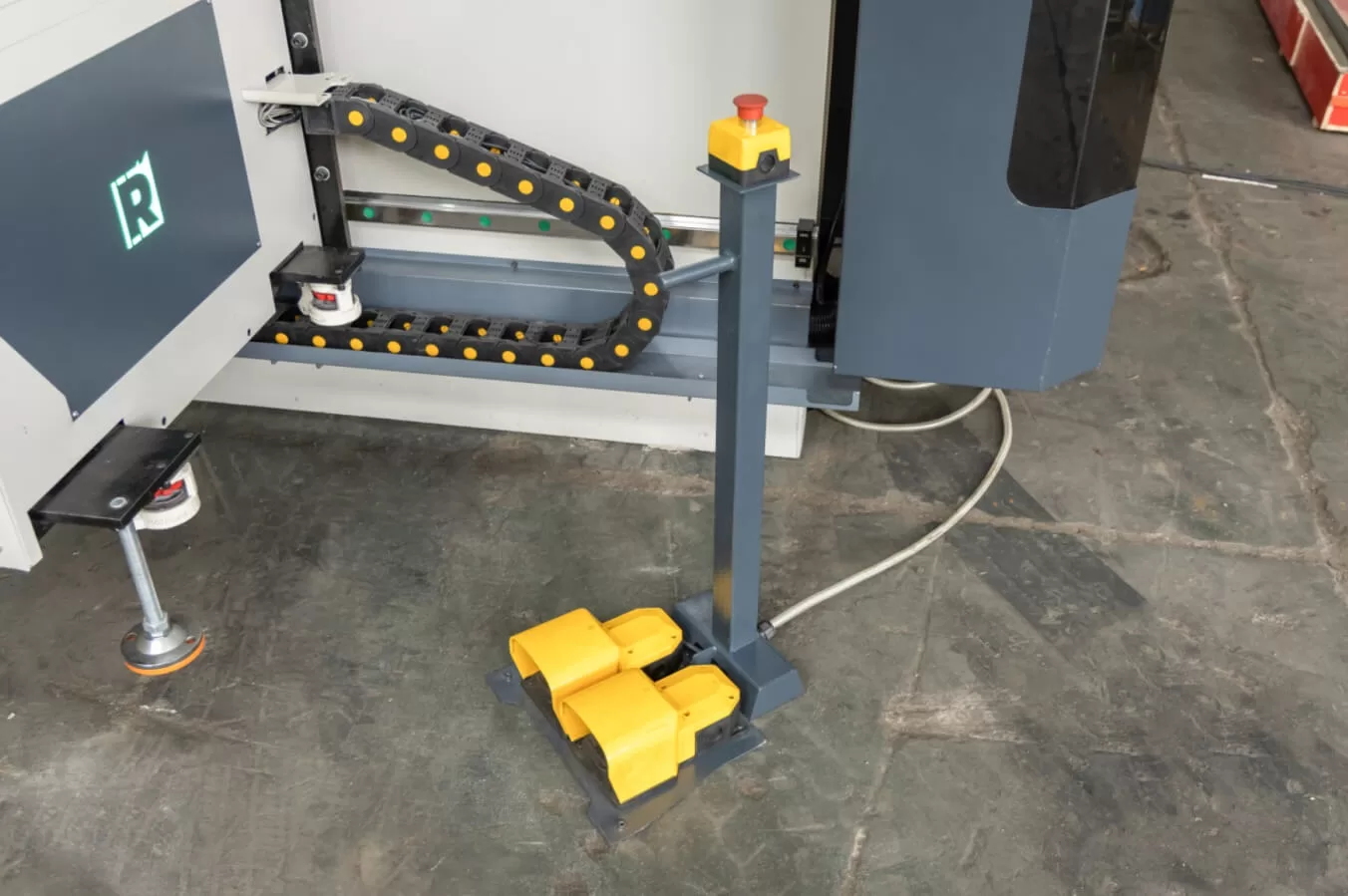

Italian PlZZATO Brand Foot Switches

Using the ltalian PlZZATO brand foot switch to start and stop the press brake. Operators can quickly stop the machine when needed, reducing the risk of work accidents and greatly improving operational safety.

Ergonomic design, easy and comfortable operation, reducing fatigue caused by long-term operation.
With high-level protection configuration, it effectively resists the intrusion of dust and liquids and is suitable for various harsh working environments.

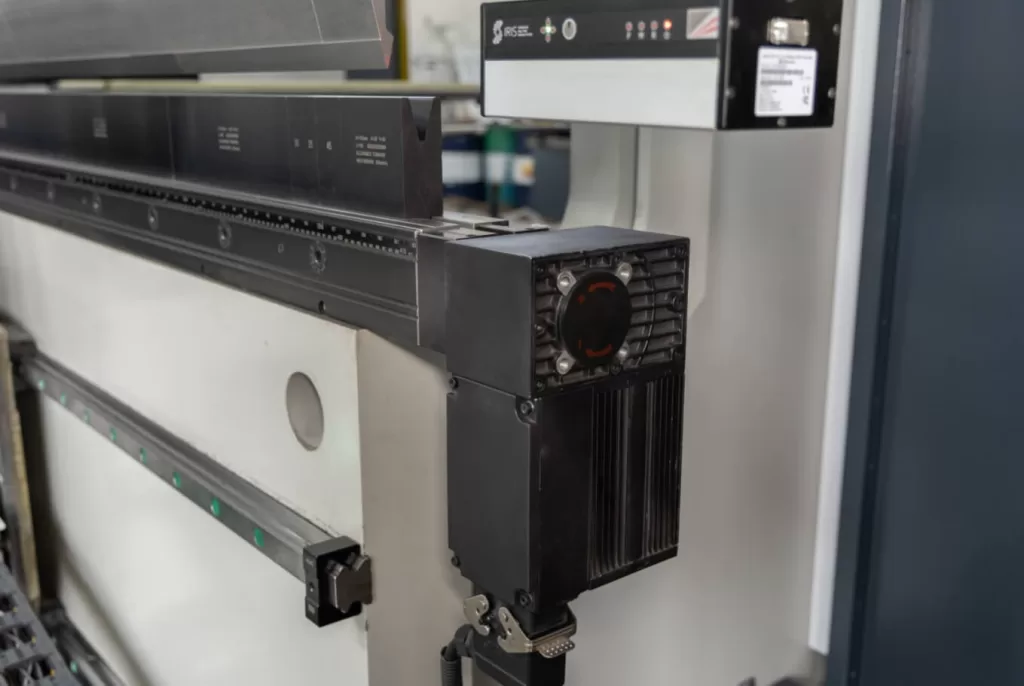

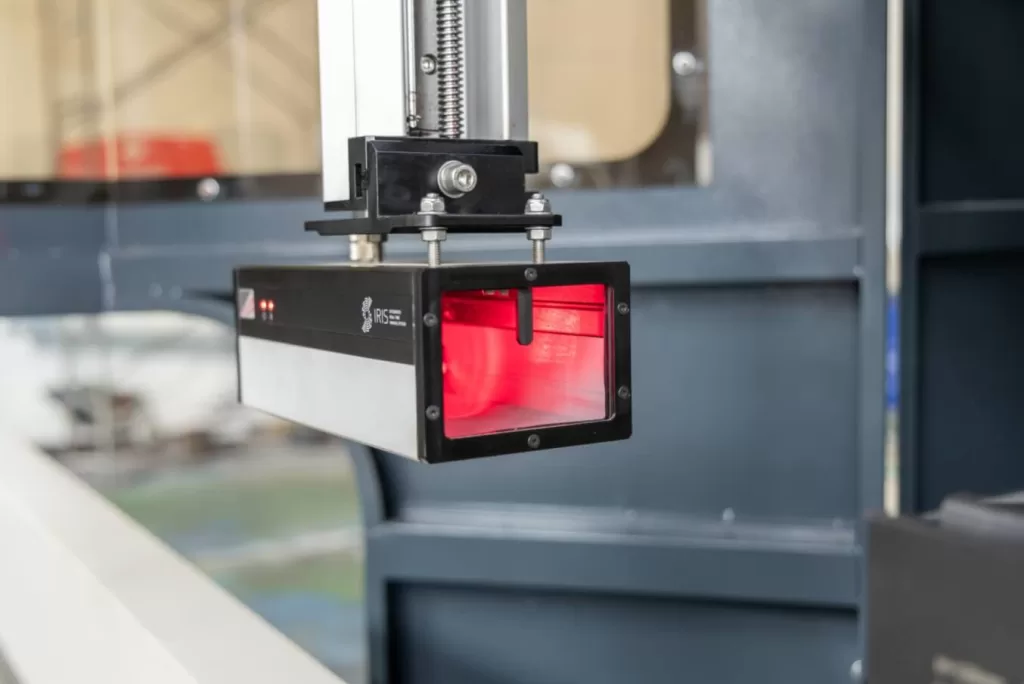

Australia LazerSafe laser protection system

Equipped with LazerSafe laser protection system, it protects your press operator from all angles, reliably, safely and effectively!

High-precision laser scanning, covering all critical areas, forms an intelligent safety barrier around the bending die head.
Ensures in real time that any object must enter the safe range to reach the die tip.
When an obstacle (such as the operator’s finger) is detected entering the protection zone, the system immediately sends a signal and stops the slide to avoid any accidents.

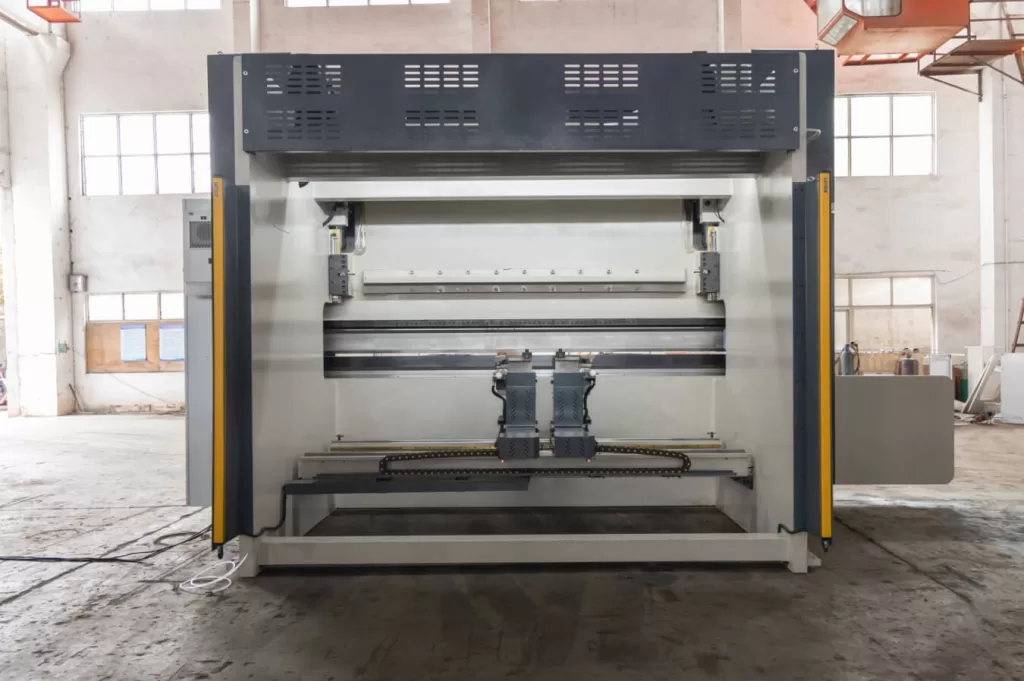

Back Of The Fuselage

Simple structure design, smooth lines and easy operation.Fully enclosed design, safe and efficient help you bend metal sheets efficiently!

Warranty

30-DAY MONEY BACK GUARANTEE

At RAYMAX, we take pride in our products and believe you will be satisfied with your purchase. That’s why we offer a RAYMAX 30 money-back guarantee. Contact us today to purchase. lf you are not satisfied with your press brake, laser cutting or fiber laser welding machines, RAYMAX will refund the full amount of your purchase according to your original payment method, excluding any shipping costs, 15% item and accessory restocking fee (if any), and 25% model customization fee (if any). lf you choose to return the product, please fill out the online application form on any page, or contact our customer service by email. It only takes a few minutes to complete the return process quickly and easily. Click here for details
