Introduction

In the modern metal bending industry,enterprises face numerous challenges, such as long tooling changeover times,inaccurate positioning, poor repeatability, and human safety risks. These problems can be largely avoided by using a press brake quick clamping system. Its core value lies in enabling rapid tooling changeovers, precise positioning, and significantly improving overall equipment efficiency (OEE), helping us save tooling changeover time, improve positioning consistency,and reduce the risks of manual operation.

This article will focus on “press brake quick clamping system”, providing an in-depth analysis of their definition, composition, working principle, advantages and disadvantages, selection, operation and maintenance points, as well as application cases in actual production, common problems, and solutions. If you are wondering “How to choose a fast,efficient,and safe tooling clamping method for press brakes?” this article can help you find the answer.

Overview of a quick style press brake clamping system mounted on the upper beam
A quick style press brake clamping system is typically mounted on the upper beam to enable fast upper tool installation,positioning,and clamping.

What is a press brake quick clamping system?

Definition of press brake quick clamping system

The press brake quick clamping system is a clamping system used on press brakes. It can position, clamp, and release the die,and enables rapid tool changeovers. Unlike traditional segmented fastening or bolt fixing, the press brake quick clamping system emphasizes a release–load–lock workflow (often completed in one operation).

Why is it called “quick style”?

due to its tooling changeover/quick fixation feature:

The “quick style” stems from its core features:rapid tool changeover and high positioning repeatability. Depending on the level of system automation, the tool changeover time of the quick press brake clamping can be reduced from tens of minutes to half an hour to just a few minutes or even tens of seconds. Simultaneously,through self-centering and positioning pins, the tool height and position are repeatable from setup to setup,reducing repeated adjustments.

Composition of press brake quick clamping system

  • Clamping body/clamping plate: Supports and locks the upper punch and/or lower die (tooling).
  • Positioning components (positioning pins/grooves/self-aligning structures): Ensure automatic alignment of the tooling during installation.
  • Drive and release mechanisms: Manual lever, spring type, hydraulic centralized clamping, pneumatic or electric one-button release system.
  • Segmented/sectional modular components: Supports the use of segmented tooling to meet the bending requirements of long parts or boxes.

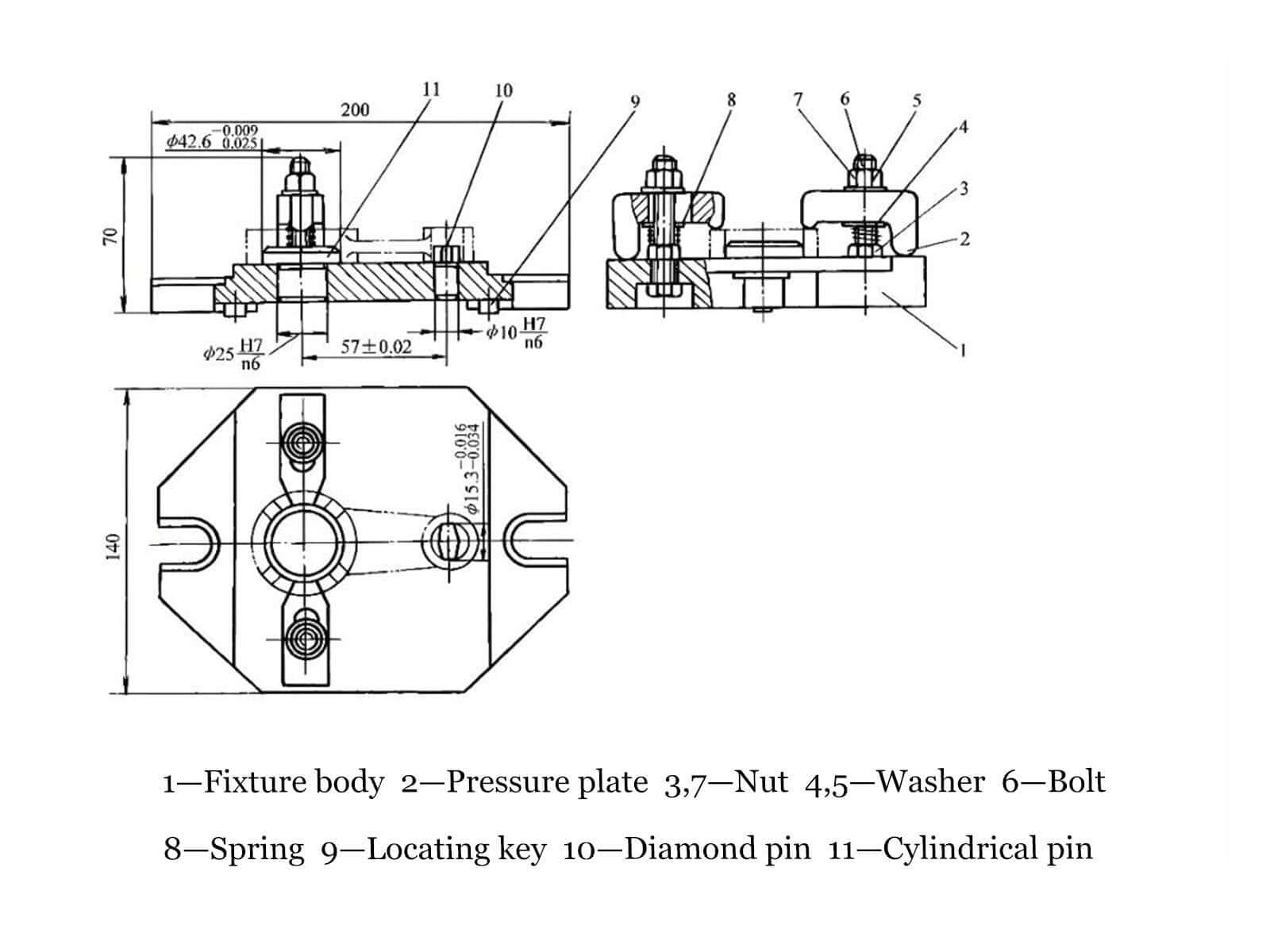

Diagram of a quick style press brake clamping system
Diagram of a quick style press brake clamping system

Working principle of press brake quick clamping system

First, the operator pushes the tooling vertically or horizontally into the designated position of the clamp, which then quickly locks and clamps the tooling via a handle, hydraulic or pneumatic system.

Secondly, the clamping mechanism uses the geometric fit between the reference surface,the positioning groove/safety groove and the clamping block to make the tooling automatically fit the positioning reference when clamping, thereby improving the stability of repeated positioning; the specific implementation method varies depending on the clamping structure.

Finally, the operator performs the reverse operation, the clamping releases the tooling with one click, the operator removes it, and replaces it with the next tooling setup, achieving efficient and continuous production.

Relationship and differences with ” Press brake tooling and clamping “

The press brake tooling and clamping (or the tooling mounting system) are the collective term for the supporting systems used to install, fix,and position the upper/lower dies on a press brake.These include upper die clamping, lower die holders/quick-change lower dies, positioning guides, and support accessories. Their core function is to ensure accurate positioning and high repeatability of the workpiece during the bending process.

The press brake quick clamping system is a type of tooling and clamping arrangement for press brakes. Its core features are “rapid tooling changeover” and “high positioning repeatability”, which can greatly improve work efficiency.

press brake quick clamping system compatibility

  • European style: European style clamps have a higher tool tang and typically feature a safety groove that prevents the tooling from falling out. European style clamps allow for vertical tooling mounting and dismounting,offering flexibility, strong compatibility, and wide applicability.
  • American-style: American-style clamps are popular on older press brakes in North America. The tool tang is relatively short, usually rectangular or with a safety catch. Tool changeovers require sliding in from the side of the machine, which is relatively cumbersome. However,they have a strong load-bearing capacity and are suitable for heavy-duty bending applications.
  • Thick tang tooling / segmented tooling: Ideal for quick press brake clamping systems that allow for vertical loading and unloading, allowing the operator to easily insert or remove a section of die from the front of the machine without interfering with adjacent dies.
  • Instructions for adapting special-shape tooling: The design of the clamping has taken into account the contours of most common special-shape tooling. For special-shape tooling such as gooseneck punch, as long as their shanks conform to European or American standards, the corresponding quick clamps can be used.

Important points to note: When selecting a model, you should confirm in advance whether your press brake interface, tooling specifications, and quick-change clamping standards are compatible.

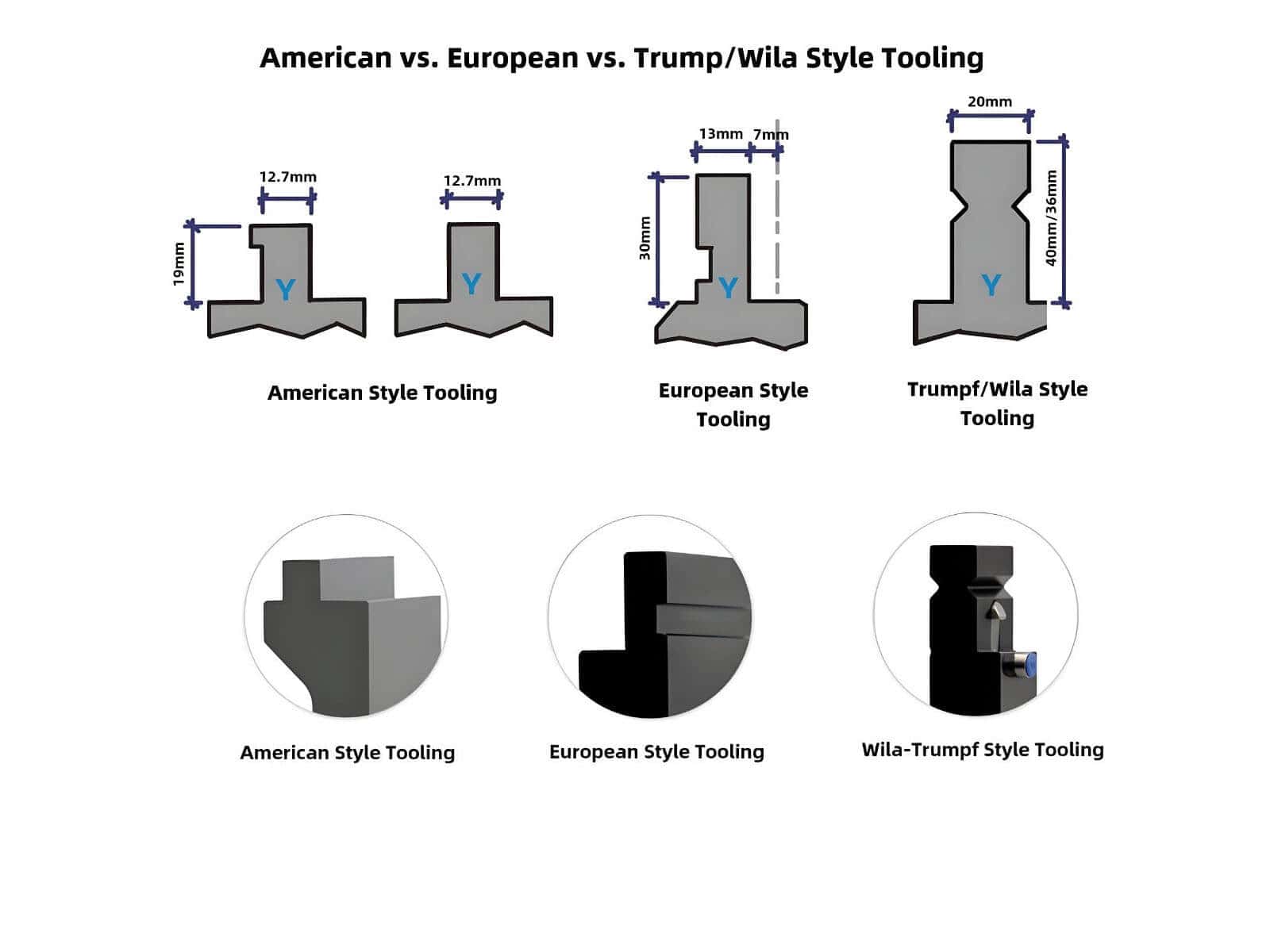

Comparison of common press brake tooling interface styles,including American,European,and WILA/Trumpf style upper tool connections.
Confirm the tooling interface style (tang/groove type) before selecting a clamping system,or you may face compatibility issues even if the tool can be mounted.

Common types of press brake quick clamping system

Upper punch quick clamping system

This is the most common quick-clamping system. Its core function is to achieve one-button or quick locking via a handle, pneumatic, or hydraulic mechanism. Operators no longer need to perform traditional bolt fixing, which can significantly shorten tooling changeover time and improve work efficiency.

Quick-change lower die / lower die base system (if applicable)

Although the lower die is replaced less frequently than the upper die,a quick-change lower die system is more suitable for certain production scenarios that require frequent switching of V-groove widths. It typically uses pneumatic or manual locking to fix the lower die on the guide rail of the lower die holder, ensuring that the center line of the lower die’s V-groove is aligned with the upper die.

Front-mounted / side-mounted / segmented tooling solutions

  • Front-mounted systems mainly refer to European standard systems, where the tooling can be directly snapped in or removed from the front of the clamping. This is the key to “rapid tooling changeover” and is especially suitable for combinations of segmented tooling, greatly reducing labor intensity. This is the most widely used configuration for modern press brakes.
  • Side-mounted systems mainly refer to traditional American standard systems, which require the entire tooling to slide into the clamping from the side. If the tooling is long or the space is narrow, it is more labor-intensive and less efficient; for segmented tooling, changing a middle section is very troublesome.
  • Segmented tooling divides a long tool into short/medium/long segments, allowing flexible combinations and easier handling; combined with front-loading clamping,operators can build the required length quickly.

Manual quick clamp / hydraulic quick clamp / hybrid solution

  • Manual quick-clamping requires manually operating a lever to mechanically lock the die. It is relatively inexpensive and simple in structure, making it cost-effective for small press brakes or applications where tool changeovers are infrequent. However, its clamping force is not as uniform or powerful as a hydraulic quick-clamping system, and it relies heavily on operator skill.Furthermore, while its operating speed is faster than traditional bolts, it still cannot match the speed of a hydraulic quick-clamping system.
  • The hydraulic quick-clamp system is activated by the operator pressing a button, which drives the hydraulic system to use high-pressure oil to push a piston inside the clamp to clamp the tooling along the full length of the holder. Operation is very fast and convenient, and its clamping force is strong and uniform, ensuring high precision. However, its initial investment cost is relatively high,and due to the system’s relative complexity,maintenance costs are also relatively high.
  • Hybrid solutions fall between manual and hydraulic systems. For example, pneumatic clamping can be used to drive the clamping mechanism, which then locks it in place; or pneumatic clamping can be used directly. It is less expensive than hydraulic quick-clamping systems and faster than manual quick-clamping systems, but the clamping force is generally less than that of hydraulic systems. It is more suitable for small to medium-sized press brakes or applications where clamping force requirements are not as stringent.

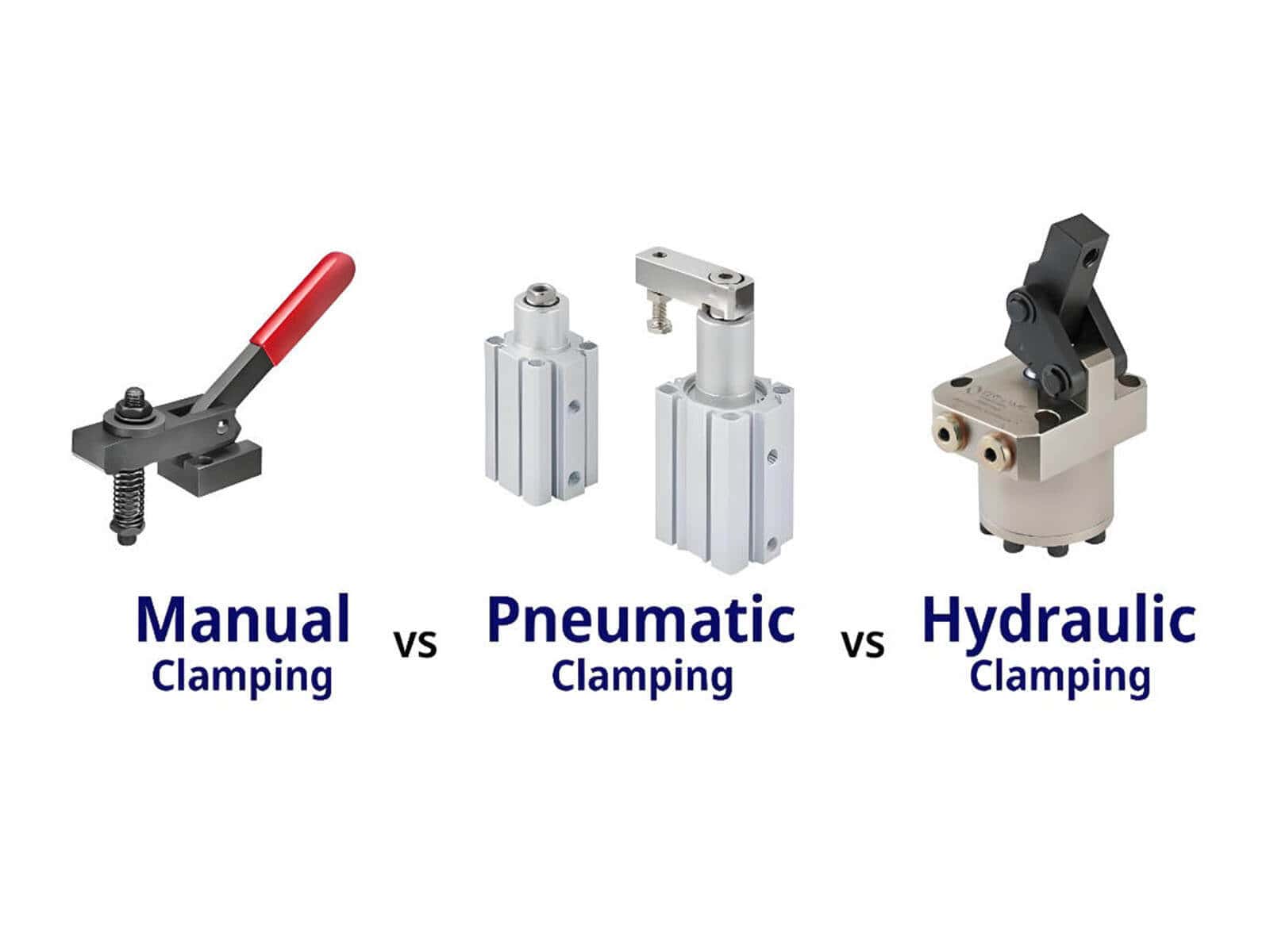

Comparison of manual,hydraulic,and pneumatic(or hybrid)press brake quick clamping solutions,showing structural and application differences.
Manual,hydraulic,and pneumatic quick clamping systems differ significantly in cost,changeover speed,maintenance,and application suitability.

Advantages and disadvantages of press brake quick clamping system

Advantages

  • Significantly reduces tooling changeover time: The use of quick-change clamps can reduce tooling changeover time from 30-45 minutes with traditional manual clamps to 3-10 minutes or even less, significantly improving production cycle time.
  • Improved accuracy/repeatability: Using self-centering or locating pin clamps can reduce positioning errors and the number of trial bends. Taking the repeatability of the reference position as an example, the repeatability of positioning can generally be maintained within ±0.05-0.10mm.
  • Ensuring safety and ergonomics: It avoids the risks of operators working at heights, frequently exerting force to tighten screws, and hand injuries during clamping, effectively reducing operational injuries and improving operational comfort and work environment safety.
  • Maintenance and lifespan: The system’s wear parts,seals,and guide rails are designed with hardened treatment and wear-resistant materials, which can extend their lifespan. Regular lubrication and rust prevention maintenance can effectively maintain system performance.
  • Total Cost of Ownership (TCO): Although the cost of the equipment itself is higher than that of manual clamps,in the long run, a faster payback period can be achieved through higher yield rates, shorter tooling changeover times, and reduced labor costs. The specific payback period needs to be assessed in conjunction with production volume, product mix,and process complexity.

Disadvantages

  • Higher cost: Although a high-quality press brake quick clamping system has an advantage in total cost of ownership, its initial cost is higher than that of traditional clamps, which still puts some pressure on companies with limited budgets.
  • Maintenance required: Seals, hydraulic oil, locating pins, etc., need to be inspected and maintained regularly.
  • Design flaws and risks: Design flaws can lead to processing errors due to uneven clamping force distribution, tooling positioning errors, or untested systems. Therefore, companies need to provide rigorous training to operators.
  • Compatibility issues: Different manufacturers may have different tool styles and tooling interfaces, requiring customized conversion or redesign. Therefore, when selecting a tool, we need to confirm in advance whether our press brake interface, tooling specifications, and quick-change clamping standards are compatible.

How to choose a suitable clamping system for a press brake quick clamping system?

According to the specifications of the press brake

  • For long press brakes (e.g., >4 m working length), it is recommended to choose segmented quick clamps to prevent safety issues caused by the weight of the long tooling falling.
  • Tonnage: If heavy bending (such as 20mm thick plate) is to be performed, the clamp must be able to withstand huge reaction forces, and heavy-duty fixtures should be selected.
  • Upper/lower die shape: Confirming the machining shape of the bottom of the press brake slide determines which type of clamp base can be installed.

Tool type tang/groove

  • American style: This type of tooling has a narrow handle structure, is usually rectangular or has a safety buckle, and has a strong load-bearing capacity.It is popular in old-fashioned press brakes in North America.
  • European style: This type of tooling has a safety groove on the handle, allowing operators to install and remove the tooling vertically. It is easy to operate and widely used worldwide.
  • WILA/Trumpf style: These tool tangs typically have spring pins or unique slots, offering the highest precision and supporting automatic tool changeover; they represent the high-end standard in clamping systems.

Tooling changeover frequency vs.production batch size

  • Small batches and multiple varieties: If you perform 10+ tooling changeovers per day, quick clamping systems (especially hydraulic/pneumatic) are usually more worthwhile investments.
  • For high-volume production of a single product with infrequent tooling changeovers, manual quick clamps may be more economical.

Accuracy requirements vs.cost budget

If we are pursuing high precision and a high budget, we recommend prioritizing WILA type or ground European quick clamps. Taking the repeatability of the reference position as an example, the repeatability can reach±0.01mm.

If the budget is limited and the precision requirement is not very high, we can choose domestic or general mechanical European quick clamps, which are cost-effective and can meet 80% of the needs of sheet metal factories.

Safety and ease of operation

When operating equipment, safety must be the top priority. The clamping system of the press brake quick clamping system we selected must first have an anti-drop mechanism to prevent the tooling from directly hitting the operator’s hands or feet when the clamp is released; secondly, we need to consider whether the operation is convenient, such as whether the position of the clamping handle is convenient and whether the hydraulic buttons are easy to accidentally press.

Parameters to be confirmed before requesting a quote (purchasing/engineer checklist)

To help suppliers understand our needs more quickly and assist us in making the right choice, we can create a list of parameters:

  • Machine tool brands and models: Such as Amada RG-100, Trumpf TruBend 5130, Raymax RX-S 3-4 axis press brake
  • Effective length of press brake: E.g., 1600/2500/3200/4000mm
  • Tonnage and common workpiece thickness range: For example, for 100 tons, 1-3mm stainless steel is commonly used.
  • Top beam interface type/current clamping method: Provide a photo of the existing top beam cross-section to confirm whether there is an intermediate plate / deflection compensation device.
  • Tooling Standards: Confirm whether you are currently using European, American, or WILA tooling.
  • Segmentation Requirements: Confirm whether to use a segmented upper punch.
  • Maximum weight of a single tooling section: This relates to safety and clamping force. For sections exceeding 12kg, hydraulic assistance or an anti-fall design is recommended.
  • Automation requirements: Determine whether a front-mounted quick-change adapter is needed, and whether hydraulic centralized clamping is required; these are key to improving efficiency.
  • Intelligent requirements: Is it necessary to output signals to PLC/MES?

Converting an old press brake into a quick clamping system:Feasibility and conditions

First, check the condition of the upper beam interface to ensure that the surface is flat and free from serious bumps or deformation. Also, check the structural compatibility; for example, the upper beam structure of some older press brakes (over 20 years old) may not be compatible with modern clamping interfaces.

Secondly, it’s essential to examine the press brake’s precision foundation and wear condition to ensure that the press brake’s repeatability is within a reasonable range and that wear is not severe. If the press brake body is severely worn or the upper beam is permanently deformed due to long-term overloading, even the best clamps will be ineffective.

Finally, it is essential to ensure that tooling standards are clear and consistent.

If we want to modify the press brake to use a hydraulic quick clamp, we also need to confirm whether the press brake has any remaining hydraulic ports or whether it allows for the installation of an external independent hydraulic pump station.

Although there are modification costs, we can see from the ROI calculation based on the tooling changeover frequency that if we save 1 hour per day on tooling changeovers, the cost can usually be recovered in 6-12 months based on labor wages and machine time costs.

Operating Guide:How to Quickly Install and Replace the Clamping System of a press brake quick clamping system

Steps for correctly installing the quick-press brake clamping

  • a. Disconnect the power and lock the safety lock to ensure the press brake is stopped.
  • b. Remove iron filings, oil stains, and burrs from the contact surfaces of the tooling and clamping to ensure smooth contact.
  • c. Arrange the new tooling and sections,including positioning parts and adapter plates, on the tool cart or tooling rack in advance.
  • d. Release the quick hook/fast buckle mechanism to release the old tooling from its fixation.
  • e. Insert the new tooling and align the locating pins and guide grooves/recesses.
  • f. Initiate the clamping action, such as lever/handle/button/hydraulic/pneumatic control, to clamp evenly from both ends or multiple clamping points.
  • g. Perform a no-load or half-stroke operation to ensure the clamping mechanism functions properly, and measure key dimensions and angles.

Operational safety precautions (power off,safety lock,even clamping,etc.)

  • Power off/lock: Ensure power is off and safety lock is enabled before each operation to prevent operator error from causing injury.
  • Even clamping: Avoid strong pressure on one side. The fixing bolts must be tightened strictly according to the manufacturer’s torque standard to prevent deformation of the parts due to excessive or insufficient clamping.
  • Personal protective equipment: Use protective gear, avoid working alone at heights, and use appropriate PPE ( e.g.,safety gloves, safety shoes, and eye protection ) to reduce risks.

(Note: When hydraulic systems are involved, pressure relief/locking should be performed according to equipment specifications. If necessary, use sliding block mechanical supports or safety stops to prevent malfunctions and accidental slippage.)

Common mistakes and how to avoid them

  • Loose or misaligned clamps: Install strictly according to the reference surface and use locating pins to ensure accurate positioning.
  • Insufficient or excessive clamping force: Regularly check the clamping force with a torque wrench.

First-piece verification process after replacement

The first step is to check whether the tools are fully in place and confirm that the tool tang is fully attached to the top of the clamping.

The second step is to use your hand or a ruler to check whether there are height differences or gaps between the segmented tooling.

The third step is to perform a trial bend and repeatability check. First, perform a trial bend to check for any collisions; then perform a trial bend to check for angle consistency.

The fourth step is to update the tooling height parameters in the press brake’s CNC system or recalibrate the pressure origin; otherwise, it may cause tooling collision or incorrect bending angle.

Fifth, check whether the clamping is positioned accurately, and adjust the clamping force with a torque wrench if necessary.

Maintenance and care techniques

Maintenance of clamps and tools

  • Routine cleaning: After tool changeover or at the end of the shift, use a lint-free cloth or air gun to clean debris, oil stains, and iron filings from the contact surfaces of the clamps and tooling, guide rails,and other areas.
  • Regular wear inspection: Check the locating pins, seals, guide rails, etc. for obvious wear or cracks weekly or monthly.

Regularly check clamping force and repeatability

Regularly calibrate the clamping force of the clamping system using a torque wrench or clamping force tester. Regularly measure the critical dimensions and angular differences of the tooling after reassembly using a dial indicator, laser displacement gauge, or other measuring tools. If the positioning error exceeds the manufacturer’s specifications, adjust the guide rails or replace worn parts promptly.

Criteria for determining replacement parts

  • Seals/cylinders/hydraulic pistons: It is generally recommended to replace them every 1-2 years.If leakage or sluggish operation occurs, they need to be replaced immediately.
  • Clamping blocks/locating pins/guide rails: If obvious wear, deformation, cracks, or surface peeling are observed, they need to be replaced immediately.
  • Electronic components such as sensors and cables: It is recommended to perform self-inspection during each shift. If any abnormality occurs, maintain or replace them in a timely manner.

Recommended to use genuine parts versus non-genuine parts

It is recommended to prioritize the use of original equipment manufacturer (OEM) parts, especially locating pins, locking components, and seals, to ensure that the material heat treatment standards and precision tolerances are compatible with the overall machine. Non-OEM parts may have issues such as dimensional errors, incompatible materials leading to faster wear, and aging of seals. If the company has a limited budget or supply chain constraints and plans to use non-OEM parts, it must choose certified alternatives and undergo rigorous verification.

Practical application cases and user feedback

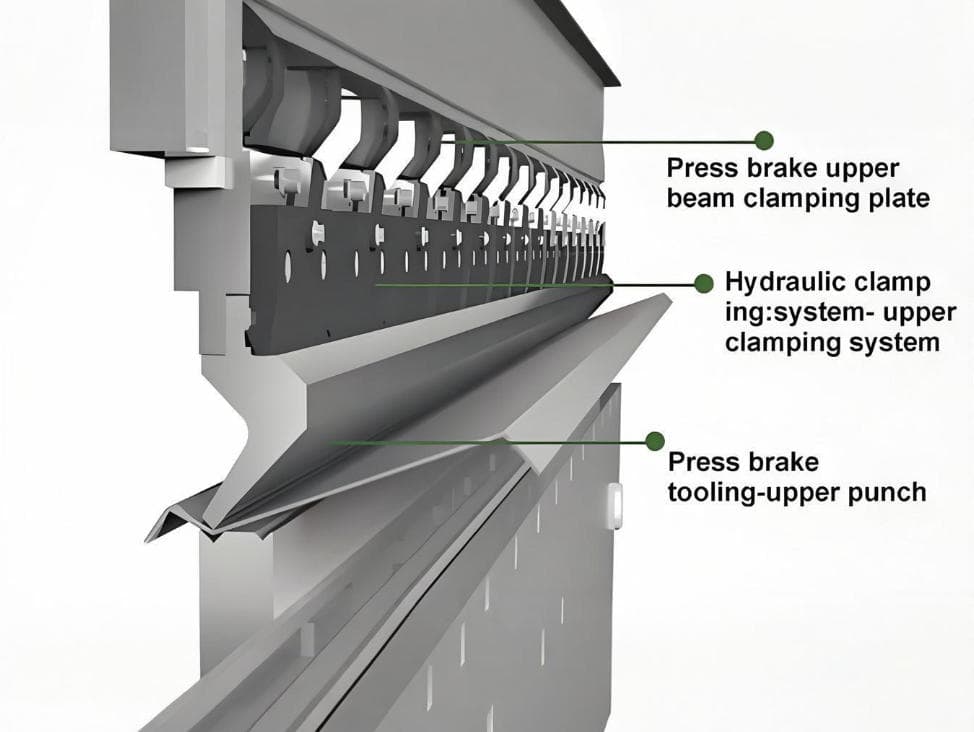

Hydraulic press brake upper clamping system showing the clamping plate and upper punch
Upper beam hydraulic clamping system: the clamping plate locks the upper punch for fast, repeatable tool changes.

Improving cycle time in multi-variety,small-batch factories

Taking a chassis manufacturing plant as an example, the plant previously used traditional bolt-plate clamps, requiring tooling changeovers more than 15 times a day, with each change taking an average of about 40 minutes, putting significant pressure on labor costs and work efficiency.

After introducing rapid pneumatic clamps, the tooling changeover time was reduced to about 4 minutes, daily production capacity increased by about 30%, and the number of employees was reduced from 2 to 1, saving labor costs and significantly improving the responsiveness to flexible orders.

Rapid changeover of automotive and home appliance sheet metal

Taking a certain auto parts factory as an example, the factory mainly produces high-frequency, multi-variety parts. It originally used American standard clamps, but manual tool changeover had a high error rate and large positioning fluctuations. After switching to a hydraulic quick clamping system, the tool changeover time was shortened to about 5 minutes, the repeatability accuracy fluctuation of the reference position decreased to ±0.06mm, and the scrap rate decreased by about 70%.

Heavy-duty clamping solutions for machining thick plates and long parts

Taking a construction machinery manufacturing plant as an example, this plant processes workpieces that are 20mm thick and 6 meters long, which requires extremely high clamping force and positioning accuracy. After introducing a segmented hydraulic locking system, the clamping force of each segment increased by about 300%, there was no workpiece displacement during the processing, the dimensional consistency was improved, and the scrap rate caused by insufficient clamping was reduced.

Tooling changeover practices in flexible manufacturing/single-piece flow

Taking a large elevator component factory as an example, the factory has implemented automated and flexible production, controlling the tooling changeover target speed to approximately 2.5 minutes. By introducing an intelligent quick-change system, it can automatically identify tooling parameters, achieve automatic tooling retrieval and zero-adjustment switching, and improve the overall equipment efficiency from approximately 65% to approximately 88%, becoming a typical case of flexible manufacturing.

Conclusion

The role of press brake quick clamping system in modern manufacturing is becoming increasingly prominent. With their core features of “tooling changeover and precise positioning”, they have become essential tools for enterprises to improve production efficiency, enhance accuracy, and ensure operational safety.

If you would like to learn more about press brake quick clamping system or other metal processing equipment,please leave your contact information or product page link below. You can also contact Raymax Tech directly. We have professional quick-change clamping products and customization capabilities, and can provide you with customized system design, machine integration, and on-site installation services.

Ready To Upgrade Your Metal Fabrication Line? ​

Email Us For A Free Consultation.​

FAQs

A standard press brake tooling and clamping setup includes all bending tools and clamping mechanisms,and it usually relies on manual bolts or clamping plates. A quick-change press brake clamping system emphasizes fast tooling changeovers, quick centering,and repeatable positioning. It supports one-touch,lever-operated, or hydraulic quick tool changes and features a self-centering positioning system. In most cases, a changeover can be completed within minutes, with high positioning repeatability, making it suitable for high-mix, low-volume production and automated applications.

For applications involving large tonnage, thick plates, or requiring higher clamping force, hydraulic clamps are recommended; for applications requiring frequent tooling changeovers and high responsiveness, pneumatic clamps are more suitable.

It depends on the interface standard and platform design. Most press brake quick clamping systems support European/American standards and can achieve quick switching between upper punch, lower die, and segmented tooling through adapters or modular interfaces.

It depends on the system and process. In typical cases,it can be reduced from the traditional 15-45 minutes to about 3-10 minutes; in highly automated scenarios, it can be reduced to about 1-2 minutes.

Wear parts include seals, locating pins,springs, and clamping blocks. These should be replaced periodically depending on usage,generally every 1-2 years. If significant wear, deformation, cracks, or surface peeling occurs, immediate replacement is necessary. The maintenance cycle is closely related to usage frequency and maintenance quality. Proper maintenance and the use of high-quality materials and original parts can effectively extend the life of the clamping.

Common features include power-off operation, mechanical/hydraulic pressure relief switches, electrical interlocks, emergency stop buttons, light curtains, PLC alarms, and status feedback to prevent risks such as inadequate clamping, misoperation, and clamp loosening.

Modern quick-change systems generally support pressure sensing/position sensing/switching feedback and can be integrated into PLC/CNC or high-end MES to record tooling changeover status and perform preventive maintenance.
