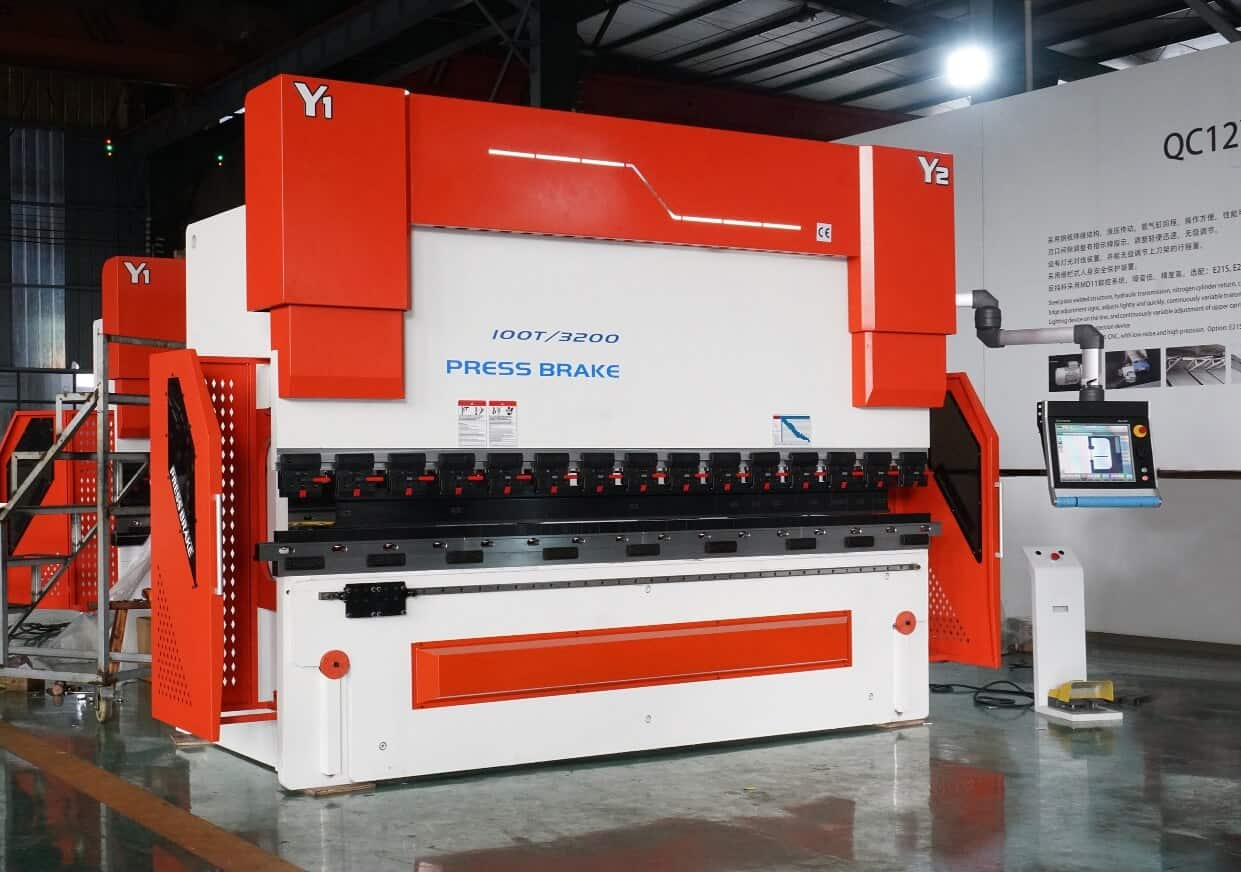

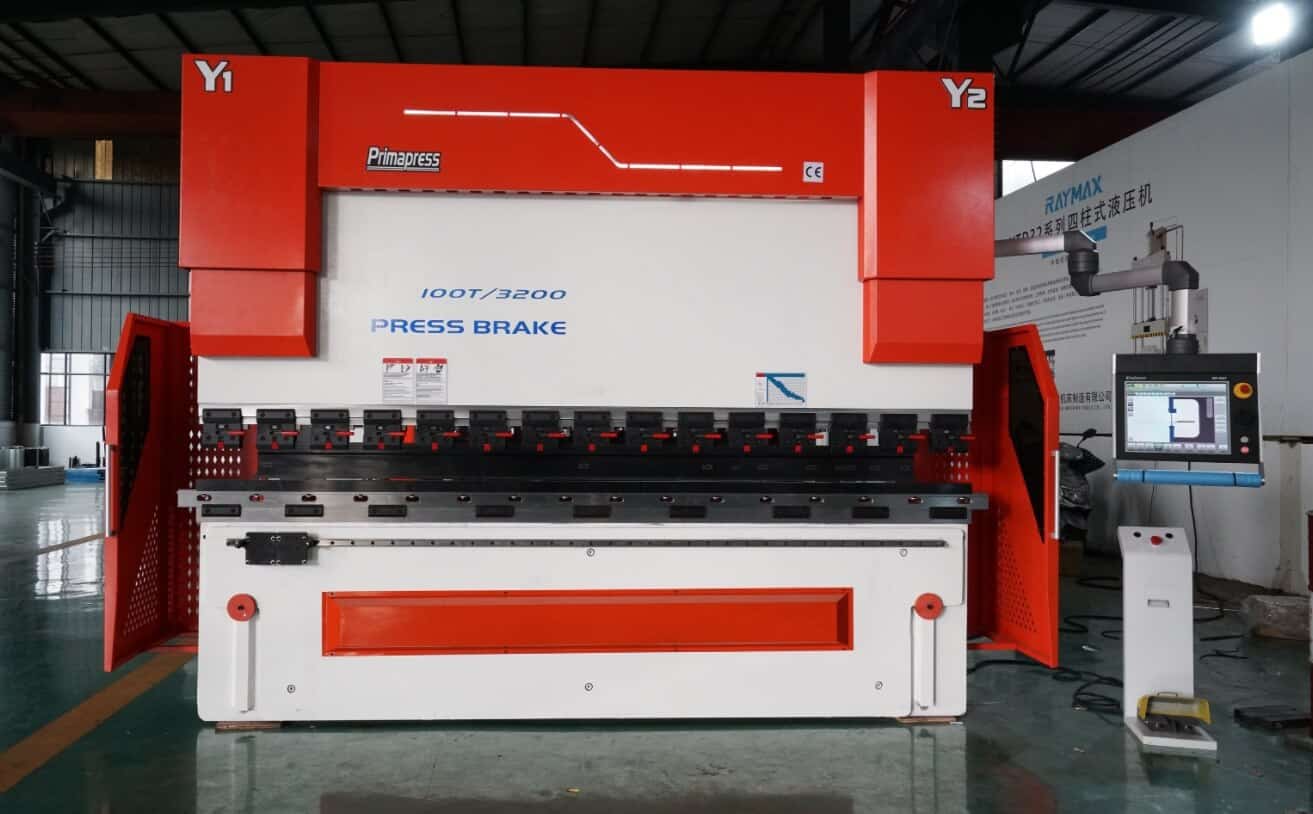

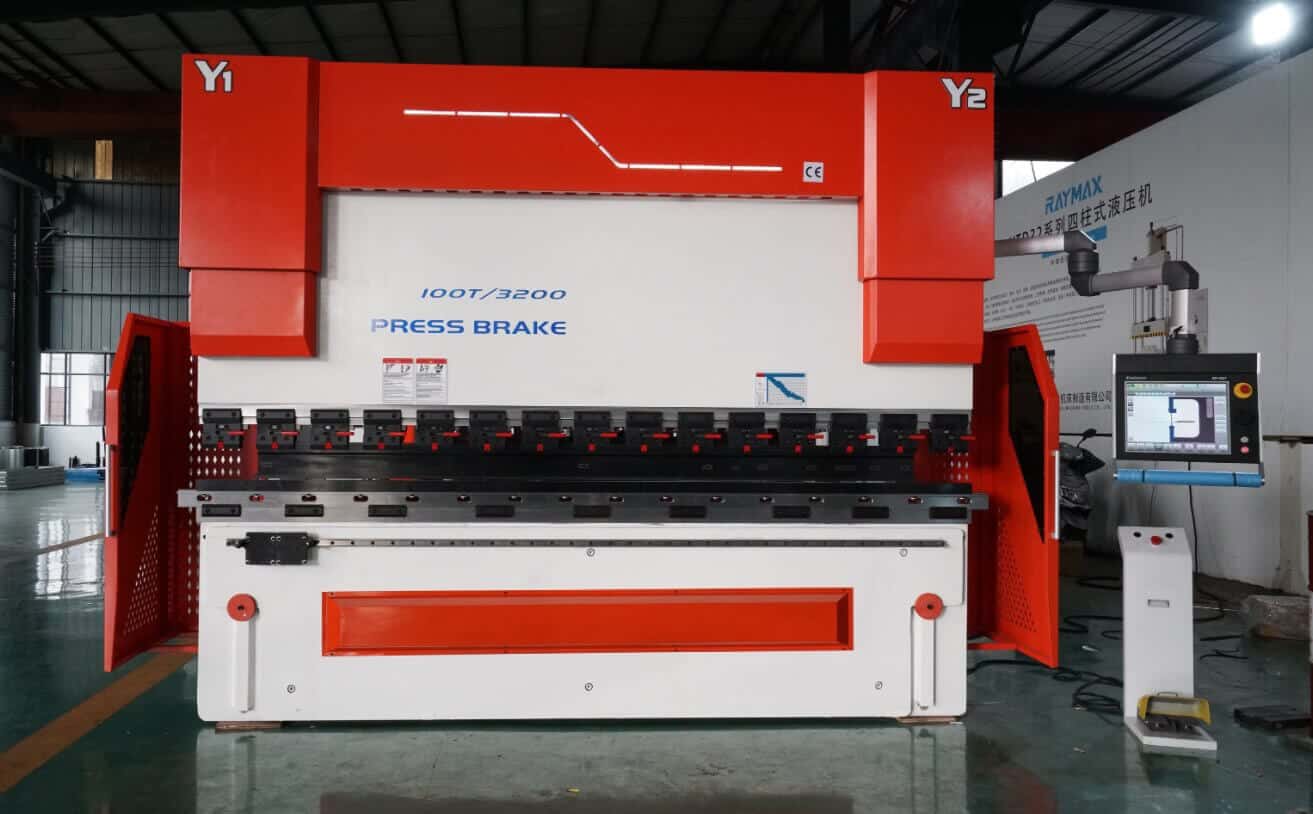

50 100 ton x 10 ft 6 axis efficient series CNC hydraulic press brake bending machine for sale
Original price was: $11,581.00.$8,100.00Current price is: $8,100.00.
Model: RX-H Series 100ton*3200mm
Control Axis: 6 Axis
Category: CNC Press Brake
Brand Name: RAYMAX
Bending Pressure: 100 ton
Workbench length: 10.50 ft / 125.98 in
Controller: CNC DELEM DA66T Controller
Key informations: 10 ft press brake, 50 ton press brake, 100 ton press brake for sale, 6 axis press brake, efficient series CNC press brake machine, CNC hydraulic press brake bending machine
Technology
| Type: | 100ton*3200mm |
| Nominal pressure: | 1000KN |
| Workbench length: | 3200mm(10.50ft/125.98 in) |
| Workbench width: | 950mm(3.12ft/37.40 in) |
| Poles distance: | 2750mm(9.02ft/108.27 in) |
| Throat depth: | 390mm(1.28ft/15.35 in) |
| Main motor: | 7.5kw |
| Dimensions L*W*H: | 3900*1800*2650mm |
Configurations
Main Feature
100 ton x 10 ft six-axis press brake with a rear control system with left and right movement positioning function, which is suitable for sheet metal processing with special requirements on bending accuracy or shape! Rated power 100 tons, equipped with advanced ECNC DELEM DA66T Controller, German BOSCH-REXROTH hydraulic valve, Taiwan Hiwin linear quide and ball screw, segmented upper and lower tools, top CE safety standards, now as low as 70% off, only more than 8100 US dollars can be taken home!

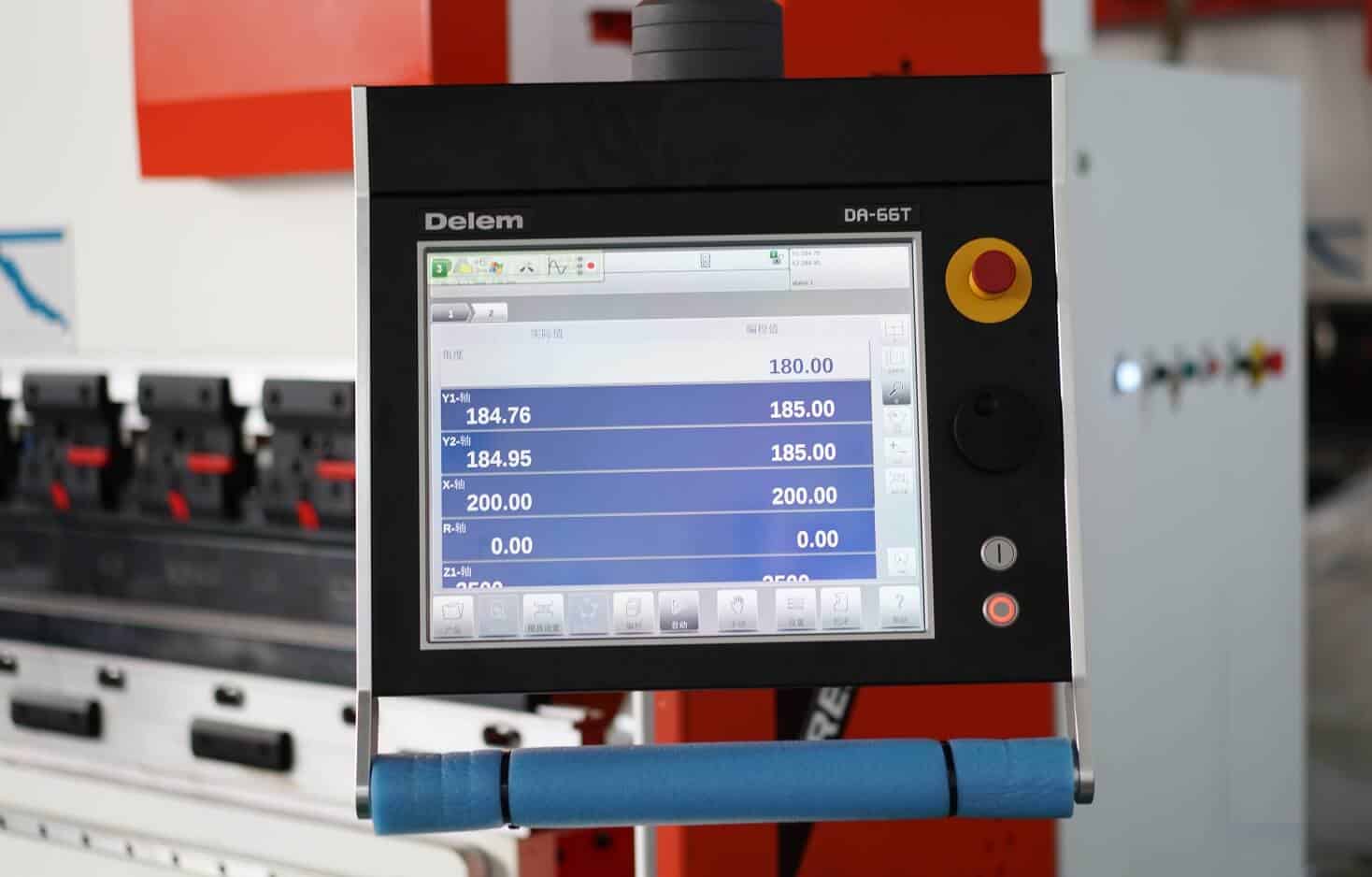

DELEM DA66T Touch 2D Graphical Control
Electric Crowning System

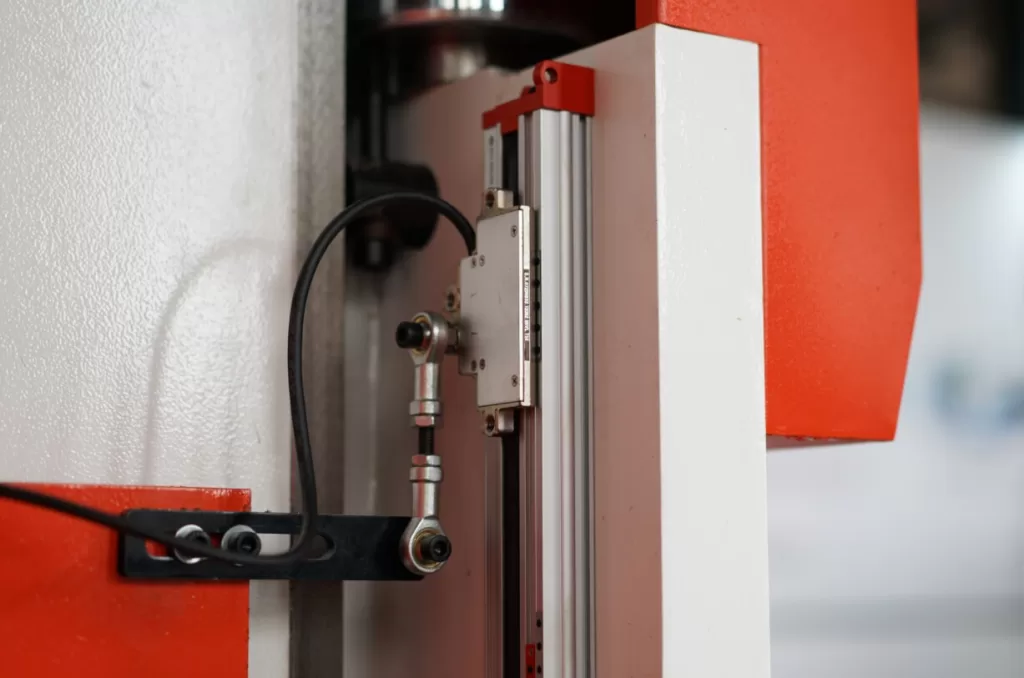

Italian GIVI Grating Ruler
Imported Italian GIVI high-precision grating ruler sensor, installed on the linear guide rail, can move smoothly and adjust up and down, 2-side feedback accuracy up to 0.02.

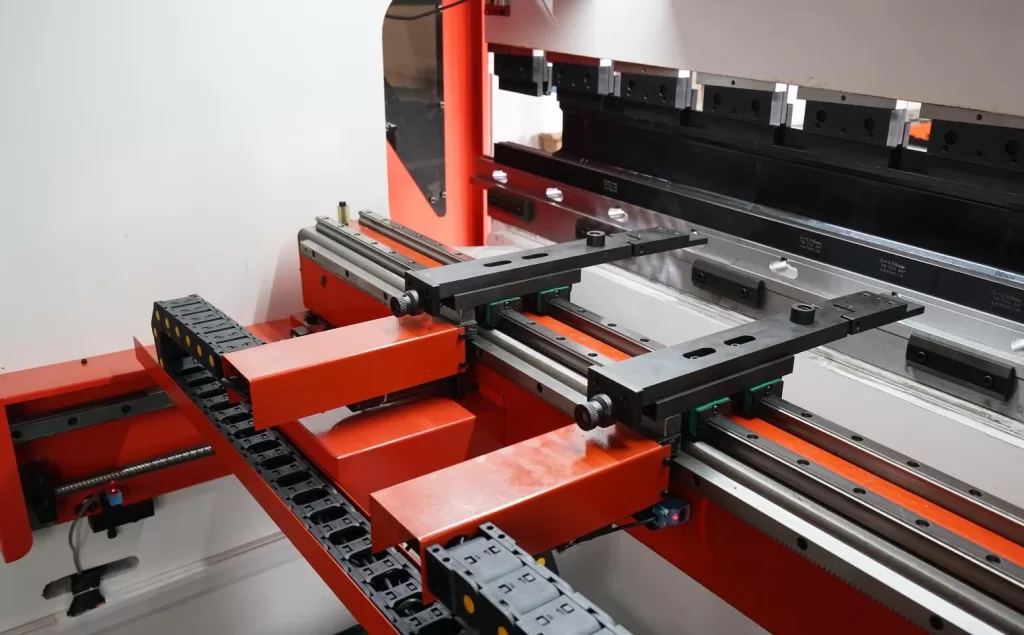

Back Gauge
Independently designed high-precision back stop assembly, equipped with HlWIN high-precision ball screw, high precision, fast speed, good stability.

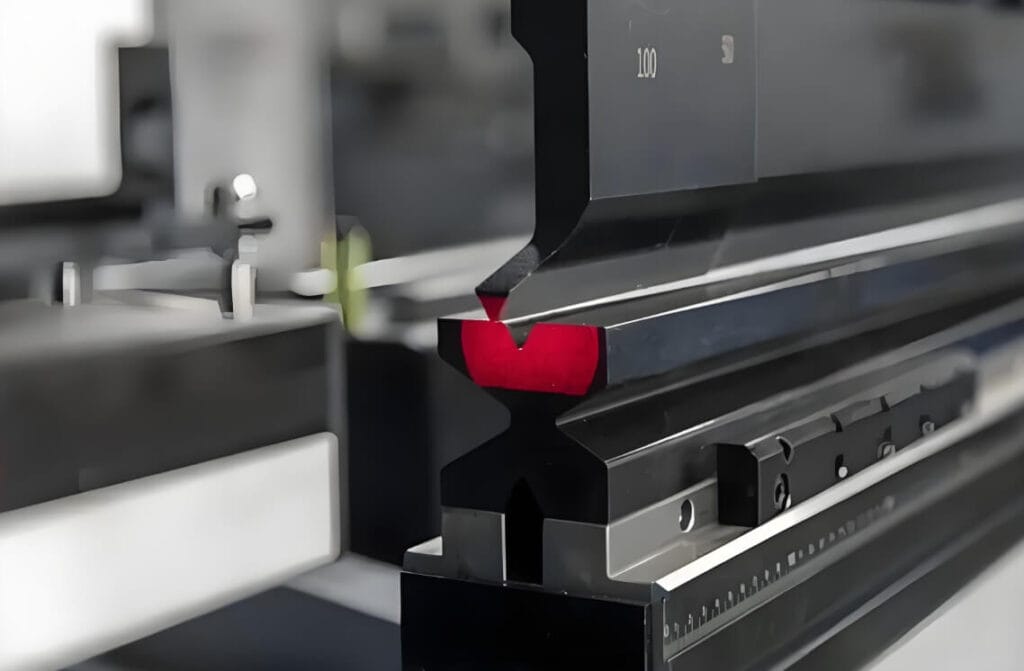

4V Die
The 4V mold is multifunctional,featuring four different V-shaped grooves that allow selection of the appropriate opening width based on bending thickness. The mold can also be used in conjunction with semicircular notches to meet various bending needs.

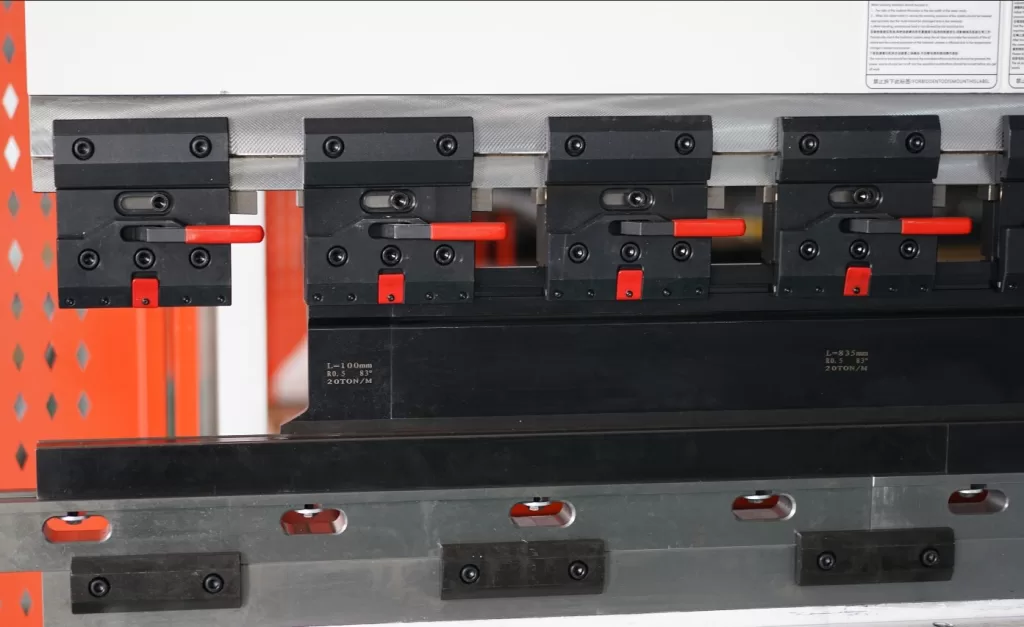

Fast Clamp
After heat treatment and blackening treatment, this fixture is convenient to disassemble and clamp the upper mold in small size.

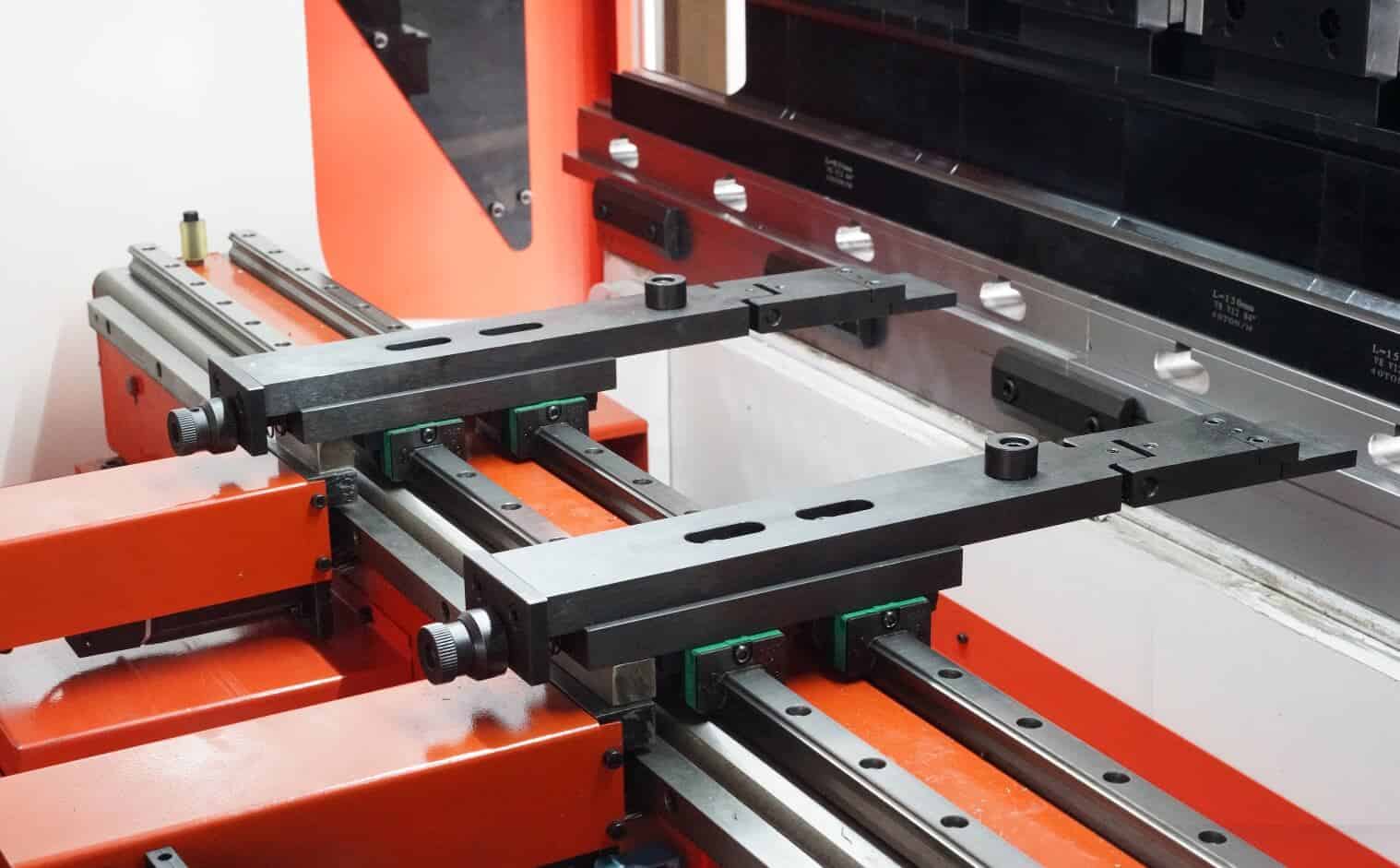

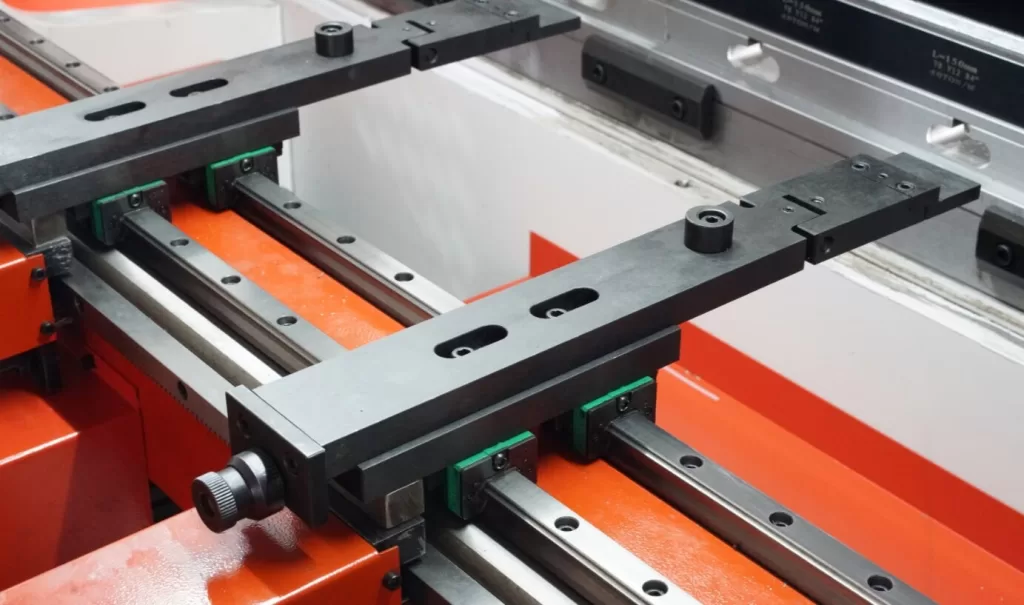

Finger Block
Multiple finger blocks,with point contact between each other, move smoothly on the linear guide rail, and can be adjusted up and down, which is convenient, efficient and easy to control.
During bending work, finger blocks frequently change positions as needed to
achieve bending of plates of different lengths and avoid the problem of insufficient straightness of the plate.

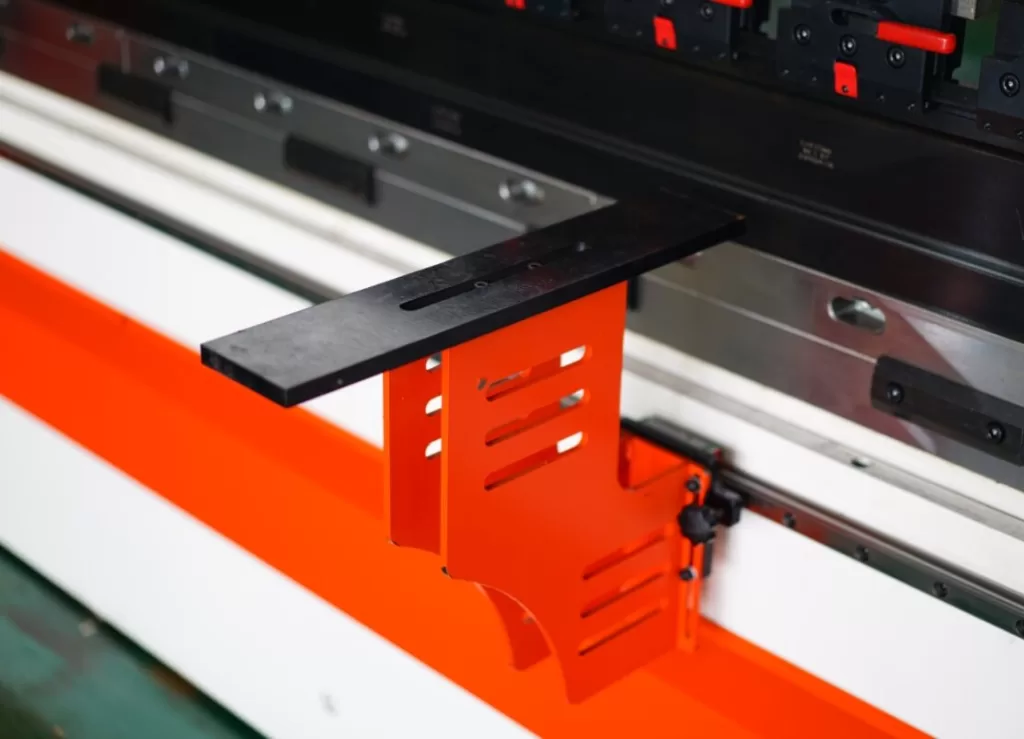

Front Plate Support
The front plate support has a movable design, movable front support, moves along a linear guide, can be docked at any position, and has rotation and height adjustment to assist your bending work (to accommodate different sizes and shapes of the work piece).
German Siemens Main Motor
Adopt German brand Siemens motor, which can effectively save 40% energy, improve the overall working efficiency of the slider by about 20%, and reduce the oil temperature to 20°c. In addition, we provide customized solutions for machine power and voltage to meet local specific voltage requirements.

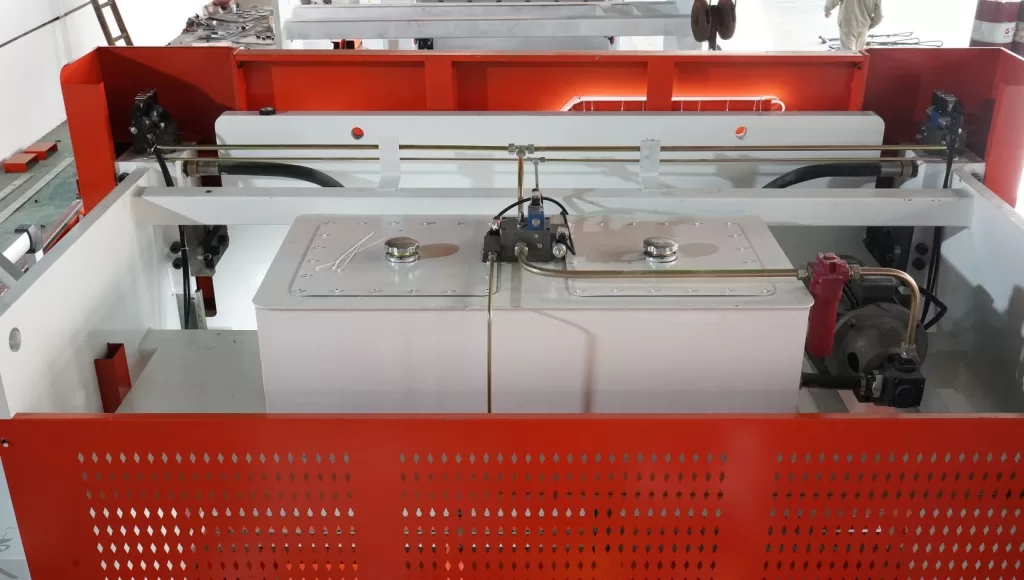

Germany Bosch Rexroth Hydraulic System
Using German Rexroth hydraulic system can reduce hydraulic oil leakage problems, hydraulic pressure can be adjusted according to actual needs to meet different bending force requirements

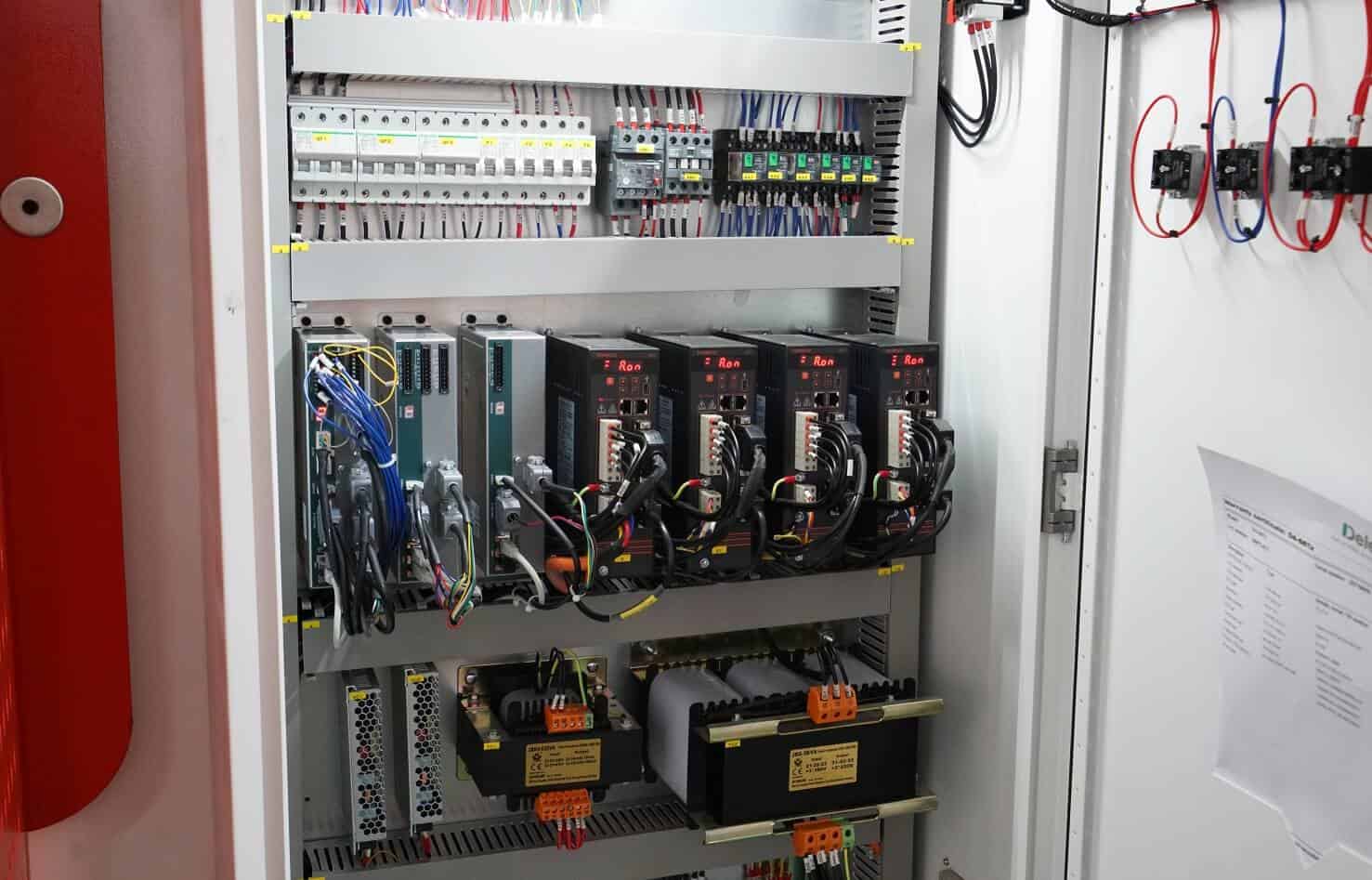

Schneider Electric
High-quality electrical components, rated at 24 V DC – 250 V AC and an average power of 5.1 KW at 50°C, can work in any harsh environment and perform well even under unstable power supply. And customers can easily get replacement parts anywhere in the world.

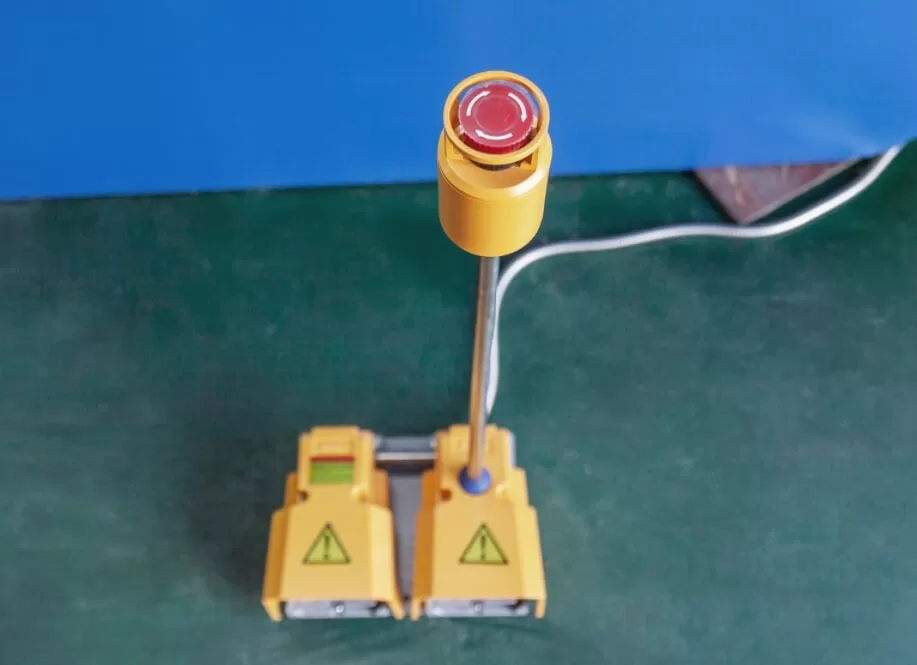

Italian PlZZATO Brand Foot Switches
Using the ltalian PlZZATO brand foot switch to start and stop the press brake. Operators can quickly stop the machine when needed, reducing the risk of work accidents and greatly improving operational safety.
