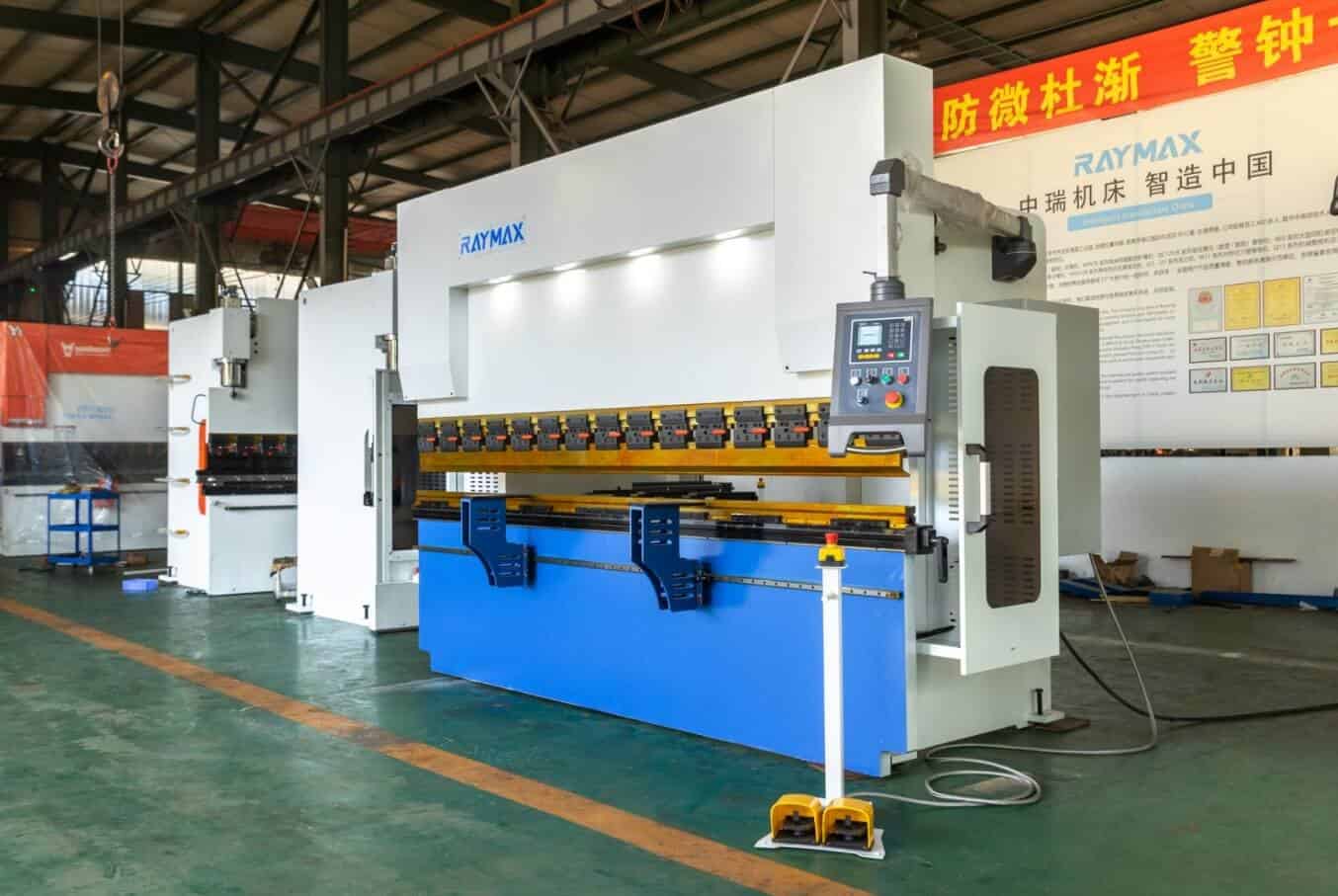

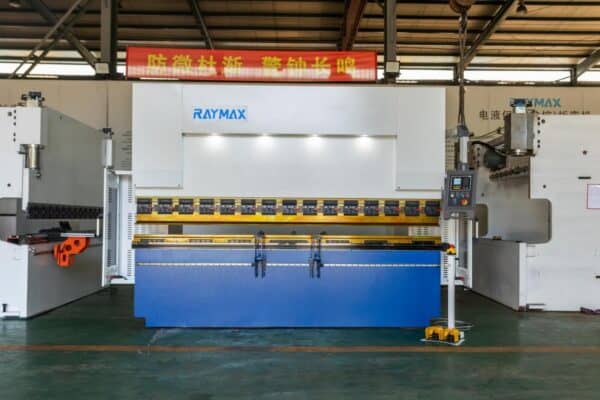

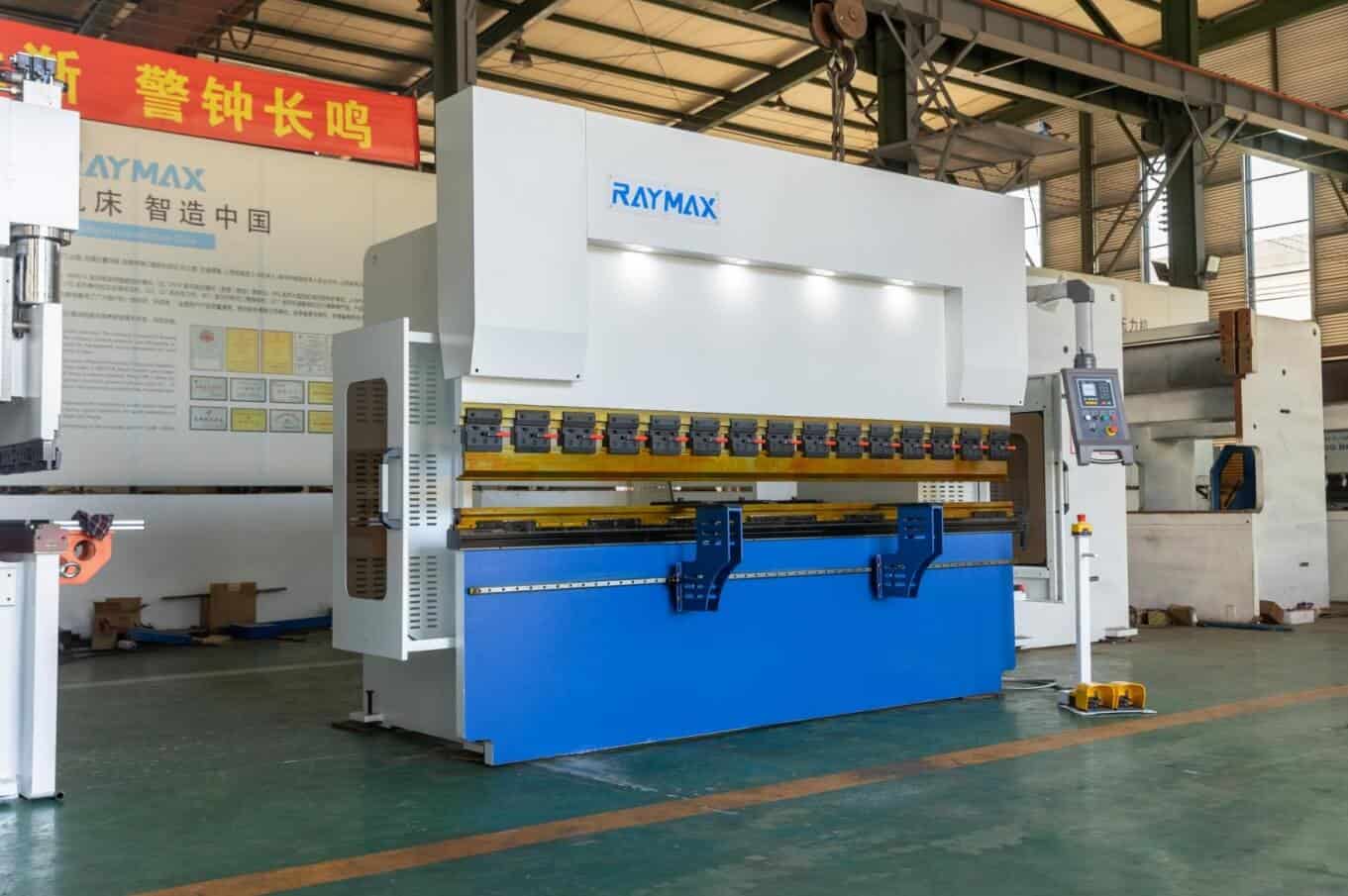

China supplier 50/60-ton x 12-foot 2 axis cheap price compact press brake machine for sale

Name: China supplier 50/60-ton x 12-foot 2 axis cheap price compact press brake machine for sale - Raymax
Price: 7800.00 USD
Availability: InStock

Original price was: $9,650.00.Current price is: $7,800.00.

Model:RX-H Series 63ton*3200mm

Control Axis:2 Axis

Category:NC Press Brake

Brand Name:RAYMAX

Bending Pressure:63 ton

Workbench length:10.50 ft/125.98 in

Controller:ESTUN E21 NC system

Key informations:50 ton press brake,60 ton press brake,12 foot press brake,2 axis press brake,cheap press brake machine,compact press brake

Description
Reviews(0)

Technology

Type:	63ton*3200mm
Nominal pressure:	630KN
Workbench length:	3200mm(10.50 ft / 125.98 in)
Workbench width:	850mm(2.79 ft / 33.46 in)
Poles distance:	2600mm(8.53 ft / 102.36 in)
Throat depth:	320mm(1.05 ft / 12.60 in)
Main motor:	5.5kw
Dimensions LWH:	400015002200mm

Configurations

China supplier 50/60-ton x 12-foot 2 axis cheap price compact press brake machine for sale

Main Feature

Entry-level 60 ton x 12 foot 2 axis compact press brake, the first choice for lightweight bending manufacturers! Rated power 60 tons, equipped with advanced ESTUN E21 NC system, German BOSCH-REXROTH hydraulic valve, Taiwan Hiwin linear quide and ball screw, segmented upper and lower tools with quick clamps, etc., top CE safety standards.

High-strength steel body, perfect and sturdy.
Dual hydraulic cylinder, precision positioning <0.004″.
Wide frame posture, easily adapt to the requirements of deep bending and long molds.

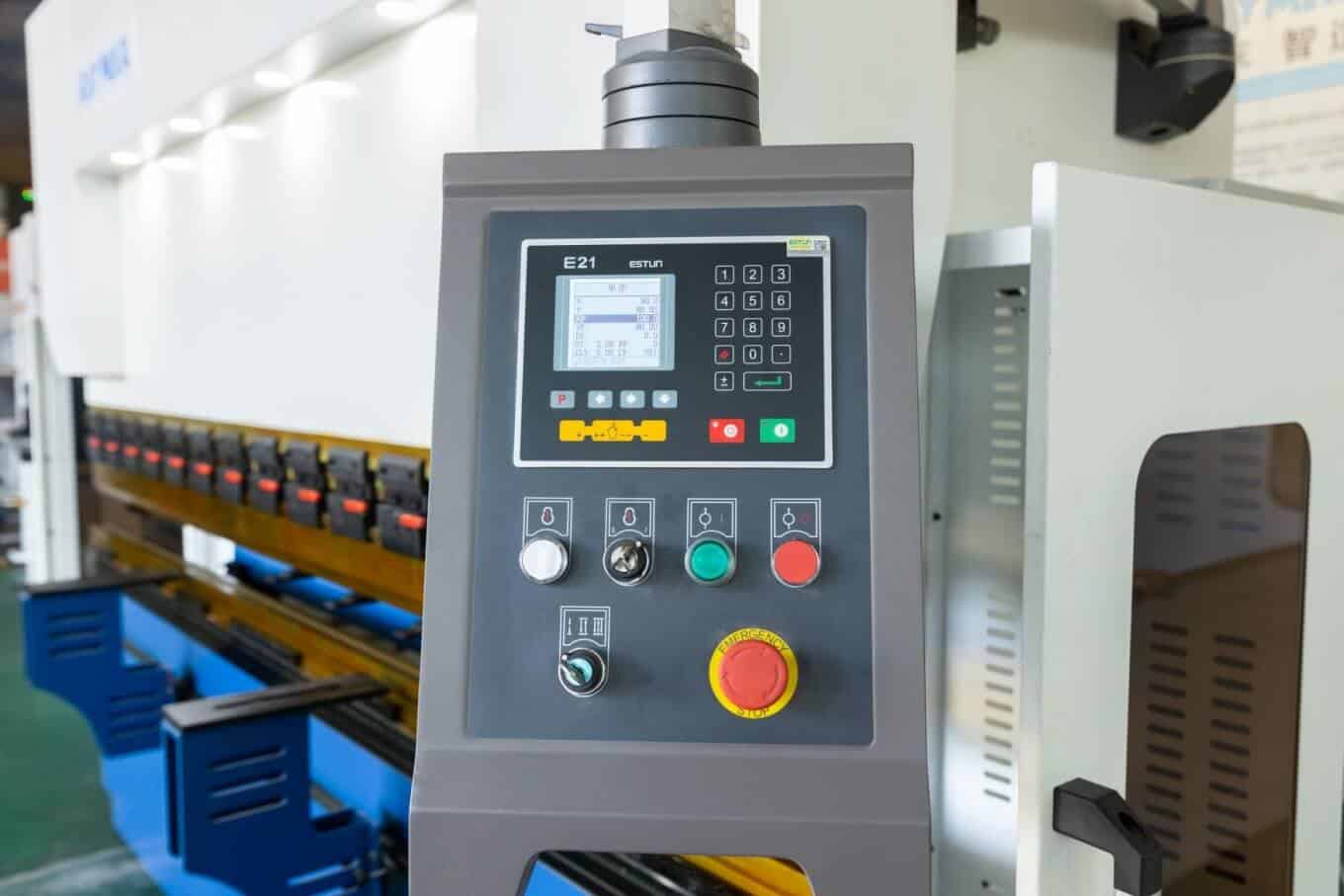

ESTUN E21 NC System

High-definition LCD display, Chinese and English comparison, programming parameters are displayed on one page, programming is quick and convenient.
Intelligent positioning back ground, can also be manually adjusted as needed eliminating the need for mechanical manual positioning devices.
Built-in cutting time relay, cutting angle adjustment, encoder feedback blade gap size and other functions.
One-click parameter backup and recovery function, can restore parameters at any time, reducing maintenance costs.

Electric Crowning System

100% Constant Bending Angle
60mm & 90mm European-style Molds
Electric Crown with Controller
Base can be clamped as well as single dies with 13 mm tang
Precise positioning and alignment of the crowning table
User-Friendly & Quick Operation

Italian GIVI Grating Ruler

Imported Italian GIVI high-precision grating ruler sensor, installed on the linear guide rail, can move smoothly and adjust up and down, 2-side feedback accuracy up to 0.02.

High-precision positioning with flexible operation.
Adjustable design to accommodate different sizes and shapes of workpieces.

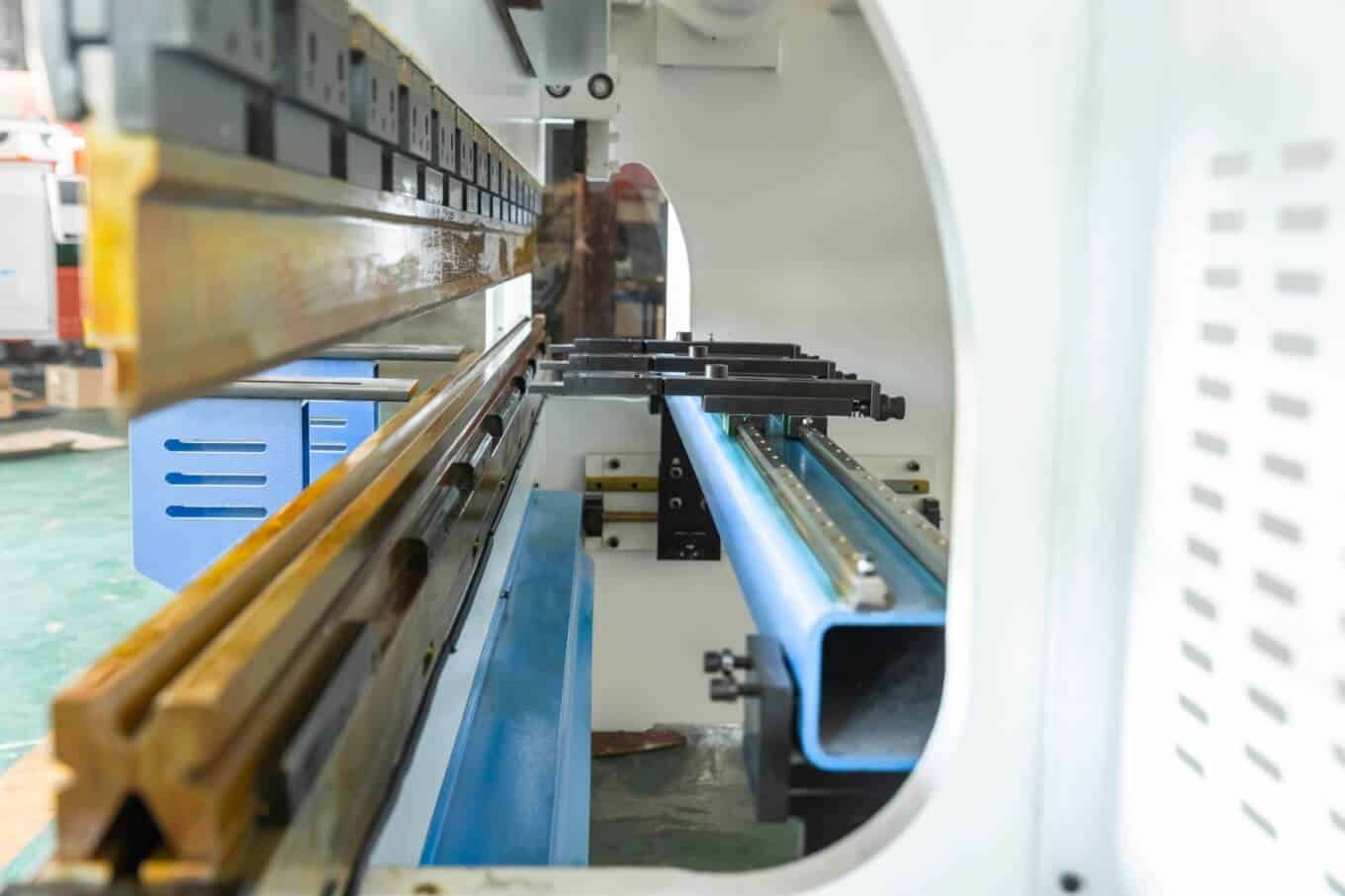

Back Gauge

Independently designed high-precision back stop assembly, equipped with HlWIN high-precision ball screw, high precision, fast speed, good stability.

positioning accuracy of 0.01mm.
Axis X speed 500 mm/s
Supports forward and backward movement of the X-axis and manual left and right movement of the Z-axis to adapt to a variety of different punches and workpiece needs.
Fingers with double stop and micrometric adjustment.

4V Concentric Die

The 4V mold is multifunctional,featuring four different V-shaped grooves that allow selection of the appropriate opening width based on bending thickness. The mold can also be used in conjunction with semicircular notches to meet various bending needs.

Strong multifunctionality,with one mold satisfying multiple bending requirements.
Reduces mold change frequency and improves production efficiency.

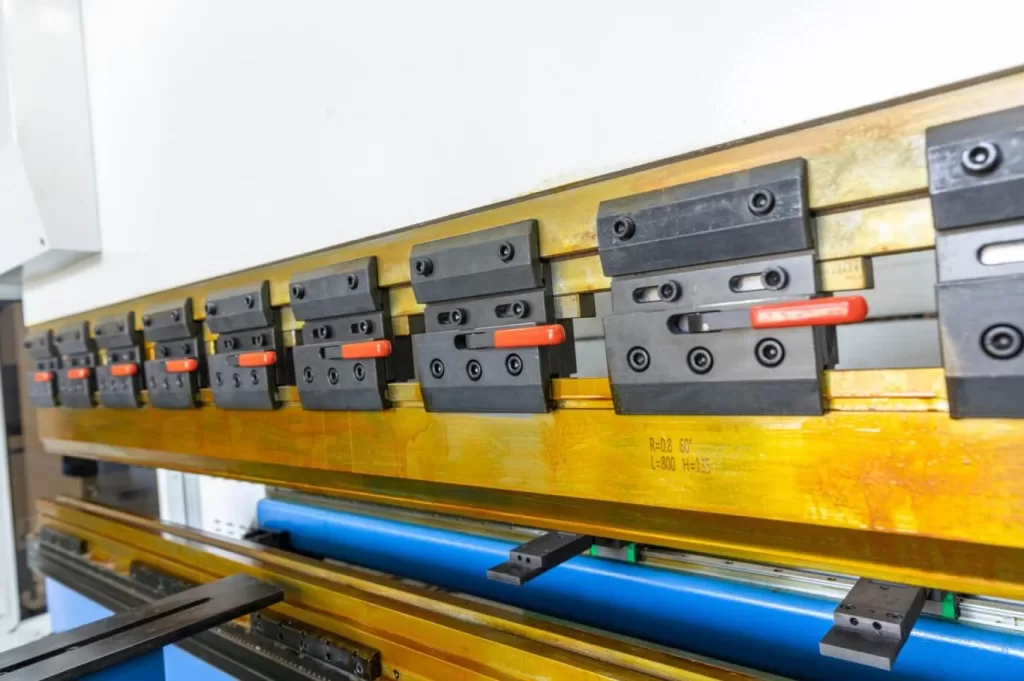

Fast Clamp

After heat treatment and blackening treatment, this fixture is convenient to disassemble and clamp the upper mold in small size.

Simple operation with reliable clamping.
Adapts to various mold types.
Enhances assembly line operation efficiency.
Reduces downtime and improves production continuity.

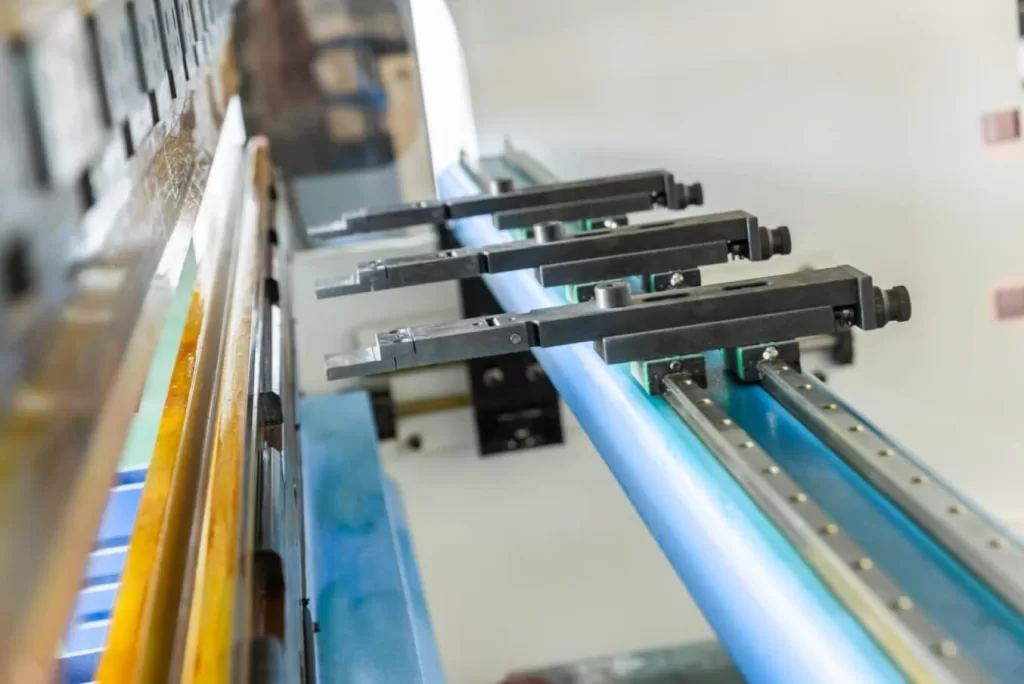

Finger Block

Multiple finger blocks,with point contact between each other, move smoothly on the linear guide rail, and can be adjusted up and down, which is convenient, efficient and easy to control.
During bending work, finger blocks frequently change positions as needed to
achieve bending of plates of different lengths and avoid the problem of insufficient straightness of the plate.

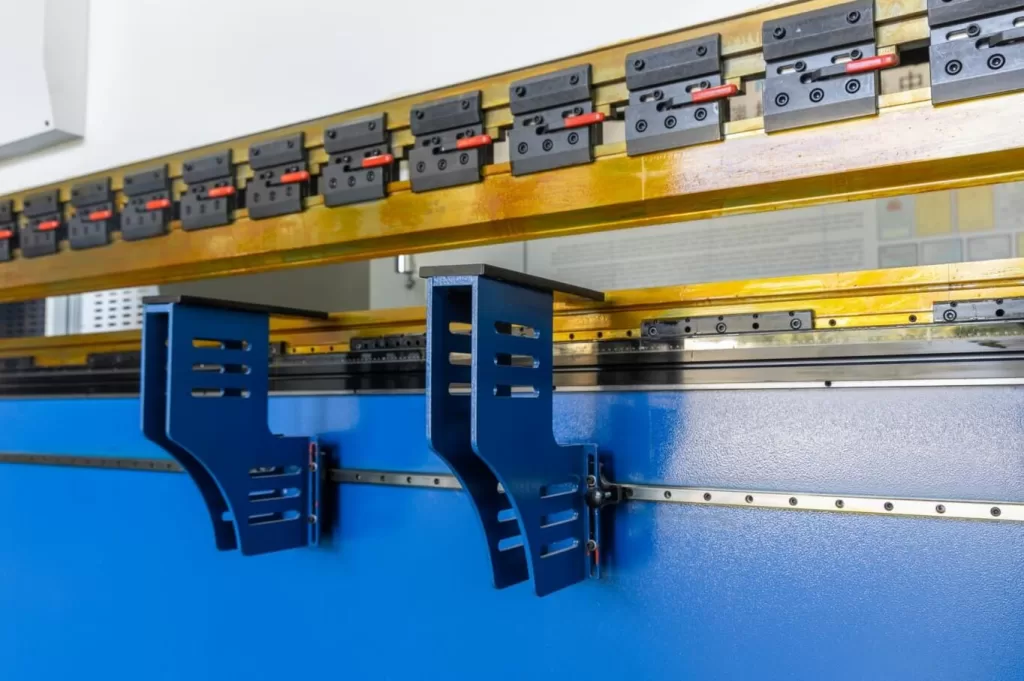

Sheet Metal Frontal Supports

The front plate support has a movable design, movable front support, moves along a linear guide, can be docked at any position, and has rotation and height adjustment to assist your bending work (to accommodate different sizes and shapes of the work piece).

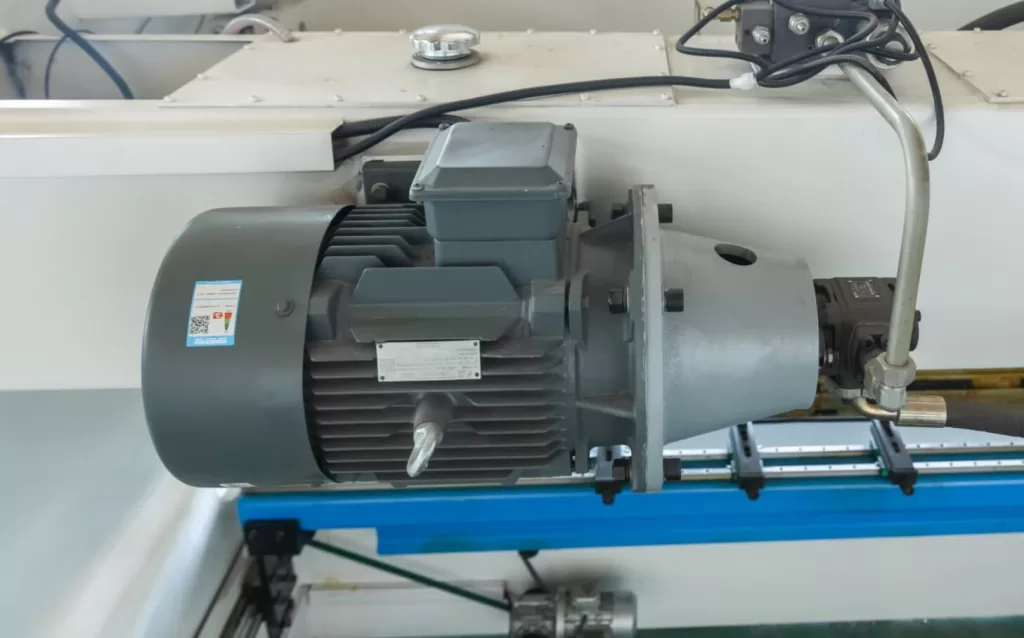

German Siemens Main Motor

Adopt German brand Siemens motor, which can effectively save 40% energy, improve the overall working efficiency of the slider by about 20%, and reduce the oil temperature to 20°c. In addition, we provide customized solutions for machine power and voltage to meet local specific voltage requirements.

It can be applied to various harsh working environments.
Educe energy consumption and extend the service life of equipment.

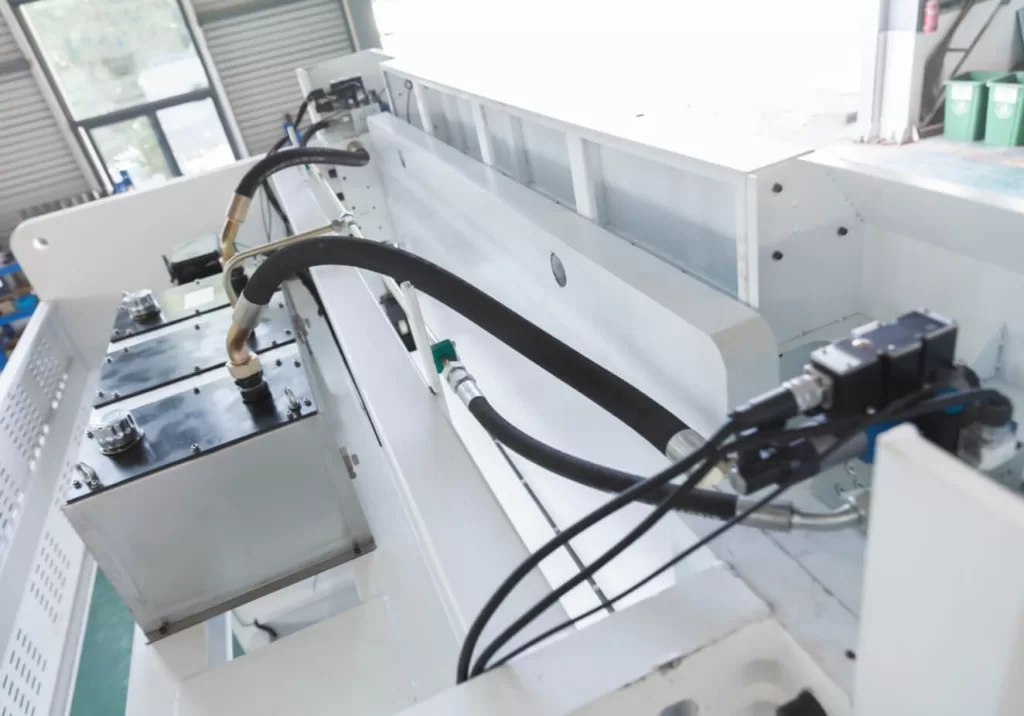

Germany Bosch Rexroth Hydraulic System

Using German Rexroth hydraulic system can reduce hydraulic oil leakage problems, hydraulic pressure can be adjusted according to actual needs to meet different bending force requirements

Energy-efficient and operates smoothly.
Durable hydraulic components suitable for long-term high-load work.
Provides stable pressure output. ensuring bending accuracy.

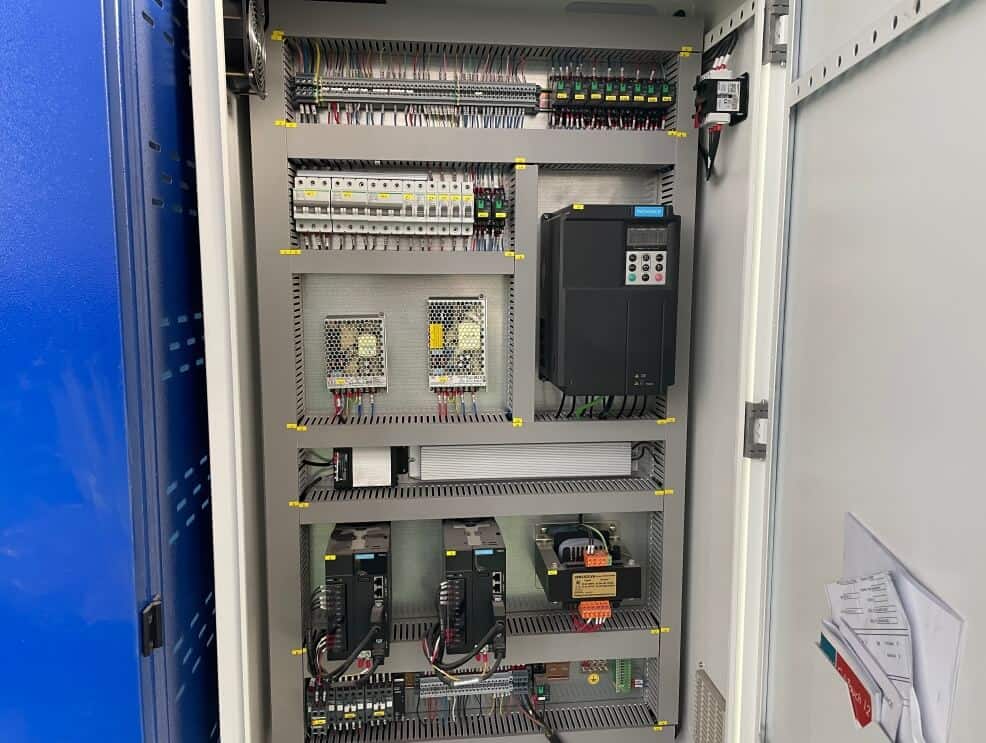

Schneider Electric

High-quality electrical components, rated at 24 V DC – 250 V AC and an average power of 5.1 KW at 50°C, can work in any harsh environment and perform well even under unstable power supply. And customers can easily get replacement parts anywhere in the world.

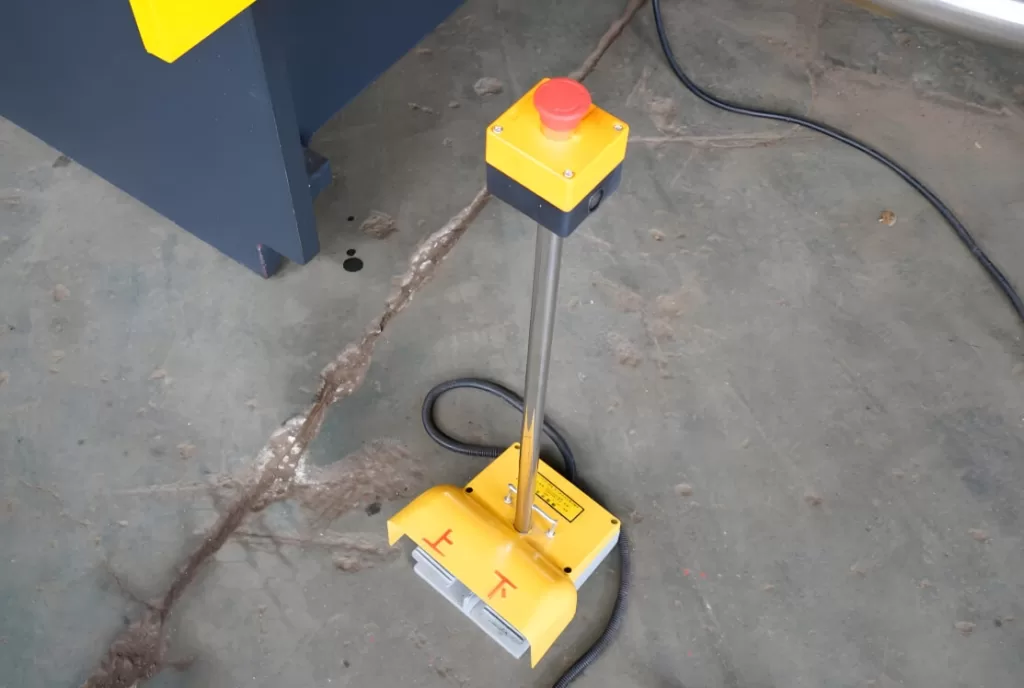

Italian PlZZATO Brand Foot Switches

Using the ltalian PlZZATO brand foot switch to start and stop the press brake. Operators can quickly stop the machine when needed, reducing the risk of work accidents and greatly improving operational safety.

Ergonomic design, easy and comfortable operation, reducing fatigue caused by long-term operation.
With high-level protection configuration, it effectively resists the intrusion of dust and liquids and is suitable for various harsh working environments.
