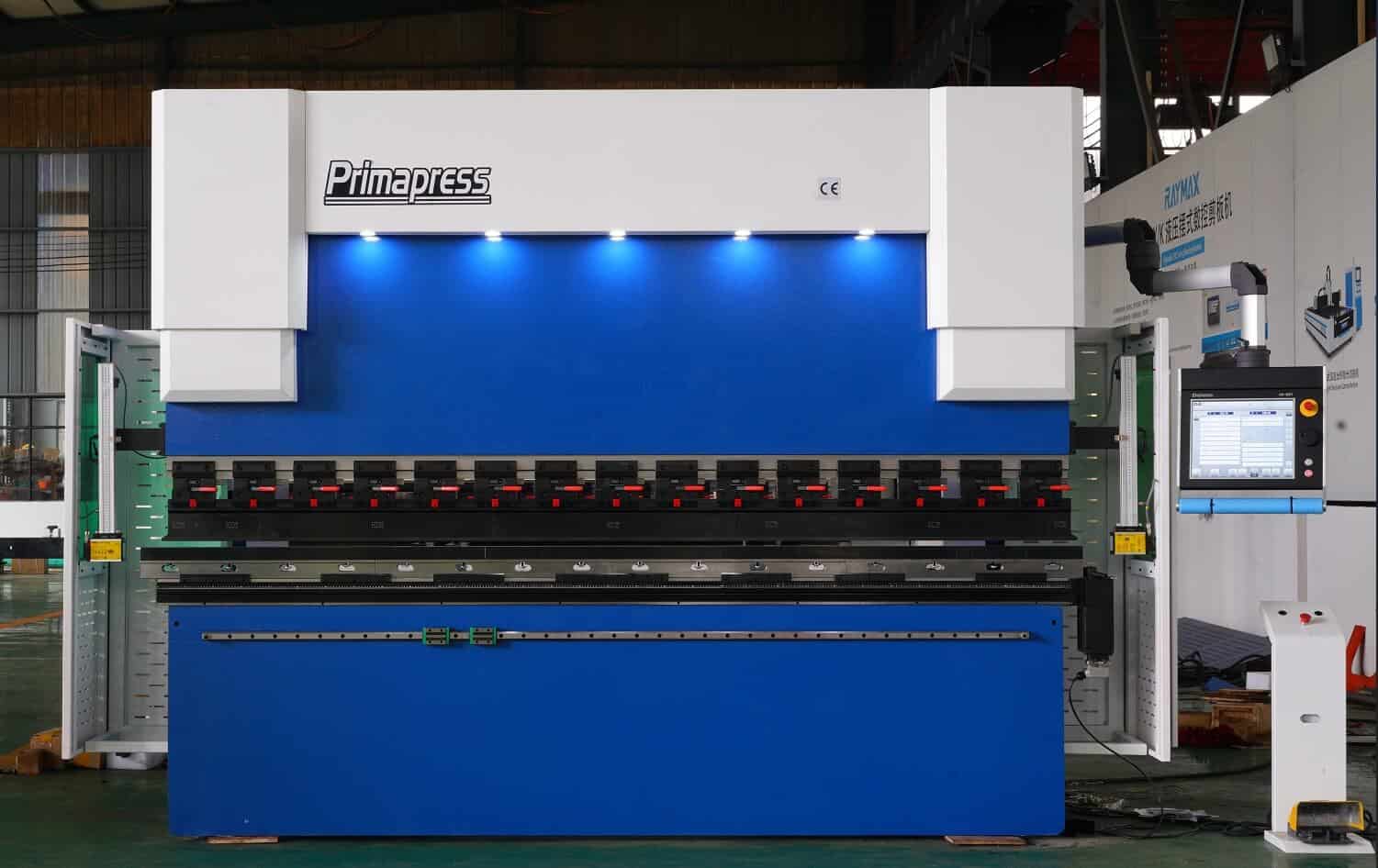

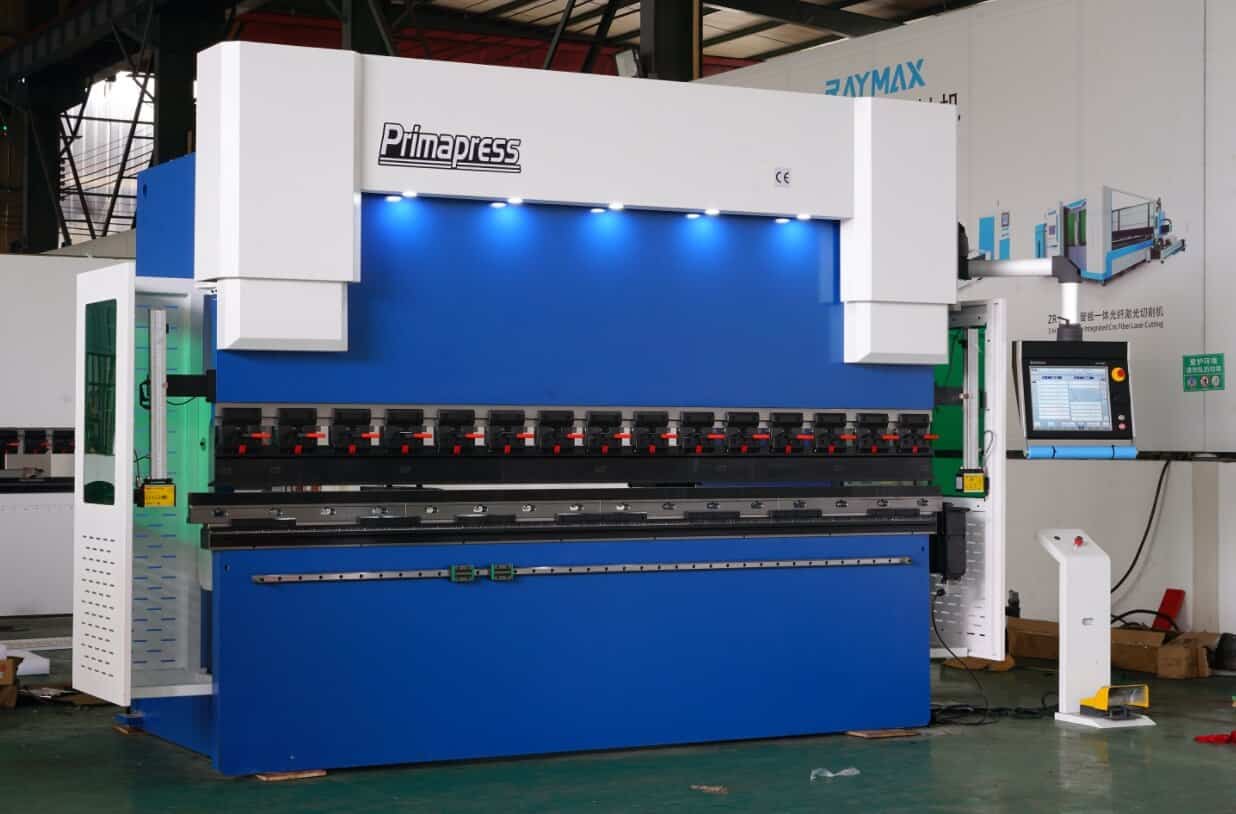

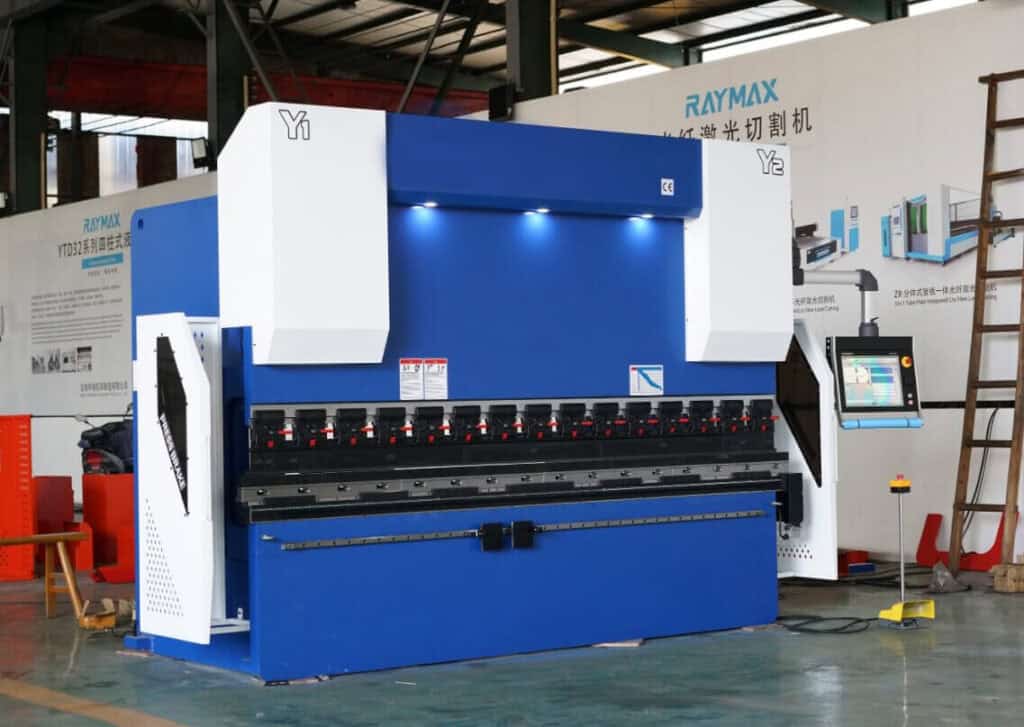

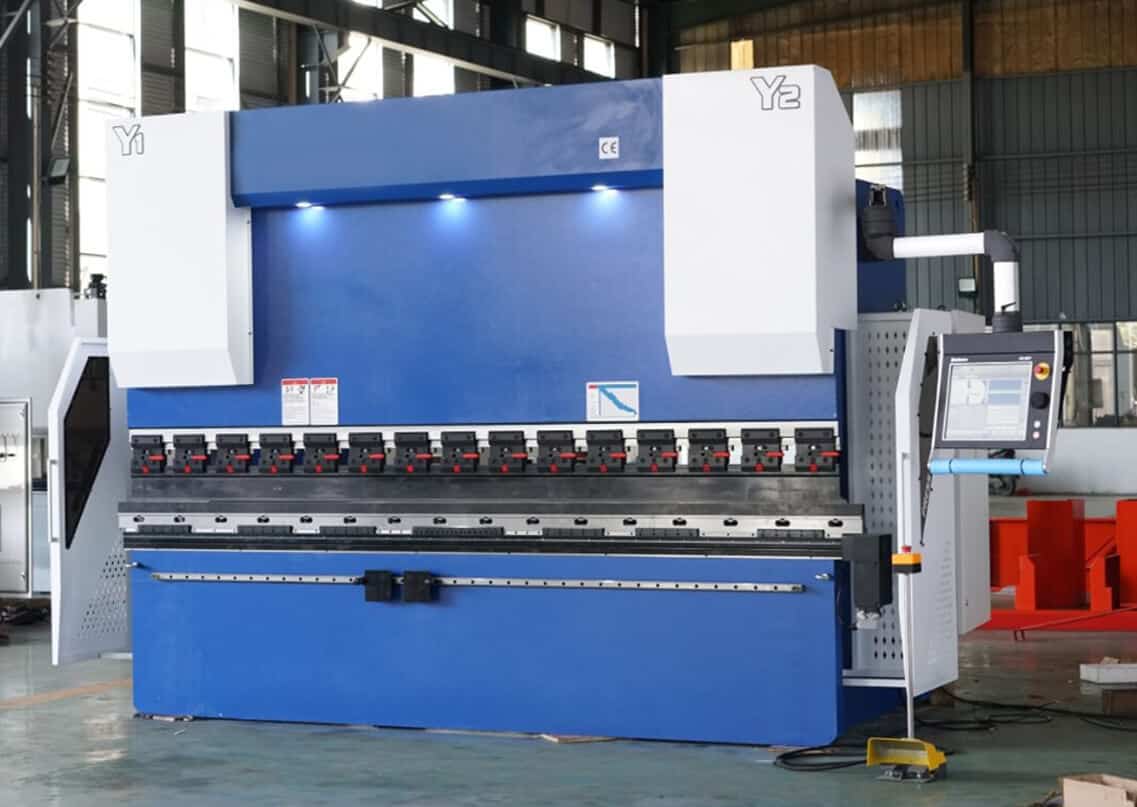

RAYMAX 200 300 ton x 10 foot 8+1 Axis Hydraulic Plate Press Brake For Sale
Original price was: $11,900.00.$10,400.00Current price is: $10,400.00.
Model: RX-H Series 300ton*3200mm
Control Axis: 8+1 Axis
Category: CNC Press Brake
Brand Name: RAYMAX
Bending Pressure: 300 ton
Workbench length: 10.50 ft / 125.98 in
Controller: CNC DELEM DA66T Controller
Key informations: 10 foot press brake, 200 ton press brake for sale, 300 ton press brake for sale, 8+1 axis press brake, hydraulic plate press brake
Technology
| Type: | 300ton*3200mm |
| Nominal pressure: | 3000KN |
| Workbench length: | 3200mm(10.50ft/125.98 in) |
| Workbench width: | 1330mm(4.36ft/52.36 in) |
| Poles distance: | 2720mm(8.92ft/107.09 in) |
| Throat depth: | 500mm(1.64ft/19.69 in) |
| Main motor: | 22kw |
| Dimensions L*W*H: | 4000*2200*3500mm |
Configurations
Main Feature
High standard 8+1 axis CNC press brake series, lower energy consumption, less oil pump pressure, lower noise level, faster speed and more flexibility. The stroke of the cylinder (Y1, Y2) and the back gauge (X, Y, Z) is precisely controlled by the DA66T controller. The back gauge uses high precision ball screws and rolling guides to ensure consistent repeat accuracy. Rated at 300 tons, top CE safety standards, you can take it home for just over $10400!

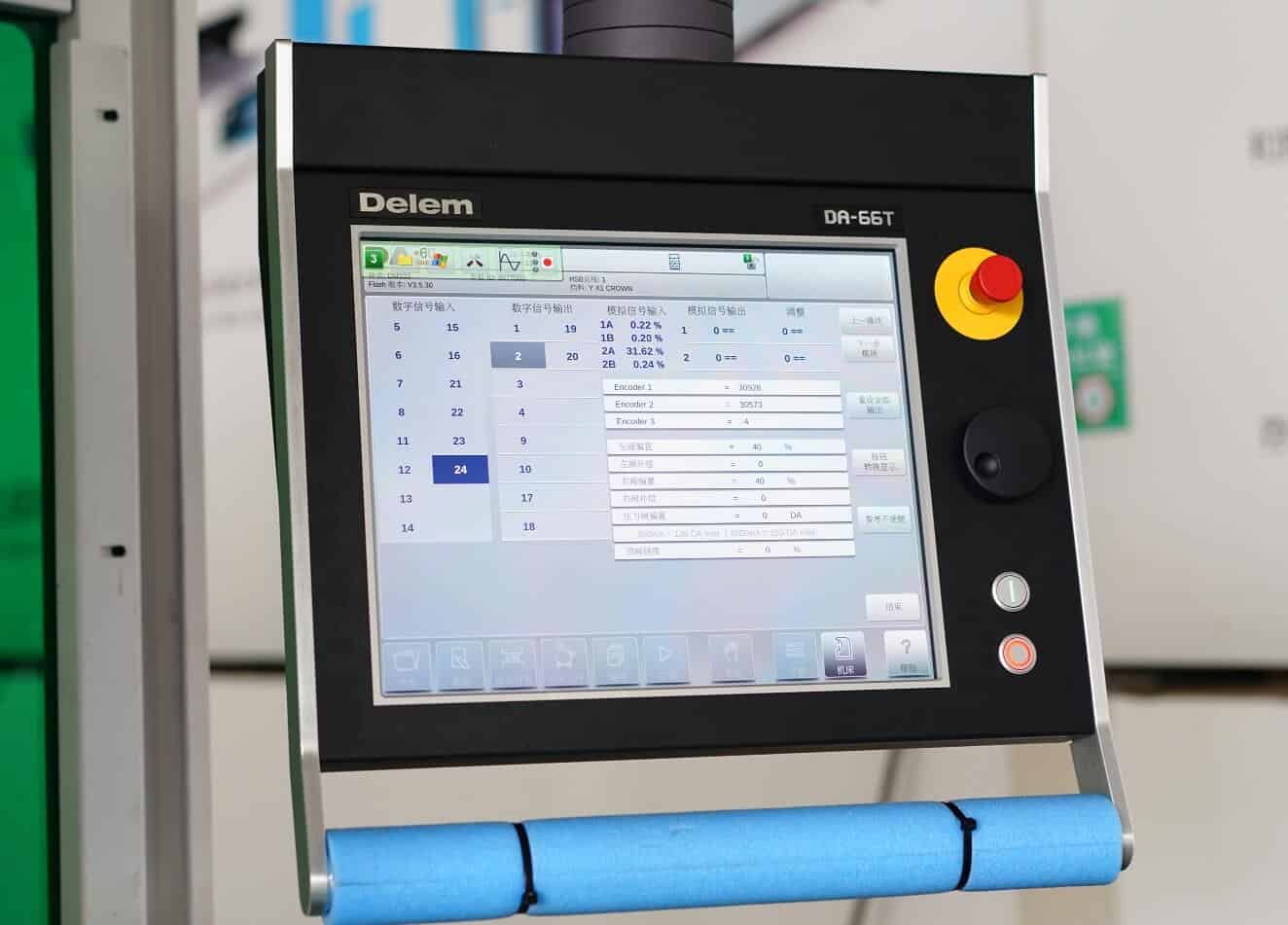

DELEM DA66T Touch 2D Graphical Control

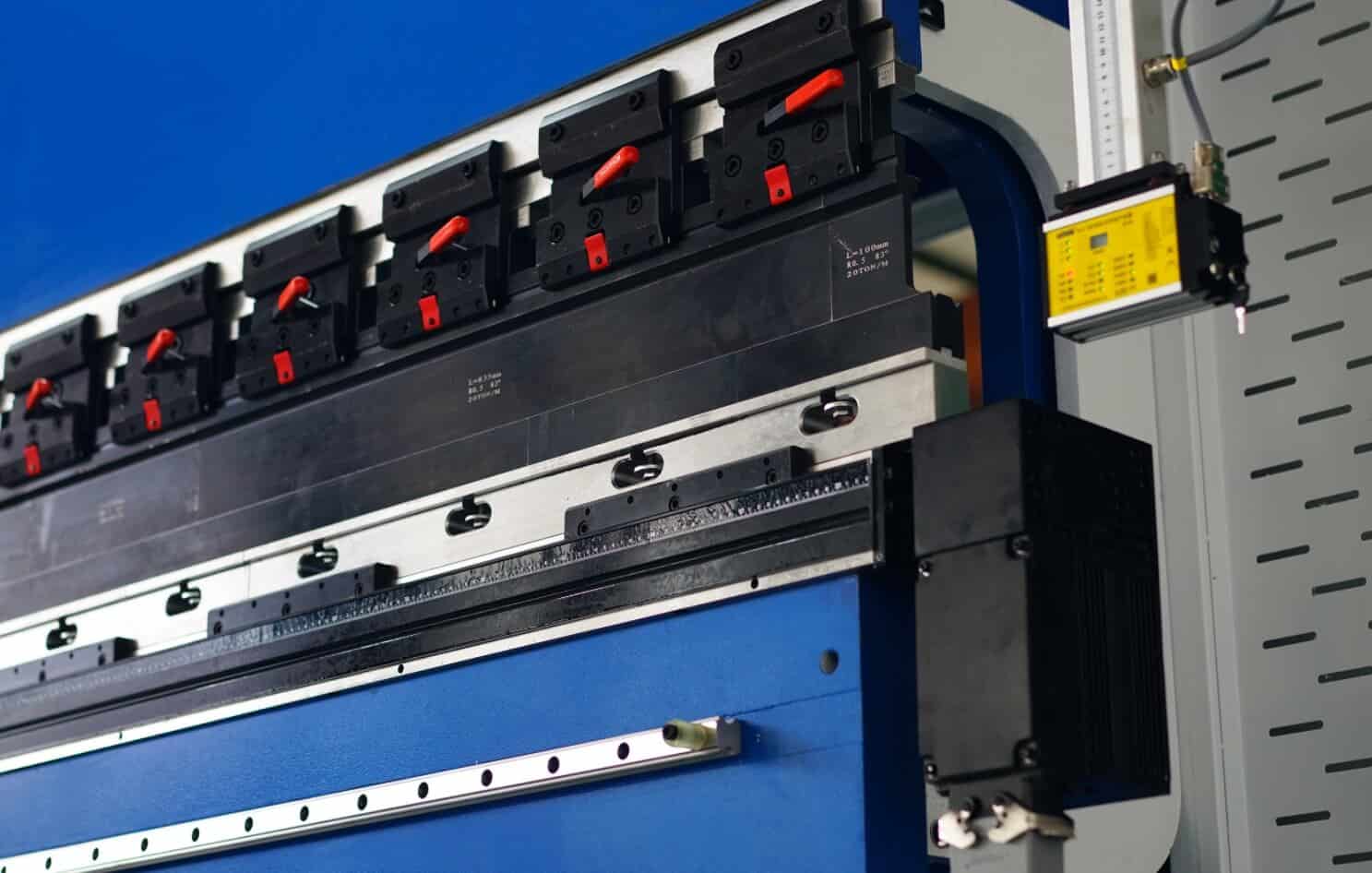

Electric Crowning System

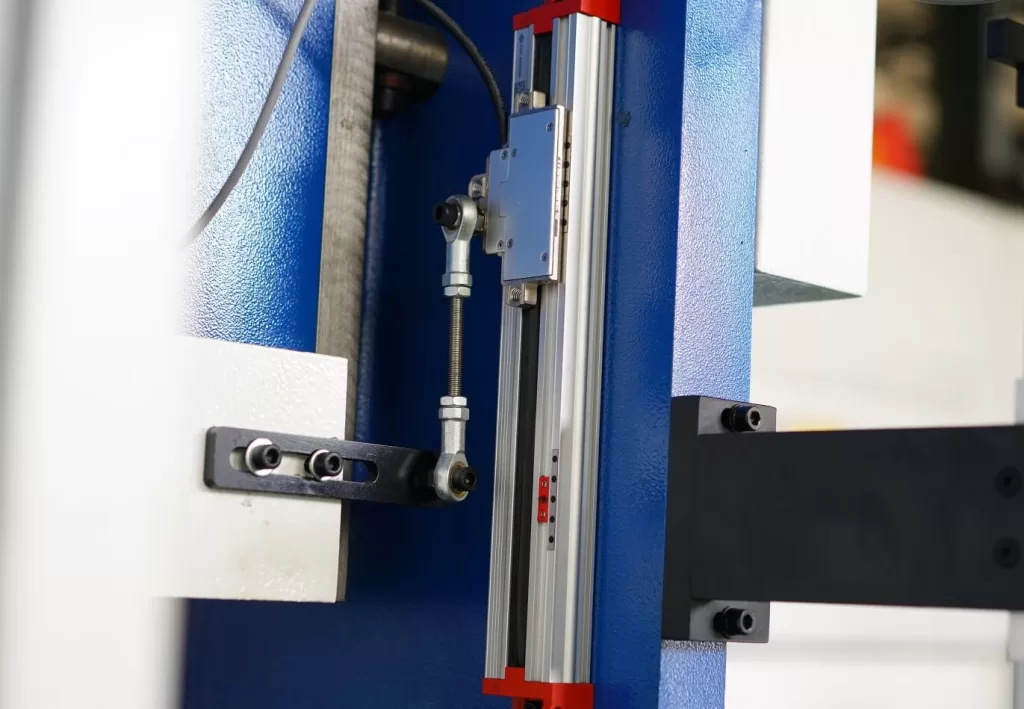

Italian GIVI Grating Ruler
Imported Italian GIVI high-precision grating ruler sensor, installed on the linear guide rail, can move smoothly and adjust up and down, 2-side feedback accuracy up to 0.02.

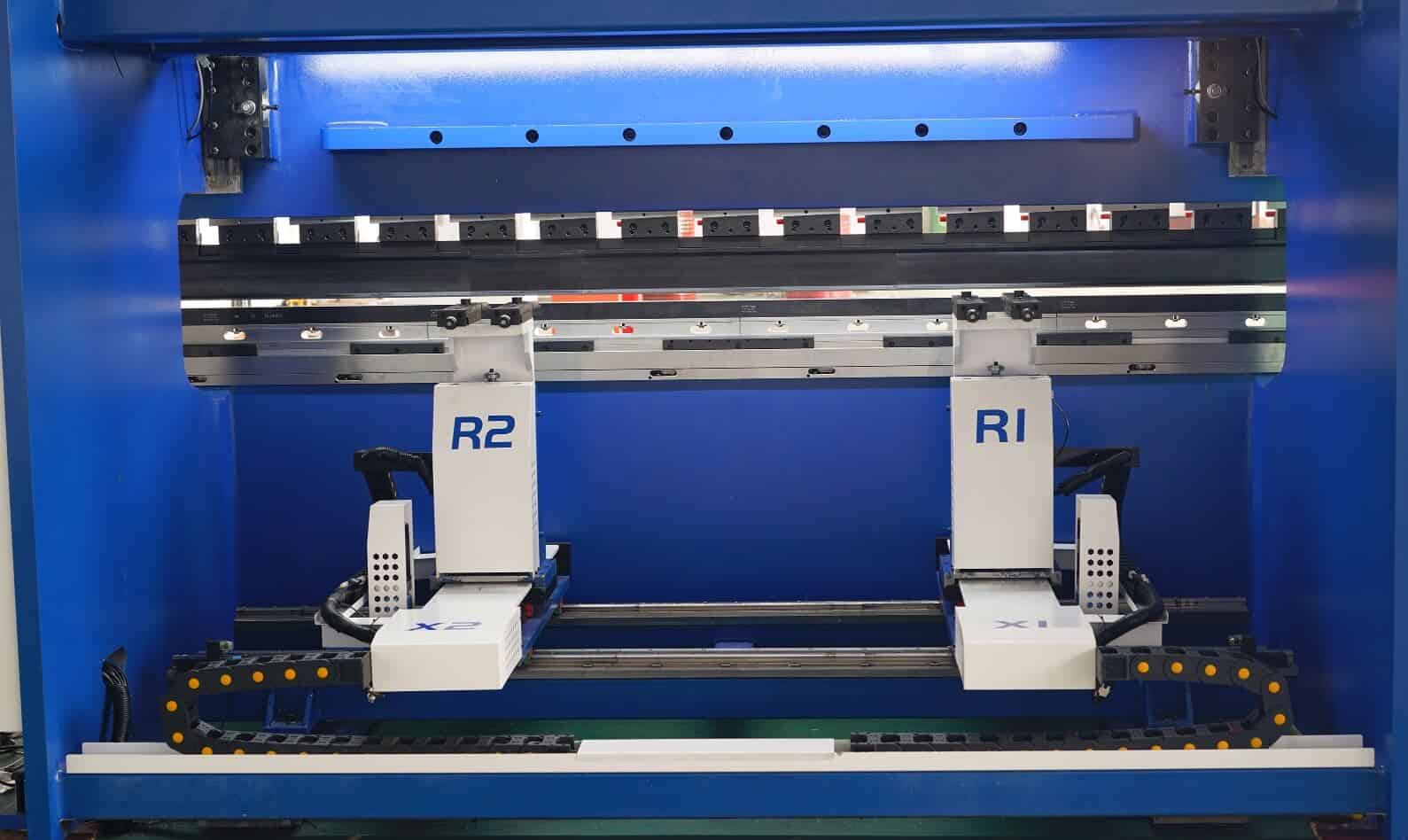

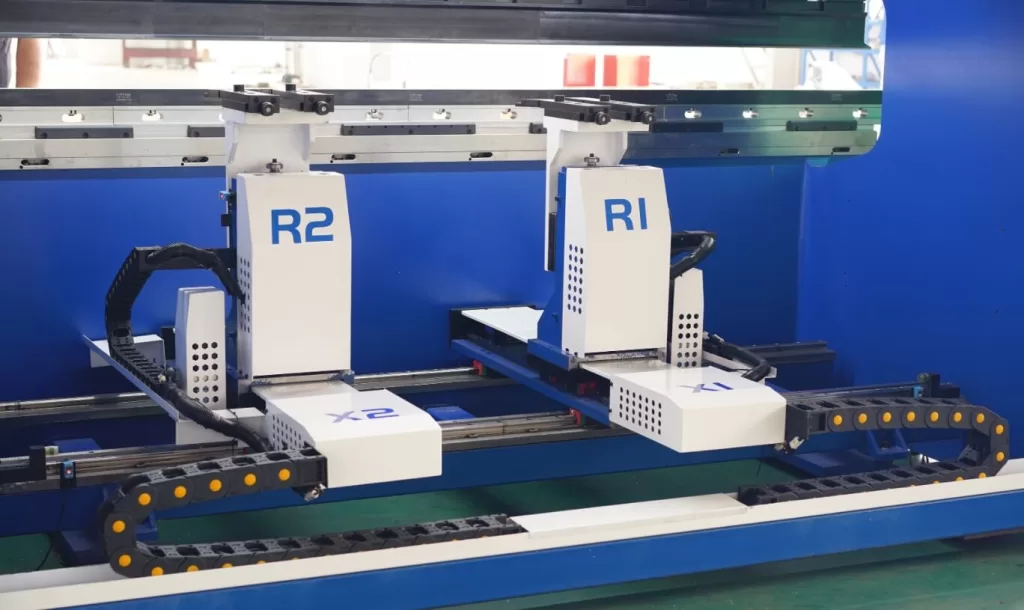

Back Gauge
Independently designed high-precision back stop assembly, equipped with HlWIN high-precision ball screw, high precision, fast speed, good stability.
4V Die
The 4V mold is multifunctional,featuring four different V-shaped grooves that allow selection of the appropriate opening width based on bending thickness. The mold can also be used in conjunction with semicircular notches to meet various bending needs.

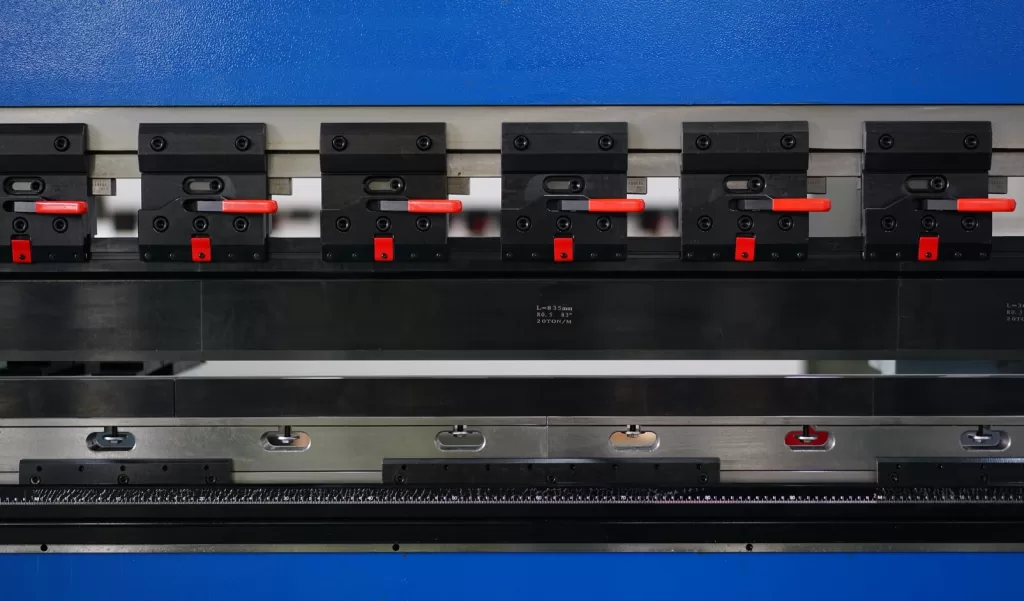

Fast Clamp
After heat treatment and blackening treatment, this fixture is convenient to disassemble and clamp the upper mold in small size.

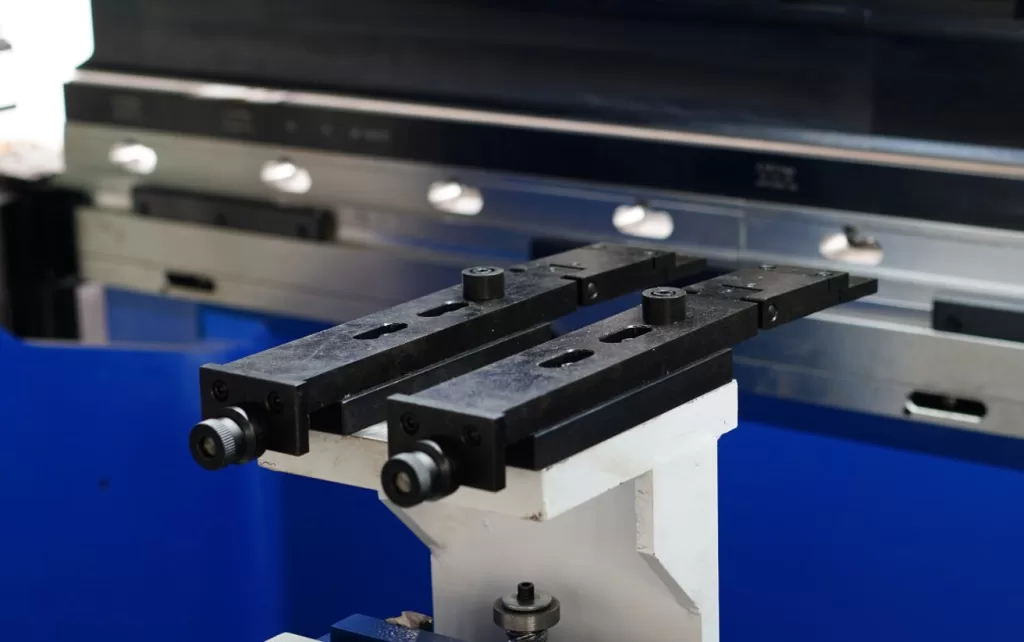

Finger Block
Multiple finger blocks,with point contact between each other, move smoothly on the linear guide rail, and can be adjusted up and down, which is convenient, efficient and easy to control.
During bending work, finger blocks frequently change positions as needed to
achieve bending of plates of different lengths and avoid the problem of insufficient straightness of the plate.
Front Plate Support
The front plate support has a movable design, movable front support, moves along a linear guide, can be docked at any position, and has rotation and height adjustment to assist your bending work (to accommodate different sizes and shapes of the work piece).
German Siemens Main Motor
Adopt German brand Siemens motor, which can effectively save 40% energy, improve the overall working efficiency of the slider by about 20%, and reduce the oil temperature to 20°c. In addition, we provide customized solutions for machine power and voltage to meet local specific voltage requirements.

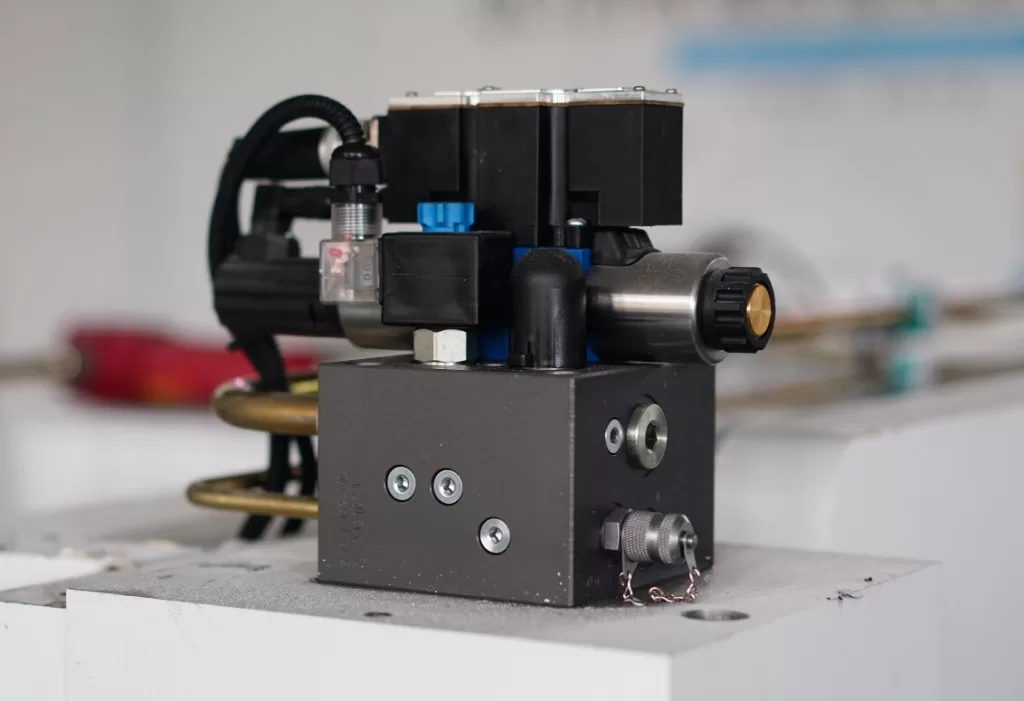

Germany Bosch Rexroth Hydraulic System
Using German Rexroth hydraulic system can reduce hydraulic oil leakage problems, hydraulic pressure can be adjusted according to actual needs to meet different bending force requirements
Schneider Electric
High-quality electrical components, rated at 24 V DC – 250 V AC and an average power of 5.1 KW at 50°C, can work in any harsh environment and perform well even under unstable power supply. And customers can easily get replacement parts anywhere in the world.
Worm Gear Reducer
Used for the press brake’s speed reduction and torque increase, precise motion control, and self-locking to prevent slipping, our press brake achieves higher safety, efficiency, and precision when bending sheets.
Italian PlZZATO Brand Foot Switches
Using the ltalian PlZZATO brand foot switch to start and stop the press brake. Operators can quickly stop the machine when needed, reducing the risk of work accidents and greatly improving operational safety.
