Name: 45-ton x 5-foot 6+1 axis small electric servo steel plate electric press brake for sale - Raymax
Price: 18100.00 USD
Availability: InStock

Technology

Type		45ton*1600mm
Nominal pressure		450KN
Workbench length		1600mm(5.25 ft / 62.99 in)
Poles distance		1360mm(4.46 ft / 53.54 in)
Max Opening Height		560mm(1.84 ft / 22.05 in)
Throat depth		300mm(0.98 ft / 11.81 in)
Slider speed	Rapid speed	200mm/s
	Return speed	180mm/s
	Work speed	0-30mm/s
X-axis stroke		450mm(1.48 ft / 17.72 in)
R-axis stroke		150mm(0.49 ft / 5.91 in)
Weight		4.5ton
Dimensions LWH		220016002590mm
Motor		2*12kw

Configurations

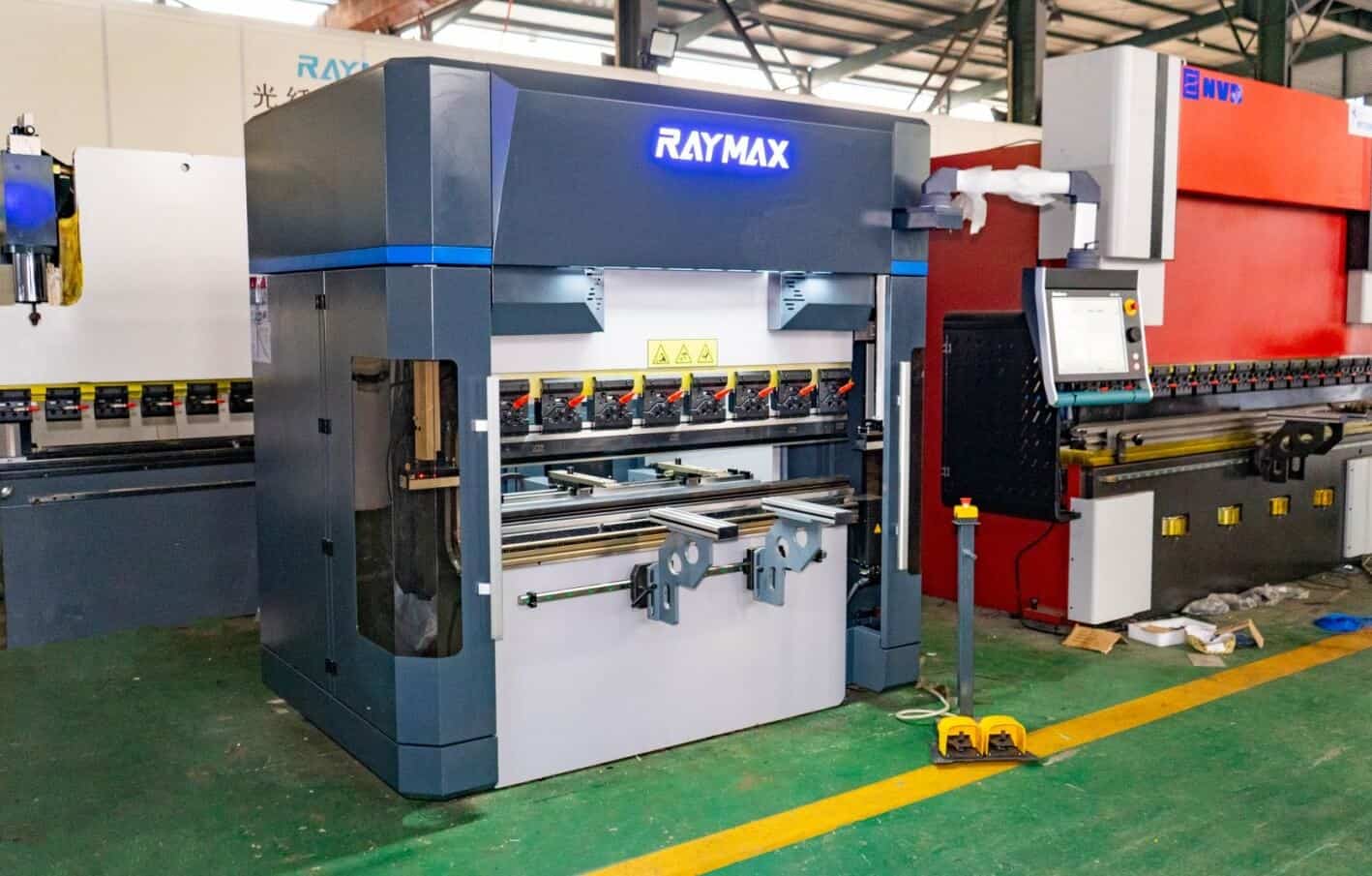

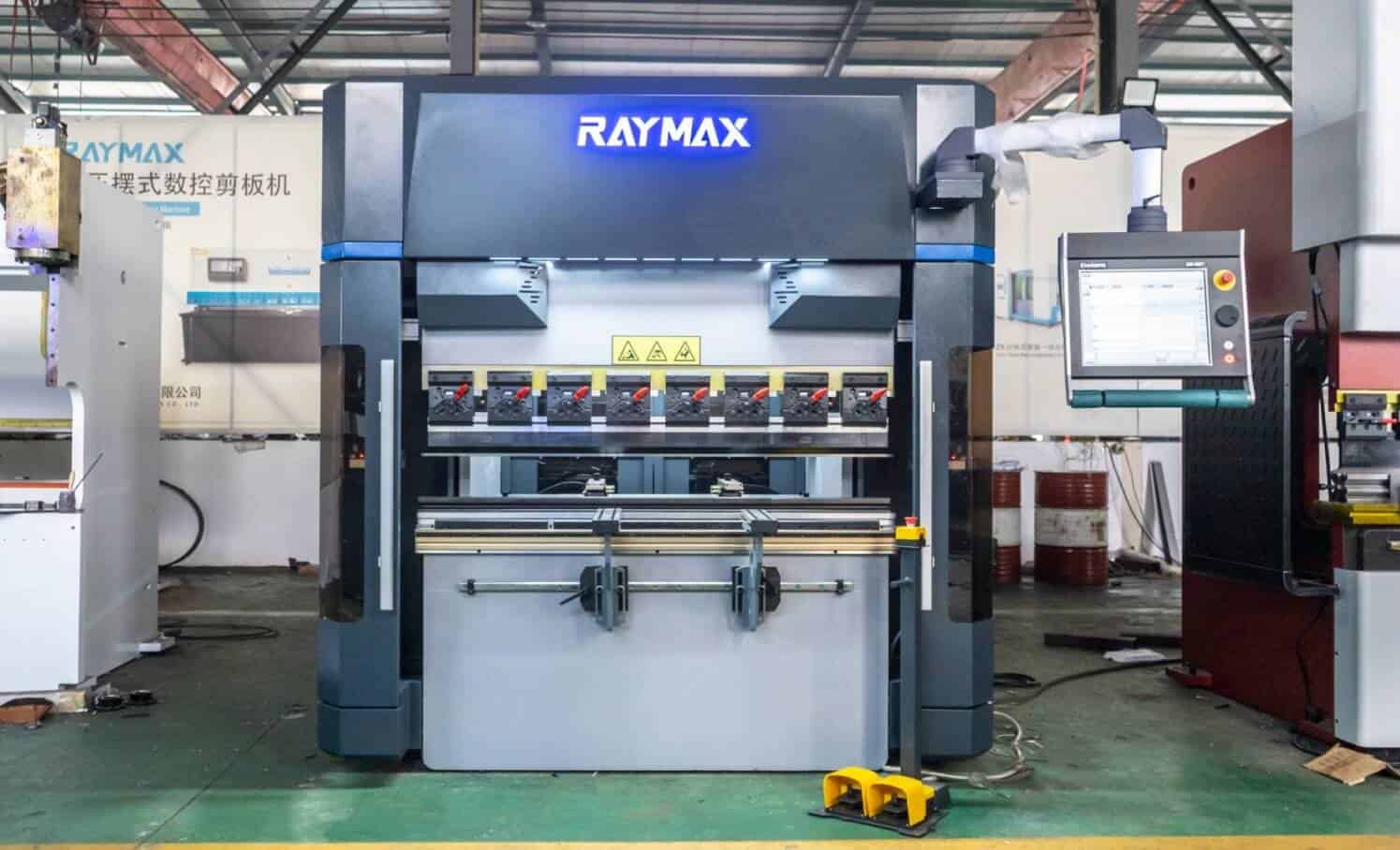

45-ton x 5-foot 6+1 axis small electric servo steel plate electric press brake for sale

Main Feature

RAYMAX CNC synchro 45-ton x 5-foot 6+1 axis electric press brake, driven by Inovance Servo Motor, equipped with advanced ECNC DELEM DA66T Controller, German BOSCH-REXROTH hydraulic valve, Taiwan Hiwin linear quide and ball screw, segmented upper and lower tools, up to 2 times the bending efficiency of CNC hydraulic press brakes! Top CE safety standards. Energy saving and environmental protection, significantly reducing overall costs.

High-strength steel body, perfect and sturdy.
Transmission Precision: ±0.01mm
Bending Speed: 28~35 Times/Minute
Energy Saved 90% & Noise Reduced 50%

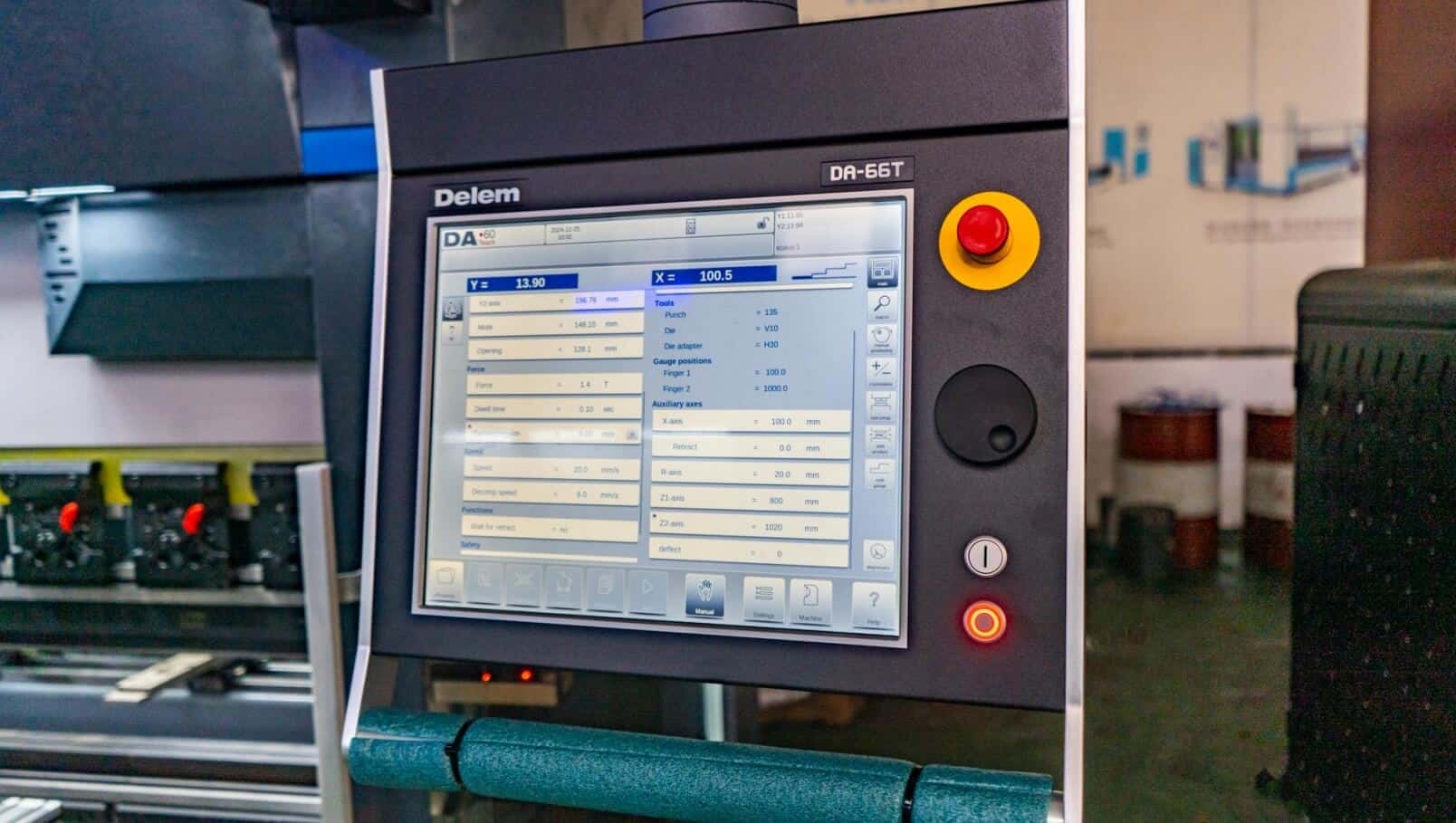

DELEM DA66T Touch Color CNC System

2D graphical touch screen programming mode
17″ high resolution colour TFT
3D visualisation in simulation and production
Full Windows application suite
Delem Modusys compatibility (module scalability and adaptivity)
USB, peripheral interfacing
User specific application support within the control’s multitasking environment
Sensor bending & correction interface Profile-TL offline software
Profile-T2D offline software

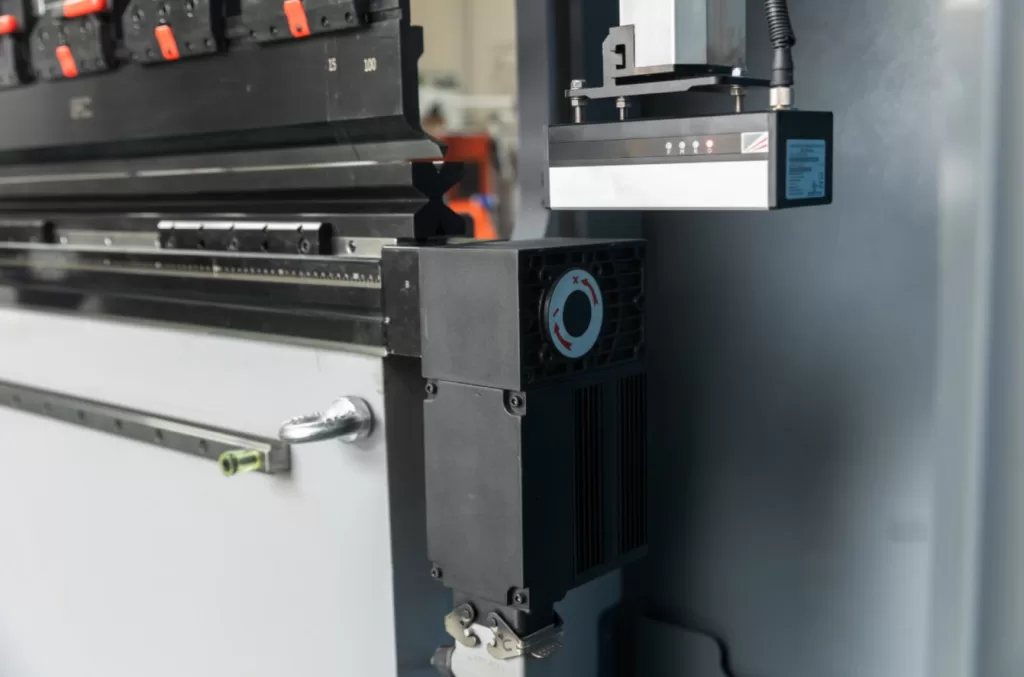

Electric Crowning System

100% Constant Bending Angle
60mm & 90mm European-style Molds
Electric Crown with Controller
Base can be clamped as well as single dies with 13 mm tang
Precise positioning and alignment of the crowning table
User-Friendly & Quick Operation

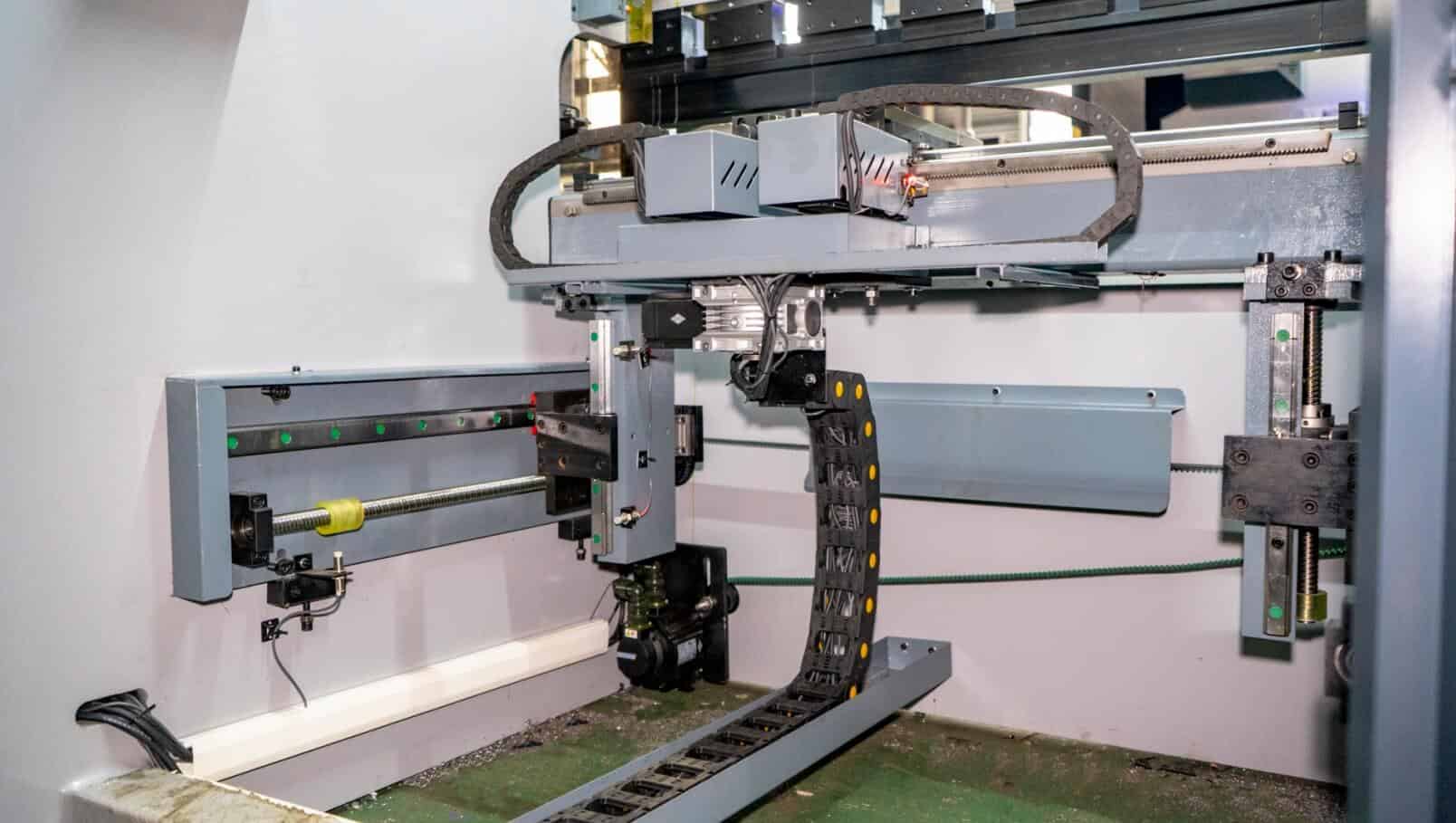

X-axis Guide Rail and Lead Screw

Independently designed high-precision back stop assembly, equipped with Japan’s original TSUBAKI HOOVER ball screw, high precision, fast speed, good stability.

positioning accuracy of 0.01mm.
Axis X speed 500 mm/s
Supports forward and backward movement of the X-axis and manual left and right movement of the Z-axis to adapt to a variety of different punches and workpiece needs.
Fingers with double stop and micrometric adjustment.

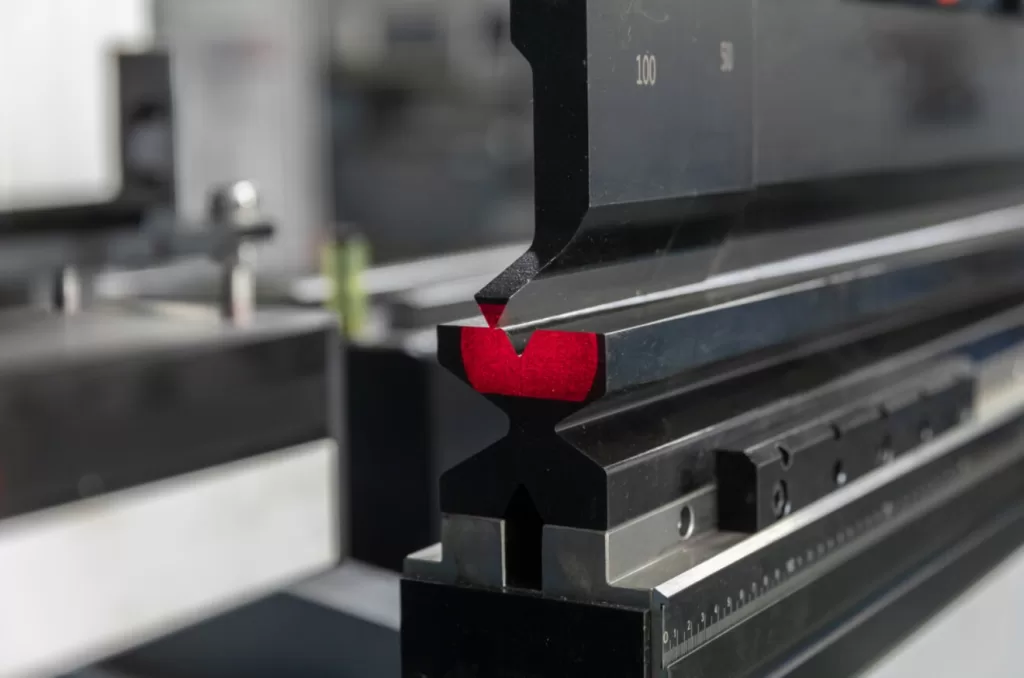

4V Die

The 4V mold is multifunctional,featuring four different V-shaped grooves that allow selection of the appropriate opening width based on bending thickness. The mold can also be used in conjunction with semicircular notches to meet various bending needs.

Strong multifunctionality,with one mold satisfying multiple bending requirements.
Reduces mold change frequency and improves production efficiency.

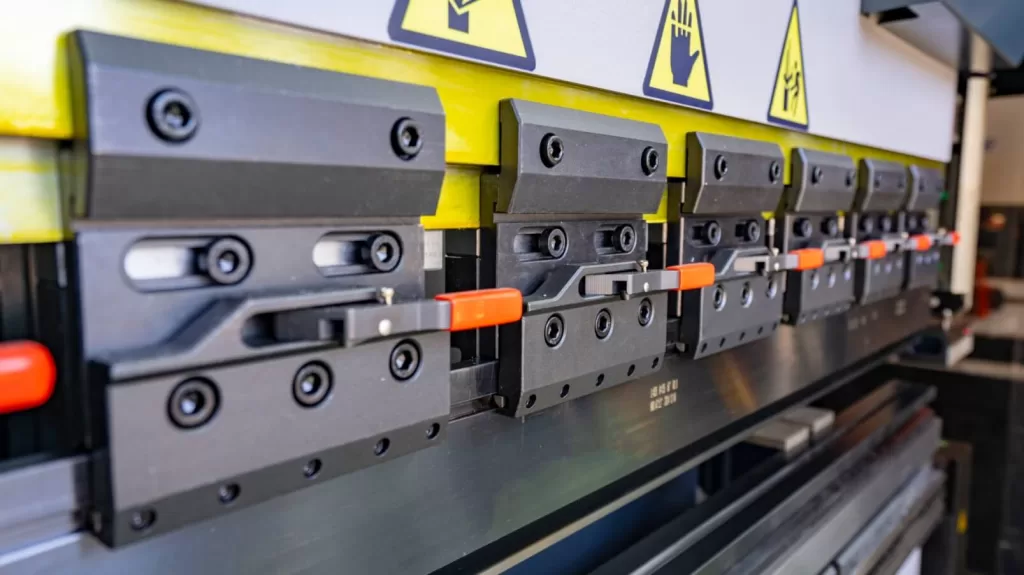

Fast Clamp

After heat treatment and blackening treatment, this fixture is convenient to disassemble and clamp the upper mold in small size.

Simple operation with reliable clamping.
Adapts to various mold types.
Enhances assembly line operation efficiency.
Reduces downtime and improves production continuity.

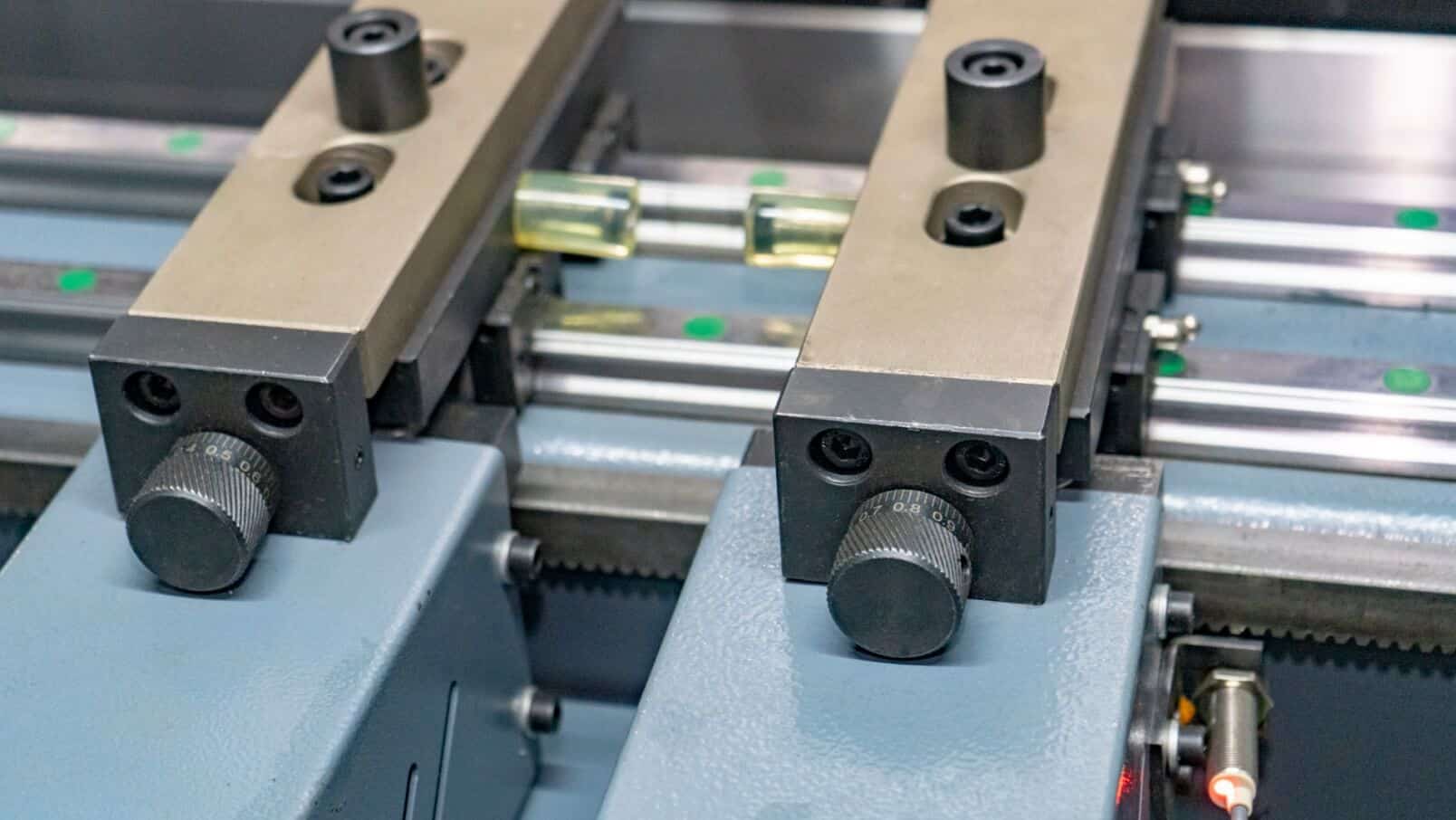

Finger Block

Multiple finger blocks,with point contact between each other, move smoothly on the linear guide rail, and can be adjusted up and down, which is convenient, efficient and easy to control.
During bending work, finger blocks frequently change positions as needed to
achieve bending of plates of different lengths and avoid the problem of insufficient straightness of the plate.

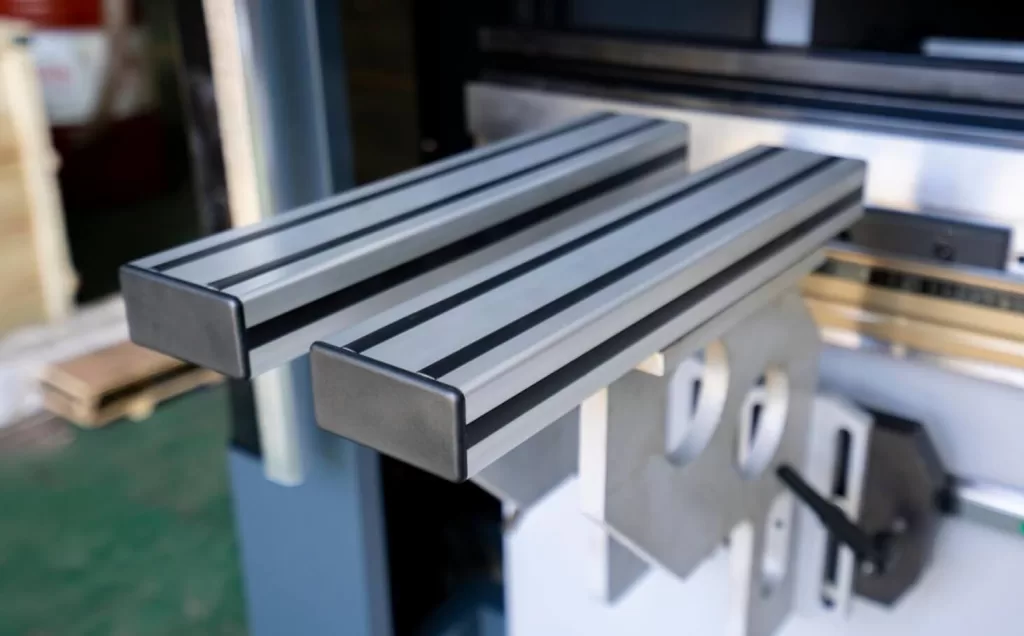

Front Plate Support

The front plate support has a movable design, movable front support, moves along a linear guide, can be docked at any position, and has rotation and height adjustment to assist your bending work (to accommodate different sizes and shapes of the work piece).

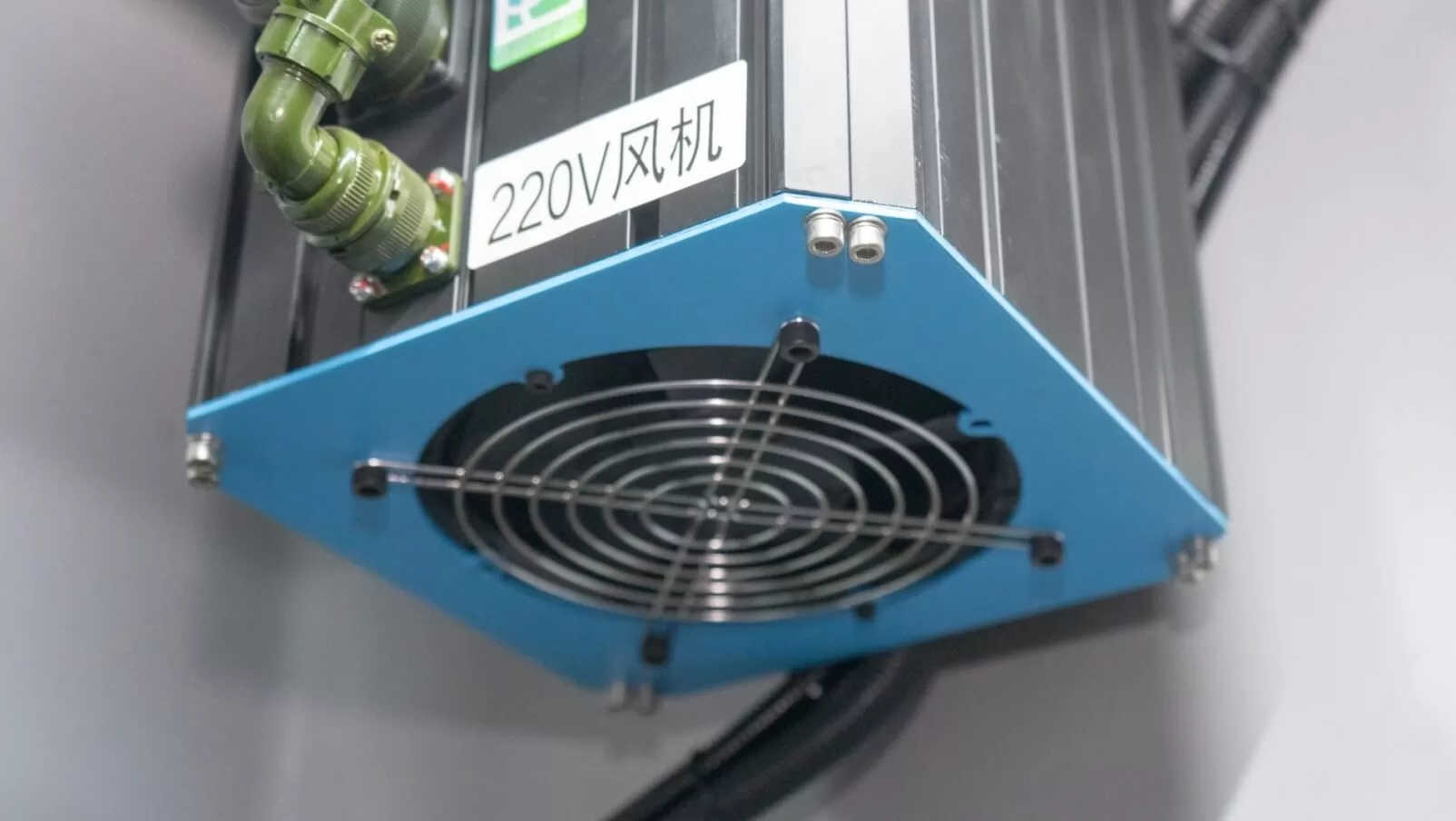

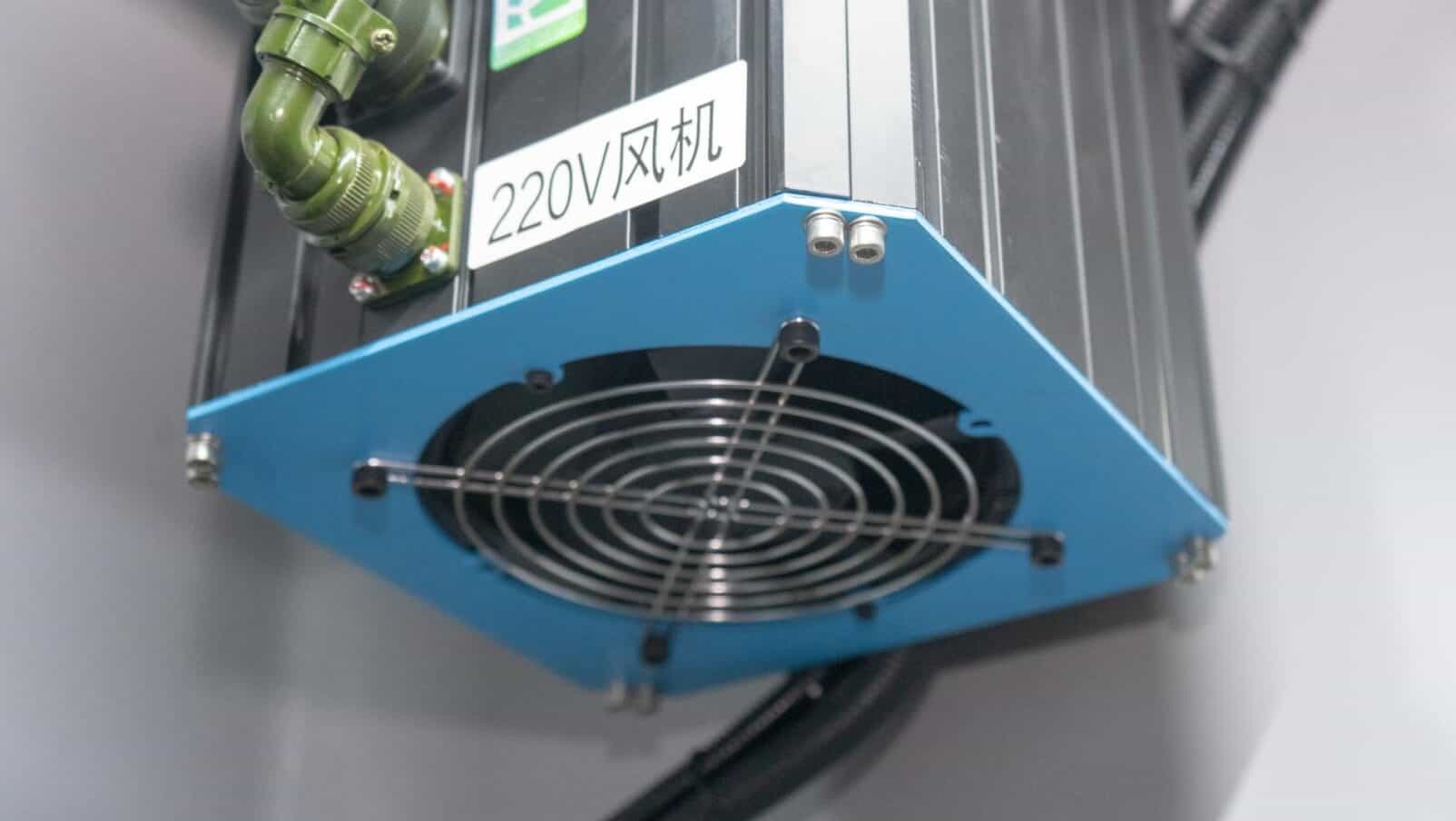

Japan Inovance Servo Motor

Raymax synchro electric press brake with the new Inovance servo motor, can effectively save 40% power, more energy saving and noise reduction. In addition, we offer customized solutions for machine power and voltage to meet specific local voltage requirements.

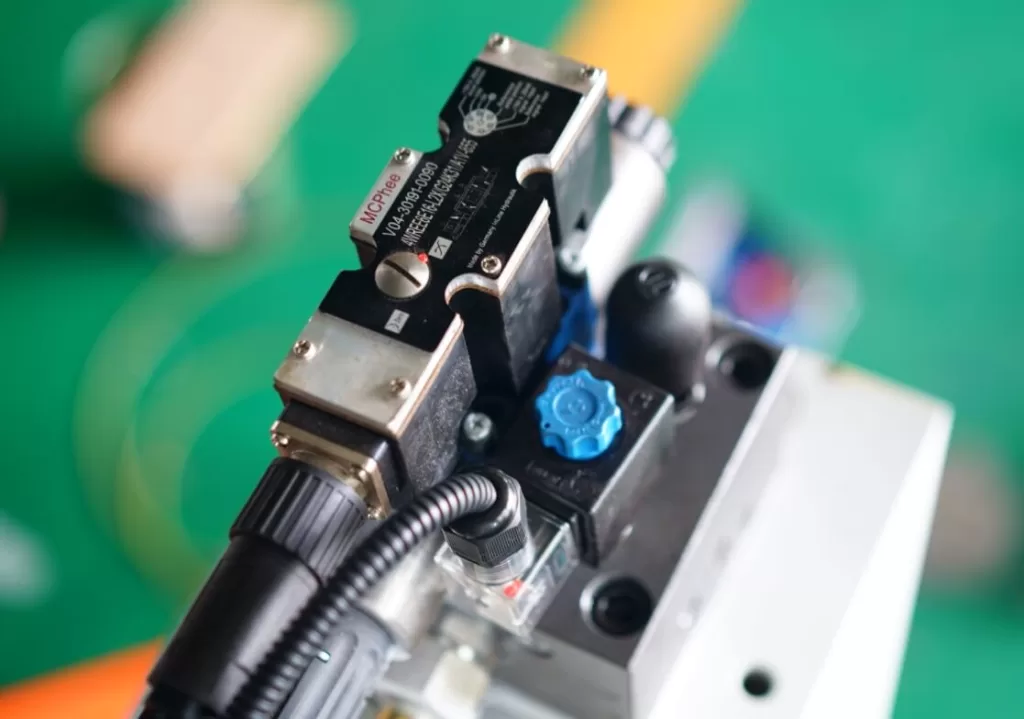

Germany Bosch Rexroth Hydraulic System

Using German Rexroth hydraulic system can reduce hydraulic oil leakage problems, hydraulic pressure can be adjusted according to actual needs to meet different bending force requirements

Energy-efficient and operates smoothly.
Durable hydraulic components suitable for long-term high-load work.
Provides stable pressure output. ensuring bending accuracy.

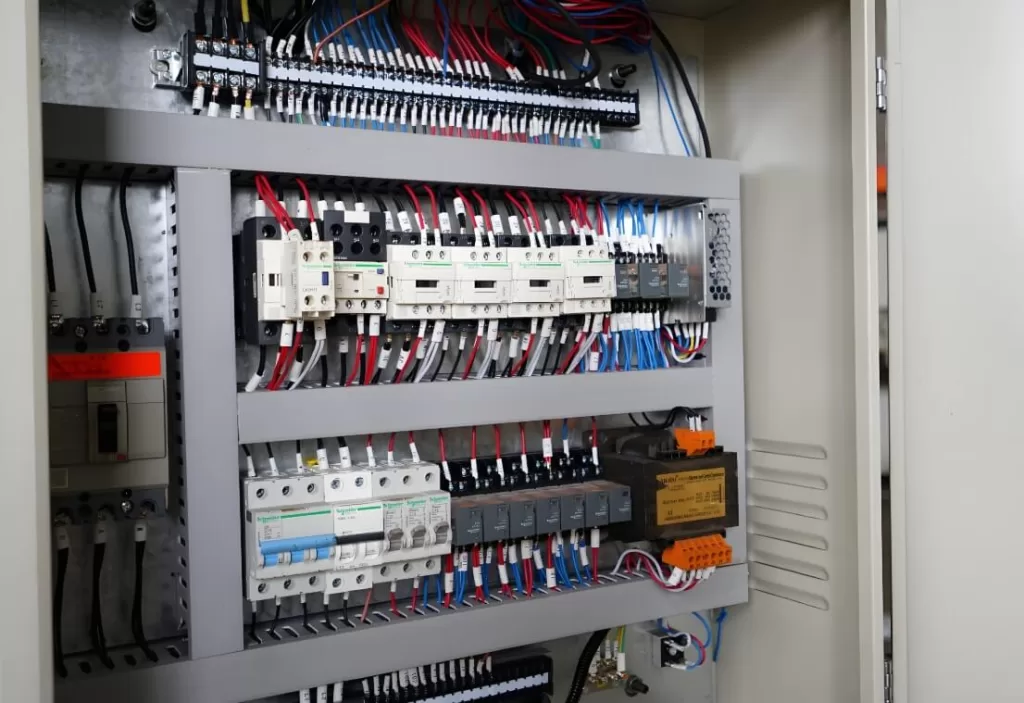

Schneider Electric

High-quality electrical components, rated at 24 V DC – 250 V AC and an average power of 5.1 KW at 50°C, can work in any harsh environment and perform well even under unstable power supply. And customers can easily get replacement parts anywhere in the world.

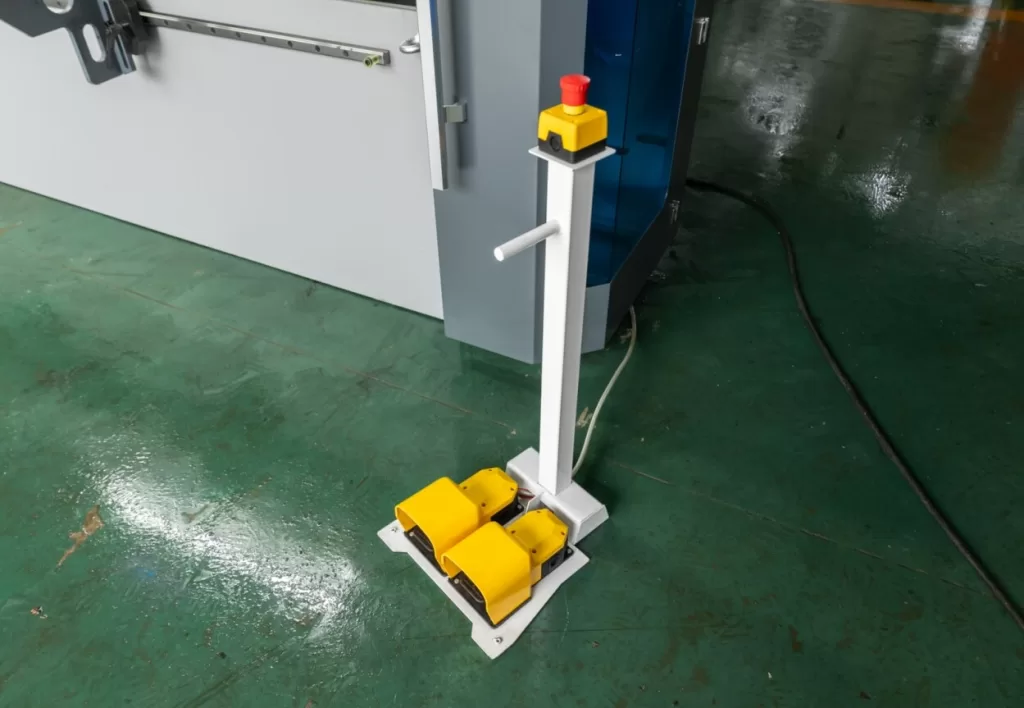

Italian PlZZATO Brand Foot Switches

Using the ltalian PlZZATO brand foot switch to start and stop the press brake. Operators can quickly stop the machine when needed, reducing the risk of work accidents and greatly improving operational safety.

Ergonomic design, easy and comfortable operation, reducing fatigue caused by long-term operation.
With high-level protection configuration, it effectively resists the intrusion of dust and liquids and is suitable for various harsh working environments.

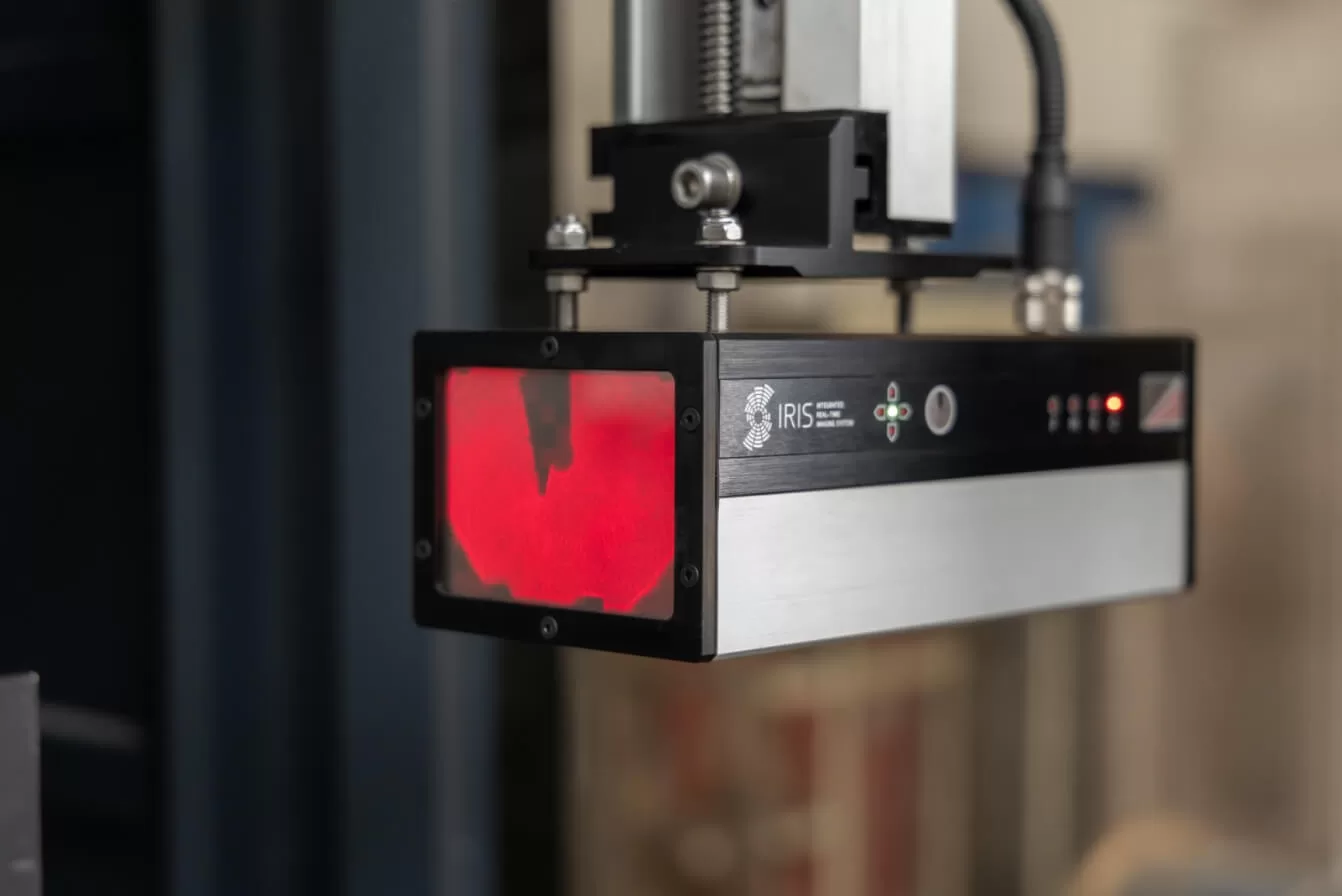

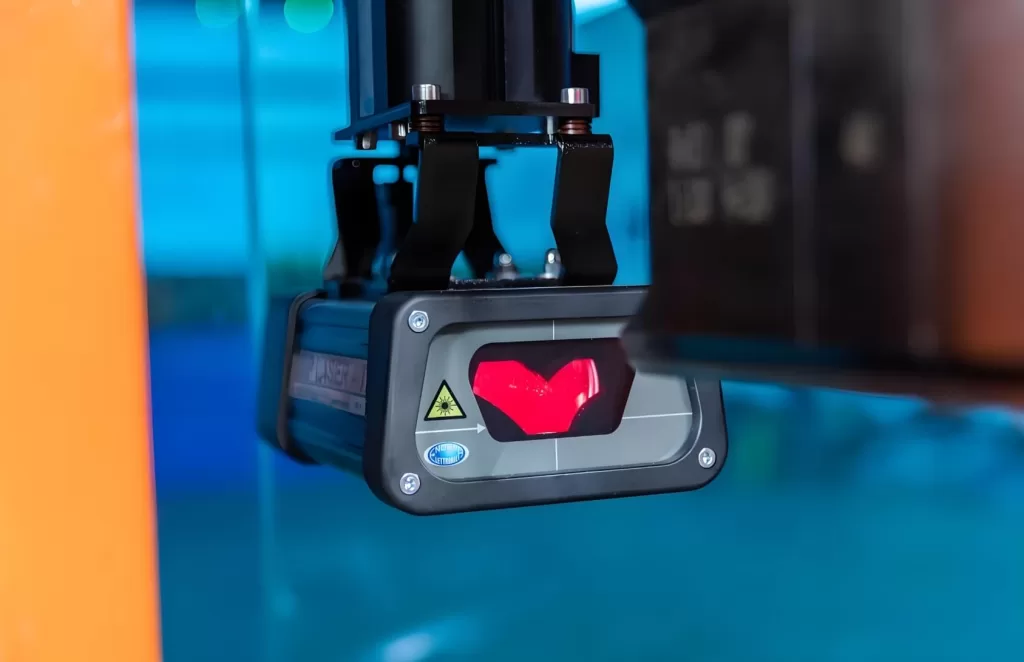

LazerSafe laser protection system

Equipped with LazerSafe laser protection system, it protects your press operator from all angles, reliably, safely and effectively!

High-precision laser scanning, covering all critical areas, forms an intelligent safety barrier around the bending die head.
Ensures in real time that any object must enter the safe range to reach the die tip.
When an obstacle (such as the operator’s finger) is detected entering the protection zone, the system immediately sends a signal and stops the slide to avoid any accidents.

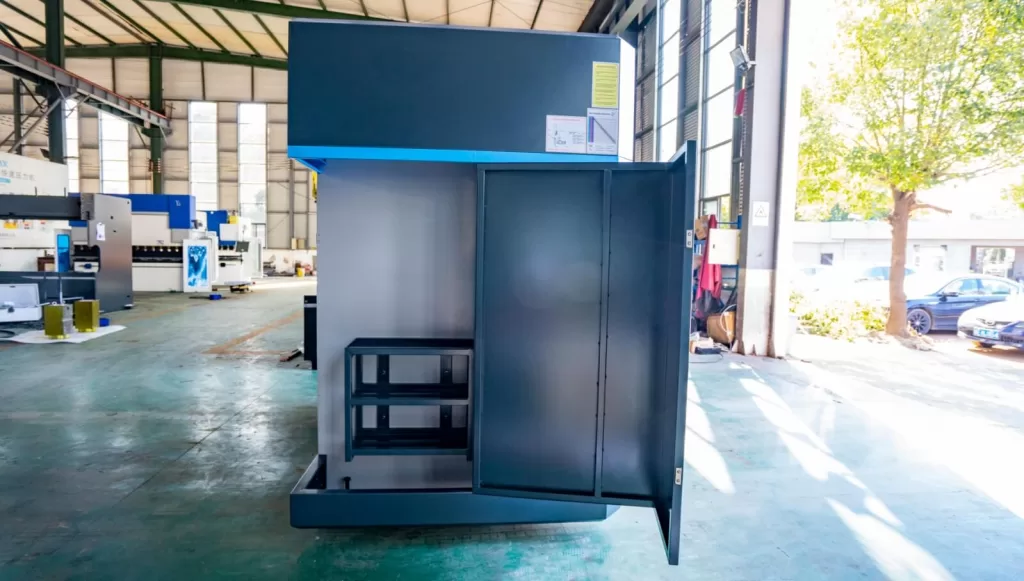

Enclosed Cabinet

The closed design improves the safety of the machine operation, effectively reduces the leakage of noise and dust, and improves the working environment. The tool box on the side can also be used to store various tools.

Warranty

30-DAY MONEY BACK GUARANTEE

At RAYMAX, we take pride in our products and believe you will be satisfied with your purchase. That’s why we offer a RAYMAX 30 money-back guarantee. Contact us today to purchase. lf you are not satisfied with your press brake, laser cutting or fiber laser welding machines, RAYMAX will refund the full amount of your purchase according to your original payment method, excluding any shipping costs, 15% item and accessory restocking fee (if any), and 25% model customization fee (if any). lf you choose to return the product, please fill out the online application form on any page, or contact our customer service by email. It only takes a few minutes to complete the return process quickly and easily. Click here for details
